Engineering Integrity in Welded Lock Valve Mounting Bases
Why zero-drift and burst-proof mounting assemblies dictate modern hydraulic system reliability, safety margins, and total life-cycle cost.
Structural Weld Integrity

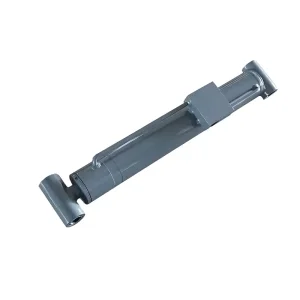

Welded lock valve mounting bases act as the direct physical bridge between the hydraulic actuator barrel and hydraulic counterbalance/dual pilot check valves. Under 350 to 500 bar operational pressure spikes, poor weld penetration causes microscopic structural deformation.
- Weld prep chamfering calibrated to cylinder wall thickness
- Automated circumferential & longitudinal seam welding
- Zero-porosity ultrasonic inspection verification
Port Geometry & Cavity Precision
Internal port routing connects the lock valve directly to the cylinder bore without intermediate flexible hoses. The internal fluid pathways must be precision gun-drilled, chamfered, and deburred to prevent micro-turbulences and high-velocity cavitation.
- Standard Sun / Eaton / Bosch Rexroth cavity machining
- Critical surface finishes held strictly under Ra 0.8 μm
- Thread tolerance execution conforming to ISO 6H / 2B
Hose-Burst Prevention
Mounting the check or counterbalance block directly onto the cylinder shell via our robust welded base creates an impenetrable hydraulic locking safety perimeter, completely nullifying catastrophic drop hazards if external rubber lines fail.
- Direct-flange mounting eliminating hose-whip failure
- Response speed below 15ms under load destabilization
- Certified compliance with ISO 4413 machinery safety
Worldwide Deployment & Duty-Cycle Environments
From underground mines in Australia to high-lift telehandlers in Europe, explore how our welded lock valve mounting bases fulfill demanding regional operations.
Underground Mining & LHD
Abrasive quartz dust, confined drifts, and shock loading during ore loading. Bases are machined from low-alloy high-strength forged steel (Q355D / 42CrMo4) to withstand continuous impact cycles.
Heavy Construction Cranes
Telescopic luffing and boom deployment demand zero-drift load stabilization for personnel and heavy cargo handling. Direct-weld bases support integrated dual counterbalance blocks without creep.
Precision Agriculture
Reversible plough turnover and header adjustment require compact, weather-sealed manifold interfaces that resist agrochemical fertilizers, humidity, and rapid thermal cycling in broad-acre fields.
Aerial Work Platforms
Ensures fail-safe boom extension and jib positioning under strict EN 280 and ANSI/SAIA A92 standards, keeping basket personnel safe through immediate hydraulic fluid isolation.
Standardized Quality Assurance Matrix
Every welded lock valve mounting base manufactured at MPM undergoes multi-stage CMM inspections, pressure proof testing, and chemical composition validation.
| Technical Metric | Standard Specification | MPM Factory Benchmark | Test Methodology |
|---|---|---|---|
| Base Material Options | Carbon Steel Q235B / 1045 | Forged Q355D, 42CrMo4, SS316L, 6061-T6 | Spectrometer chemical analysis per heat lot |
| Cavity Tolerance & Geometry | ISO 7789 Standard Cavity | Metric & Imperial cavities, concentricity ≤0.01mm | 3D Coordinate Measuring Machine (CMM) |
| Working & Proof Pressure | 210 – 350 Bar | Tested to 500 Bar (1.5x nominal safety factor) | Dedicated hydraulic oil hydrostatic test stand |
| Sealing Surface Finish | Ra 1.6 μm | Ra 0.4 – 0.8 μm super-finishing | Contact stylus surface roughness profilometer |
| Weld Transition Prep | Standard straight edge | Precision CNC chamfered radius for barrel contouring | Visual & dye-penetrant / magnetic particle NDT |
Future Trends in Smart Hydraulic Manifold Bases
Where fluid power meets sensor integration and decarbonized electro-hydraulic architecture.
IoT Sensorized Smart Manifolds
Integrating wireless micro-transducers directly into the valve block base for real-time monitoring of fluid temperature, pressure drop, and seal deterioration before failure occurs.
Additive CFD Flow Optimization
Transitioning from intersecting orthogonal cross-drilling to 3D printed internal curved fluid paths, slashing turbulent flow loss by up to 28% for energy-efficient electric excavators.
Eco-Friendly Lightweight Alloys
Utilizing high-tensile lightweight alloys treated with composite nickel-phosphorus chemical plating to achieve marine-grade C5M corrosion resistance with 35% lower payload weight.
Engineering Questions & Procurement FAQ
In-depth responses covering lock valve base integration, metallurgical selection, welding practices, and overseas logistics support.
Why is direct welding of a lock valve mounting base superior to external hydraulic line connections?
Welding the lock valve base directly to the hydraulic cylinder tube eliminates hydraulic hoses and pipe fittings between the actuator chamber and the safety valve. In the event of external hose rupture caused by physical impact or thermal fatigue, the hydraulic fluid within the cylinder remains positively locked by the direct-mounted counterbalance or check valve. This prevents free fall of booms, arms, or suspended loads. Furthermore, direct manifold welding eliminates multiple leak points, reduces parasitic pressure drop, and produces a far more compact machine envelope.
How does MPM prevent cylinder barrel distortion during base welding?
Welding thermal cycles can warp the inner bore of finished honed tubes. To avoid ovalization, MPM employs a strictly controlled sequence: mounting bases are welded either prior to final honing or using specialized CNC semi-automatic pulsed gas metal arc welding (GMAW/TIG) fixtures with water-cooled internal mandrels. Pre-heating, balanced multi-pass symmetrical welding, and post-weld stress relieving ensure minimal residual stress and keep inner bore cylindricity strictly within H8/H9 tolerances.
Which valve cartridge cavity configurations can MPM machine into the mounting base?
Our CNC machining centers are equipped with precision form reamers and single-point tooling to execute all primary international industry standards. This includes Sun Hydraulics cavities (T-11A, T-2A, T-17A, etc.), standard SAE/ISO screw-in cartridge cavities (VC08, VC10, VC12, VC16), and customized multi-port cavities for integrated dual lock check assemblies, thermal relief valves, and pilot control ports in metric or imperial configurations.
What surface treatments and anti-corrosion methods are applied to exported bases?
Depending on application environments, we offer zinc phosphating, black oxide treatment, electroless nickel plating (ENP), and multi-coat epoxy primer coatings. For marine or offshore applications, blocks can be machined from solid stainless steel (316L) or duplex alloys with zinc-nickel electroplating that surpasses 720 hours of ASTM B117 neutral salt spray testing.
How does MPM provide localized technical support and engineering validation for global OEMs?
Our sales engineering division operates with dedicated bilingual engineers providing technical drawing reviews (SolidWorks, AutoCAD, STEP files) within 24 hours. We offer sample reverse engineering, prototyping lead times under 15 working days, full material test reports (MTR), and dimensional verification records before serial production. Export shipments are cushioned, moisture-sealed with VCI anti-rust films, and crated in fumigated plywood cases for global maritime and air freight.
