Wholesale Precision Tool Vice MPM00286 Manufacturer, Factory

1 / 1

Wholesale Precision Tool Vice MPM00286 Manufacturer, Factory

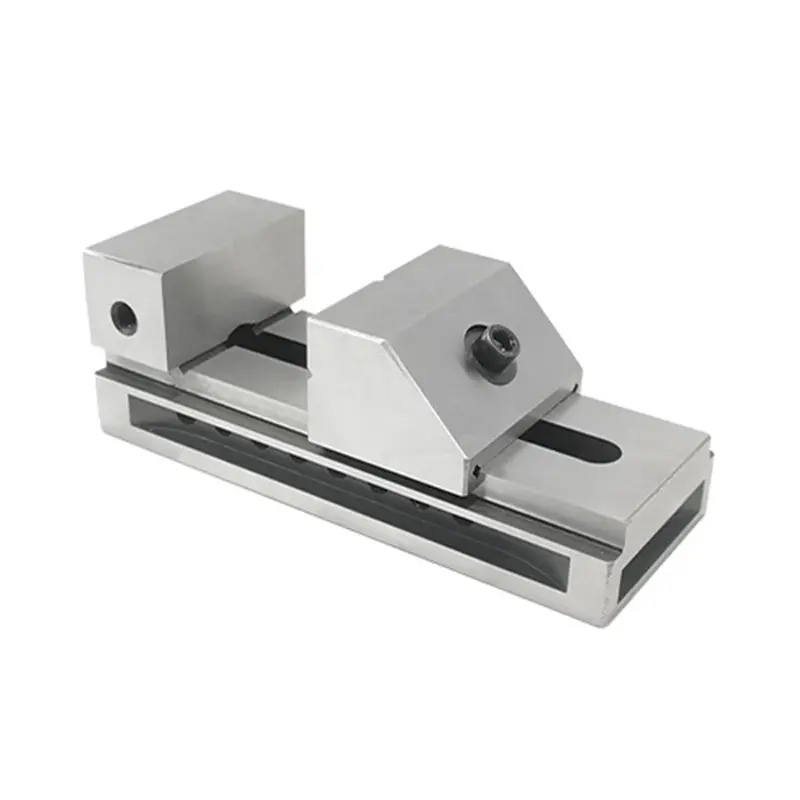

Precision tool vice, also referred to as a precision tool vise, is a kind of high-precision fixture for machine tool processing. It is categorized into manual vice, hydraulic and pneumatic vice and electric vice, extensively utilized in processing for mold manufacturing, automobile manufacturing and electronic equipment manufacturing etc.

Send Inquiry

Product Description

Description

Made of high-quality alloy steel with carburizing treatment.

Surface working hardness HRC58-62.

The exceptional stability in wear resistance ensures effective maintenance of accuracy during use.

High-precision grinding machine processing technology, dust-free assembly environment, with parallelism between the two sides, the plane on the guide rail, and the ground measuring less than 0.002mm.

Features

1. High precision

2. Strong clamping force

3. Excellent stability

4. Convenient operation

Specification

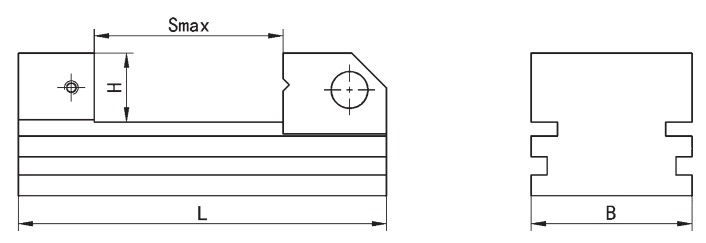

-	B	H	S	L
Item No.	Jaw Width (mm)	Jaw Depth (mm)	Max. Opening (mm)	Over Length (mm)
28600110	34	15	25	75
28600120	45	20	50	110
28600130	70	30	80	160
28600140	90	40	120	210
28600150	120	40	150	280

Application

1. Mechanical processing industry

The vise is widely used in various CNC machine tools, machining centers, etc. In processes such as milling, drilling, tapping, and turning, it is used to fix precision parts.

2. Automobile manufacture industry

During the processing of engine components and the assembly of parts, larger metal parts can be fixed to ensure the accuracy of processing and assembly.

3. Aerospace industry

It is used for processing aircraft structural components, aero engine parts, etc., to ensure the high-precision positioning and clamping of high-demand parts.

4. Mould making industry

In the processing of mold holes and cavities, fix the mold material to ensure the processing accuracy of the hole position, size and cavity.

5. Electronic and electrical industry

In circuit board processing and electronic component assembly, it is used to fix circuit boards and tiny electronic components, ensuring the accuracy of processing and assembly.

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following CNC tools services to global customers for decades.

1. Business Type: OEM & ODM Manufacturer

2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.

3. Customization: Accepting customization if a certain quantity is reached

4. QC System: ISO9001: 2008

5. Our Advantages:

1). Reliable Quality

2). Competitive Price

3). High precision, high quality, tight tolerance

4). Continuous Improvement

5). Defect-Free Products

6). On-Time Delivery

7). Customer Satisfaction

8). Excellent After-Sales Service

Frequently Asked Questions (FAQ)

What material is used for the precision tool vice?

The tool vice is manufactured from high-quality alloy steel with a carburizing heat treatment, reaching a surface working hardness of HRC58-62 for long-lasting wear resistance and durability.

What is the machining accuracy and parallelism tolerance?

Processed using high-precision grinding machines in a dust-free assembly environment, the parallelism between the two sides, the plane on the guide rail, and the ground surface measures less than 0.002mm.

Do you support custom OEM or ODM orders?

Yes, Qingdao Micro Precision Machinery Co., Ltd. is an OEM & ODM manufacturer, offering custom solutions when the order reaches a specific minimum quantity.

What design drawing file formats can I send for quotation?

We support multiple 2D and 3D drawing formats including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, and X_T.

What quality standards are followed during manufacturing?

Our manufacturing and quality inspection processes comply with the ISO9001: 2008 Quality Management System, ensuring defect-free products and consistent tight tolerances.
