ZQ83 Single And Double Action Vise Wholesale Precision CNC Milling Machine Clamping Tools Direct Manufacturer Supplier Factory

Product Description

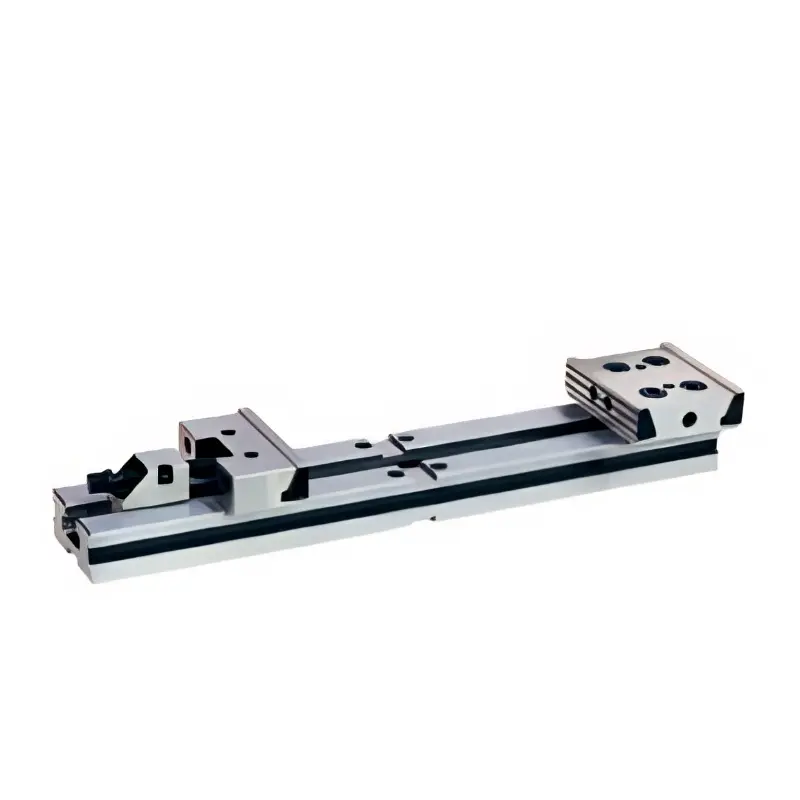

ZQ83 Single & Double Vise shares a similar structure with the ZQ80 Vise, comprising components such as a fixed vise body, a movable vise body, a lead screw, and a positioning device, among others. In function, it boasts its own advantages as below:

1) High Precision

The use of high-quality materials and advanced manufacturing processes ensures the high precision and stability of the flat jaw pliers.

2) Large Opening

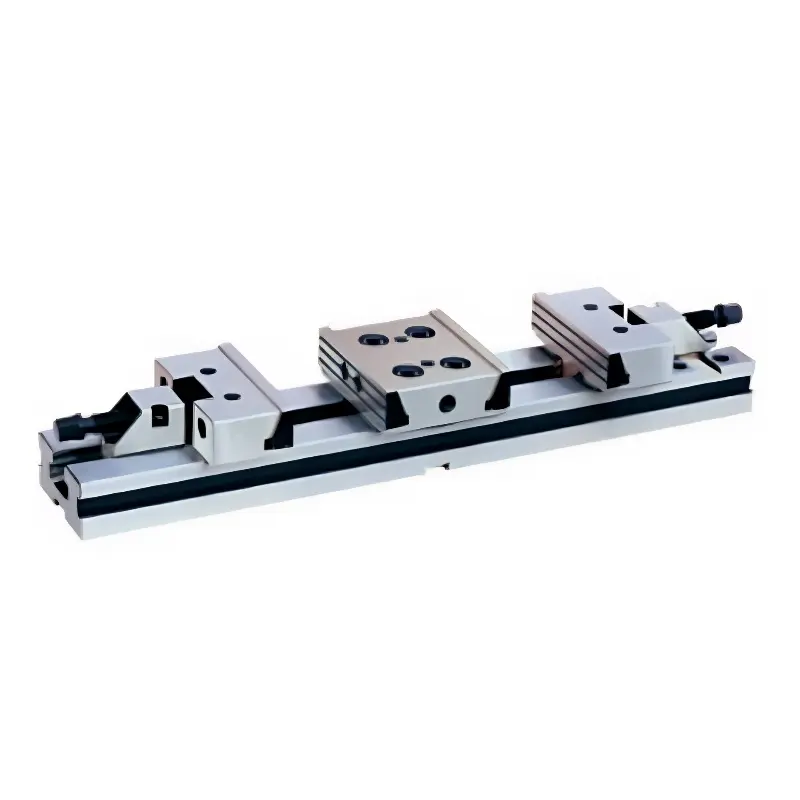

It can hold workpieces in both directions or in one direction. Bidirectional holding provides two positioning references for the jaws, allowing multiple workpieces to be held simultaneously to reduce positioning errors.

3) High Cost Performance

The price is relatively low with high cost performance, making it highly suitable for various processing applications.

Material: High-quality alloy steel, hardness of working surface: HRC58-62
Parallelism: 0.005mm/100mm | Perpendicularity: 0.005mm

Key Features

✓ 1. Flexible clamping method
✓ 2. High positioning accuracy
✓ 3. Compact and concise structure
✓ 4. Sturdy and durable construction

Technical Specifications

Jaw Width: Typically ranges between 100mm and 200mm
Jaw Height: Usually between 30mm and 65mm

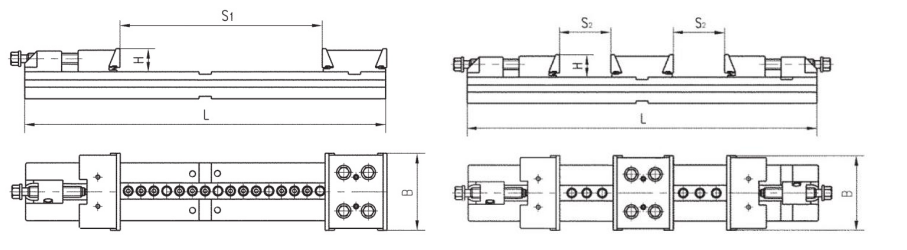

Model No. (Single Action)	S1 (mm)	Model No. (Double Action)	S2 (mm)	B (mm)	H (mm)	L (mm)
ZQ83100	290	ZQ83100-2	2X90	100	30	460
ZQ83125	320	ZQ83125-2	2X100	125	40	520
ZQ83150	360	ZQ83150-2	2X110	150	50	580
ZQ83150A	460	ZQ83150A-2	2X160	150	50	680
ZQ83175	400	ZQ83175-2	2X120	175	60	666
ZQ83175A	500	ZQ83175A-2	2X170	175	60	766
ZQ83175B	600	ZQ83175B-2	2X220	175	60	866
ZQ83175C	700	ZQ83175C-2	2X270	175	60	966
ZQ83200	500	ZQ83200-2	2X150	200	65	805
ZQ83200A	600	ZQ83200A-2	2X200	200	65	905
ZQ83200B	700	ZQ83200B-2	2X250	200	65	1105
ZQ83200C	800	ZQ83200C-2	2X300	200	65	1105
ZQ83200D	900	ZQ83200D-2	2X350	200	65	1205

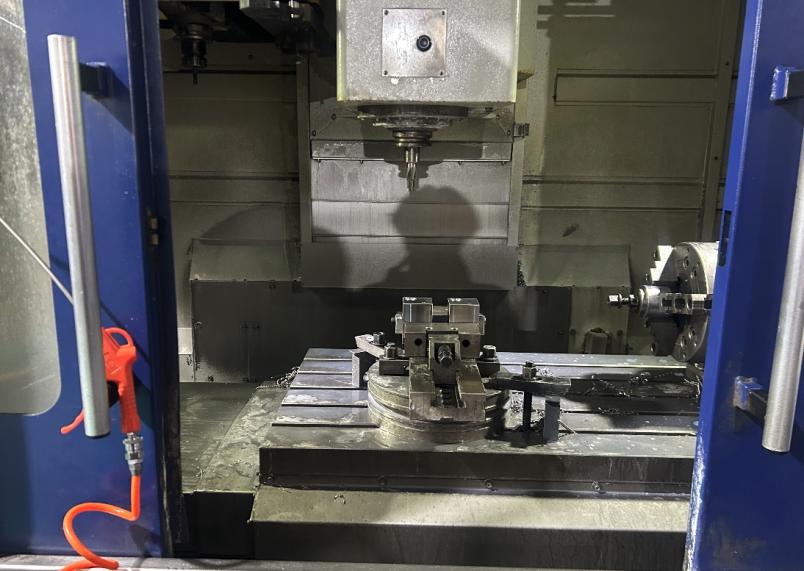

Applications

▸ 1. Milling machine processing
▸ 2. Drilling machine processing
▸ 3. Grinding machine processing
▸ 4. Fitter assembly
▸ 5. Processing of small parts

Manufacturing & Services

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following CNC tools services to global customers for decades:

1. Business Type: OEM & ODM Manufacturer

2. Supported Drawing Formats: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.

3. Customization: Available upon reaching minimum order quantities

4. Quality Management System: ISO9001: 2008 Certified

Our Core Advantages:

● 1) Reliable Quality
● 2) Competitive Price
● 3) High precision, tight tolerance
● 4) Continuous Improvement
● 5) Defect-Free Products
● 6) On-Time Delivery
● 7) Customer Satisfaction
● 8) Excellent After-Sales Service

Frequently Asked Questions (FAQ)

Q1: What is the main difference between single-action and double-action ZQ83 vises?

A: Single-action models hold workpieces in one direction, while double-action models feature bidirectional holding (two positioning references) to clamp multiple parts simultaneously, reducing positioning errors.

Q2: What material and hardness specifications are used for the ZQ83 series?

A: The vise is crafted from high-quality alloy steel, with working surface hardness treated to HRC58-62 for high wear resistance and durability.

Q3: What precision standards can this vise maintain during operation?

A: The ZQ83 series offers high precision with a parallelism of 0.005mm per 100mm and perpendicularity maintained within 0.005mm.

Q4: Can custom sizes or designs be manufactured?

A: Yes, OEM and ODM manufacturing services are supported. Custom products can be developed based on your technical drawings if standard minimum order requirements are met.

Q5: Which machining equipment is compatible with this vise?

A: The ZQ83 is widely used across CNC milling machines, drilling machines, precision surface grinders, and general workbench fitting tasks.
