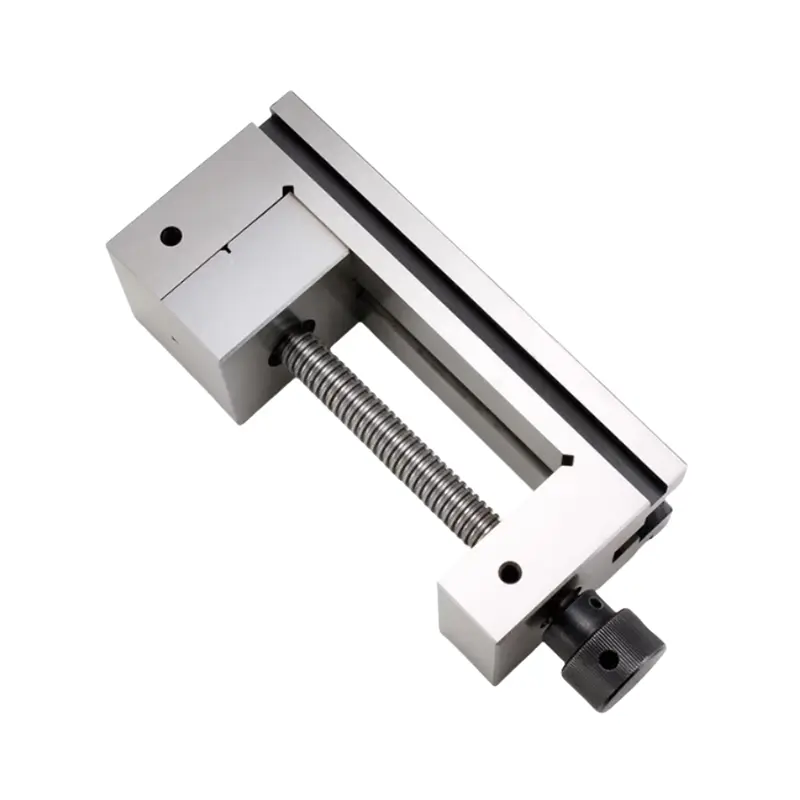

Best QGG Precision Tool Vice MPM00330 Suppliers, Manufacturers
Product Description
Description
Material: Constructed from premium alloy steel undergoing carburization, achieving a flat hardness of HRC58-62.

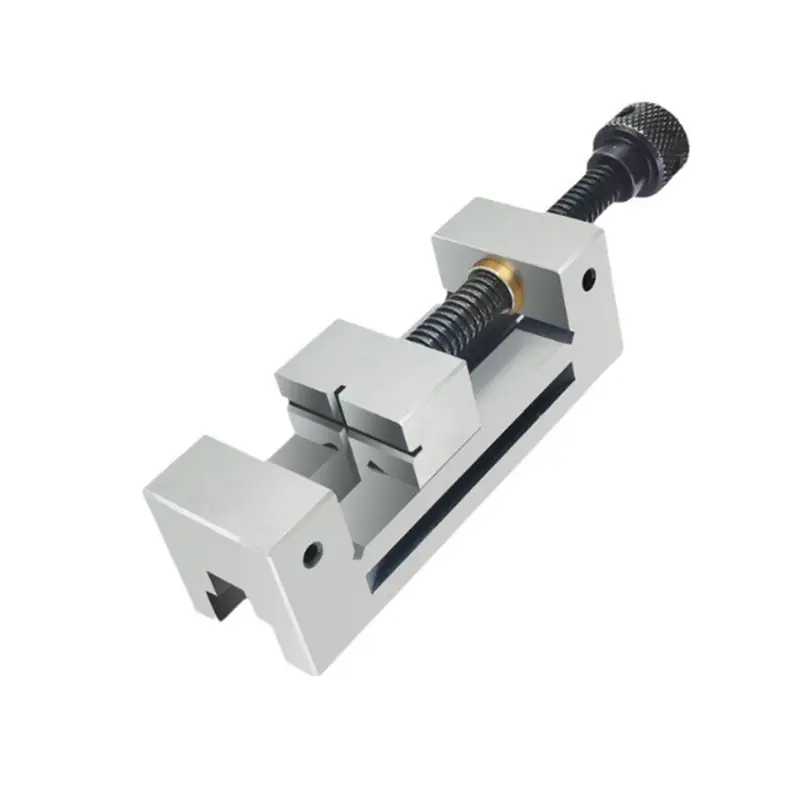

Structure design:
- The jaws are usually designed with cross-shaped V-grooves, which can better fit the workpiece, increase friction and clamping stability, and prevent the workpiece from sliding during the processing.
- Screw rods are generally hardened and thickened, and then turned to ensure smooth rotation and durability, and can provide sufficient clamping forced.
- Guide rail, its surface precisely ground, ensures smooth movement of the jaws, guaranteeing the accuracy and repeatability of the clamping.
Features
- Parallelism is reached at 0.005mm per 100mm, with verticality precision of 0.005mm.
- Rapid clamping, simple and flexible operation.
- Consistently maintains high precision regardless of being balanced, upright, or flat during use.

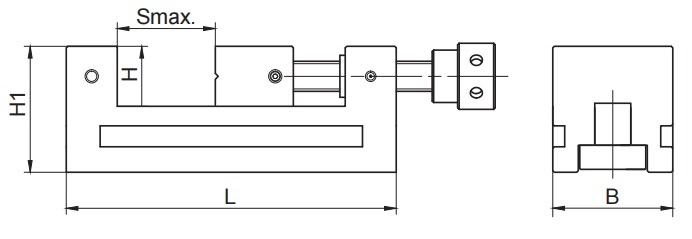

Specification
| Model No | B (mm) | H (mm) | H1 (mm) | Smax (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| QGG50 | 50 | 25 | 50 | 65 | 155 | 3.0 |
| QGG60 | 60 | 25 | 50 | 55 | 110 | 2.4 |
| QGG63 | 63 | 32 | 65 | 85 | 190 | 3.8 |
| QGG73 | 73 | 35 | 74 | 100 | 210 | 5.0 |
| QGG80 | 80 | 40 | 84 | 100 | 220 | 6.5 |
| QGG88 | 88 | 40 | 88 | 125 | 250 | 11.0 |
| QGG100 | 100 | 45 | 95 | 125 | 260 | 13.0 |
| QGG125 | 125 | 50 | 110 | 160 | 300 | 19.5 |
| QGG12A | 125 | 50 | 110 | 210 | 350 | 23.0 |
| QGG150 | 150 | 50 | 110 | 175 | 315 | 23.8 |
Product Video
Application
1. Mechanical processing industry
It is used for clamping workpieces of various shapes and sizes, such as shafts, discs, blocks and other workpieces, providing stable clamping for processing techniques such as turning, milling and grinding.
2. Mould making industry
During the processing of molds, it can be used to clamp molds and other parts, ensuring the processing accuracy and quality of the molds.
3. Precision measurement
The workpiece can be firmly clamped onto the measuring platform, facilitating precise measurement with measuring tools and ensuring the accuracy of the measurement results.
Service
Qingdao Micro Precision Machinery Co., Ltd. has been providing the following CNC tools services to global customers for decades.
1. Business Type: OEM & ODM Manufacturer
2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.
3. Customization: Accepting customization if a certain quantity is reached
4. QC System: ISO9001: 2008
5. Our Advantages:
Reliable Quality
Competitive Price
High precision, high quality, tight tolerance
Continuous Improvement
Defect-Free Products
On-Time Delivery
Customer Satisfaction
Excellent After-Sales Service
Frequently Asked Questions
What is the hardness level of this precision vise?
The vise is made from premium alloy steel with carburization, reaching a surface hardness rating of HRC58-62.
What are the precision standards for parallelism and verticality?
The parallelism is controlled within 0.005mm per 100mm, and the verticality precision reaches 0.005mm.
Can this vise be operated in different positions?
Yes, it consistently maintains high clamping precision regardless of whether it is positioned upright, flat, or balanced.
Do you support OEM/ODM manufacturing and custom orders?
Yes, we provide full OEM & ODM manufacturing services and accept customization once the order reaches minimum quantity requirements.
Which CAD and drawing file formats are accepted?
We accept a wide range of formats including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, and X_T.
What quality management certifications do you hold?
Our manufacturing processes and quality management adhere strictly to the ISO9001: 2008 quality management standard.
