Custom Precision Modular Vice MPM003360 Manufacturers, Factories

1 / 2

Custom Precision Modular Vice MPM003360 Manufacturers, Factories

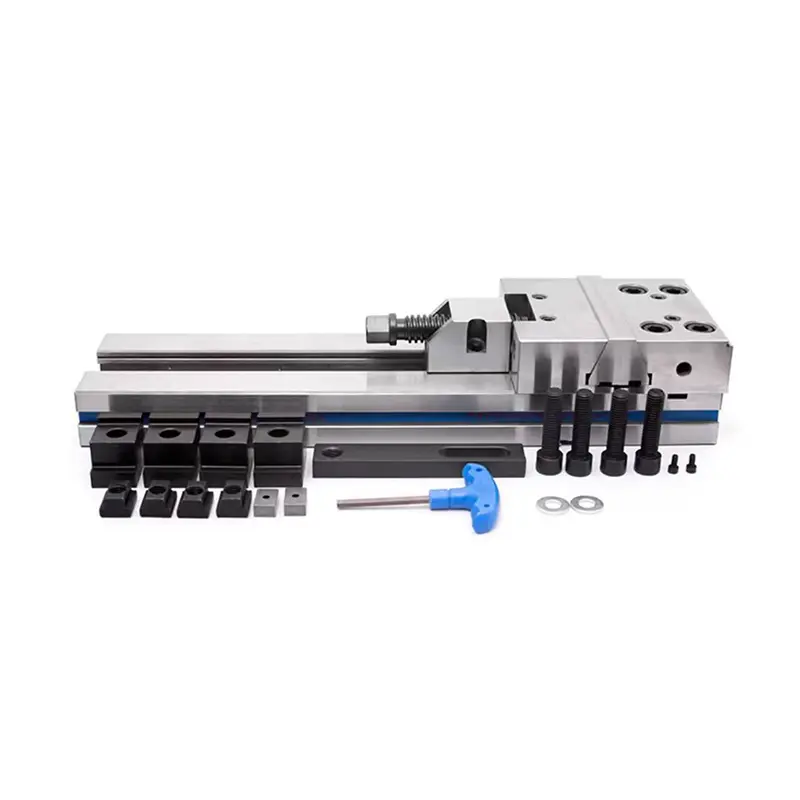

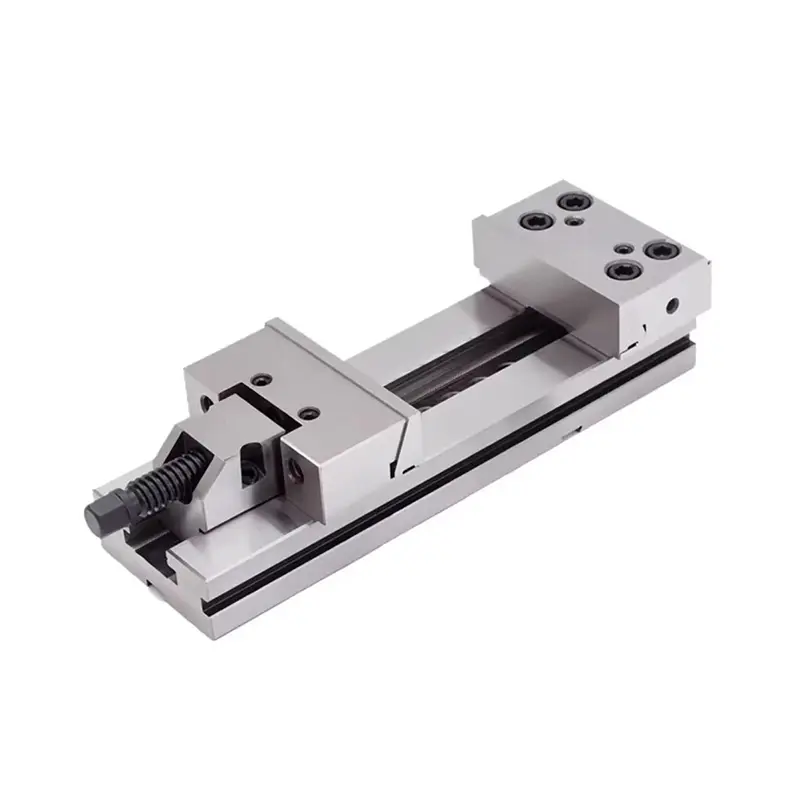

Precision modular Vice, also known as precision modular vise, is a kind of fixture widely used in precision machine tools such as machining centers, which is mainly used for clamping workpieces. It is composed of fixed vise body, moving vise body, lead screw, nuts and other parts, with high positioning accuracy and repeated positioning accuracy.

Send Inquiry

Product Description

Description

Made of high-quality alloy steel with carburizing treatment.
Surface working hardness HRC58-62.
Parallelism of 0.005mm/100mm, perpendicularity of 0.005mm.
With a detachable base.
The fixed jaw and movable jaw provide quick clamping and convenient operation.

Features

The jaws are precision machinined, the indices of flatness, parallelism, and verticality achieve high levels, thereby guaranteeing the positional accuracy of the workpiece once clamped.

Specification

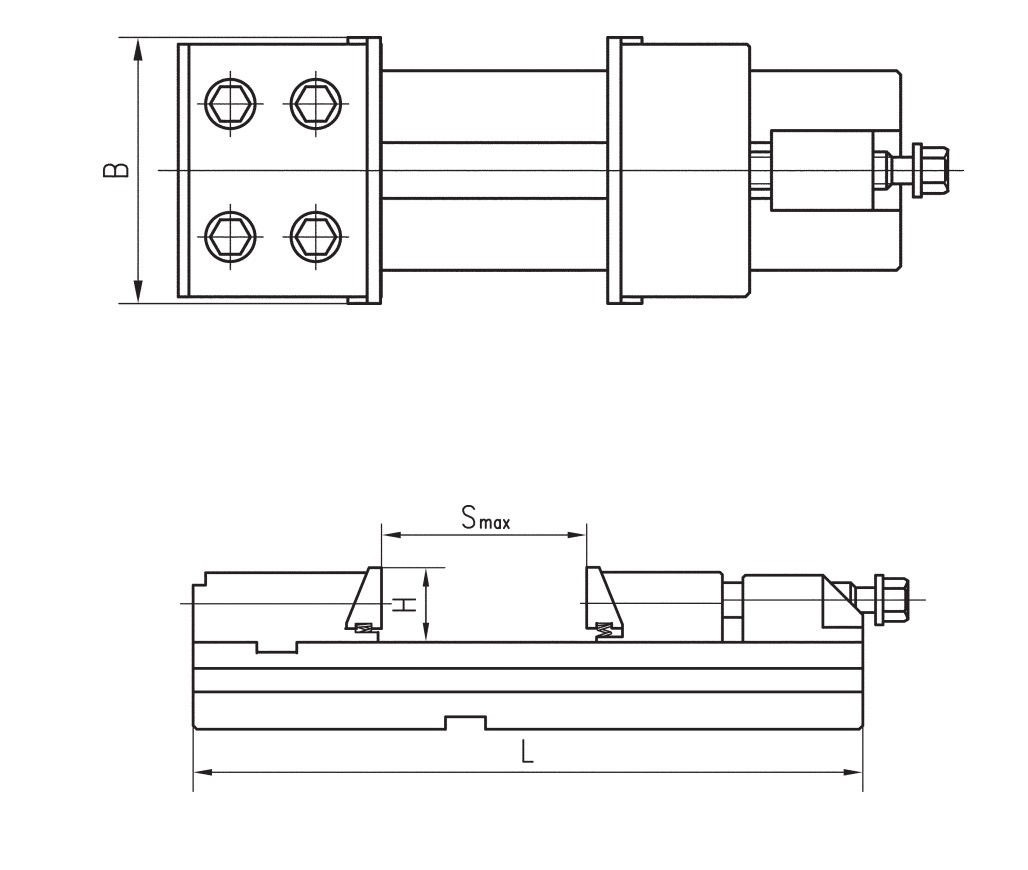

Item No	B mm	H mm	Smax mm	L mm	Clamping force
GT100-I	100	30	100	270	3000
GT125-I	125	40	150	345	3000
GT150A-I	150	50	200	420	5000
GT150B-I	150	50	300	520	5000
GT150C-I	150	50	400	620	5000
GT175A-I	175	60	200	455	6000
GT175B-I	175	60	300	555	6000
GT175C-I	175	60	400	655	6000
GT175D-I	175	60	500	755	6000
GT175E-I	175	60	600	855	6000
GT200A-I	200	65	200	495	10000
GT200B-I	200	65	300	595	10000
GT200C-I	200	65	400	695	10000
GT200D-I	200	65	500	795	10000
GT200E-I	200	65	600	895	10000
GT300A-I	300	80	200	535	12000
GT300B-I	300	80	300	635	12000
GT300C-I	300	80	400	735	12000
GT300D-I	300	80	500	835	12000
GT300E-I	300	80	600	935	12000
GT300F-I	300	80	700	1035	12000
GT300G-I	300	80	800	1135	12000

Application

1. Mechanical processing industry

The vise is widely used in various CNC machine tools, machining centers, etc. In processes such as milling, drilling, tapping, and turning, it is used to fix precision parts.

2. Automobile manufacture industry

During the processing of engine components and the assembly of parts, larger metal parts can be fixed to ensure the accuracy of processing and assembly.

3. Aerospace industry

It is used for processing aircraft structural components, aero engine parts, etc., to ensure the high-precision positioning and clamping of high-demand parts.

4. Mould making industry

In the processing of mold holes and cavities, fix the mold material to ensure the processing accuracy of the hole position, size and cavity.

5. Electronic and electrical industry

In circuit board processing and electronic component assembly, it is used to fix circuit boards and tiny electronic components, ensuring the accuracy of processing and assembly.

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following CNC tools services to global customers for decades.

1. Business Type: OEM & ODM Manufacturer
2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.
3. Customization: Accepting customization if a certain quantity is reached
4. QC System: ISO9001: 2008

5. Our Advantages:

Reliable Quality

Competitive Price

High Precision & Tolerance

Continuous Improvement

Defect-Free Products

On-Time Delivery

Customer Satisfaction

Excellent After-Sales Service

Frequently Asked Questions

What is the surface hardness and material of this precision modular vise?

The vise is made from high-quality alloy steel processed with carburizing heat treatment, delivering a working surface hardness of HRC58-62 for exceptional wear resistance and longevity.

What accuracy standards are achieved in parallelism and perpendicularity?

Our precision modular vise maintains a parallelism accuracy of 0.005mm/100mm and a perpendicularity tolerance of 0.005mm, ensuring maximum stability and repeatable positioning for high-precision CNC operations.

Which CAD and design drawing formats do you accept for custom orders?

We support virtually all industry-standard drawing formats including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, and more.

Do you offer OEM and custom manufacturing services?

Yes, we provide full OEM and ODM services. Custom dimensional specifications and modified features are supported once minimum order quantity requirements are met.

What industrial machinery is this modular vise best suited for?

It is broadly applied across CNC milling machines, vertical and horizontal machining centers, drilling, tapping, and precision grinding operations requiring firm, vibration-free clamping.
