OEM CHM Precision Universal Vise MPM0356 Suppliers, Manufacturers

1 / 2

OEM CHM Precision Universal Vise MPM0356 Suppliers, Manufacturers

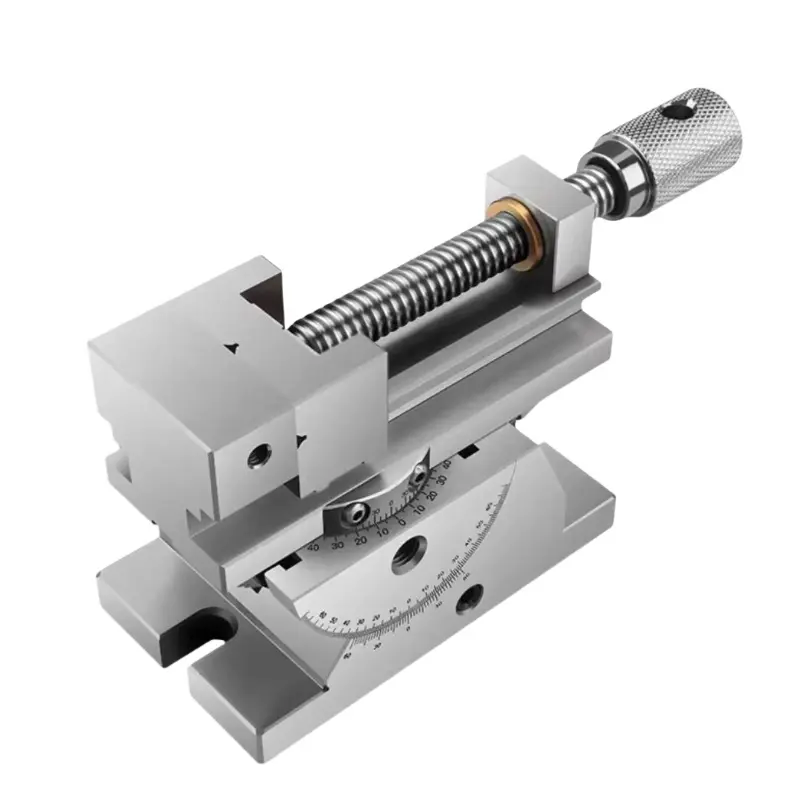

CHM precision univeral vise, also known as precision universal vice, is an important machine tool accessory in CNC machines. It achieves angle adjustment through a graduated dial, with specific advantages such as flexible angle adjustment and high precision.

Send Inquiry

Product Description

Description

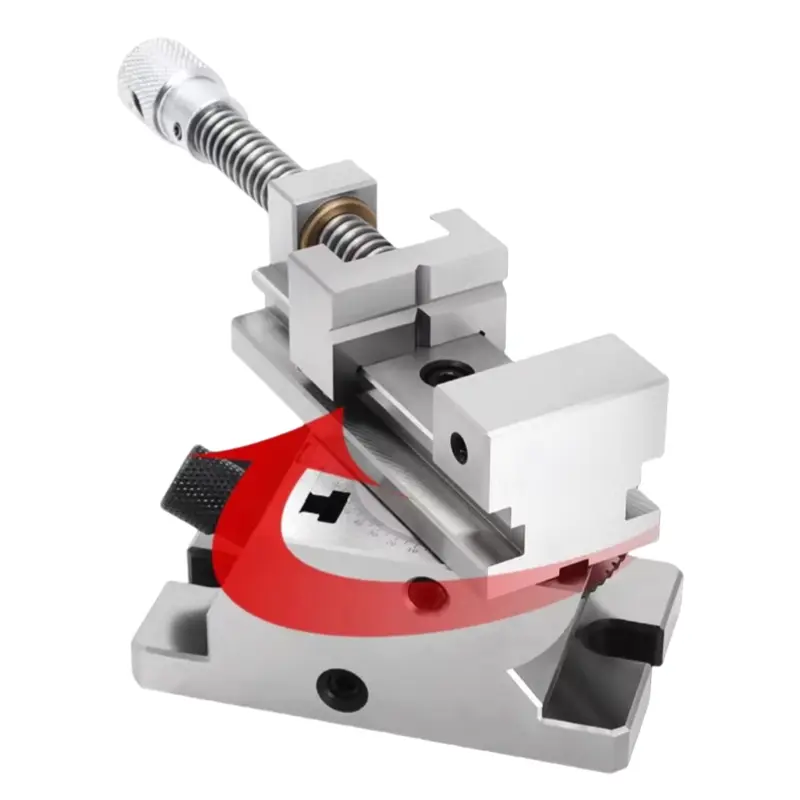

CHM precision universal Vise is made of two parts: vise body and swivel base, with the help of dial dial, it can rotate within a 360° range at the horizontal plane, tilt 45° on the vertical plane. It can be used for precision grinding machine, milling machine, etc. for flat, inclined and inclined a certain Angle of the inclined hole processing.

Common specifications include CHM50, CHM80, CHM120 etc., different models vary in jaw width, jaw height, maximum opening, overall dimensions and other aspects.

Features

1. Flexible angle adjustment

It can fulfill the processing needs of a variety angle.

2. High Precision

The scale is accurate, the parallelism can reach 100 mm /0.005 mm, the verticality can reach 100 mm /0.005 mm, suitable for precision machining.

3. Excellent material

Generally made of high-quality alloy steel or tool steel, strong tensile resistance, not easy to deformation.

4. Convenient operation

Angle adjustment is simple, by loosening or locking the corresponding screws, rotation Angle fine-tuning and rotation screws can achieve Angle adjustment.

Parameter

Model No	Jaw Width (mm)	Jaw Depth (mm)	Max. Opening (mm)	Outside Size (mm)
CHM50	50	25	70	180×72×122
CHM80	80	30	80	195×110×137
CHM120	120	40	155	400×180×210

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following CNC tools services to global customers for decades.

1. Business Type: OEM & ODM Manufacturer
2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.
3. Customization: Accepting customization if a certain quantity is reached
4. QC System: ISO9001: 2008

5. Our Advantages:

Reliable Quality

Competitive Price

High precision, high quality, tight tolerance

Continuous Improvement

Defect-Free Products

On-Time Delivery

Customer Satisfaction

Excellent After-Sales Service

Frequently Asked Questions (FAQ)

What is the angle adjustment capability of the CHM universal vise?

The vise can rotate 360° horizontally with the graduated swivel base and tilt up to 45° vertically, allowing multi-angle precision machining.

What machines are compatible with the CHM precision universal vise?

It is primarily designed for precision surface grinders, milling machines, EDM machines, and drill presses for processing flat, inclined, or angled surfaces and holes.

What level of machining precision does this vise provide?

The CHM series achieves high accuracy with both parallelism and perpendicularity held within 100 mm / 0.005 mm.

Do you accept OEM or customized orders?

Yes, OEM and ODM manufacturing services are supported. Custom production can be arranged when minimum order quantities are met.

Which technical drawing formats can you process?

We support major industry formats including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, and X_T.

What quality management standard is followed during production?

Manufacturing processes and product inspection comply with the ISO9001: 2008 quality management certification.
