High-Quality ZQ80 Precision Horizontal Vertical Vise Supplier, Factory
Product Description
Description

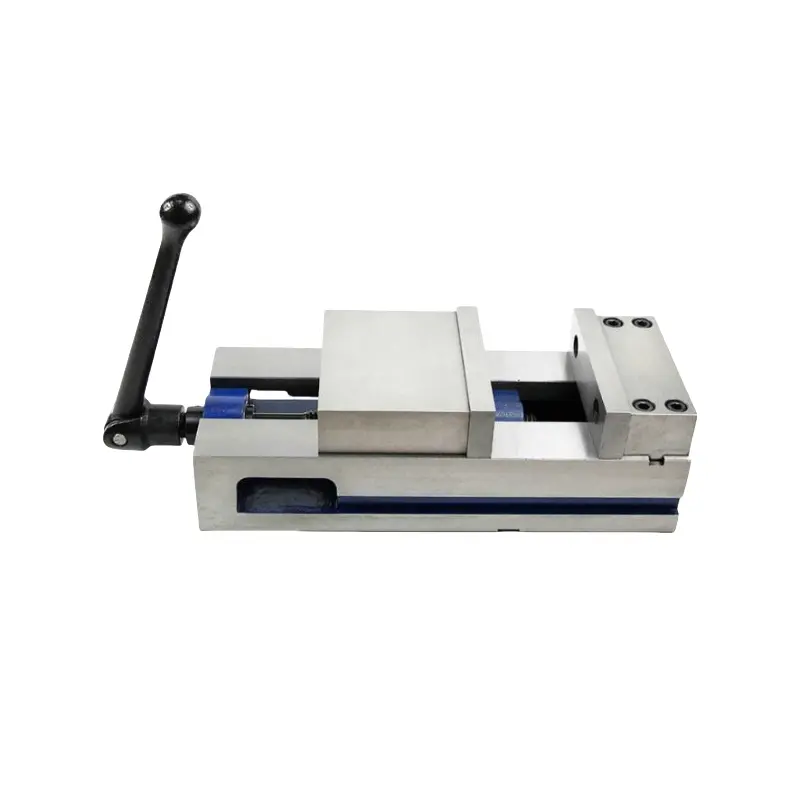

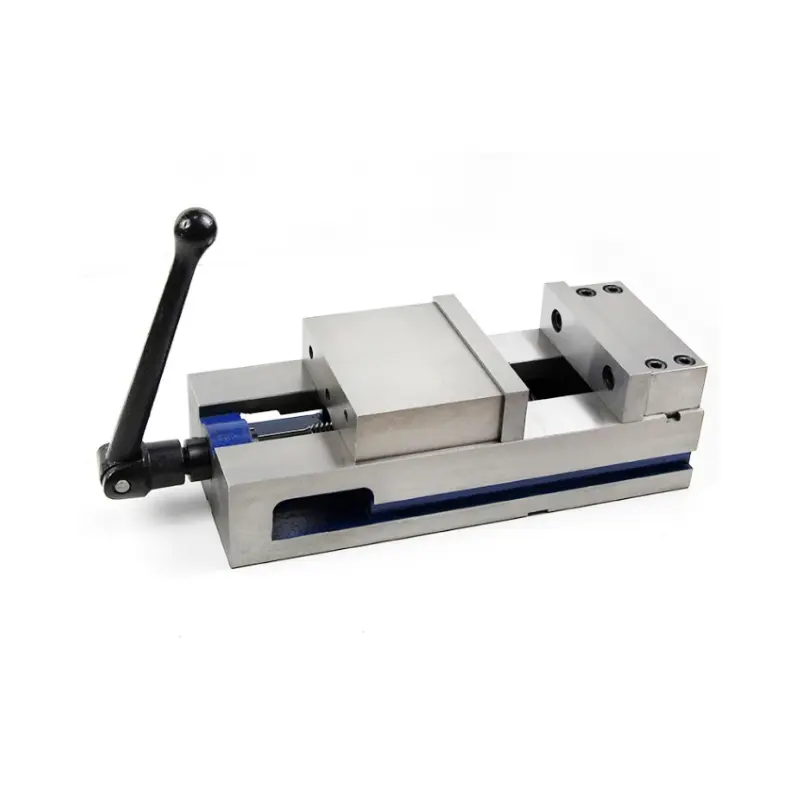

ZQ80 Precision Horizontal Vertical Vise is widely used in machining centers, CNC milling machines, boring machines, grinding machines and other machine tools.
Material: High-quality alloy steel, hardness of working force: HRC58-62
Precision Standard: Parallelism: 0.005mm/100mm, Perpendicularity: 0.005mm
Features
1. High precision
2. Superior material
3. Functional diversity
4. Reasonable jaw design
5. Convenient operation
Specification
The width of the jaws typically ranges between 100 and 200mm
The height is usually between 30 to 65mm

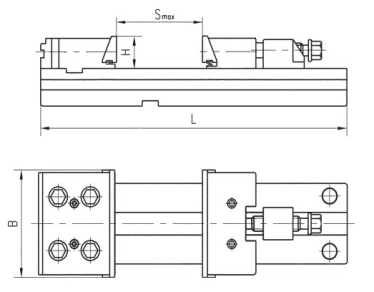

| Model No | B (mm) | H (mm) | Smax (mm) | L (mm) |
|---|---|---|---|---|
| ZQ80100 | 100 | 30 | 100 | 270 |
| ZQ80125 | 120 | 40 | 150 | 345 |
| ZQ80150 | 150 | 50 | 200 | 420 |
| ZQ80150A | 150 | 50 | 300 | 520 |
| ZQ80175 | 175 | 60 | 200 | 455 |
| ZQ80175A | 175 | 60 | 300 | 555 |
| ZQ80175B | 175 | 60 | 400 | 655 |
| ZQ80175C | 175 | 60 | 500 | 755 |
| ZQ80200 | 200 | 65 | 200 | 495 |
| ZQ80200A | 200 | 65 | 300 | 595 |
| ZQ80200B | 200 | 65 | 400 | 695 |
| ZQ80200C | 200 | 65 | 500 | 795 |
| ZQ80200D | 200 | 65 | 600 | 895 |

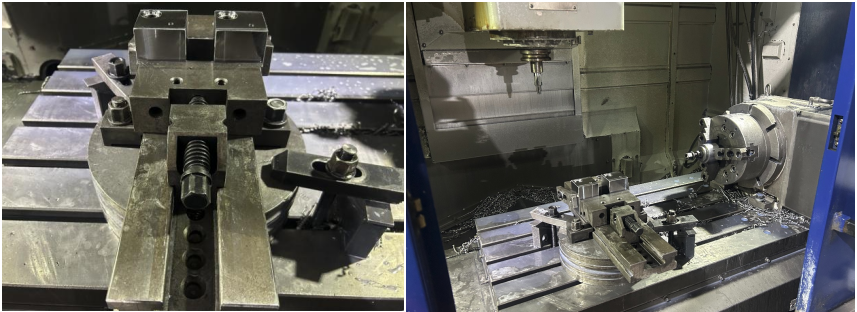

Application
1. Milling machine processing
The workpiece is firmly clamped to ensure stability during the milling of planes, grooves, gears, and other parts, preventing any shifting and ensuring processing accuracy.
2. Drilling machine processing
When drilling diverse types of holes, it ensures stable fixation of the workpiece, mitigating shaking during the drilling process and enhancing the verticality and positional precision of the drilling.
3. Grinding machine processing
For workpieces demanding high-precision grinding, including surface and cylindrical grinding, this vise offers stable support and positioning, ensuring the grinding surface achieves the required flatness and smoothness.
Service
Qingdao Micro Precision Machinery Co., Ltd. has been providing the following CNC tools services to global customers for decades.
- 1. Business Type: OEM & ODM Manufacturer
- 2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.
- 3. Customization: Accepting customization if a certain quantity is reached
- 4. QC System: ISO9001: 2008
5. Our Advantages:
1). Reliable Quality
2). Competitive Price
3). High precision, high quality, tight tolerance
4). Continuous Improvement
5). Defect-Free Products
6). On-Time Delivery
7). Customer Satisfaction
8). Excellent After-Sales Service
Frequently Asked Questions (FAQ)
What machines are compatible with the ZQ80 Precision Vise?
The ZQ80 vise is widely compatible with machining centers, CNC milling machines, boring machines, grinding machines, and various other industrial machine tools.
What is the manufacturing material and hardness of this vise?
It is made of high-quality alloy steel, with working surfaces heat-treated to achieve a hardness rating of HRC58-62 for long-lasting durability.
What are the precision standards for parallelism and perpendicularity?
The ZQ80 delivers high precision with a parallelism tolerance of 0.005mm per 100mm and a perpendicularity tolerance of 0.005mm.
Can custom sizes or OEM specifications be ordered?
Yes, as an OEM & ODM manufacturer, customized solutions can be provided once a required order quantity is met.
Which drawing file formats are accepted for technical reviews?
We support common industry design formats including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, and more.
What quality control standards are followed during production?
Manufacturing processes strictly adhere to the ISO9001: 2008 Quality Management System to guarantee defect-free products and tight tolerances.
