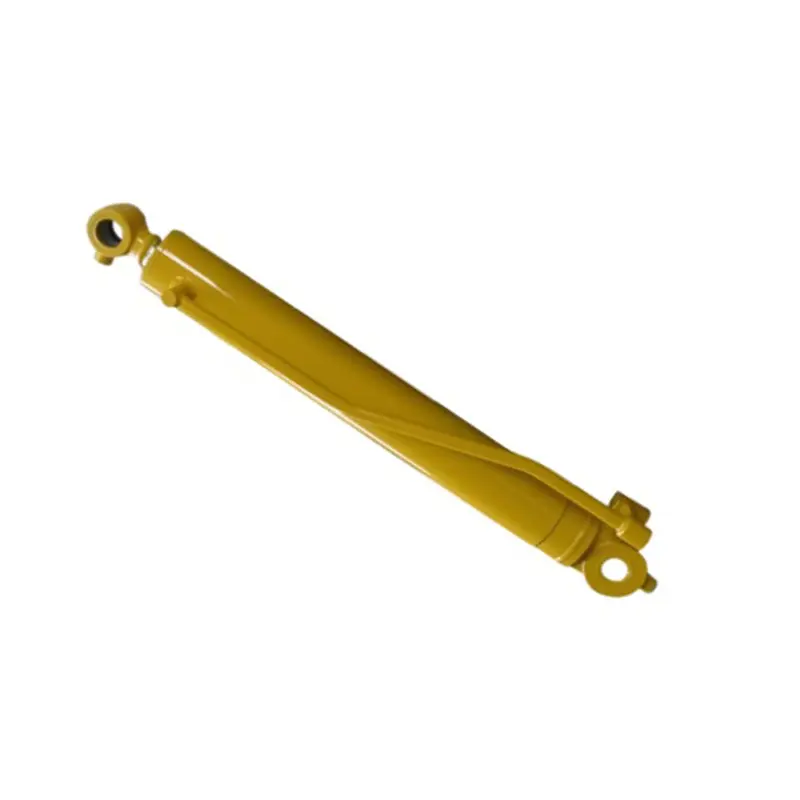

Best Stick Cylinder MPM-HCS301 for Excavator and Loader Manufacturer, Factories
Product Description
Description
- Working pressure: 20-35MPa (conventional model), peak pressure can reach 40MPa (customizable for special needs)
- Working temperature: -30℃ ~ +80℃, low temperature model is available for -40℃ environment.
- High-strength structure: The cylinder is made of chrome-molybdenum alloy steel, which is cold-drawn and honed to be resistant to high pressure and deformation. The piston rod surface is hard chrome-plated and polished to adapt to harsh environments such as sand, gravel, and slag.
- Applicable tonnage: medium to large hydraulic excavators ranging from 5 tons to 50 tons.

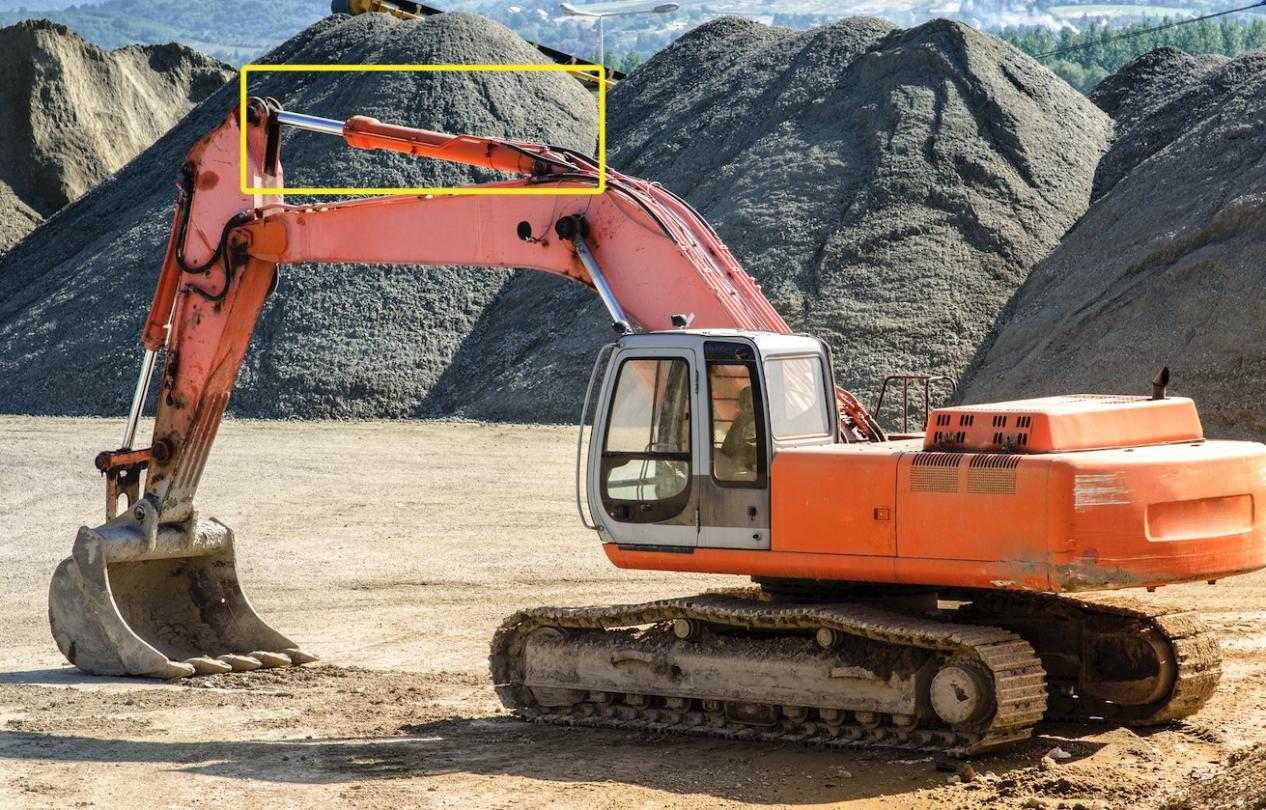

- Application scope: Stick cylinders are widely used in various large-scale construction machinery, such as mining excavators, construction site excavators, etc.
Features
Control the movement of the forearm.
Specification
| Bore diameter | 125mm~360mm |
| Rod diameter | 63mm~260mm |
| Stroke | ≤2600mm |
| Thrust force | Maximum 3560.8KN (Bore diameter: 360mm/ pressure35MPa) |
| Material | Carbon steel, Alloy steel, Stainless steel |
| Coating | Sandblasting, primer paint, middle paint, finish paint |
| Customization is the first principle of MPM. | |
Application
20 years of experience in hydraulic cylinder manufacturers.
MPM cylinders are mainly used in:
Customization
If you can provide us with the following technical parameters, we can design and customize Stick Cylinder according to your needs:
Frequently Asked Questions (FAQ)
Our stick cylinders are designed for medium to large hydraulic excavators ranging from 5 tons up to 50 tons, widely applied in mining and general construction machinery.
Yes, the standard working temperature is from -30℃ to +80℃. For severe environments, dedicated low-temperature models are available for operation down to -40℃.
The cylinder body is crafted from cold-drawn, honed chrome-molybdenum alloy steel to resist deformation and high pressure, while the piston rod surface features hard chrome plating to withstand abrasive materials like gravel and sand.
Our standard manufacturing capability accommodates bore diameters ranging from 125mm to 360mm, with stroke lengths reaching up to 2600mm.
Yes, customization is our primary principle. By providing your technical parameters (bore, rod diameter, stroke, working pressure, installation type, push/pull capacity), we can engineer a bespoke cylinder solution.
