What information do you need to quote a custom hydraulic cylinder?

Send bore diameter, rod diameter, stroke, retracted (pin-to-pin) length, working pressure, single- or double-acting design, mounting type at both ends, port size and thread standard, operating environment and estimated annual quantity. A drawing, a sample or a photo of the original nameplate shortens the quotation process.

Can you reproduce an OEM replacement cylinder from a sample?

Yes. Our engineers measure the sample, prepare a technical drawing and send it for your confirmation before machining starts, so interchangeability is agreed in writing before production.

Which standards do your parts and tooling follow?

We machine to the customer drawing in metric or imperial units. Typical references include ISO 6H thread tolerance for hydraulic cylinder nuts, DIN 69872 and JIS B6339 for CNC retention knobs, and ER collet systems for milling tool holders.

Do you supply hydraulic cylinder components separately?

Yes. We supply cylinder heads, pistons, nuts, flanges, bases, integrated barrels, bushings and spherical bearings, as well as hydraulic valve blocks, for cylinder builders and repair workshops.

How are export orders packed and shipped?

Goods are packed with standard export materials to prevent transit damage and shipped by sea, air or express courier according to your preference, with tracking information provided.

How quickly will I receive a reply?

Our sales engineers reply to email enquiries within 24 hours. You can also reach the team directly by phone or WhatsApp.

China Small Excavator Bucket Cylinder Suppliers, Supplier

1 / 1

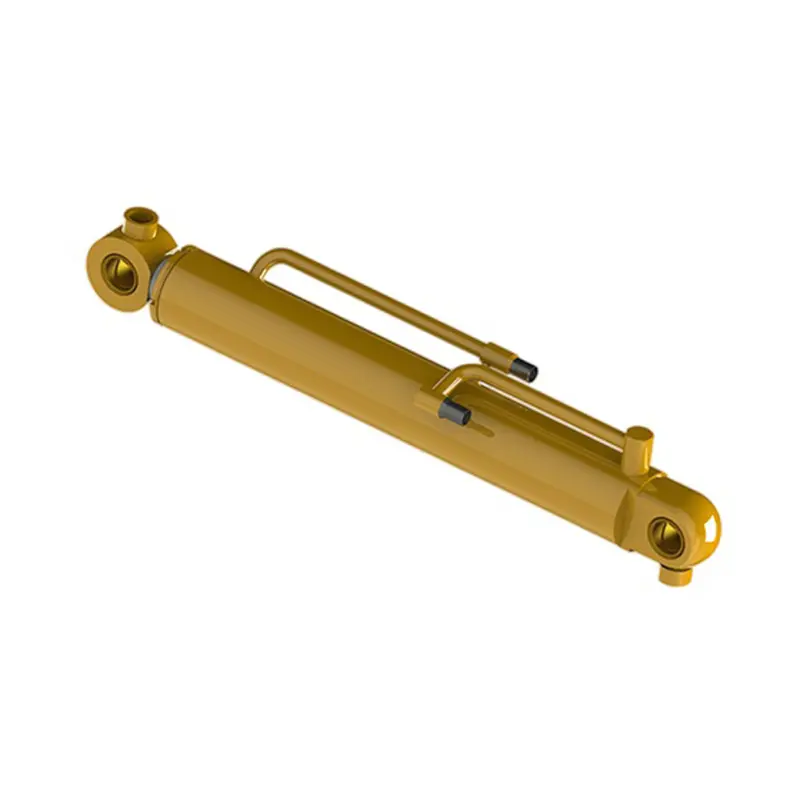

China Small Excavator Bucket Cylinder Suppliers, Supplier

The small excavator bucket cylinder can accurately control the retraction and extension of the bucket and the excavation action, and is widely used in small excavators below 10 tons. It is suitable for a variety of scenarios such as construction projects, municipal projects, farmland reconstruction, and mining.

Send Inquiry

Product Description

Working Temperature

The bucket cylinder is designed to withstand a wide temperature range, generally -25℃～+120℃. The operating temperature is influenced by ambient temperature, hydraulic oil temperature, and stroke cycle velocity.

Working Pressure

Rated working pressure for small excavator bucket cylinders typically ranges between 15MPa and 30MPa, engineered to endure robust heavy-duty digging forces.

Anti-Corrosion Performance

Advanced surface treatment solutions are provided, including Ni/Cr electroplating, ceramic spraying, and laser cladding, safeguarding the cylinder in severe industrial environments.

High Fatigue Life

Validated through rigorous fatigue life testing, delivering high endurance under high-pressure frequency loads to ensure long-term mechanical reliability.

Comprehensive After-Sales Service

Includes a 2-year warranty on core components, alongside video technical support, online assistance, spare parts supply, and on-site repair operations.

Customizable & Reliable Quality

Engineered for non-standard customization with verified mechanical test reports and live video factory inspections to confirm manufacturing precision.

Core Features

Designed to deliver exact control over bucket articulacy and excavation kinematics during operations.

Technical Specifications

Bore Diameter	50mm ~ 105mm
Rod Diameter	25mm ~ 70mm
Stroke Length	≤ 1000 mm
Thrust Force	Maximum 255KN (Bore diameter: 105mm / Pressure: 29.4MPa)
Raw Material	Carbon Steel, Alloy Steel, Stainless Steel
Coating Treatment	Sandblasting, Primer Paint, Middle Paint, Finish Paint
Customization is the First Principle of MPM

Industrial Applications

Backed by over 20 years of manufacturing experience, MPM hydraulic cylinders operate across multiple heavy sectors:

Construction Machinery

Hydraulic lifting and steering cylinders engineered for cranes, forklifts, tractors, wheel loaders, and excavators.

Industrial Equipment

Specialized hydraulic cylinders, tie-rod cylinders, and compact cylinders built for automated manufacturing plants.

Ships & Offshore Machinery

Heavy-duty marine cylinders and stainless steel hydraulic systems engineered for high-salinity maritime exposure.

Customization Parameters

Provide the following technical parameters to receive a custom small excavator bucket cylinder tailored precisely to your machinery:

Bore Diameter
Rod Diameter
Stroke Length
Working Pressure
Installation Type
Push / Pull Back Capacity

Frequently Asked Questions (FAQ)

What is the standard operating pressure for small excavator bucket cylinders?

The standard working pressure ranges from 15MPa to 30MPa, allowing the bucket to generate the necessary force for diverse excavation work.

What temperature ranges can these hydraulic cylinders operate in?

The cylinders are designed to perform reliably in ambient conditions from -25℃ up to +120℃, dependent on hydraulic oil grade and system cycle speeds.

What anti-corrosion treatments are available for harsh work environments?

We supply multiple specialized protective coatings including standard sandblasting and multi-layer painting, Ni/Cr electroplating, ceramic spraying, and laser cladding.

Can cylinders be customized according to specific excavator models?

Yes, customization is our primary focus. We manufacture cylinders according to custom specifications for bore, rod diameter, stroke, mounting interfaces, and thrust capacity.

What warranty and post-sale technical support do you provide?

We provide a 2-year warranty on core components, backed by remote video diagnostics, continuous online support, spare parts availability, and on-site repair assistance.

How is product quality verified prior to shipping?

Every non-standard hydraulic cylinder undergoes rigorous mechanical fatigue tests and factory inspections, supported by comprehensive test reports and video documentation.
