OEM Small Excavator Rotary Actuator Manufacturers, Factories

1 / 1

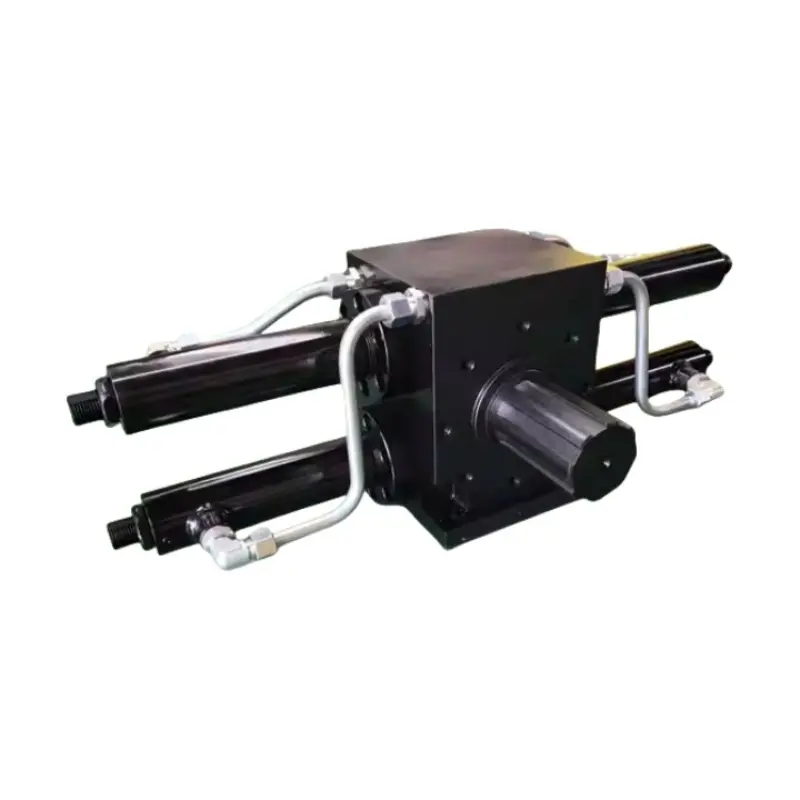

OEM Small Excavator Rotary Actuator Manufacturers, Factories

The rotary actuator of a small excavator is the core hydraulic component of the slewing system of a 1-6 ton small excavator. It is responsible for driving the left and right slewing action of the vehicle body on the equipment to achieve precise operation positioning and efficient material transfer. It realizes the swing of the arm through the conversion of hydraulic energy, thereby helping the excavator to complete various complex excavation and handling operations.

Send Inquiry

Product Description

Description

Working pressure: The general working pressure range is 10MPa~29.4MPa.

Working temperature: The design has a wide temperature resistance range and can work normally in an environment of -40℃~+120℃.

Good interchangeability: The product design fully considers the installation dimensions and interface standards of the mainstream small excavators on the market, and has good interchangeability. When the cylinder needs to be replaced, the replacement work can be completed quickly, effectively reducing maintenance costs and downtime, and improving equipment utilization.

Quality certification: Conforms to ISO 6020 hydraulic cylinder standard and GB/T 15622 hydraulic test specification.

Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

Deflection of the big arm

Specification

Bore diameter	50mm~120mm
Rod diameter	25mm~75mm
Stroke	≤1000mm
Thrust force	Maximum 333KN
(Bore diameter	120mm/pressure29.4MPa)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Service

20 years of experience in hydraulic cylinder manufacturers

MPM cylinders are mainly used in:

1- Construction machinery

Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators

2- Industrial equipment

Hydraulic cylinders/ tie rod cylinders/ compact cylinders

3- Ships and offshore machinery

Heavy cylinders, stainless steel hydraulic cylinders

If you can provide us with the following technical parameters, we can design and customize bulldozing hydraulic cylinders according to your needs:

1. Bore

2. Rod diameter

3. Stroke

4. Working pressure

5. Installation type

6. Push or pull back capacity

Frequently Asked Questions

What is the standard operating pressure range for these cylinders?

The general working pressure range is between 10MPa and 29.4MPa, suitable for various heavy-duty operations.

What temperature conditions can the hydraulic cylinders withstand?

They feature a wide operating temperature capability ranging from -40℃ to +120℃, ensuring reliable performance in extreme environments.

Are MPM hydraulic cylinders compatible with existing excavator equipment?

Yes, the products are engineered around mainstream small excavator interface standards to ensure good interchangeability, quick replacement, and minimal downtime.

What quality and testing standards do the cylinders comply with?

All products fully conform to the ISO 6020 hydraulic cylinder standard and GB/T 15622 hydraulic test specifications, backed by mechanical test reports.

What warranty and after-sales services are provided?

Customers receive a 2-year warranty on core components, along with video technical support, online guidance, spare parts availability, and on-site maintenance services.

Can the cylinders be customized to specific machinery requirements?

Customization is a core principle. By providing bore size, rod diameter, stroke, working pressure, installation type, and load capacity, cylinders can be tailored to your specifications.
