China Small Excavator Stick Cylinder Suppliers, Manufacturers

1 / 1

China Small Excavator Stick Cylinder Suppliers, Manufacturers

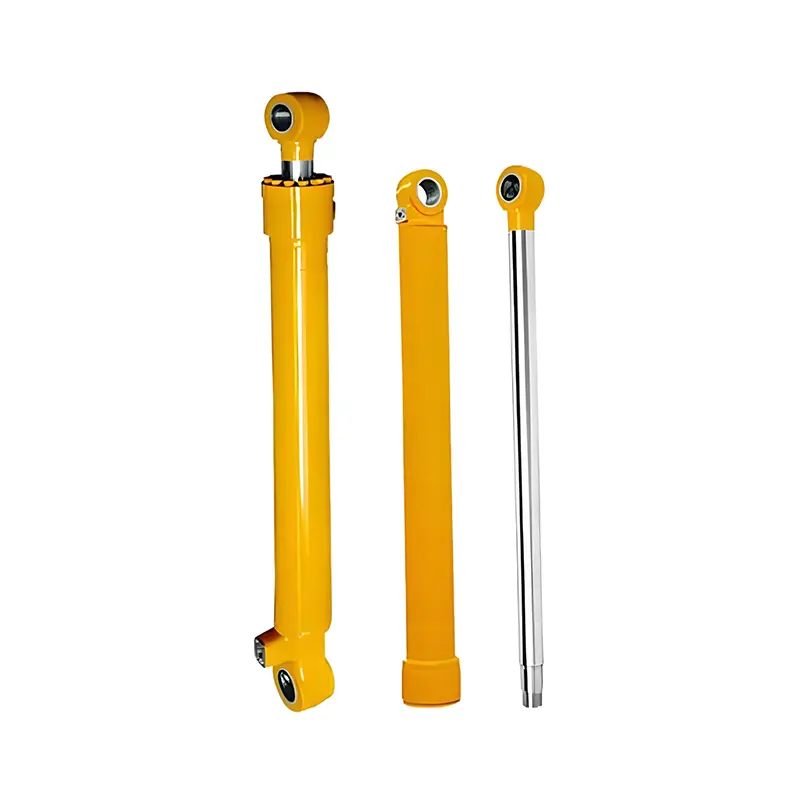

The small excavator stick cylinder is a hydraulic cylinder mainly used in the deformation transmission system in the mechanical field. It consists of four main components: piston, cylinder, oil port and eccentric shaft. The arm cylinder is defined as a linear motion cylinder with a long process stroke and large chuck positioning torque.

Send Inquiry

Product Description

Description

Working pressure 14-22MPa, peak pressure up to 25MPa.

Standard temperature range -25℃～+120℃. Customized service of oil cylinder with higher or lower temperature can be provided according to customer's needs.

Applicable models Applicable to 0.8-5 ton small excavators of Doosan, Sany and other brands.

Quality Assurance Passed ISO 9001 quality management system certification. 100% pressure test before leaving the factory.

Comprehensive after-sales service Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

Control the movement of the forearm.

Specification

Bore diameter	50mm~125mm
Rod diameter	25mm~70mm
Stroke	≤1000mm
Thrust force	Maximum 305KN (Bore diameter: 115mm/ pressure 29.4MPa)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize Small Excavator Stick Cylinder according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions (FAQ)

What excavator brands are these cylinders compatible with?

They are designed for 0.8-5 ton small excavators compatible with Doosan, Sany, and other major brands. Customized fittings can also be manufactured.

What quality checks are performed before shipment?

All products comply with ISO 9001 standards and undergo 100% factory pressure testing. Mechanical test reports and video factory inspections are available.

What is the standard warranty period?

We offer a 2-year warranty on core components, accompanied by online support, video technical assistance, and spare parts supply.

Can you produce cylinders for extreme temperature environments?

Yes, while our standard operating temperature is -25℃ to +120℃, we can provide custom engineered cylinders capable of withstanding higher or lower extreme temperatures.

How can I request a customized hydraulic cylinder?

Simply provide your required bore diameter, rod diameter, stroke, working pressure, installation type, and push/pull back capacity to get a customized solution.
