High-Quality Tightening Cylinder MPM-HCT401 for Excavator and Loader Suppliers, Factories

1 / 2

High-Quality Tightening Cylinder MPM-HCT401 for Excavator and Loader Suppliers, Factories

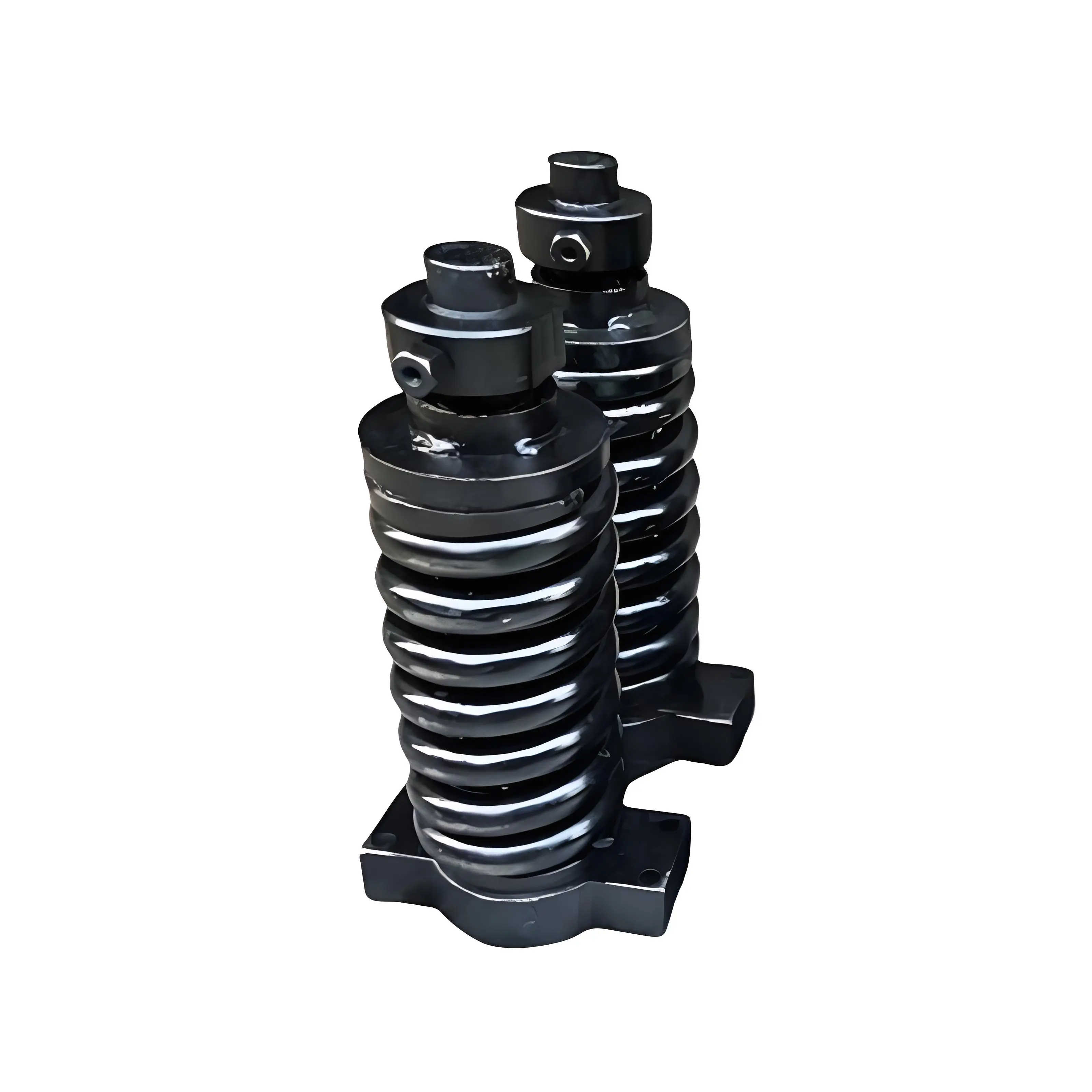

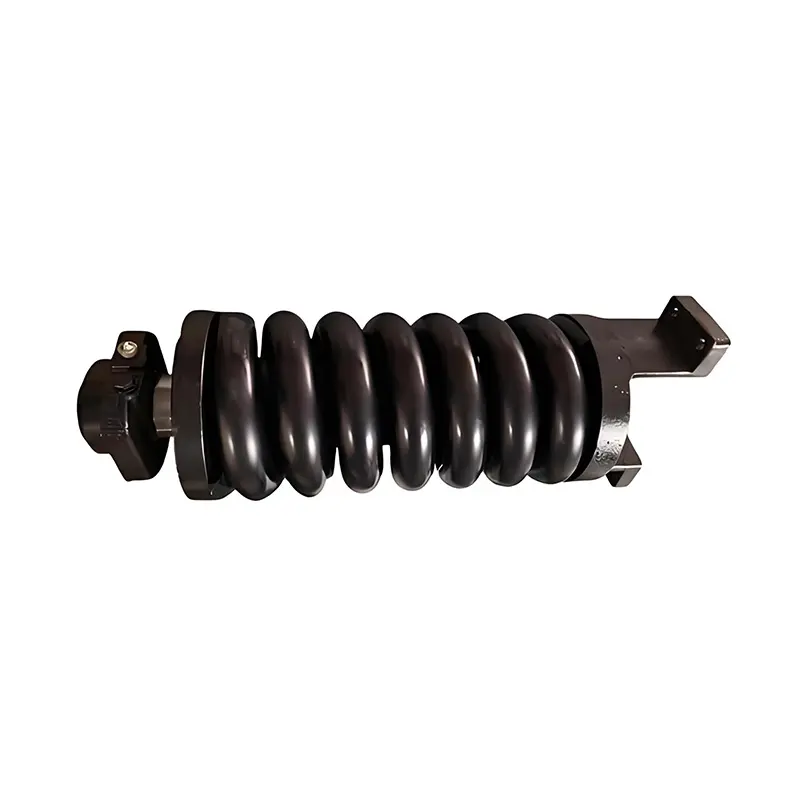

The excavator tightening cylinder is a key hydraulic component of the crawler excavator's travel system. It is mainly used to adjust the tension of the crawler track to ensure that the crawler track remains in the best working condition and prevent derailment, tooth jumping or excessive wear.

Send Inquiry

Product Description

Product Overview & Description

◆

Long-term Sealing Performance: High-quality seals and multi-channel combined seals (O-rings + dust rings) are used to prevent hydraulic oil leakage and contaminant intrusion. Acid and alkali resistant seals can be selected for special working conditions (such as chemical and salt spray environments).

◆

Widely Applicable: Suitable for various models of crawler excavators, such as PC60-7, PC120, PC200-6, PC200-7, PC300-6, PC300-7, etc.

◆

Working Pressure: The rated working pressure is usually 10MPa, and the maximum allowable pressure can reach 16MPa.

◆

Working Temperature: The designed temperature resistance range is -25℃～+120℃.

◆

Spring Parameters: Taking PC120 tightening cylinder as an example, the spring free height is 507mm, the installation height is 390mm, and the load weight is 78500N.m.

◆

Comprehensive After-sales Service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

◆

Customizable and Reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Key Features

Control the action of track tension.

Technical Specifications

Bore Diameter	280mm ~ 380mm
Rod Diameter	170mm ~ 300mm
Stroke	700mm
Thrust Force	Maximum 3967.4KN (Bore diameter: 380mm / pressure 35MPa)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Applications

20 years of experience in hydraulic cylinder manufacturers. MPM cylinders are mainly used in:

Construction Machinery

Hydraulic lifting cylinders and steering cylinders for cranes, forklifts, tractors, loaders, excavators.

Industrial Equipment

Hydraulic cylinders, tie rod cylinders, compact cylinders.

Ships and Offshore Machinery

Heavy cylinders, stainless steel hydraulic cylinders.

Customization Solutions

If you can provide us with the following technical parameters, we can design and customize Tightening Cylinder according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions (FAQ)

1. What excavator models are these tightening cylinders compatible with?

They are suitable for a wide range of crawler excavator models, including PC60-7, PC120, PC200-6, PC200-7, PC300-6, PC300-7, and many other common equipment models.

2. What are the standard and maximum operating pressures?

The rated operating pressure is typically 10MPa, with a maximum allowable working pressure of up to 16MPa, and the thrust capability can reach up to 35MPa depending on system configuration.

3. Can the cylinder operate under extreme environmental conditions?

Yes. The cylinder is engineered to operate in temperatures ranging from -25℃ to +120℃, and optional acid and alkali-resistant seals are available for chemical or salt-spray marine environments.

4. What materials and surface treatments are available?

Cylinders can be manufactured using Carbon Steel, Alloy Steel, or Stainless Steel. Surface protection includes sandblasting, primer, middle paint, and durable finish coat application.

5. What kind of warranty and after-sales support do you offer?

Customers are backed by a 2-year warranty on core components, comprehensive video technical guidance, online assistance, spare parts support, and on-site repair services.

6. Can I order custom-sized tightening cylinders?

Yes, customization is our core priority. By providing your specifications (bore, rod diameter, stroke, working pressure, installation type, and capacity), we will design and manufacture to your requirements.
