ODM Luffing Cylinder HCL604 Supplier, Manufacturer

1 / 1

ODM Luffing Cylinder HCL604 Supplier, Manufacturer

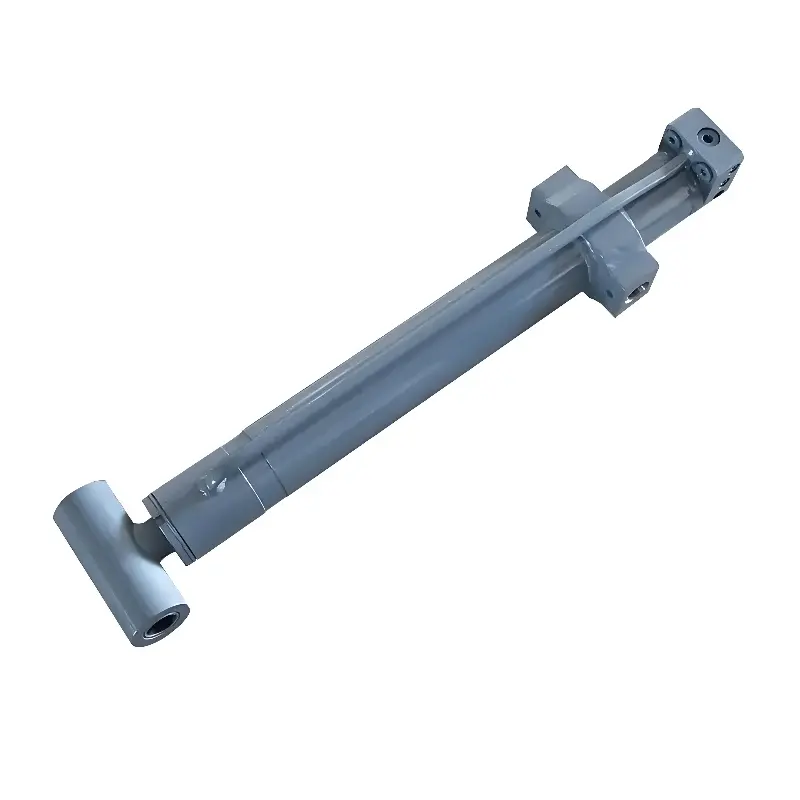

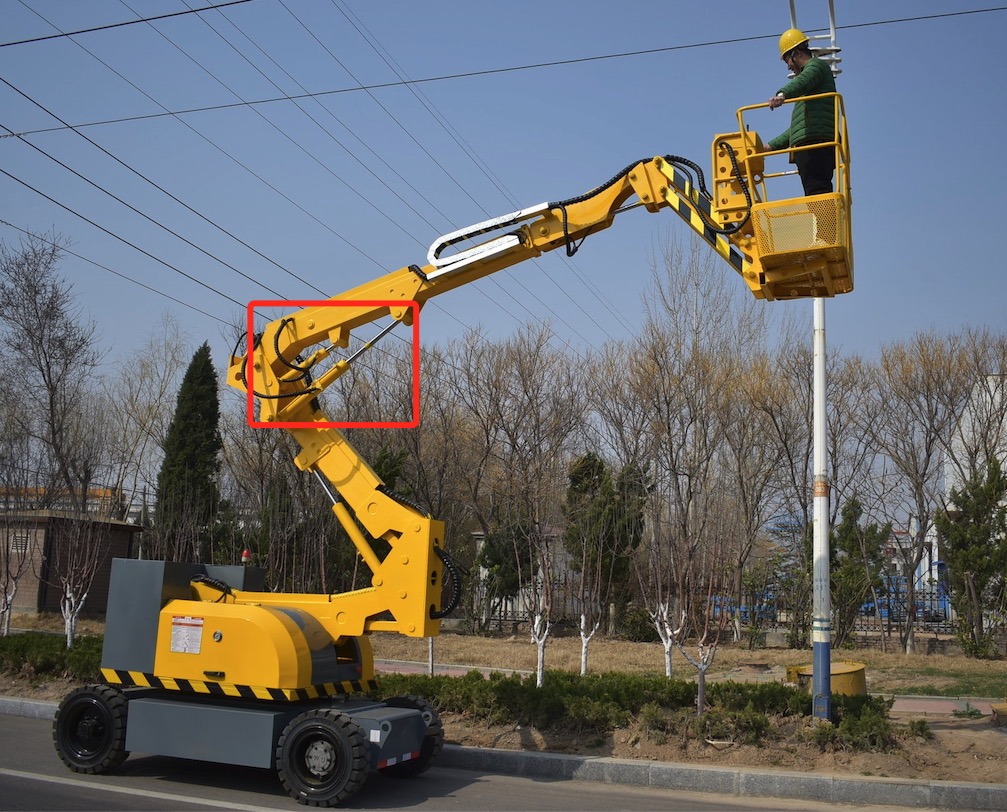

The luffing cylinder is the core hydraulic actuator of the aerial work platform, which is mainly used to control the pitch angle of the boom and accurately adjust the height and horizontal position of the work platform. It uses hydraulic drive to achieve smooth lifting and lowering of the boom and adjust the elevation angle of the working arm to meet different work requirements.

Send Inquiry

Product Description

Description

Anti-Lateral Force

The guide sleeve and piston rod are reinforced with hard chrome plating to increase the anti-eccentric load capacity by 30%.

Life Cycle

Service life under normal working conditions reaches ≥ 100,000 cycles.

Multi-Stage Seal

The multi-stage seal design effectively prevents hydraulic oil leakage and reduces the ingress of external impurities into the cylinder.

Comprehensive After-Sales Service

Enjoy a 2-year warranty on core components, accompanied by video technical support, online guidance, spare parts provisioning, and on-site maintenance services.

Customizable & Reliable

Engineered for non-standard requirements. Mechanical test reports and video factory inspections ensure verified operational quality and reliability.

Features

Realizing the up and down pitching rotation of the boom serves as the primary driving force for lifting operations.

Specification

Bore diameter	50mm ~ 350mm
Rod diameter	30mm ~ 300mm
Stroke	≤ 3000mm
Pressure	30MPa (Maximum pressure)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

With over 20 years of manufacturing experience, MPM hydraulic cylinders are widely applied in:

Construction Machinery

Hydraulic lifting cylinders and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment

Hydraulic cylinders, tie-rod cylinders, and compact cylinders for automation and production lines.

Ships & Offshore Machinery

Heavy-duty industrial cylinders and corrosion-resistant stainless steel hydraulic cylinders.

Customization

Provide us with the required operational parameters to design and customize the Outrigger Hydraulic Cylinder MPM-OHC12 tailored to your exact application:

Bore Size

Rod Diameter

Stroke Length

Working Pressure

Installation Type

Push / Pull Capacity

Frequently Asked Questions

What parameters are required for custom hydraulic cylinder manufacturing?

Essential technical requirements include bore diameter, rod diameter, stroke length, maximum working pressure, mounting type, and required push or pull force.

What materials are available for the cylinder structure?

Options include carbon steel, alloy steel, and stainless steel, paired with high-grade multi-stage seals and hard-chrome plated rods for high wear resistance.

What is the standard warranty and post-sale coverage?

We offer a 2-year warranty on core components, accompanied by complete video inspection support, online technical consultation, and replacement parts availability.

Can the cylinder handle heavy side or eccentric loads?

Yes, reinforced guide sleeves combined with hard-chrome plating increase eccentric load resistance by up to 30%, maximizing duty cycles in demanding operations.

How is product quality verified prior to shipment?

Each unit undergoes rigorous pressure testing, dimensional verification, and quality documentation supported by video factory inspection reports.
