What information do you need to quote a custom hydraulic cylinder?

Send bore diameter, rod diameter, stroke, retracted (pin-to-pin) length, working pressure, single- or double-acting design, mounting type at both ends, port size and thread standard, operating environment and estimated annual quantity. A drawing, a sample or a photo of the original nameplate shortens the quotation process.

Can you reproduce an OEM replacement cylinder from a sample?

Yes. Our engineers measure the sample, prepare a technical drawing and send it for your confirmation before machining starts, so interchangeability is agreed in writing before production.

Which standards do your parts and tooling follow?

We machine to the customer drawing in metric or imperial units. Typical references include ISO 6H thread tolerance for hydraulic cylinder nuts, DIN 69872 and JIS B6339 for CNC retention knobs, and ER collet systems for milling tool holders.

Do you supply hydraulic cylinder components separately?

Yes. We supply cylinder heads, pistons, nuts, flanges, bases, integrated barrels, bushings and spherical bearings, as well as hydraulic valve blocks, for cylinder builders and repair workshops.

How are export orders packed and shipped?

Goods are packed with standard export materials to prevent transit damage and shipped by sea, air or express courier according to your preference, with tracking information provided.

How quickly will I receive a reply?

Our sales engineers reply to email enquiries within 24 hours. You can also reach the team directly by phone or WhatsApp.

Best Steering cylinder HCS302 Factories, Factory

1 / 1

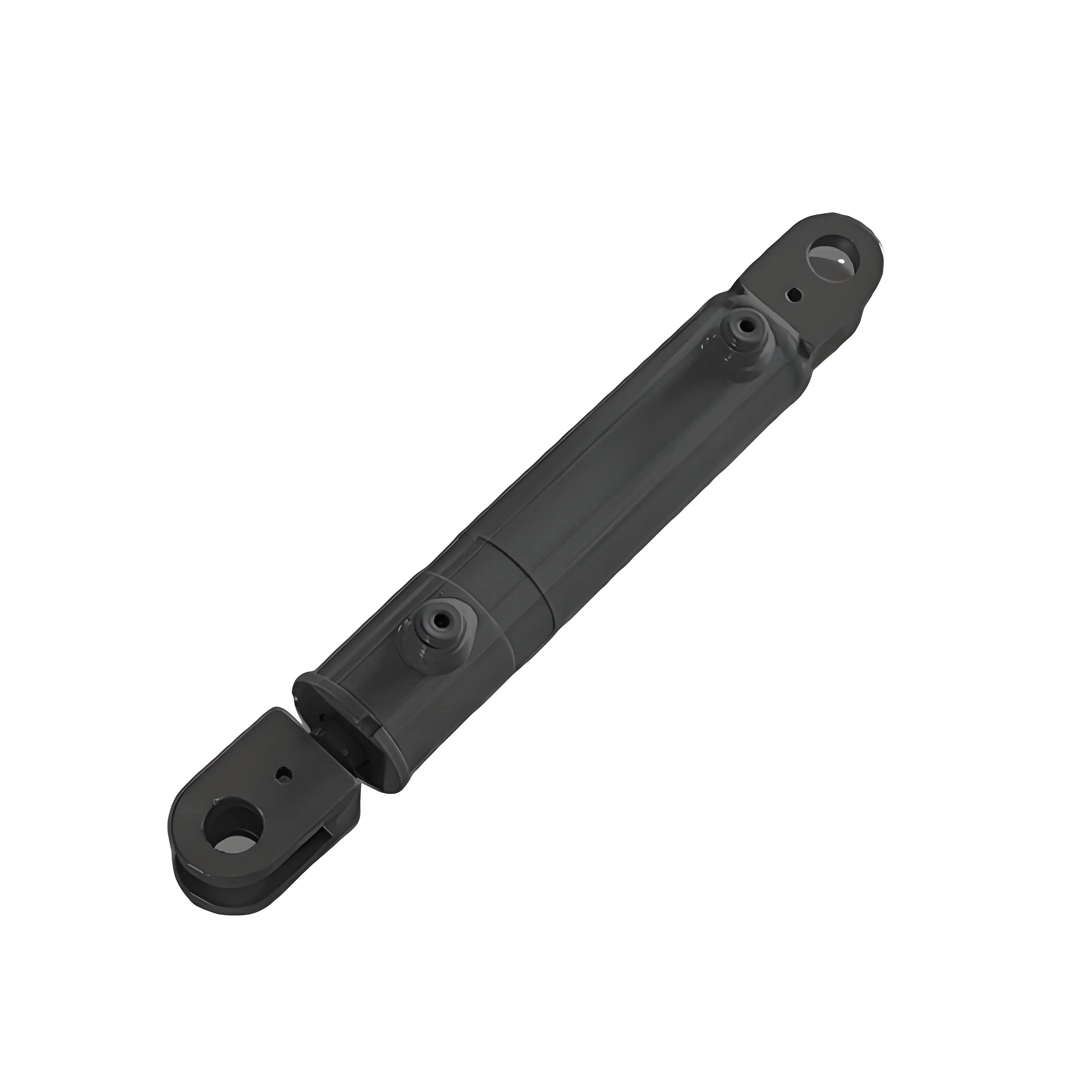

Best Steering cylinder HCS302 Factories, Factory

The aerial work platform steering cylinder is the core hydraulic actuator of the equipment's steering system. It achieves flexible steering and stable control of the platform through precise hydraulic drive, ensuring movement accuracy, safety and efficiency during aerial work.

Send Inquiry

Product Description

Description

Temperature Resistance -30℃~+100℃ (optional high temperature/low temperature sealing kit)

Standardized Interface Provides standardized installation interface to facilitate quick connection with the hydraulic system and other components of the aerial work platform.

Dustproof and Waterproof The dustproof and waterproof structure is designed to prevent dust and moisture from entering the cylinder and extend its service life.

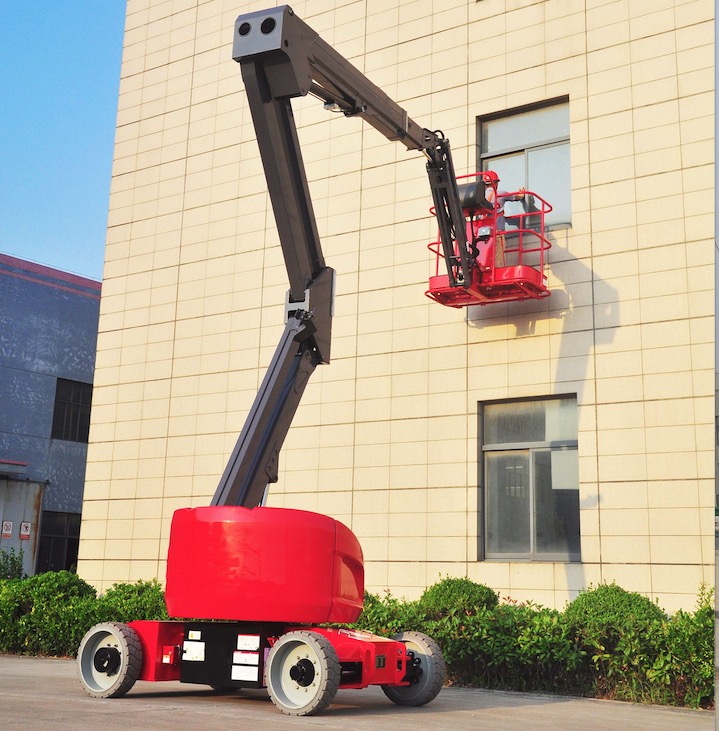

Application Used for exterior wall construction, window installation, curtain wall maintenance, etc. of high-rise buildings to ensure the stability and safety of the equipment when operating at heights.

Comprehensive After-Sales Service Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and Reliable As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

Steering system for chassis tires of aerial work vehicles

Specification

Bore diameter	63mm~200mm
Rod diameter	36mm~140mm
Stroke	≤1000mm
Pressure	30MPa (Maximum pressure)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize Outrigger Hydraulic Cylinder MPM-OHC12 according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions (FAQ)

What is the operating temperature range for this hydraulic cylinder?

The standard temperature resistance is -30℃ to +100℃. Optional sealing kits are available for specialized high or low-temperature environments.

What types of custom parameters can I specify for my order?

You can customize the bore diameter, rod diameter, stroke length, working pressure, installation mounting type, and required push or pull back capacities.

What warranty and after-sales support are provided?

We offer a 2-year warranty on core components, accompanied by video technical support, online assistance, spare parts supply, and on-site repair services.

What are the primary applications for this outrigger cylinder?

It is primarily engineered for the chassis tire steering and outrigger stabilization systems of aerial work platforms, construction machinery, and industrial lifting equipment.

How is product quality ensured before delivery?

Quality is verified through formal mechanical test reports, precision multi-layer surface treatment inspections, and optional video factory inspections prior to shipment.
