Cheap Rotary Actuator HCR801 Suppliers, Supplier

1 / 1

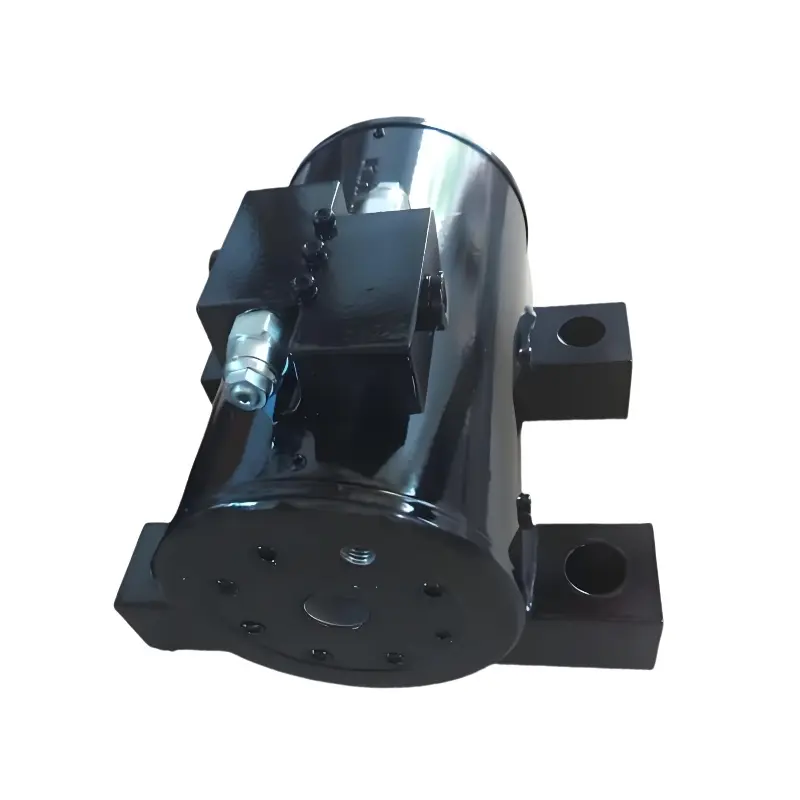

Cheap Rotary Actuator HCR801 Suppliers, Supplier

The aerial work platform rotary actuator is used to control the swinging motion of the aerial work platform's working arm to achieve the platform's operating requirements at different angles. It drives the piston movement through hydraulic power and converts it into a mechanical swinging motion. It is one of the key components to ensure the stable operation of the aerial work platform under complex working conditions.

Send Inquiry

Product Description

Materials and Technology

Made of high-strength alloy steel and precision processing technology, resistant to high pressure and impact, suitable for high working pressure.

Standardized Interface

Provides standardized installation interface to facilitate quick connection with the hydraulic system and other components of the aerial work platform.

High Durability

Built-in overload protection valve to prevent mechanical damage caused by extreme loads.

Comprehensive After-Sales Service

Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and Reliable

As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

Realize platform and crank arm swing

Specification

Torque	500~5000N.m
Swing angle	0~360°
Pressure	21MPa (standard working pressure)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction Machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial Equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and Offshore Machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize Outrigger Hydraulic Cylinder MPM-OHC12 according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions (FAQ)

Q1 What primary function does this hydraulic cylinder perform on aerial platforms?

This cylinder is specifically designed to facilitate smooth platform and crank arm swing motions, offering flexible 0~360° swing angles and torque ranges between 500~5000N.m.

Q2 Can MPM customize hydraulic cylinders to non-standard requirements?

Yes, customization is the primary principle of MPM. By providing bore size, rod diameter, stroke, working pressure, installation type, and capacity details, we can engineer models such as the Outrigger Hydraulic Cylinder MPM-OHC12 to your exact specifications.

Q3 What quality assurance and testing are provided before delivery?

All non-standard products are verified with official mechanical test reports and video factory inspections to validate durability and high-pressure performance before dispatch.

Q4 How does the cylinder prevent damage under extreme working conditions?

The cylinder is built from high-strength alloy steel and features an integrated overload protection valve that prevents mechanical failure and structural damage caused by excessive loads.

Q5 What warranty and after-sales support are included?

Customers receive a comprehensive 2-year warranty on core components, accompanied by online support, video technical guidance, readily available spare parts, and on-site maintenance services.

Q6 What materials and coatings are available for marine or corrosive environments?

We supply carbon steel, alloy steel, and stainless steel cylinders, all treated through a thorough coating system involving sandblasting, primer, intermediate, and finish paint layers for superior corrosion resistance.
