Custom Telescopic Cylinder HCT403 Manufacturer, Factories

1 / 1

Custom Telescopic Cylinder HCT403 Manufacturer, Factories

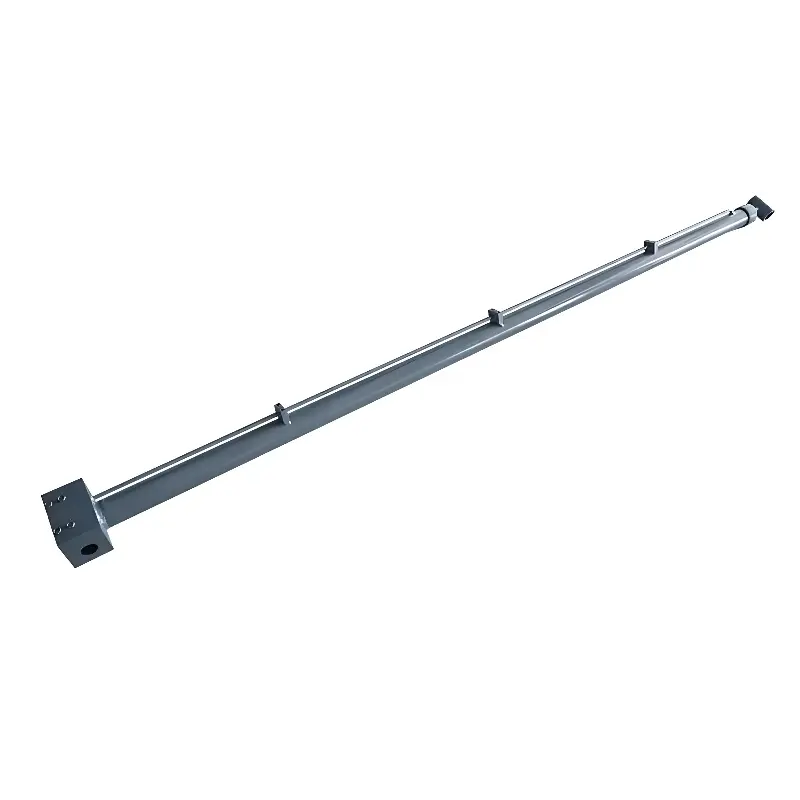

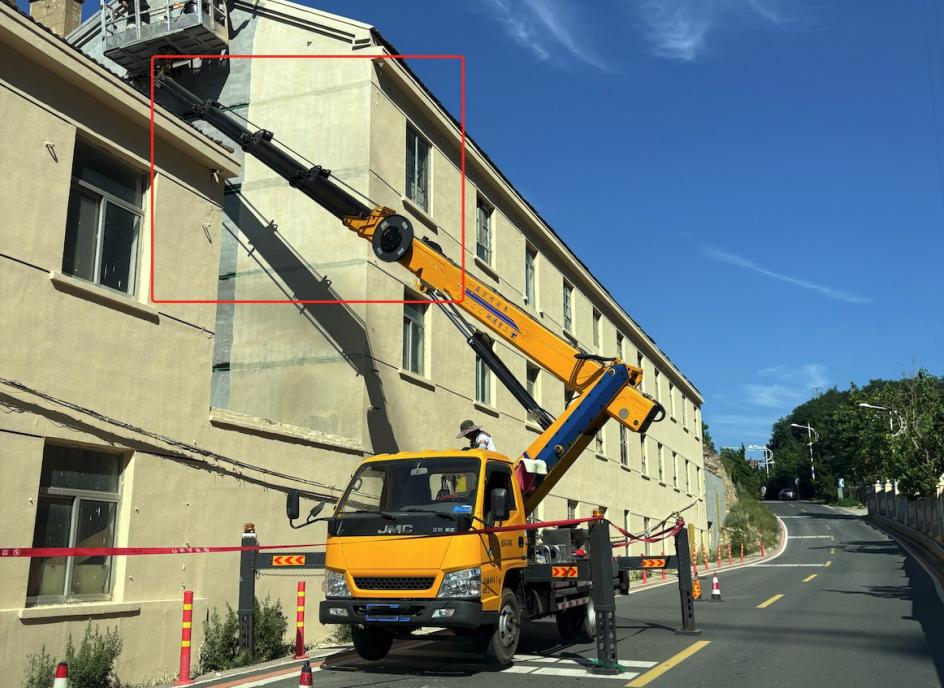

The telescopic cylinder of the aerial work platform is the core power component of the aerial work equipment. It realizes the step-by-step extension and retraction of the boom through hydraulic drive, ensuring the smooth lifting and precise positioning of the platform.

Send Inquiry

Product Description

Description

Maximum working height: Wide coverage, supports 6m to 40m operation requirements

Number of cylinder levels: Multi-stage hydraulic cylinder design, supports synchronous extension and retraction, improves operation efficiency

Rated load: Single-stage cylinder load capacity is 120kg to 680kg, multi-stage combination can reach 1000kg

Protection mechanism: Built-in multiple safety protection strategies, including tilt protection, automatic leveling legs, emergency descent system, etc.

Material technology: High-strength alloy steel or lightweight aluminum alloy, surface electrophoretic coating, strong corrosion resistance

Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

Realize the linear telescopic movement of the boom

Specification

Bore diameter	45mm~200mm
Rod diameter	32mm~180mm
Stroke	≤1500mm
Pressure	30MPa (Maximum pressure)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize Outrigger Hydraulic Cylinder MPM-OHC12 according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions (FAQ)

What is the standard warranty coverage for this hydraulic cylinder?

We provide a comprehensive 2-year warranty on core components, accompanied by video technical support, online assistance, spare parts support, and on-site maintenance services.

Can this hydraulic cylinder be fully customized for specific machinery?

Yes, customization is the first principle of MPM. Non-standard parameters including bore diameter, stroke length, rod size, and mounting configurations can be tailored to your requirements.

What is the maximum operating pressure the cylinder can handle?

The cylinder is engineered to withstand a maximum working pressure of up to 30MPa, ensuring safe and reliable operation in heavy-duty environments.

What surface treatments are applied to protect against corrosion?

The cylinder undergoes a strict multi-layer coating process, including sandblasting, primer paint, intermediate coating, finish painting, and electrophoretic treatment to deliver superior corrosion resistance.

What safety mechanisms are built into the design?

Multiple built-in safety protection strategies are implemented, including tilt protection, automatic leveling outriggers, and an integrated emergency descent system.

What information is needed to initiate an order or request a quote?

Please provide basic parameters such as bore size, rod diameter, stroke length, operating pressure, mounting configuration, and required push/pull capacity.
