ODM Leveling Cylinder HCL603 Supplier, Manufacturers

1 / 1

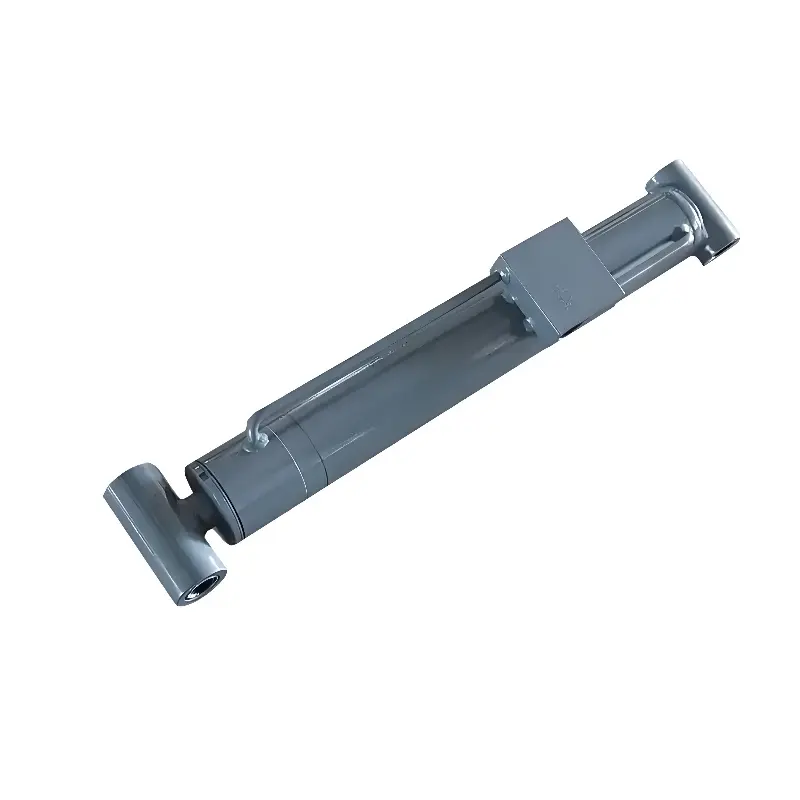

ODM Leveling Cylinder HCL603 Supplier, Manufacturers

The leveling cylinder is a key hydraulic actuator for aerial work platforms. It is used to achieve automatic or manual leveling of the platform under complex working conditions to ensure the stability and safety of the platform during operation.

Send Inquiry

Product Description

Description

Installation Method

Supports single-ear, double-ear, welded pipe, punching, and other installation methods, perfectly suitable for the structural design of aerial work platforms.

Energy-saving & High Efficiency

Load feedback technology optimizes energy consumption, integrated with an intelligent control system to achieve micro-leveling and rapid response capabilities.

Wide Temperature Range

Standard operating temperature range is -20℃～+60℃, with optional extension up to -30℃～+80℃, suitable for demanding climatic conditions.

Comprehensive After-Sales Service

Customers enjoy a 2-year warranty on core components, video technical support, online guidance, spare parts provisioning, and on-site maintenance services.

Customizable & Reliable

As a custom-engineered non-standard product, mechanical test reports and video factory inspections are provided to fully guarantee quality and reliability.

Features

Precise mechanism engineered to adjust the angle of the aerial work platform safely and efficiently.

Specifications

Bore Diameter	85mm ~ 180mm
Rod Diameter	50mm ~ 100mm
Stroke	≤ 300mm
Pressure	30MPa (Maximum pressure)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

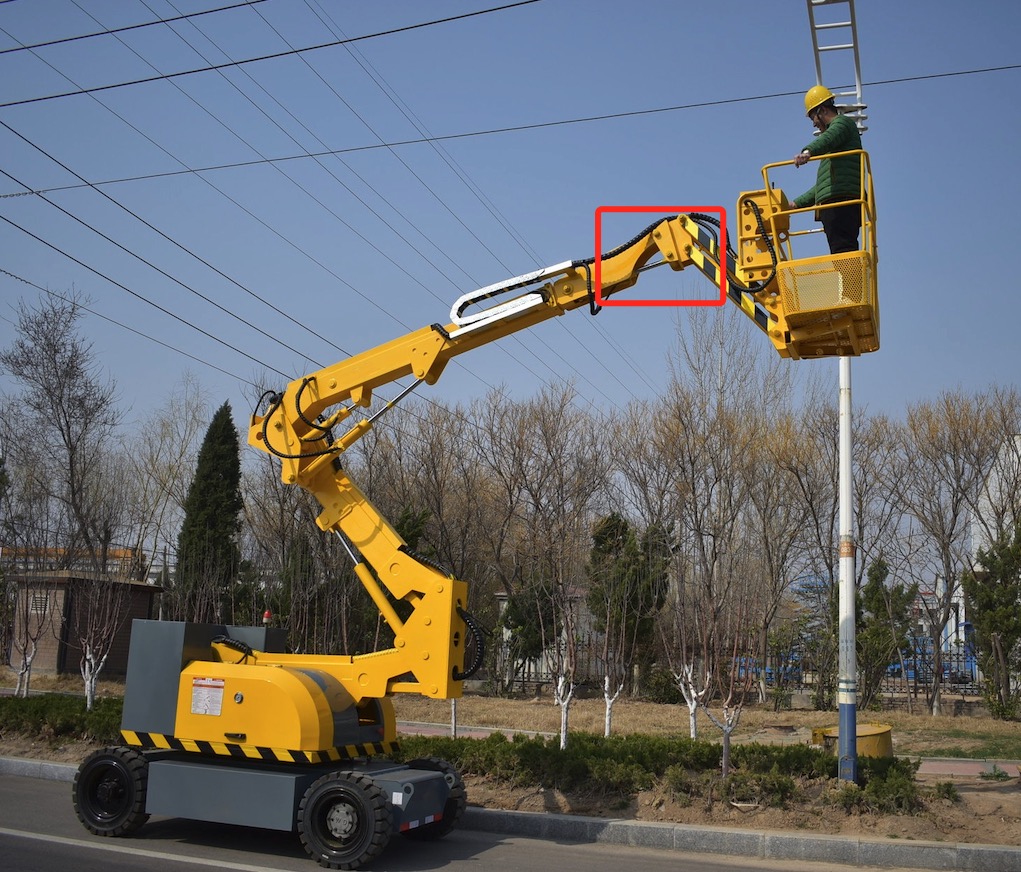

Outrigger Hydraulic Cylinder Specification Technical Diagram

Application

With 20 years of manufacturing experience, MPM hydraulic cylinders are widely applied in:

Construction Machinery

Hydraulic lifting cylinders and steering cylinders designed for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment

Standard hydraulic cylinders, tie rod cylinders, and high-performance compact cylinders.

Ships and Offshore Machinery

Heavy-duty hydraulic cylinders and marine-grade stainless steel hydraulic cylinders.

Customization Options

Provide the following technical parameters, and we will custom-engineer the Outrigger Hydraulic Cylinder MPM-OHC12 to match your exact project requirements:

Bore Size

Rod Diameter

Stroke Length

Working Pressure

Installation Type

Push or Pull Back Capacity

Frequently Asked Questions

1. What mounting and installation options are supported for this cylinder?

The cylinder supports single-ear, double-ear, welded pipe, and punching installation methods, which can be adapted to various aerial work platforms and industrial machinery designs.

2. Can the hydraulic cylinder operate in extreme temperature environments?

Yes. The standard operating temperature ranges between -20℃ and +60℃. For extreme ambient conditions, extended configurations ranging from -30℃ to +80℃ are available.

3. What is the maximum working pressure rating of the MPM-OHC12 cylinder?

The MPM-OHC12 hydraulic cylinder supports a maximum operational pressure rating of up to 30MPa, ensuring high performance under heavy-load scenarios.

4. Can I customize dimensions such as stroke, bore, and rod diameter?

Customization is a core principle of MPM. We engineer non-standard cylinders tailored to your specific bore, rod diameter, stroke (≤300mm), and pull/push force requirements.

5. What kind of quality verification and warranty are provided?

Every cylinder is backed by comprehensive mechanical test reports and video factory inspections. We provide a 2-year warranty on core components alongside online and on-site technical support.
