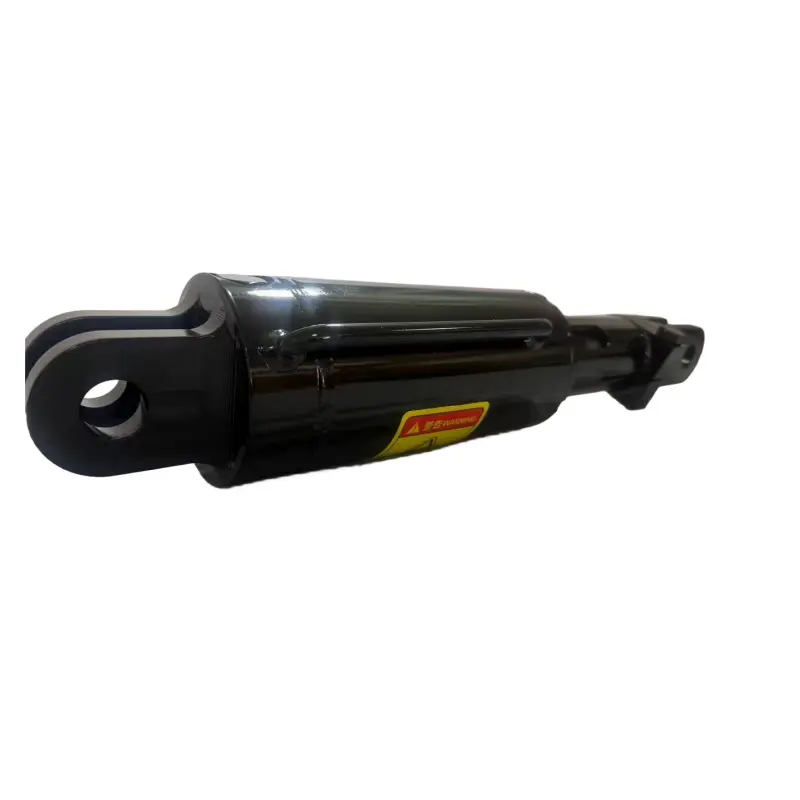

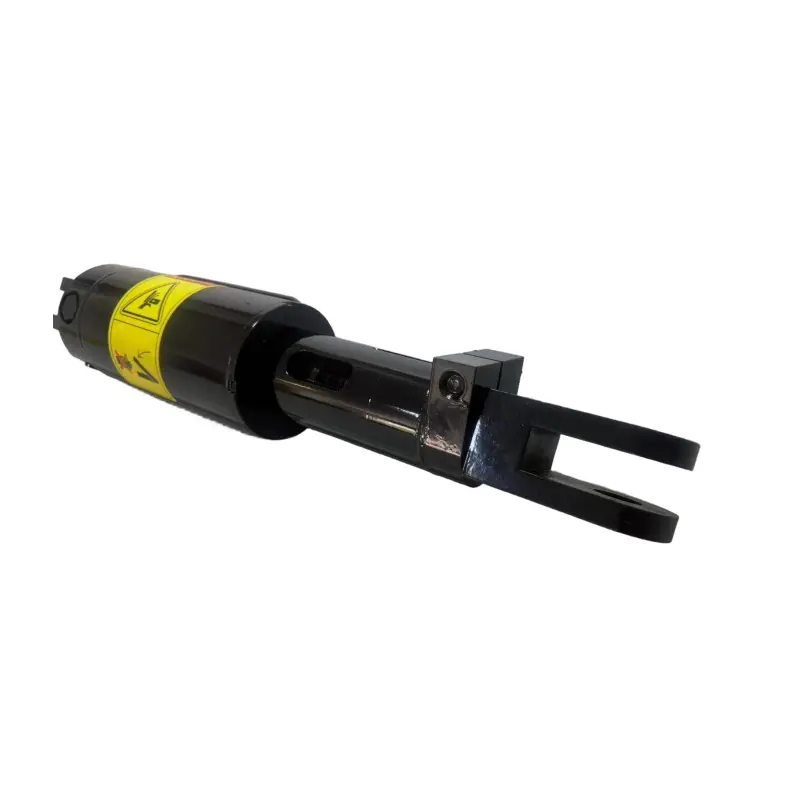

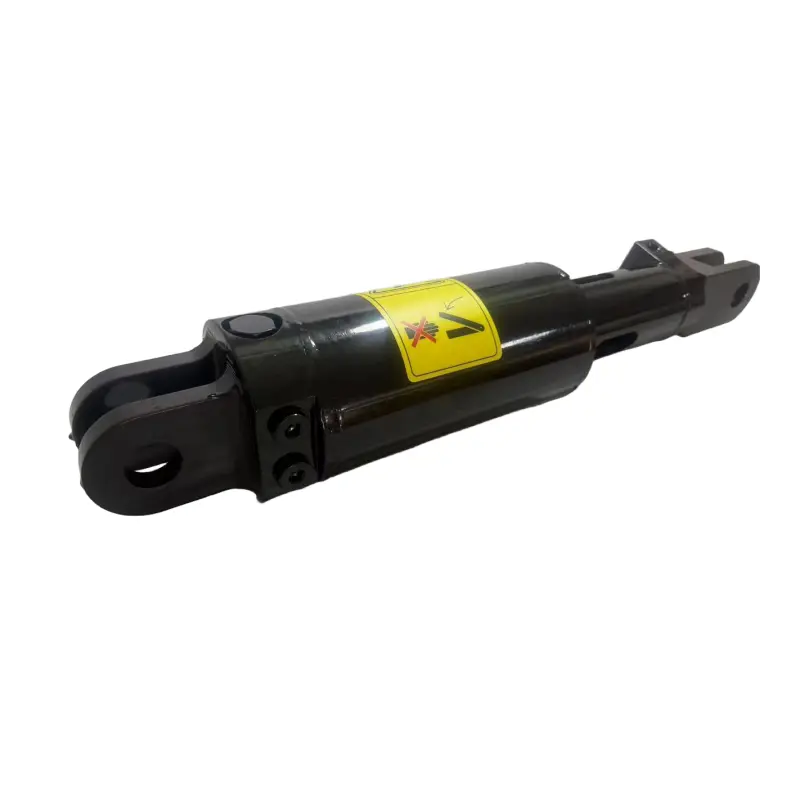

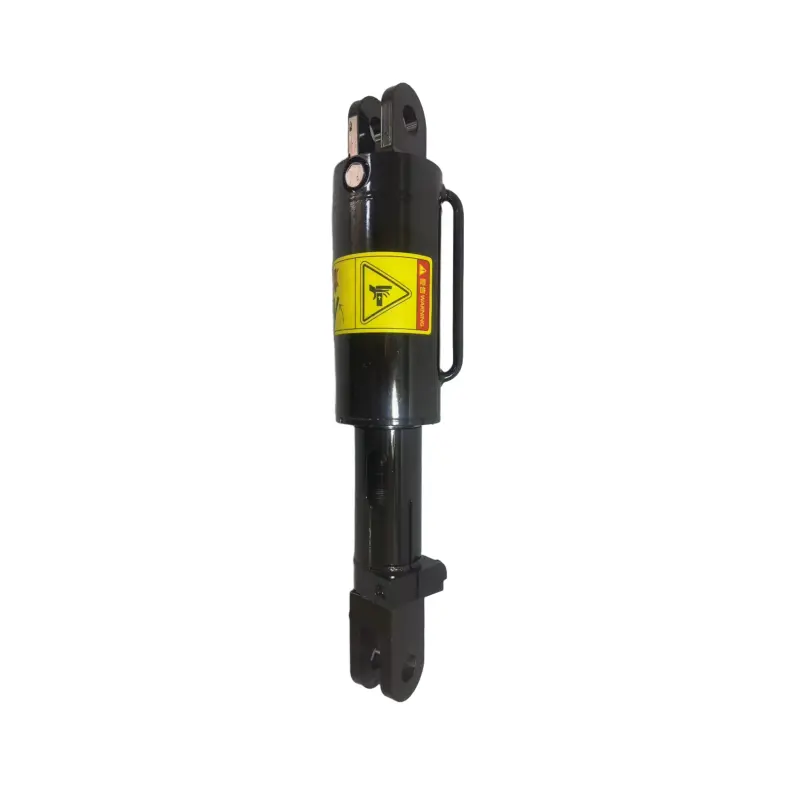

OEM Reversible Plough Width Adjustment Hydraulic Cylinder Agricultural Machinery Cylinder Manufacturer And Wholesale Factory Supplier

Description

The width adjustment cylinder is another key component of the hydraulic system of the reversible plough (also known as reversible plow). It effectively reduces side draft, ensures straight running, and lowers fuel consumption. This helps deliver level tillage, high working efficiency, reduced fuel use, and extended service life.

Adapt to Various Field Conditions

Adjust the spacing of the plow body to fit different field widths, irregular field edges, and headland turning areas. This reduces idle ploughing and boosts working efficiency.

Fit Different Crop Row Spacings

Alter the plough body gap according to the row spacing of corn, wheat, cotton, and other crops to prevent seeding damage and satisfy diverse agronomic requirements.

Reduce Machinery Transportation Cost

Narrow the overall width of the plough by adjusting plough bodies. The machine width complies with road transport regulations, requiring no extra disassembly, improving both transport safety and efficiency.

Technical Parameters

Bore	100mm
Rod Diameter	50mm
Stroke	125mm
Mounting Distance	615mm
Test Pressure	30MPa
Working Pressure	25MPa
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint

Customization is the first principle of MPM.

Application

1. Reversible Plough (Core Application) Compatible with 2–6 furrow reversible ploughs, supporting stepless adjustment of 2 to 6 working widths. This is the most common matching application for width adjustment cylinders, and also our core product line.
2. Strip Seeders & Precision Seeders Adjust the spacing of seed openers to match different crop row spacings, realizing multi-functional operation with a single machine.
3. Rotary Tillers & Subsoilers Modify the clearance between working tools to fit varying field widths and diverse soil conditions.
4. Other Agricultural Machinery Selected inter-row cultivators and lawn mowers are also fitted with width adjustment cylinders to regulate their operating widths.

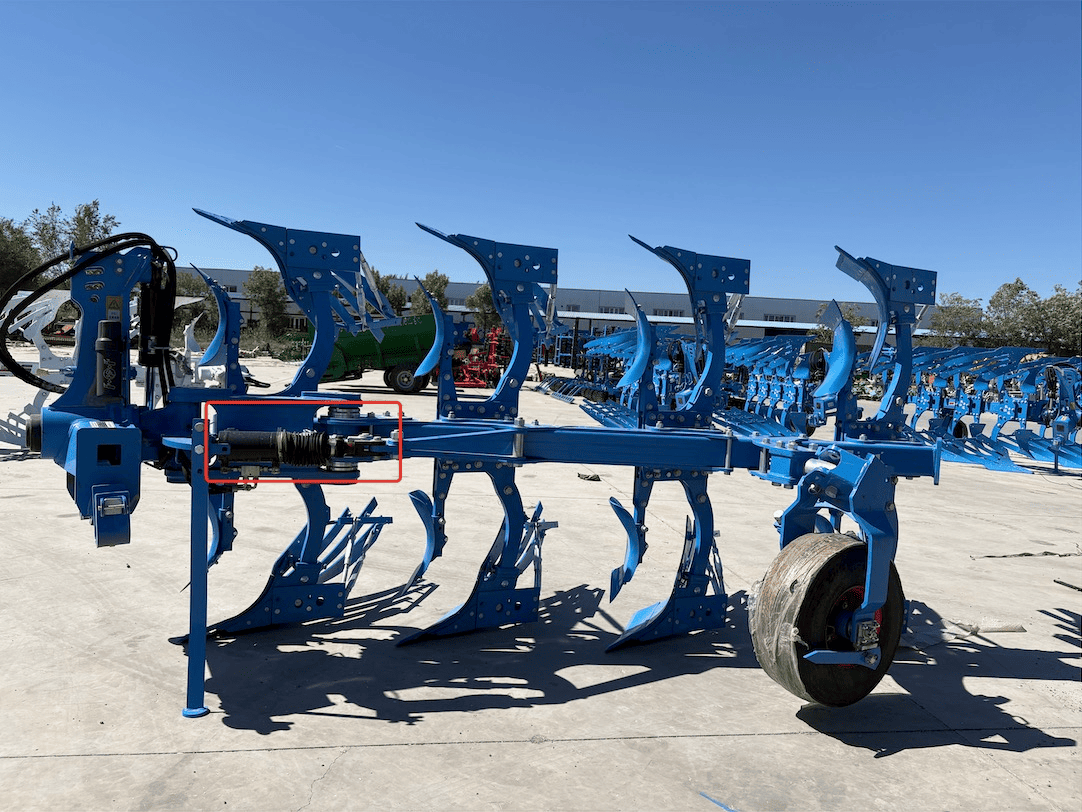

Reversible Plough Width Adjustment Hydraulic Cylinder

Service & Industry Scope

With 20 years of experience as a hydraulic cylinder manufacturer, MPM cylinders are primarily applied across:

Construction Machinery

Hydraulic lifting cylinders, steering cylinders, and buffer cylinders for cranes, forklifts, tractors, loaders, and excavators.

Agricultural Machinery

Reversible cylinder, adjustable width cylinder, and specialized agricultural implement cylinders.

Mining Machinery

Tilt cylinder, lifting cylinder, steering cylinder, and heavy-duty industrial systems.

Customization Capabilities

If you provide us with the following technical parameters, we can design and customize buffer cylinders according to your operational needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions

What is the primary function of a width adjustment cylinder on a reversible plough?

The width adjustment cylinder controls the furrow width across multiple plow bodies. It actively reduces lateral side draft, ensures the tractor moves in a straight path, reduces tire wear and fuel consumption, and optimizes working efficiency across diverse field edges.

Can these hydraulic cylinders fit multi-furrow plough configurations?

Yes, our width adjustment cylinders are engineered to fit 2-furrow up to 6-furrow reversible plough systems, supporting seamless, stepless working width adjustments.

What surface treatment is applied to prevent corrosion in tough agricultural soil?

Our cylinders undergo a robust multi-stage protective process including sandblasting, primer coating, intermediate painting, and an anti-corrosive finish coating to guarantee prolonged resistance to weather, soil, and moisture.

Is customized hydraulic cylinder manufacturing available?

Customization is MPM's primary design principle. We engineer custom cylinders based on bore size, rod diameter, stroke length, operating pressure, and custom mounting specifications tailored to specific machinery designs.

What are the testing and pressure standards for this cylinder model?

The standard model operates safely at a continuous working pressure of 25 MPa and is factory tested under rigorous quality control standards up to a 30 MPa test pressure.
