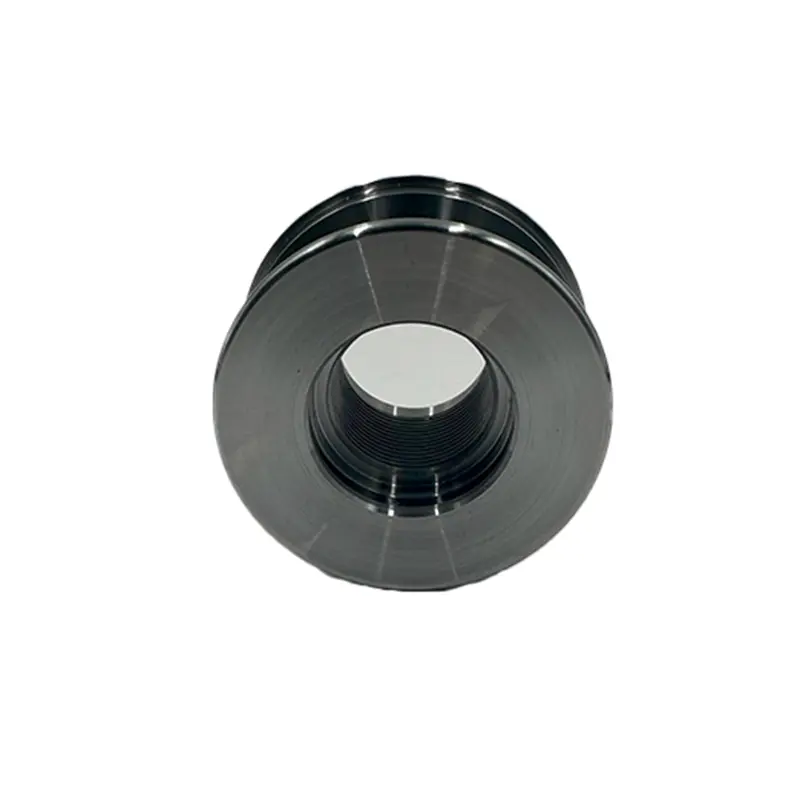

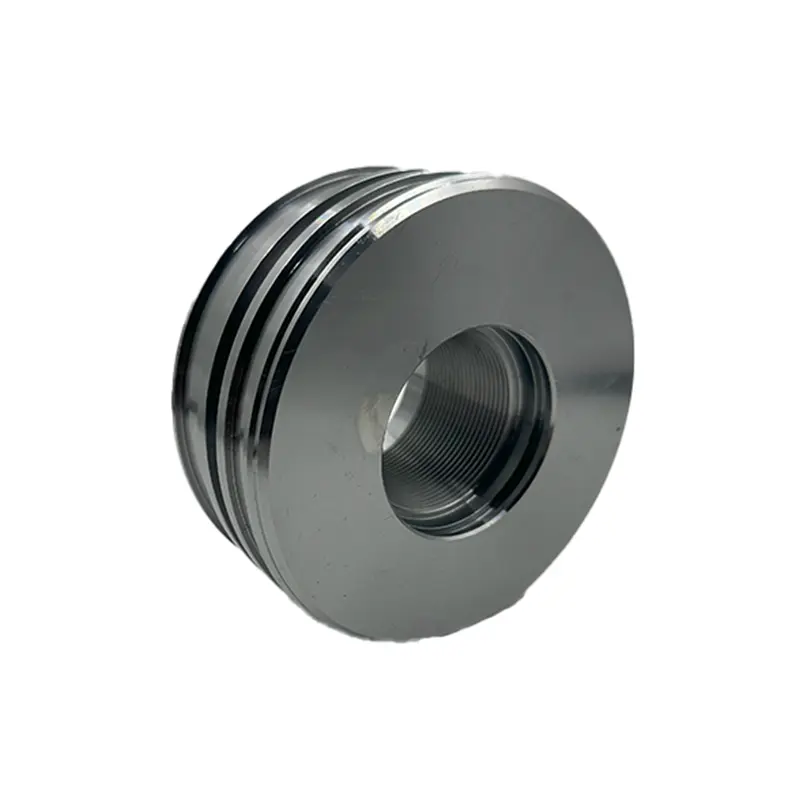

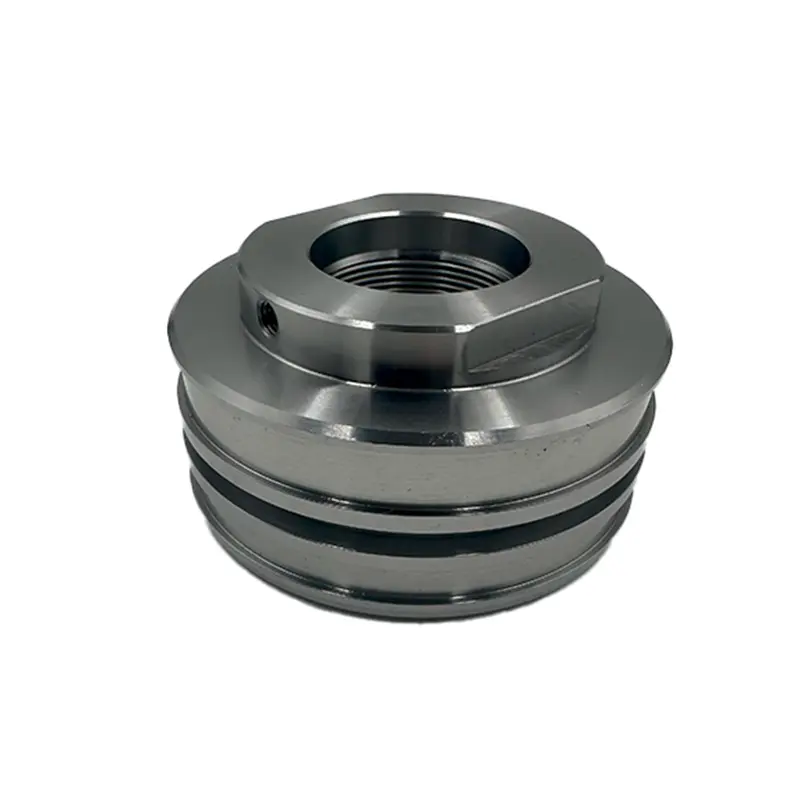

Custom MPM Hydraulic Cylinder Piston MPM-HCPT11 Manufacturers, Factories

1 / 3

Custom MPM Hydraulic Cylinder Piston MPM-HCPT11 Manufacturers, Factories

Hydraulic cylinder piston is the core component of the hydraulic cylinder. It is mostly made of metal, cylindrical, and precisely matched with the cylinder barrel. Its outer periphery is equipped with seals to prevent hydraulic oil leakage and is connected to the piston rod.

Send Inquiry

Product Description

Description

The outer diameter accuracy of the MPM brand hydraulic cylinder piston can reach ±0.01mm, the cylindrical error is controlled within 0.005mm, and the surface roughness Ra is as low as 0.2μm - 0.4μm, ensuring high-precision matching with the inner wall of the cylinder, effectively reducing leakage, reducing friction loss, and extending the service life of the piston and the entire hydraulic cylinder.

According to different working environments and media, high-quality sealing materials such as fluororubber and nitrile rubber are selected to ensure the compatibility and stability of the seals and hydraulic oil.

In order to enhance the hardness and wear resistance of the piston surface and improve the service life, the piston surface is subjected to special anti-corrosion treatment, such as chrome plating, nickel plating or chemical coating.

Features

When working, under the action of the hydraulic oil pressure difference, the piston moves linearly along the cylinder, converting hydraulic energy into mechanical energy to drive the external load. It is widely used in various hydraulic systems.

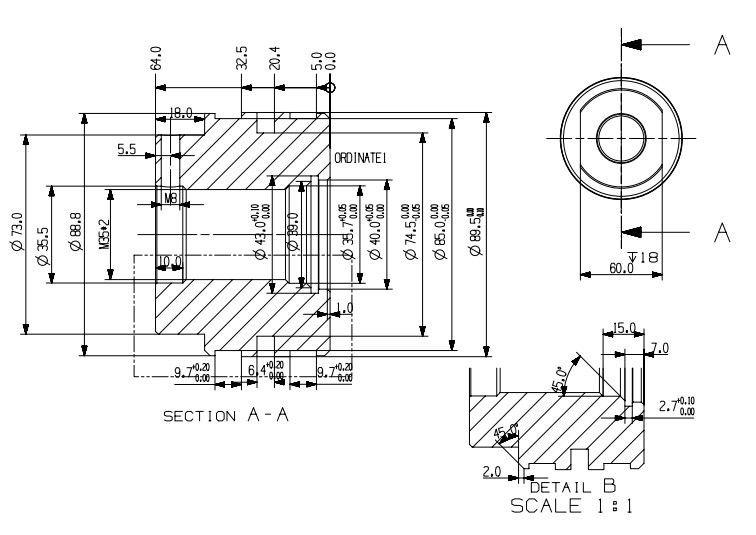

Drawing reference

Specification

Material: Carbon steel, Alloy steel, Stainless steel

Surface Treatment: Polishing, Deburring, Chrom Plate, Ni Plated, Zine plated, Silver platinng

Customization is the first principle of MPM.

Product	ID Range Diameter	OD Range Diameter	Height Range
Cylinder Piston	10mm～350mm	35mm～420mm	10mm～300mm
Inner hole H9, outer circle h9, special dimension tolerances can be customized. Others are in accorce with ISO 2768-mK.

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following hydraulic cylinder accessories services to global customers for decades.

1. Business Type: OEM& ODM Manufacturer (Custom CNC Machining Services)

2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.

3. Equipment: CNC Milling Machines, CNC Lathes, Oblique Guide NC Lathe

4. QC System: ISO9001: 2008

5. Our Advantages:

Reliable Quality

Competitive Price

High precision, high quality, tight tolerance

Continuous Improvement

Defect-Free Products

On-Time Delivery

Customer Satisfaction

Excellent After-Sales Service

Frequently Asked Questions (FAQ)

What precision tolerances can MPM achieve for hydraulic cylinder pistons?

The outer diameter accuracy reaches ±0.01mm, cylindrical error is controlled within 0.005mm, and surface roughness Ra ranges from 0.2μm to 0.4μm, with standard inner hole H9 and outer circle h9 tolerances.

What materials are used in the manufacturing of the pistons?

Pistons are primarily manufactured from Carbon steel, Alloy steel, and Stainless steel, paired with high-quality sealing materials like fluororubber and nitrile rubber.

What surface treatments are available for enhanced wear resistance?

Available treatments include Polishing, Deburring, Chrome Plating, Nickel Plating, Zinc Plating, and Silver Plating to protect against corrosion and improve service life.

Can MPM accommodate custom dimensions and specifications?

Yes, customization is the core principle. MPM can manufacture outside standard dimensions based on your specific engineering drawings and ISO 2768-mK requirements.

Which drawing formats are accepted for quotes and production?

Accepted formats include DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, and X_T.

What quality control standards does MPM follow?

All manufacturing and testing processes comply with the ISO9001: 2008 quality management system.
