Custom Integrated Cylinder Barrel MPM-HCIB11 Supplier, Manufacturers

1 / 4

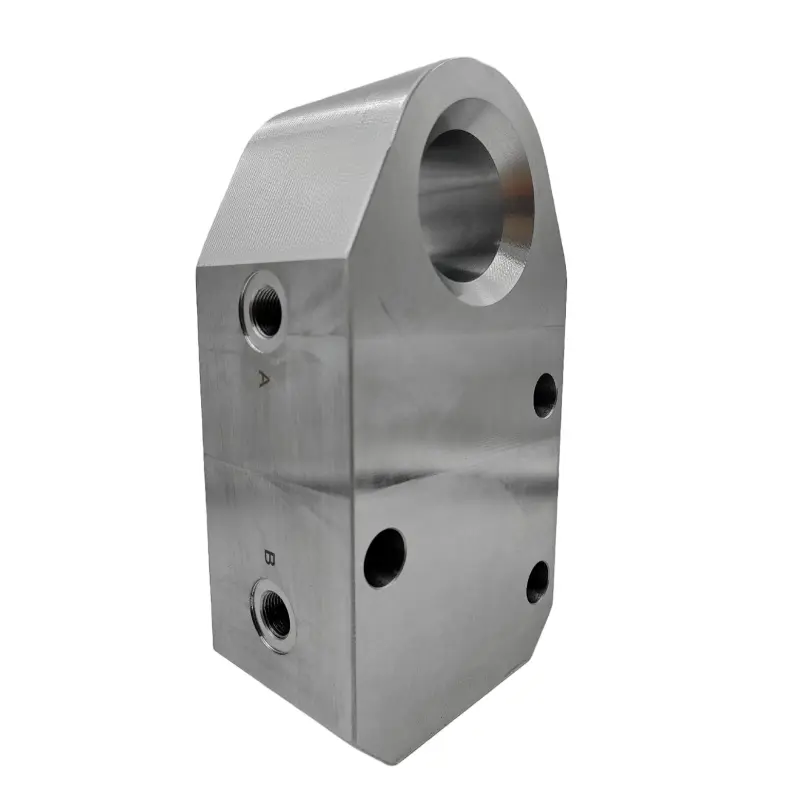

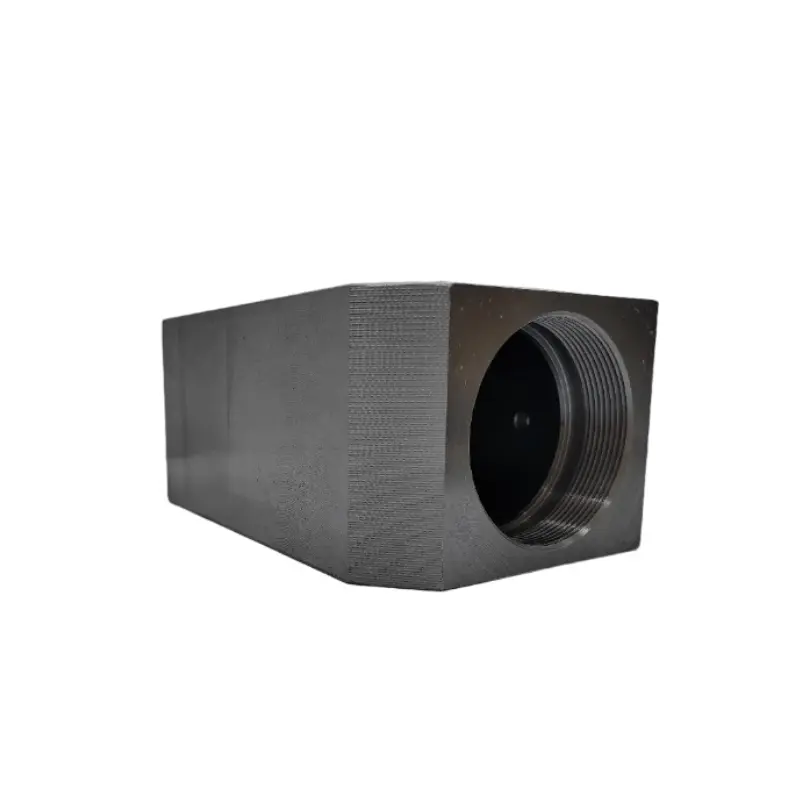

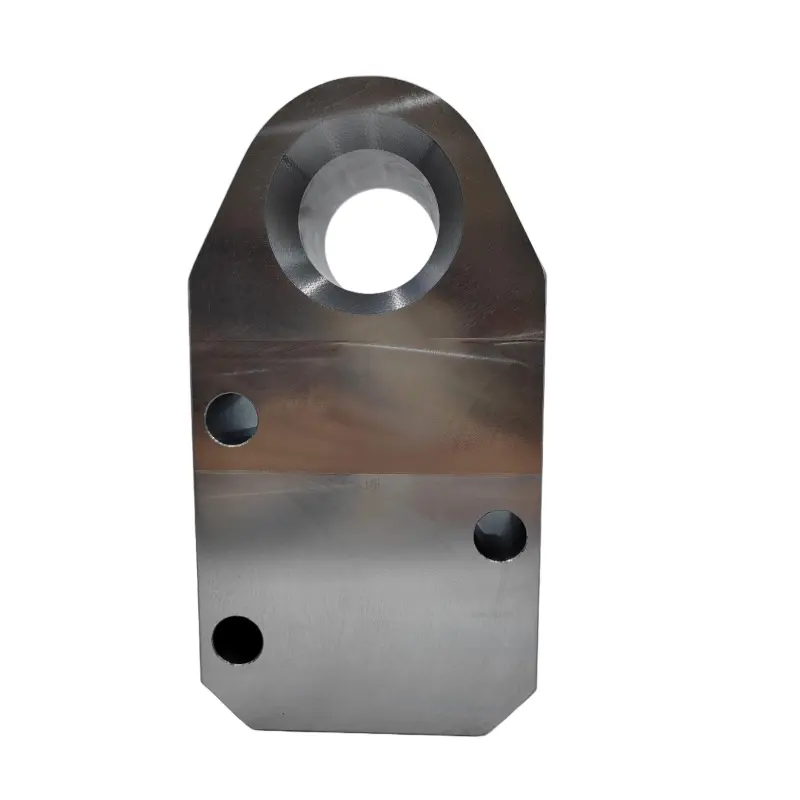

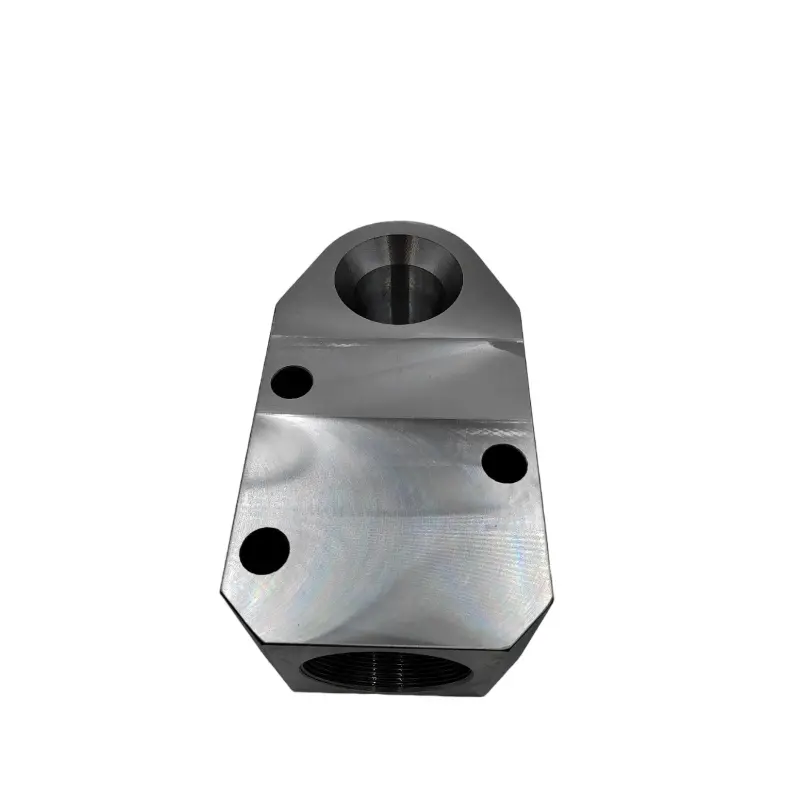

Custom Integrated Cylinder Barrel MPM-HCIB11 Supplier, Manufacturers

The integrated cylinder barrel is a hydraulic parts for the hydraulic cylinder that integrates the cylinder barrel and other key components together. It undergoes CNC machining, ensuring structural stability. This type of product usually integrates the cylinder barrel, flange and other components into one piece, thereby minimizing the quantity of connecting parts required.

Send Inquiry

Product Description

Description

The integrated cylinder barrel has excellent sealing performance. Due to the reduction of connection interfaces between the cylinder barrel and other components, the number of sealing points in the integrated cylinder barrel is decreased, thereby reducing the possibility of leakage. Strength and reliability: The integrated cylinder barrel is usually made of high-strength solid materials, featuring high bending strength and fatigue resistance, thus having a longer service life.

Application fields: Integrated barrel cylinders are widely used in situations where high performance of oil cylinders is required. In some hydraulic systems that require high precision and high reliability, such as aerospace, high-end machine tools, heavy machinery and other fields, this integrated cylinder barrel structure of the hydraulic cylinder is often adopted.

Specification

Material: Carbon steel, Alloy steel, Stainless steel

Surface Treatment: Polishing, Deburring, Chrom Plate, Ni Plated, Zine plated, Silver platinng

Customization is the first principle of MPM.

Mounting distance	400-600mm
Stroke	100-260mm
Rod Diameter	30-50mm
Working Pressure	16-25Mpa
Inner hole H9, outer circle h9, special dimension tolerances can be customized. Others are in accorce with ISO 2768-mK.

Product Video

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following hydraulic cylinder accessories services to global customers for decades.

1. Business Type: OEM& ODM Manufacturer (Custom CNC Machining Services)
2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.
3. Equipment: CNC Milling Machines, CNC Lathes, Oblique Guide NC Lathe
4. QC System: ISO9001: 2008

5. Our Advantages:

1). Reliable Quality

2). Competitive Price

3). High Precision & Tight Tolerance

4). Continuous Improvement

5). Defect-Free Products

6). On-Time Delivery

7). Customer Satisfaction

8). Excellent After-Sales Service

Frequently Asked Questions

What are the main advantages of an integrated cylinder barrel?

The integrated cylinder barrel significantly reduces connection interfaces and sealing points, minimizing potential leakage risks. It offers superior bending strength, exceptional fatigue resistance, and an extended operational lifespan compared to conventional designs.

What materials are available for custom manufacturing?

We manufacture hydraulic cylinder barrels using Carbon steel, Alloy steel, and Stainless steel depending on your specific mechanical performance and environmental resistance requirements.

Can you handle custom dimensions and specialized tolerances?

Yes, customization is our first principle. Standard tolerances are Inner hole H9 and outer circle h9 compliant with ISO 2768-mK, but specific tight tolerances and special structural dimensions can be fully customized based on your technical drawings.

What file formats do you accept for quotation and production?

We accept a wide range of standard engineering drawing formats including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, and X_T.

In which industries are these hydraulic cylinders commonly applied?

Due to their high precision and structural reliability, these cylinders are widely utilized in heavy machinery, aerospace engineering, high-end CNC machine tools, and demanding industrial hydraulic systems.
