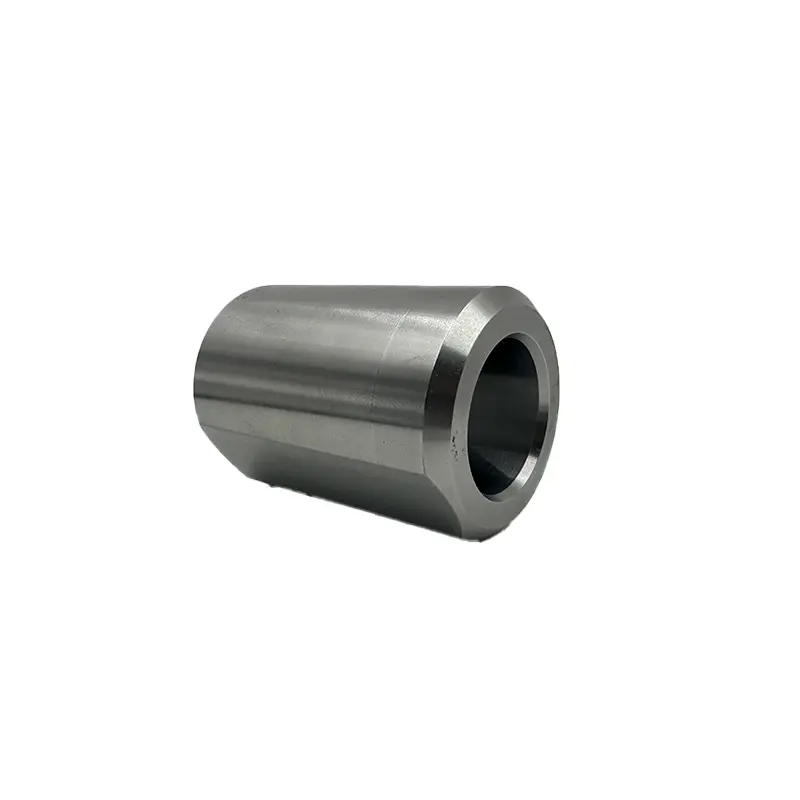

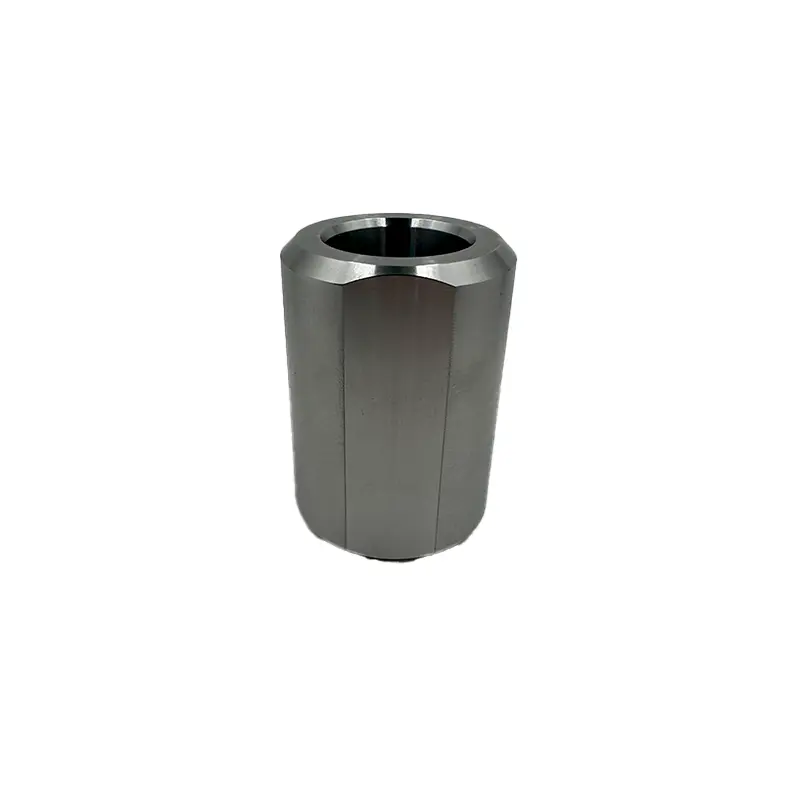

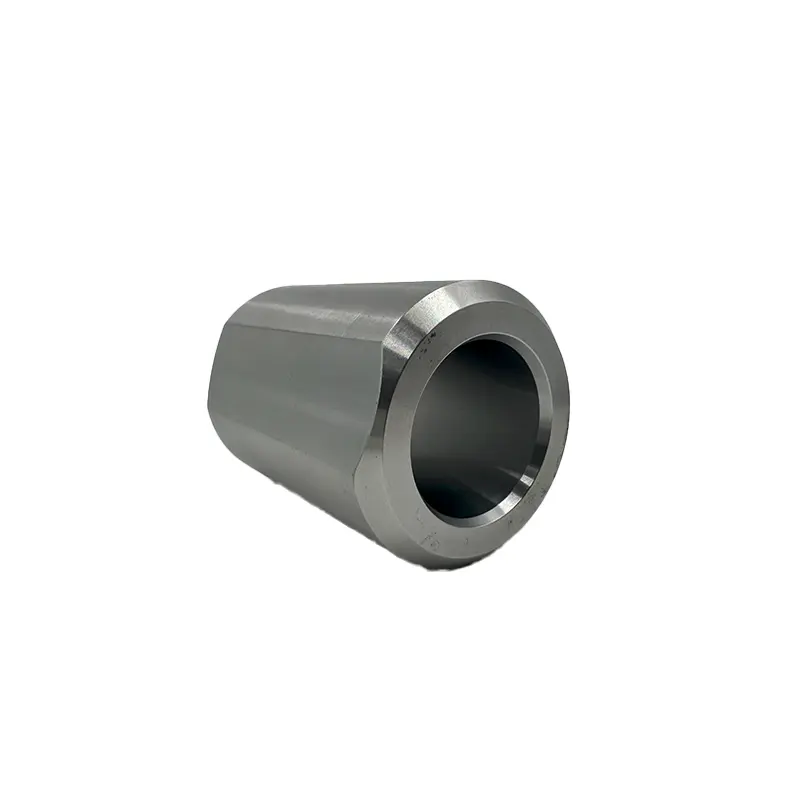

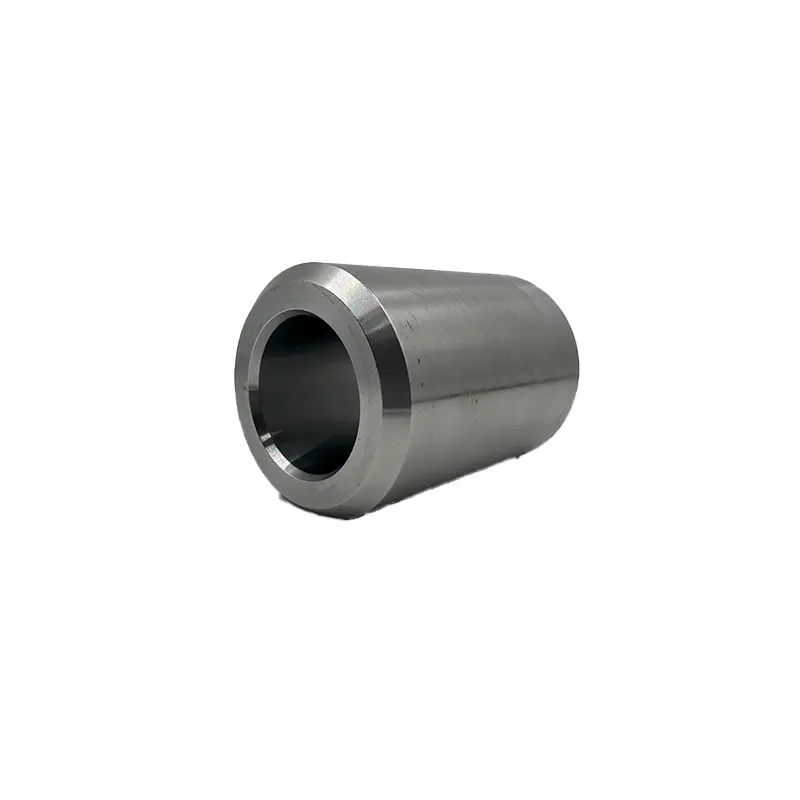

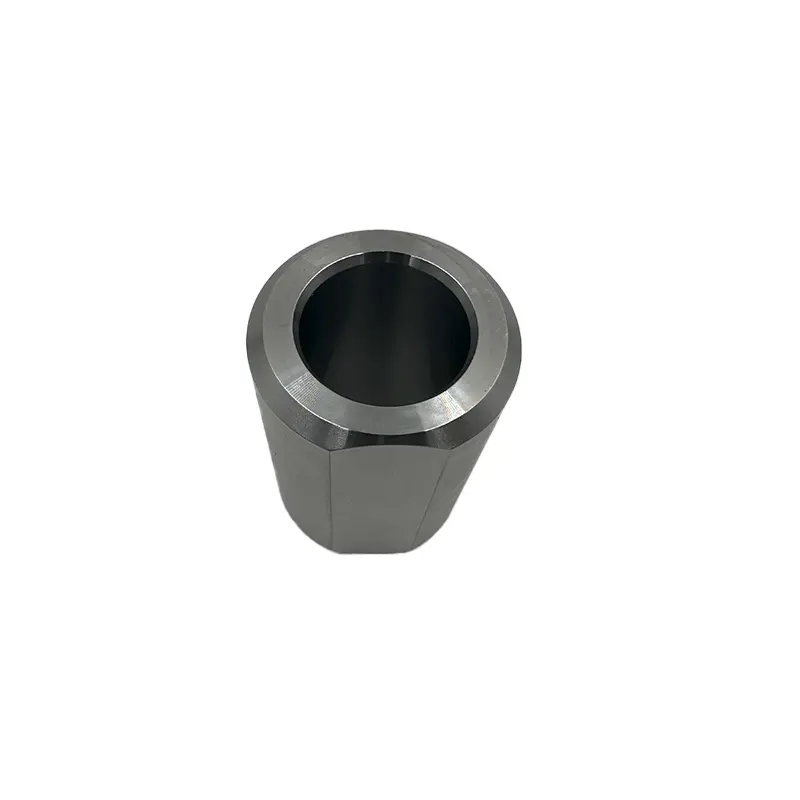

Wholesale Hydraulic Cylinder Bush MPM-HCBS11 Manufacturers, Manufacturer

1 / 5

Wholesale Hydraulic Cylinder Bush MPM-HCBS11 Manufacturers, Manufacturer

The hydraulic cylinder bush is a critical guiding component installed inside hydraulic cylinders, primarily used to support the piston rod and ensure its precise linear motion while reducing friction and wear. Typically made of wear-resistant materials (such as bronze alloy, chrome-plated steel, or self-lubricating composites), it features precisely machined inner bores and lubrication structures, enabling it to withstand radial loads and extend the service life of the hydraulic cylinder.

Send Inquiry

Product Description

Hydraulic cylinder bush ensures precise linear motion of the piston rod through its high-precision inner bore guide, effectively preventing deflection while maintaining smooth cylinder operation. Its rigid support structure withstands radial loads to protect the cylinder barrel from direct stress, serving as a fundamental component for stable hydraulic performance.

Constructed from wear-resistant bronze alloy or chrome-plated steel, the bush incorporates optimized lubrication channels to reduce friction coefficients to 0.05-0.1. This advanced material and design combination minimizes energy loss through reduced motion resistance while simultaneously protecting the piston rod surface from premature wear, significantly extending the service life of critical moving components.

Functioning as a protective barrier, the bush isolates sealing areas from external contaminants and dampens operational vibrations. Its ability to filter particulate matter and absorb high-frequency impacts contributes to quieter system performance. Regular maintenance inspections every 5,000 operating hours are recommended to monitor wear patterns and prevent potential hydraulic system failures before they occur.

Technical Specifications

Material: Carbon steel, Alloy steel, Stainless steel

Surface Treatment: Polishing, Deburring, Chrome Plated, Ni Plated, Zinc plated, Silver plating

Customization Note: Customization is the first principle of MPM.

Product	ID Range Diameter	OD Range Diameter	Height Range
Cylinder Bushing	10mm – 350mm	20mm – 420mm	8mm – 350mm
Inner hole H9, outer circle h9, special dimension tolerances can be customized. Others are in accordance with ISO 2768-mK.

Manufacturing & Service Capabilities

Qingdao Micro Precision Machinery Co., Ltd. has been providing high-precision hydraulic cylinder accessories and services to global customers for decades.

Production & Engineering

Business Type: OEM & ODM Manufacturer (Custom CNC Machining Services)
Supported DRW Formats: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.
Machining Equipment: CNC Milling Machines, CNC Lathes, Oblique Guide NC Lathe
Quality Control System: ISO9001: 2008 Certified

Core Service Advantages

Reliable Quality

Competitive Price

High Precision & Tight Tolerance

Continuous Improvement

Defect-Free Products

On-Time Delivery

Customer Satisfaction

Excellent After-Sales

Frequently Asked Questions

Q: What materials are available for the hydraulic cylinder bushings?

We offer bushings manufactured from carbon steel, alloy steel, stainless steel, and wear-resistant bronze alloy, tailored to your specific mechanical requirements.

Q: What are the standard size ranges for cylinder bushings?

Our standard capability covers ID from 10mm to 350mm, OD from 20mm to 420mm, and heights from 8mm to 350mm. Non-standard dimensions can be custom manufactured.

Q: What manufacturing tolerances do you follow?

Standard bushings are produced with inner hole H9 and outer circle h9 tolerances in accordance with ISO 2768-mK. Tighter custom tolerances are available upon request.

Q: Which drawing file formats can be used for custom quotes?

We accept a wide range of CAD and 3D modeling formats, including DWG, PDF, STEP, IGS, SLDPRT, SLDDRW, PRT, DXF, and X_T.

Q: What is the recommended maintenance cycle for these bushings?

Regular maintenance inspections are recommended every 5,000 operating hours to monitor wear patterns, check lubrication performance, and maintain system integrity.
