Custom Hydraulic Spherical Bearing MPM-HCSB11 Supplier, Factories

1 / 4

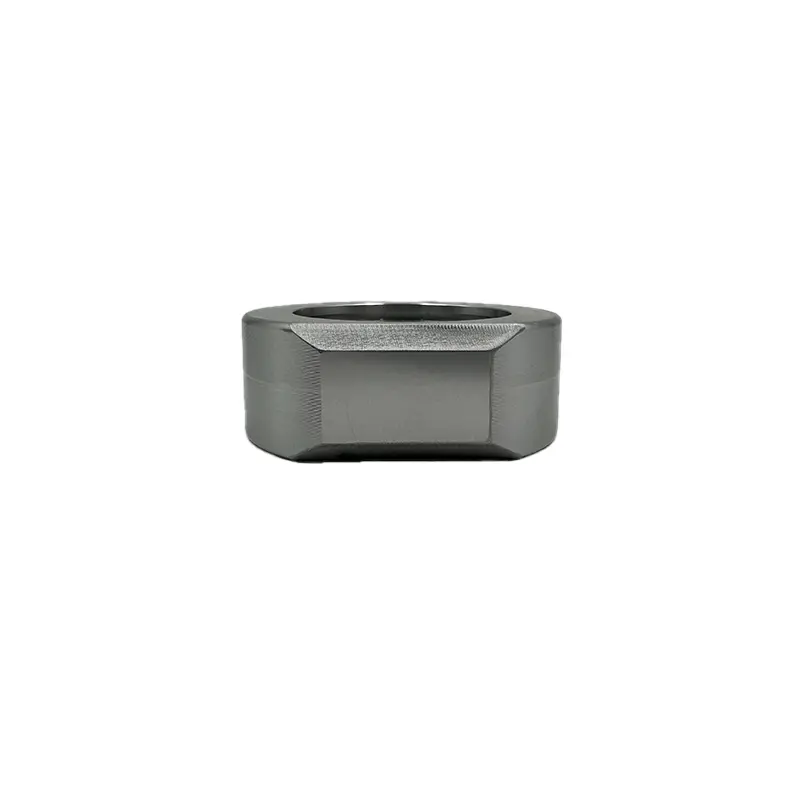

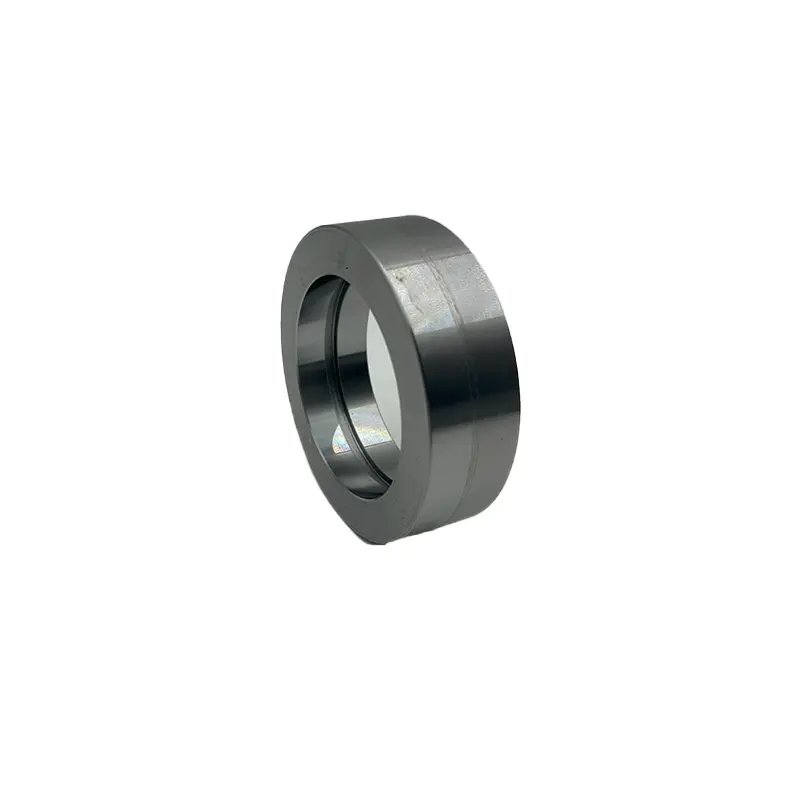

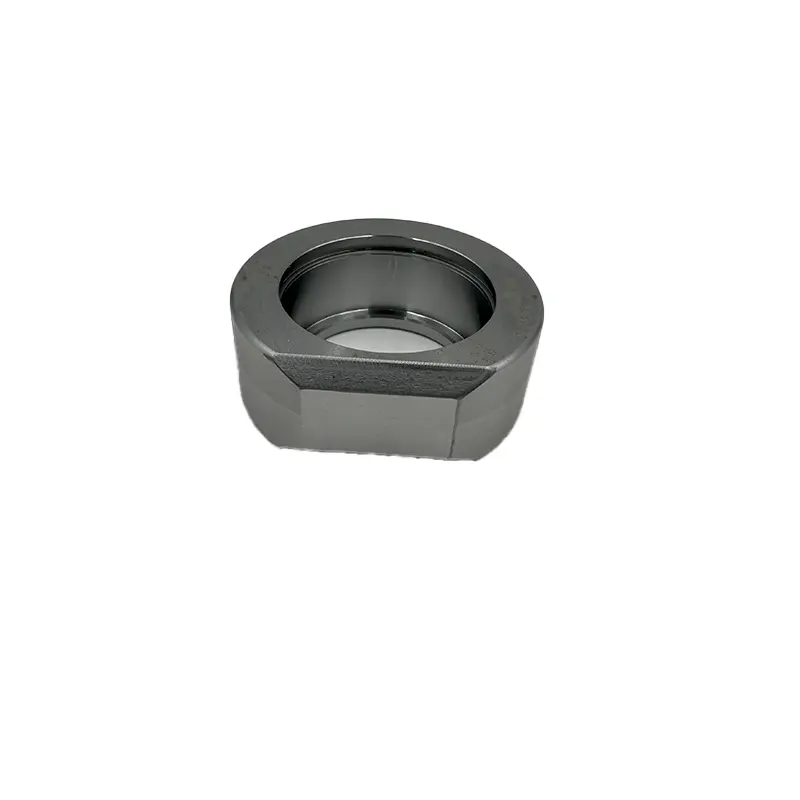

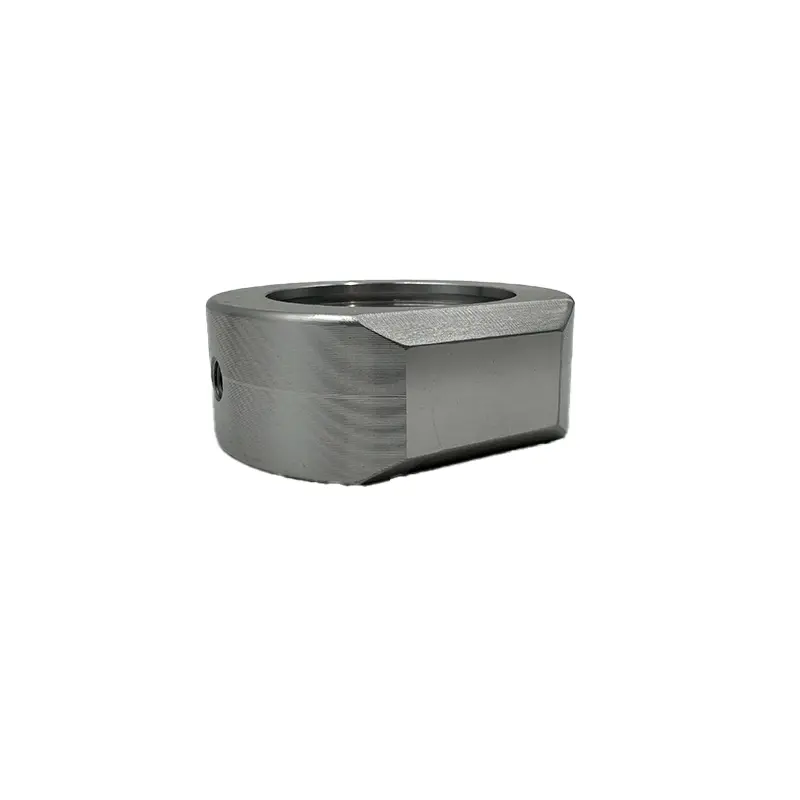

Custom Hydraulic Spherical Bearing MPM-HCSB11 Supplier, Factories

Hydraulic spherical bearing is a precision connecting component specifically designed for hydraulic cylinders and hydraulic systems. Constructed from high-strength alloy materials and featuring specialized lubrication technology, it offers high load capacity, wear resistance, and impact resistance. Equipped with self-lubricating liners or sealed structures, it ensures stable performance under high pressure, heavy loads, and frequent oscillating conditions, effectively reducing friction and extending cylinder service life. Widely used in hydraulic systems for construction machinery, metallurgical equipment, ship rudders, and other applications, it enables smooth rotational movement while providing reliable axial, radial, and moment support, making it ideal for high-intensity operations in complex environments.

Send Inquiry

Product Description

Description

Hydraulic Cylinder Spherical Bearings are high-performance connecting components specifically designed for hydraulic systems. Constructed from high-strength alloy materials and incorporating advanced lubrication technology, they deliver exceptional load-bearing capacity, wear resistance, and impact resistance, ensuring stable operation under high pressure, heavy loads, and frequent oscillation conditions.

Key advantages include high-load design (static/dynamic load capacity up to XX tons), multi-angle compensation (±5°), and long-lasting self-lubricating structure, significantly extending cylinder service life. Surface hardening treatment (HRC≥58) and temperature-resistant design (-30°C~150°C) further enhance reliability in harsh operating environments.

Widely used in construction machinery, metallurgical equipment, marine hydraulic systems, and other applications, these bearings support standard dimensions and custom solutions. Backed by fatigue test certification and extended warranties, they represent the ideal solution for improving hydraulic system durability and motion precision.

Specification

Material: Carbon steel, Alloy steel, Stainless steel

Surface Treatment: Polishing, Deburring, Chrome Plated, Ni Plated, Zinc Plated, Silver Plating

Note: Customization is the first principle of MPM.

Product	ID Range Diameter	OD Range Diameter	Height Range
Cylinder Spherical Bearing	10mm∼350mm	25mm∼420mm	8mm∼350mm
Inner hole H9, outer circle h9, special dimension tolerances can be customized. Others are in accordance with ISO 2768-mK.

Product Video

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following hydraulic cylinder accessories services to global customers for decades.

1. Business Type: OEM & ODM Manufacturer (Custom CNC Machining Services)

2. DRW Format Supported: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.

3. Advanced Equipment: CNC Milling Machines, CNC Lathes, Oblique Guide NC Lathe

4. Quality Control System: ISO9001: 2008 Certified

5. Our Key Advantages:

1). Reliable Quality

2). Competitive Price

3). High Precision & Tight Tolerance

4). Continuous Improvement

5). Defect-Free Products

6). On-Time Delivery

7). Customer Satisfaction

8). Excellent After-Sales Service

Frequently Asked Questions

What materials are available for the hydraulic cylinder spherical bearings?

We manufacture bearings using premium Carbon Steel, Alloy Steel, and Stainless Steel depending on your application requirements.

Can standard dimensions be customized for specific machinery?

Yes, customization is our primary service principle. We support inner holes (H9), outer circles (h9), and non-standard custom tolerances according to ISO 2768-mK or your design drawings.

What surface treatment options do you provide?

We provide Polishing, Deburring, Chrome Plating, Nickel Plating, Zinc Plating, and Silver Plating to ensure corrosion resistance and wear durability.

What drawing file formats are accepted for custom orders?

We support multiple 2D and 3D formats including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, and X_T.

How do you ensure product quality and dimensional accuracy?

Our manufacturing process is fully compliant with the ISO9001: 2008 Quality Management System, backed by rigorous fatigue testing, advanced CNC inspection, and high-precision machining.
