China Hydraulic Cylinder Base MPM-HCBS11 Manufacturers, Manufacturer

1 / 5

China Hydraulic Cylinder Base MPM-HCBS11 Manufacturers, Manufacturer

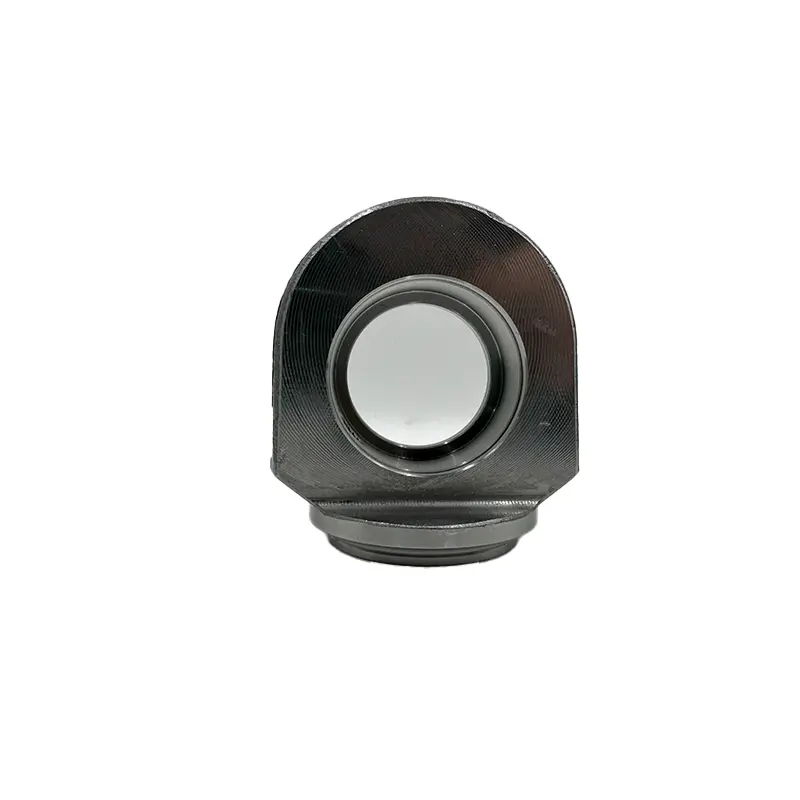

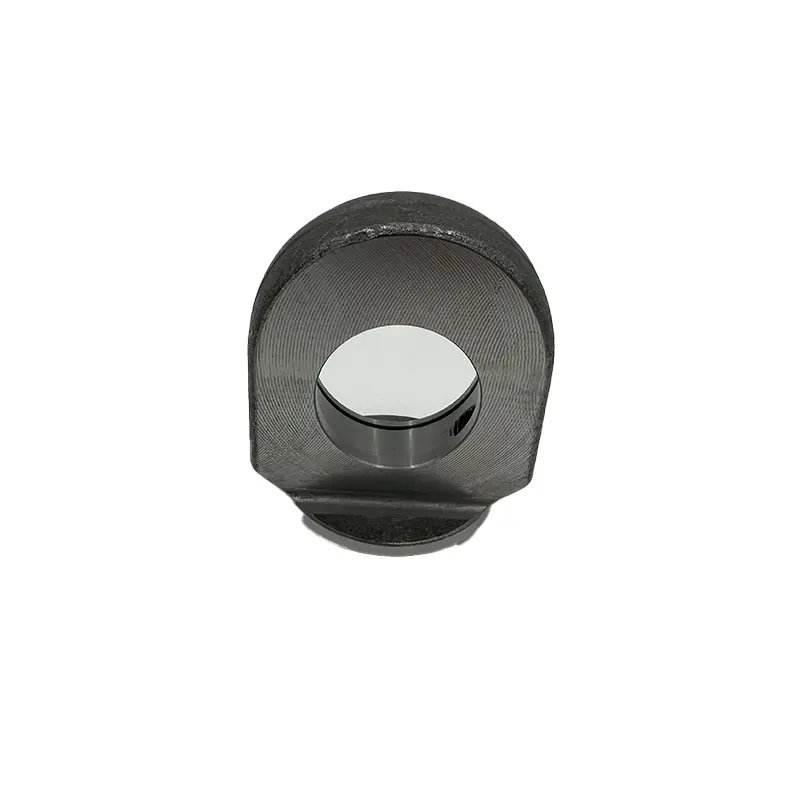

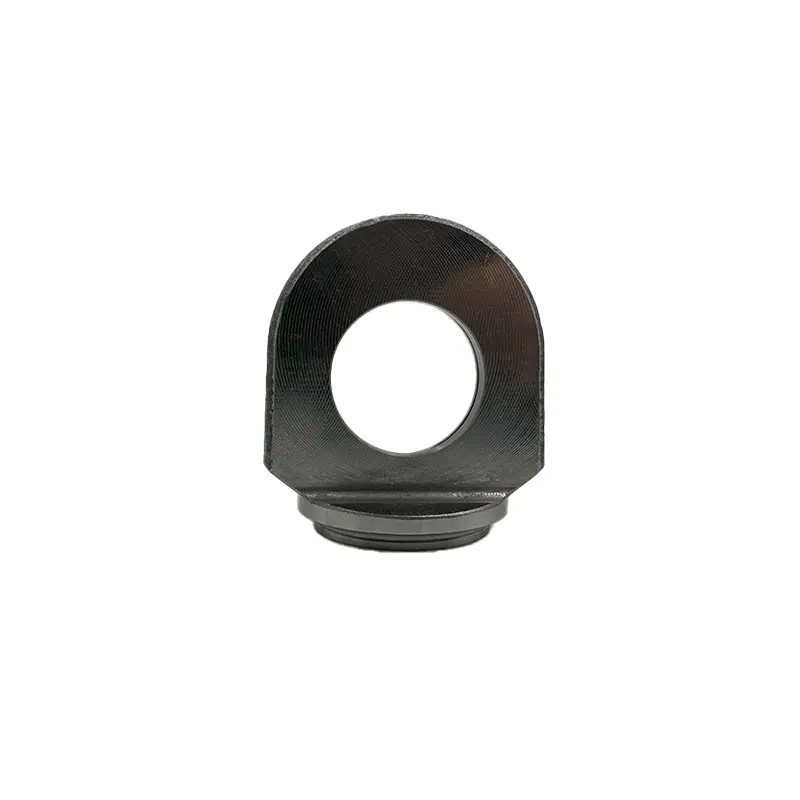

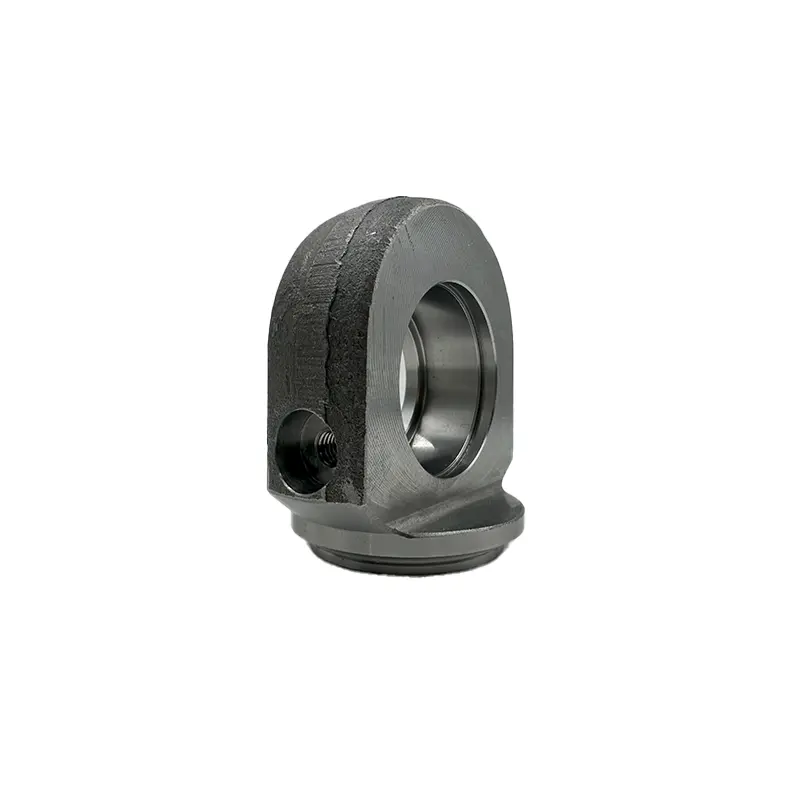

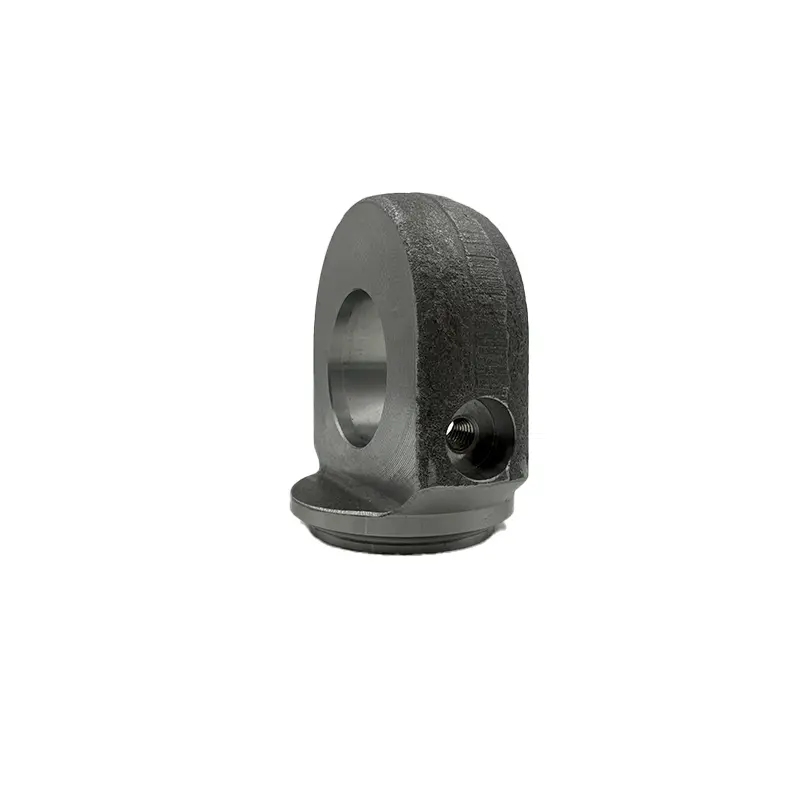

Hydraulic Cylinder Base also known as cylinder base end, refers to the sealed bottom end of a hydraulic cylinder, primarily functioning to enclose the barrel, withstand fluid pressure, and provide mounting support. It is typically welded, bolted, or threaded to the barrel, with some designs incorporating fluid ports for oil flow. Depending on construction, it can be categorized as welded type, threaded/bolted type, or flange type, ensuring structural stability and pressure sealing. In double-acting cylinders, the base works in conjunction with the cylinder head to form a sealed chamber, enabling piston reciprocation.

Send Inquiry

Product Description

Description

A hydraulic cylinder base is a critical component of the hydraulic cylinder, located at the bottom of the barrel, primarily used to seal the barrel and withstand the pressure of the hydraulic system. Its core functions include sealing (preventing hydraulic oil leakage), pressure-bearing (maintaining system stability), and connection (integrating with components like the barrel and piston rod). Depending on the structure, hydraulic cylinder bases can be categorized into welded type (high strength, suitable for high pressure), threaded connection type (easy disassembly, ideal for medium-low pressure), and flanged connection type (excellent sealing, suitable for large-diameter cylinders). Common manufacturing materials include carbon steel, alloy steel, and stainless steel to meet different operational requirements.

Hydraulic cylinder bases are widely used in hydraulic systems for construction machinery, agricultural equipment, mining machinery, ships, and more. Their design and selection directly impact the sealing performance, pressure resistance, and service life of the hydraulic cylinder. The choice of connection method (welding, threading, or flanging) and material must be optimized based on working pressure, environmental conditions, and maintenance needs to ensure efficient and reliable operation of the hydraulic system.

Features

Hydraulic cylinder base is constructed from high-strength alloy steel with multi-stage sealing, delivering 35MPa+ pressure resistance and million-cycle seal life, ideal for high-pressure hydraulic systems in construction machinery, marine applications, and more.

Specification

Material: Carbon steel, Alloy steel, Stainless steel

Surface Treatment: Polishing, Deburring, Chrom Plate, Ni Plated, Zine plated, Silver platinng

Customization is the first principle of MPM.

Product	ID Range Diameter	OD Range Diameter	Height Range
Cylinder Base	10mm～350mm	25mm～420mm	5mm～300mm
Inner hole H9, outer circle h9, special dimension tolerances can be customized. Others are in accorce with ISO 2768-mK.

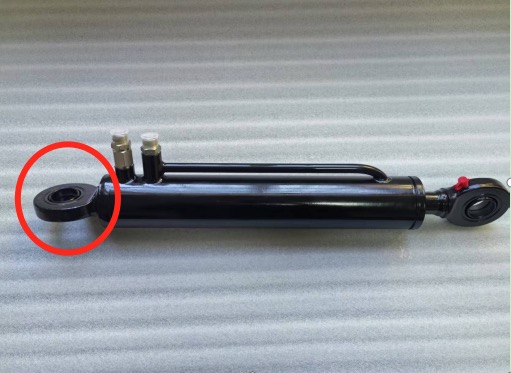

Hydraulic Cylinder Base Specification Detail

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following hydraulic cylinder accessories services to global customers for decades.

1. Business Type:
OEM & ODM Manufacturer (Custom CNC Machining Services)

2. DRW Format:
DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.

3. Equipment:
CNC Milling Machines, CNC Lathes, Oblique Guide NC Lathe

4. QC System:
ISO9001: 2008

5. Our Advantages:

1). Reliable Quality

2). Competitive Price

3). High precision & tight tolerance

4). Continuous Improvement

5). Defect-Free Products

6). On-Time Delivery

7). Customer Satisfaction

8). Excellent After-Sales Service

Frequently Asked Questions (FAQ)

What materials are typically used for manufacturing hydraulic cylinder bases?

Hydraulic cylinder bases are commonly manufactured from carbon steel, alloy steel, and stainless steel. Material selection depends on operating pressure, environmental exposure, and corrosion resistance requirements.

What connection types are available for hydraulic cylinder bases?

Depending on functional requirements, bases can be designed as welded type (offering high strength for high-pressure systems), threaded connection type (easy disassembly for medium-low pressure), or flanged connection type (ideal for large-diameter cylinders).

What level of pressure can these cylinder bases withstand?

Constructed from high-strength alloy steel and integrated with multi-stage sealing structures, these bases are capable of withstanding pressures of 35MPa and higher.

Can custom dimensions and tolerances be manufactured?

Yes, customization is a core service principle. Inner hole H9, outer circle h9, and other standard tolerances according to ISO 2768-mK are supplied, and specific dimensional tolerances can be custom machined based on your drawing files.

Which CAD and drawing file formats are accepted for quotes and production?

A wide array of industry-standard drawing formats is supported, including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, and X_T.

What surface finish and coating treatments are available?

A comprehensive range of surface treatments is available to enhance corrosion and wear resistance, including polishing, deburring, chrome plating, nickel plating, zinc plating, and silver plating.
