What information do you need to quote a custom hydraulic cylinder?

Send bore diameter, rod diameter, stroke, retracted (pin-to-pin) length, working pressure, single- or double-acting design, mounting type at both ends, port size and thread standard, operating environment and estimated annual quantity. A drawing, a sample or a photo of the original nameplate shortens the quotation process.

Can you reproduce an OEM replacement cylinder from a sample?

Yes. Our engineers measure the sample, prepare a technical drawing and send it for your confirmation before machining starts, so interchangeability is agreed in writing before production.

Which standards do your parts and tooling follow?

We machine to the customer drawing in metric or imperial units. Typical references include ISO 6H thread tolerance for hydraulic cylinder nuts, DIN 69872 and JIS B6339 for CNC retention knobs, and ER collet systems for milling tool holders.

Do you supply hydraulic cylinder components separately?

Yes. We supply cylinder heads, pistons, nuts, flanges, bases, integrated barrels, bushings and spherical bearings, as well as hydraulic valve blocks, for cylinder builders and repair workshops.

How are export orders packed and shipped?

Goods are packed with standard export materials to prevent transit damage and shipped by sea, air or express courier according to your preference, with tracking information provided.

How quickly will I receive a reply?

Our sales engineers reply to email enquiries within 24 hours. You can also reach the team directly by phone or WhatsApp.

ODM Hydraulic Cylinder Nut MPM-HCNT11 Suppliers, Factory

1 / 3

ODM Hydraulic Cylinder Nut MPM-HCNT11 Suppliers, Factory

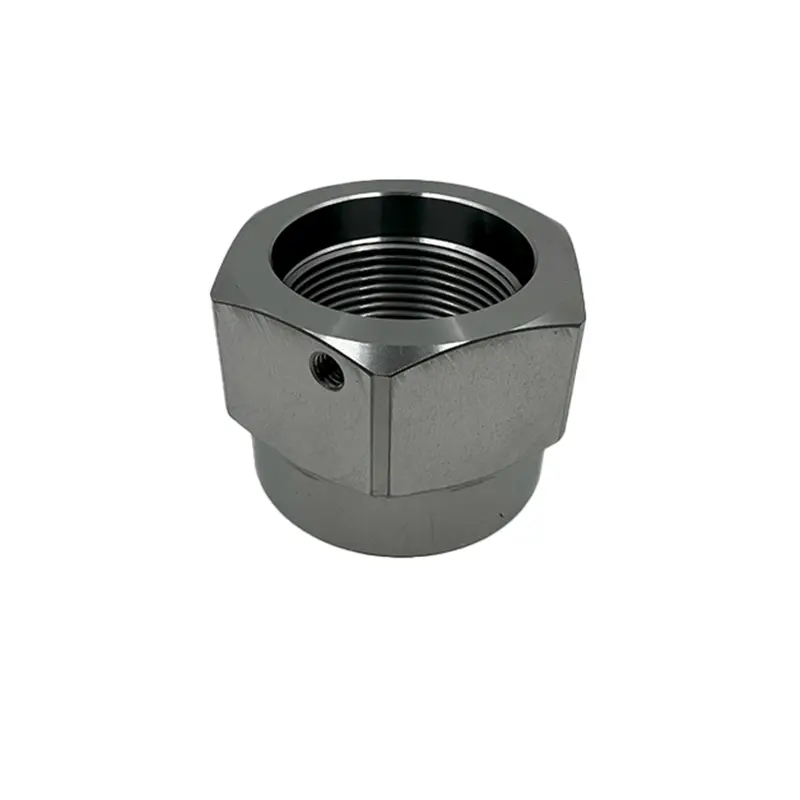

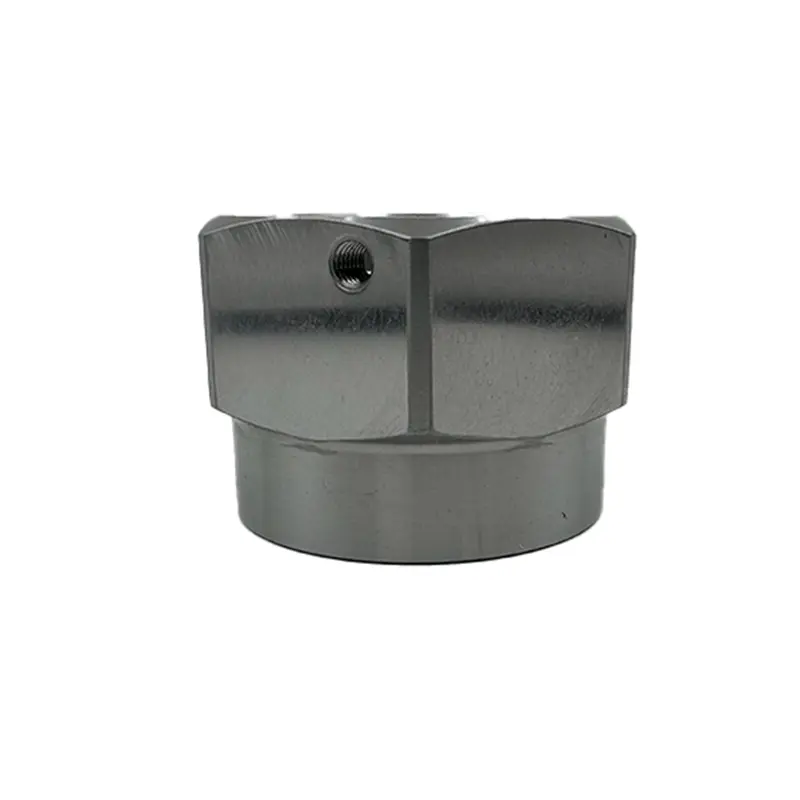

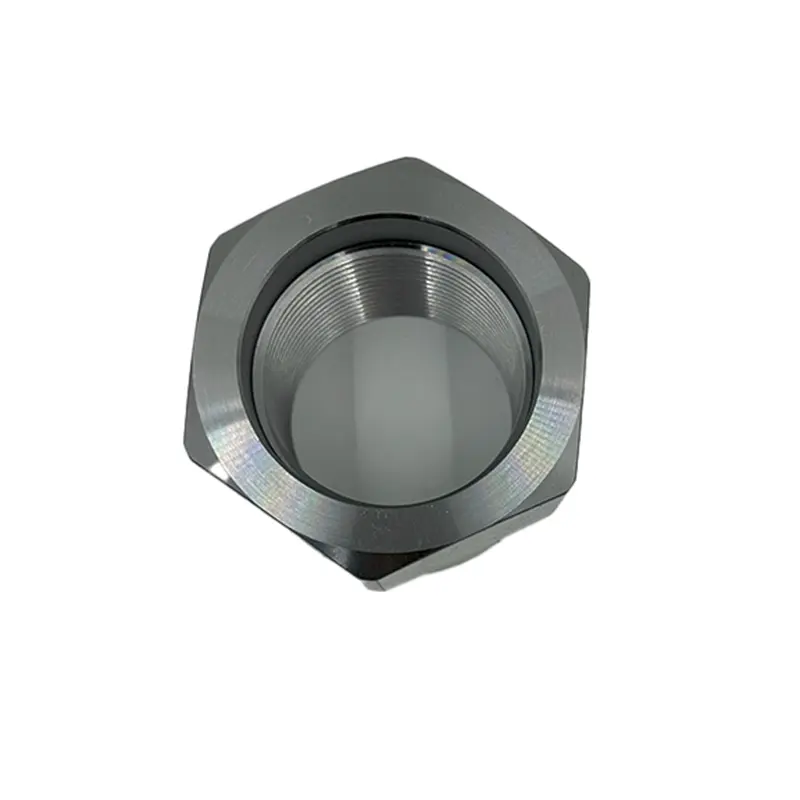

Hydraulic cylinder nut is a critical fastening component for hydraulic systems. Manufactured through precision forging of high-strength alloy steel with heat treatment and anti-corrosion surface finishing, it delivers exceptional tensile strength and corrosion resistance. Featuring ISO 6H-grade thread precision and a special locking structure design, it effectively prevents loosening and leakage under high-pressure cylinder operation. Available in metric/imperial standard specifications with custom options, it is ideal for cylinder end cover fixation in construction machinery, injection molding machines, hydraulic supports, and other equipment - ensuring long-term stable performance of hydraulic systems.

Send Inquiry

Product Description

Description

1 Superior Performance

Precision-forged from high-strength alloy steel with professional heat treatment and anti-corrosion surface finishing, our nuts deliver exceptional tensile strength and corrosion resistance. Featuring ISO 6H-grade precision threads and special anti-loosening design, they ensure secure fastening under high-pressure conditions while effectively preventing hydraulic fluid leakage.

2 Reliable Durability

The unique locking structure and premium materials extend product lifespan by over 50%, withstanding extreme temperature and pressure variations. Zinc/Dacromet surface plating provides multi-layer protection for harsh operating environments, significantly reducing maintenance costs.

3 Wide Compatibility

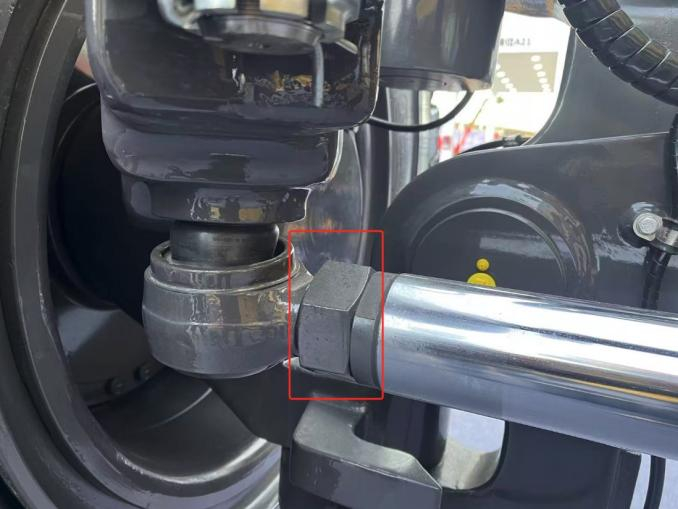

Available in metric/imperial standard sizes with custom options, these nuts perfectly fit cylinder end cover fastening requirements for construction machinery, injection molding machines, hydraulic supports and more. Our technical support team provides optimal fastening solutions for your specific needs.

Specification

Product	Cylinder Head
ID Range Diameter	10mm～350mm
OD Range Diameter	20mm～420mm
Height Range	8mm～350mm
Tolerance Standard	Inner hole H9, outer circle h9, special dimension tolerances can be customized. Others are in accorce with ISO 2768-mK.
Material	Carbon steel, Alloy steel, Stainless steel
Surface Treatment	Polishing, Deburring, Chrom Plate, Ni Plated, Zine plated, Silver platinng
Customization Note	Customization is the first principle of MPM.

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following hydraulic cylinder accessories services to global customers for decades.

1. Business Type: OEM & ODM Manufacturer (Custom CNC Machining Services)

2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.

3. Equipment: CNC Milling Machines, CNC Lathes, Oblique Guide NC Lathe

4. QC System: ISO9001: 2008

5. Our Advantages:

1). Reliable Quality

2). Competitive Price

3). High precision, high quality, tight tolerance

4). Continuous Improvement

5). Defect-Free Products

6). On-Time Delivery

7). Customer Satisfaction

8). Excellent After-Sales Service

Frequently Asked Questions

What materials are available for the cylinder head and nuts?

We manufacture using premium high-strength carbon steel, alloy steel, and stainless steel, all paired with heat treatment and specialized anti-corrosion surface finishing based on your operational environment.

Can you produce custom sizes and tight tolerances?

Yes, customization is the first principle of MPM. We process inner holes to H9, outer circle to h9, standard components to ISO 2768-mK, and can adjust to your specific tighter dimensional tolerances.

What file formats are accepted for custom design inquiries?

We accept a wide range of engineering CAD drawing formats, including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, and X_T.

What types of surface treatments do you offer?

We provide polishing, deburring, chrome plating, nickel plating, zinc plating, Dacromet plating, and silver plating to deliver exceptional corrosion and wear resistance.

How is product quality ensured throughout the manufacturing process?

Our operations are fully ISO9001:2008 certified. We utilize high-precision CNC machining equipment along with multi-tier quality control checks to ensure defect-free components that adhere strictly to specifications.
