ODM Lifting Cylinder MPM-HCL601 Manufacturers, Manufacturer

1 / 2

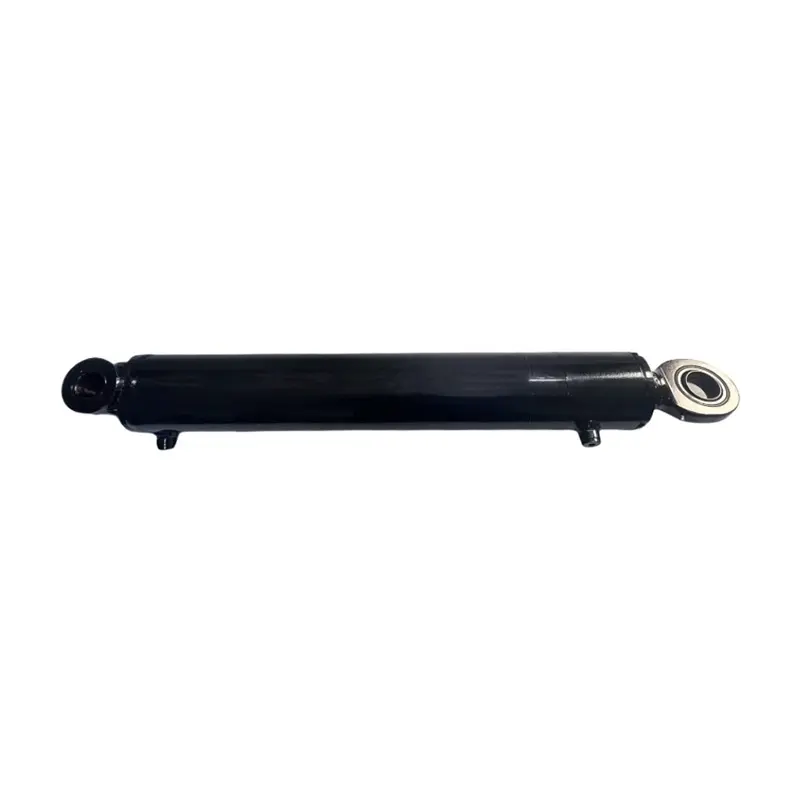

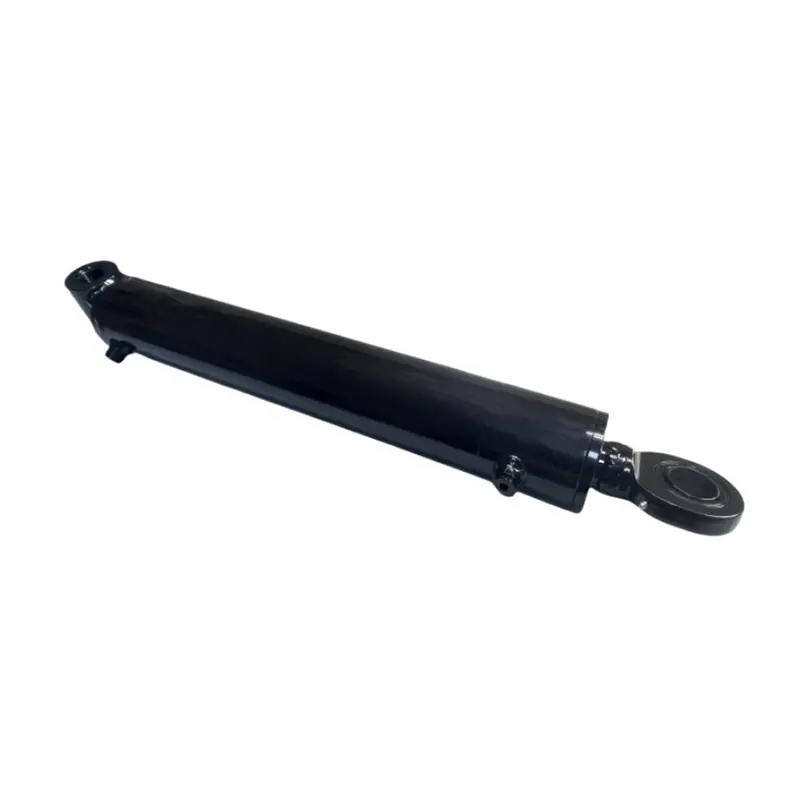

ODM Lifting Cylinder MPM-HCL601 Manufacturers, Manufacturer

The lifting cylinder is one of the main components of the loader or hydrostatic loader. Its working principle is to use the pressure of the hydraulic oil to push the piston rod to extend or retract, so as to lift the bucket, accurately control the height, keep the bucket stable, and assist in completing the compound action.

Send Inquiry

Product Description

Description

Working pressure: generally around 15-30MPa.

Working temperature: the designed temperature range is usually -25℃~+120℃, and some products can work normally in an environment of -20℃~120℃.

Strong load-bearing capacity: The lifting cylinder has a high load-bearing capacity and can easily cope with various heavy lifting needs.

Smooth movement: Through the precise hydraulic control system, the cylinder can be ensured to move smoothly during extension and retraction to reduce mechanical shock.

Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

1. Straightforward structure

2. High load-bearing pressure

3. Easy to control

4. Enhanced security

Specification

Inner diameter	90 mm
Rod diameter	50 mm
Stroke	≤ 600 mm
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Product Video

Application

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize lifting cylinder according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions

Q1: What is the typical lead time for custom hydraulic cylinders?

A1: Production lead time generally ranges from 3 to 5 weeks depending on custom technical requirements, material availability, and order volumes.

Q2: What is the standard warranty on your hydraulic cylinders?

A2: We offer a comprehensive 2-year warranty on core components, accompanied by online support, spare parts availability, and video technical guidance.

Q3: Can these cylinders be adapted to harsh operating environments?

A3: Yes. With operating temperatures from -25℃ to +120℃, specialized surface treatments, and robust seal selection, they are built to endure demanding industrial and offshore settings.

Q4: How do you verify product quality before shipping?

A4: Every unit undergoes strict pressure testing, dimension verifications, and mechanical performance tests. Video factory inspections and quality test reports are provided for verification.

Q5: Which materials are offered for high-corrosion applications?

A5: We provide high-grade stainless steel options along with specialized multi-layer coatings including sandblasting, primer, and high-durability finish paint for marine and offshore installations.
