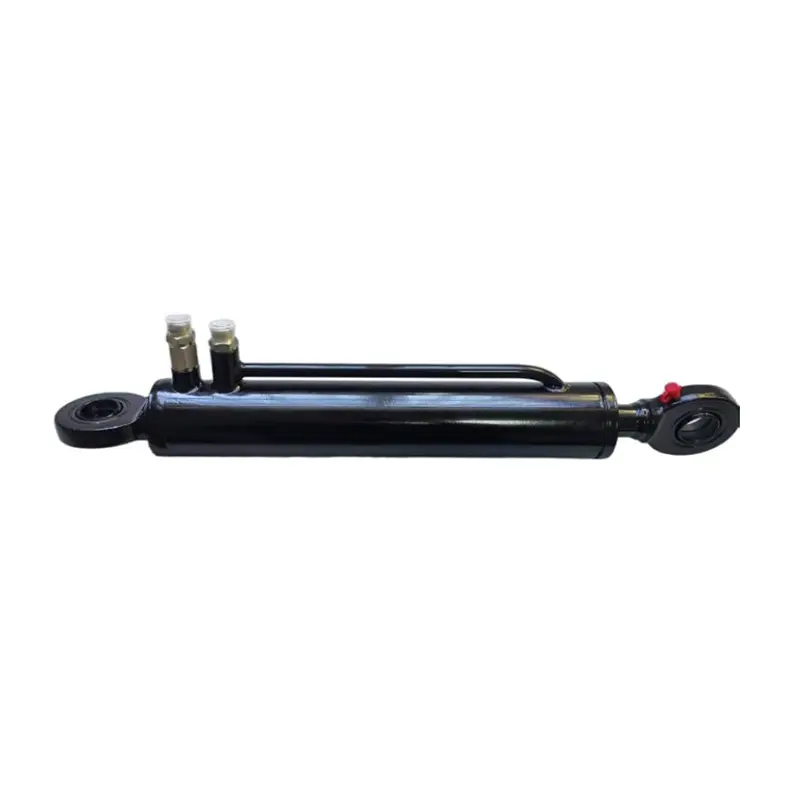

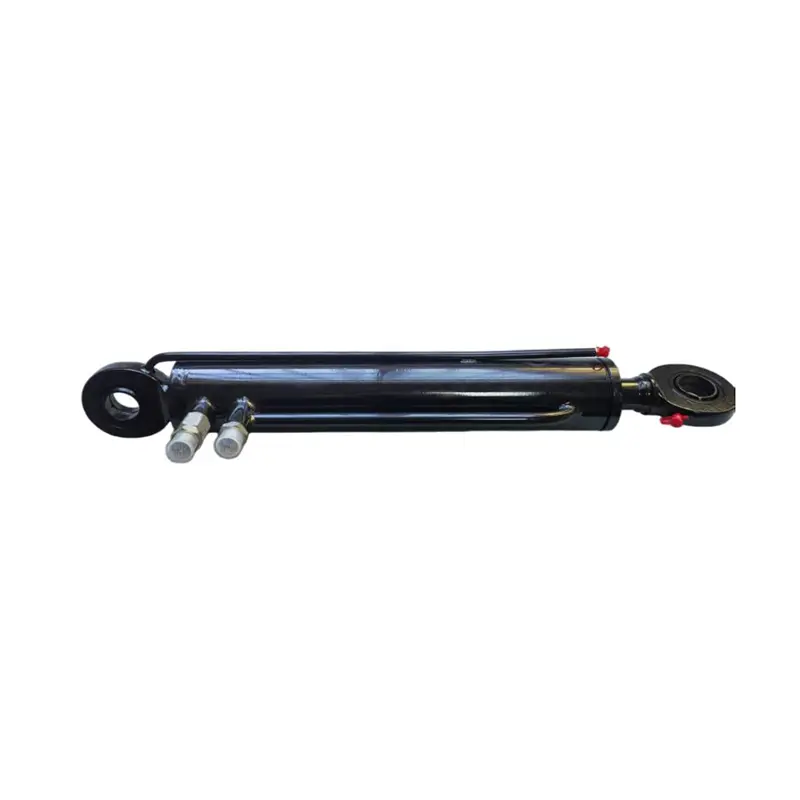

Cheap Single Rod Double Acting Steering Cylinder Manufacturer, Factory

Single rod double acting steering cylinder is one of the key components of the loader, primarily functioning to enable steering operations and provide necessary power assistance. In addition to loaders, it is also widely used in other equipments within the realms of construction machinery, mining machinery and agricultural machinery etc.

Send Inquiry

Product Description

Description

Working pressure: generally around 5-15MPa.

Working temperature: the designed temperature resistance range is usually -25℃~+120℃, and some products can work normally in an environment of -20℃~120℃.

Strong adaptability: It can work normally in harsh environments such as high temperature, low temperature, humidity, dust, etc.

Good buffering performance: Some steering cylinders are equipped with buffering devices, which can effectively reduce impact and vibration and extend service life.

Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

The structure is relatively simple, consisting of the main components such as the cylinder, piston, piston rod, and end cover. There is no complex two-way oil circuit control mechanism, which makes its manufacturing process relatively simple, low cost, and easy to install and maintain.

The single rod steering cylinder only needs to set the piston rod extension end on one side, and no piston rod space is required on the other side. Therefore, it can be installed more compactly inside the equipment, especially suitable for occasions with limited space, which can effectively save installation space and improve the space utilization rate of the equipment.

Specification

Inner diameter	60 mm
Rod diameter	30 mm
Stroke	≤ 230 mm
Material	Carbon steel, alloy steel, stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Product Video

Application

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize single rod double acting steering cylinder according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions

What parameters are required for a customized steering cylinder?

To design and manufacture a custom cylinder, we require specifications including bore size, rod diameter, stroke length, working pressure, mounting type, and required push or pull back capacity.

What materials are available for the hydraulic cylinders?

Depending on your operational environment and application requirements, cylinders can be manufactured using carbon steel, alloy steel, or stainless steel.

What is the standard warranty period provided?

We offer a 2-year warranty on core components, accompanied by video technical support, online support, spare parts availability, and on-site servicing if needed.

Can these cylinders operate in extreme ambient temperatures?

Yes, the standard operational temperature range is -25℃ to +120℃, with specific product variants capable of performing reliably from -20℃ to 120℃ in harsh environments.

How is product quality ensured before delivery?

Quality is verified through comprehensive mechanical test reports and video factory inspections before shipment to confirm all performance metrics are met.

What industries commonly use MPM hydraulic cylinders?

Our cylinders are widely utilized across construction machinery (excavators, loaders, tractors, forklifts, cranes), industrial plant equipment, and marine/offshore installations.
