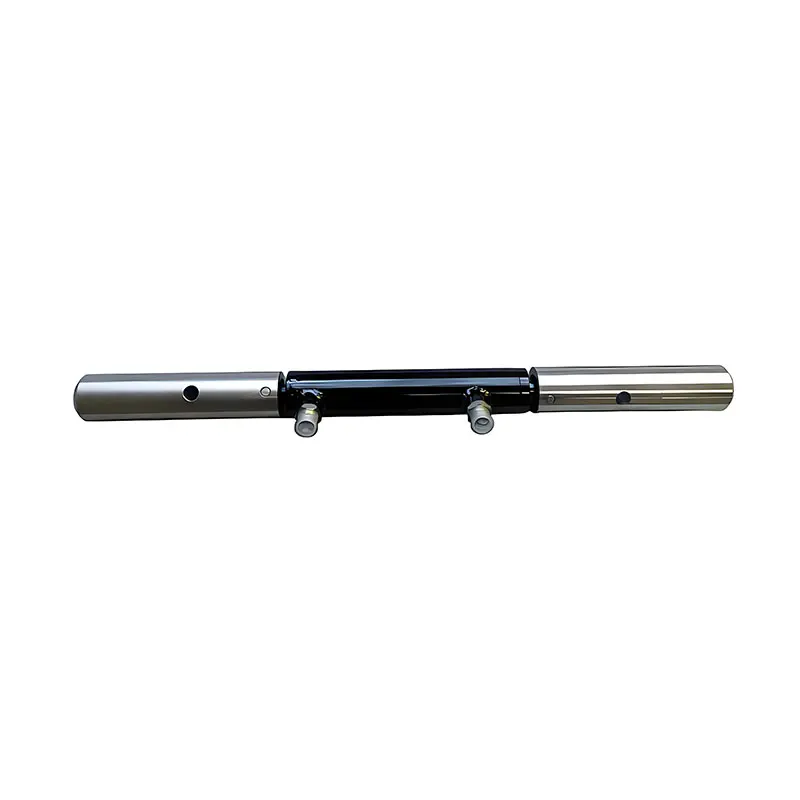

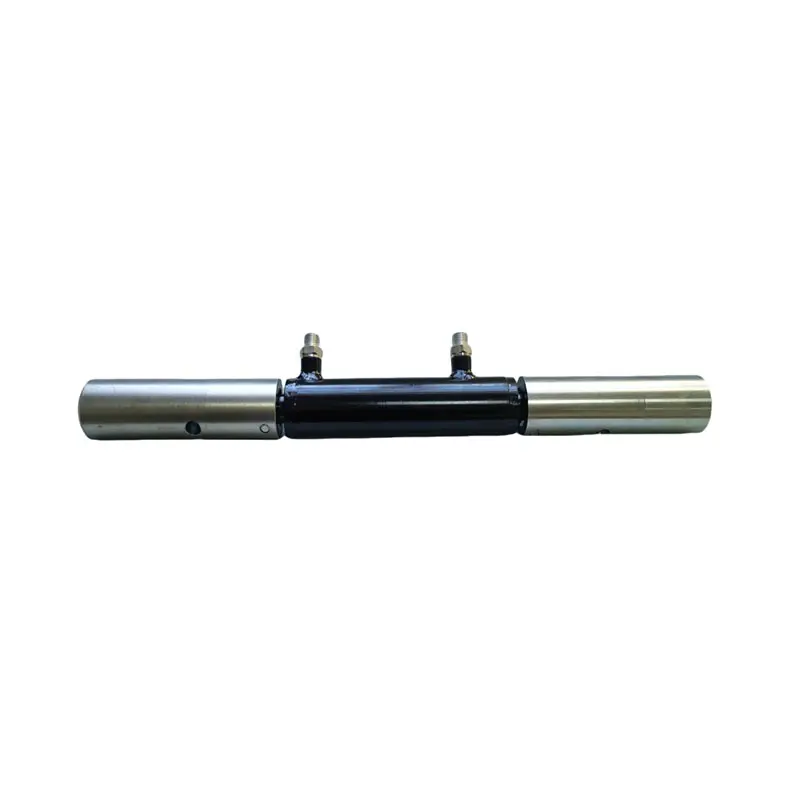

ODM Quick Change Cylinder MPM-HCQ501 Suppliers, Factory

The loader quick change cylinder is one of the key components of the loader or hydrostatic loader. It mainly provides power through the hydraulic system to drive the cylinder to extend and retract, so as to achieve the rapid replacement and precise positioning of the working parts.

Send Inquiry

Product Description

Working Pressure Generally around 5-10MPa.

Working Temperature The designed temperature resistance range is usually -25℃ to +120℃, with certain products functioning normally within -20℃ to 120℃ environments.

Multiple Surface Treatments Comprehensive surface anti-corrosion solutions including Ni/Cr electroplating, ceramic spraying, laser cladding, and QPQ to adapt to various working conditions.

Quality Assurance Every product undergoes rigorous mechanical and performance tests, fully conforming to international manufacturing standards.

Comprehensive After-Sales Service Includes a 2-year warranty on core components, full video technical support, online guidance, original spare parts supply, and on-site servicing options.

Customizable & Reliable Tailored non-standard production. Verified via detailed mechanical test reports and on-site/video factory inspection protocols.

Key Features

Engineered specifically to control the quick-change action of forklift attachments, ensuring rapid transitions, security, and consistent power delivery.

Technical Specifications

Inner Diameter	30 mm
Rod Diameter	20 mm
Stroke	≤ 100 mm
Material Options	Carbon Steel, Alloy Steel, Stainless Steel
Coating Standard	Sandblasting, Primer Paint, Intermediate Paint, Finish Paint
Customization is the first principle of MPM.

Product Demonstration Video

Industrial Applications

Backed by over 20 years of hydraulic cylinder manufacturing experience, MPM solutions power essential machinery across multiple sectors:

Construction Machinery

Hydraulic lifting cylinders and steering cylinders designed for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment

High-precision standard hydraulic cylinders, tie-rod cylinders, and compact space-saving hydraulic units.

Marine & Offshore Machinery

Heavy-duty marine cylinders and corrosion-resistant stainless steel hydraulic cylinders for demanding environments.

Custom Engineering & Design

Provide us with your specific operating specifications, and our engineering team will design custom quick-change cylinders optimized for your workflow:

Bore Size
Rod Diameter
Stroke Length
Working Pressure
Installation Type
Push / Pull Back Capacity

Frequently Asked Questions (FAQ)

What is the typical working pressure for this cylinder?

The standard operating pressure generally operates within 5 to 10 MPa, making it suitable for high-efficiency hydraulic change mechanisms.

Can this quick change cylinder withstand extreme environmental temperatures?

Yes. Designed operating ranges span from -25℃ to +120℃, with select specifications optimized for standard operation between -20℃ and 120℃.

What surface protective treatments are available against corrosion?

We offer advanced protective treatments including Ni/Cr electroplating, ceramic spraying, laser cladding, and Quench-Polish-Quench (QPQ) treatments depending on your operational atmosphere.

What warranty and after-sales guarantees are provided?

Customers receive an extensive 2-year warranty on core components, accompanied by complete video diagnostics, online remote support, spare parts availability, and optional on-site maintenance services.

Can these cylinders be custom-manufactured to specific dimensions?

Yes, customization is our primary operational focus. Non-standard dimensions can be engineered based on your requirements for bore size, stroke length, rod diameter, and mounting types.
