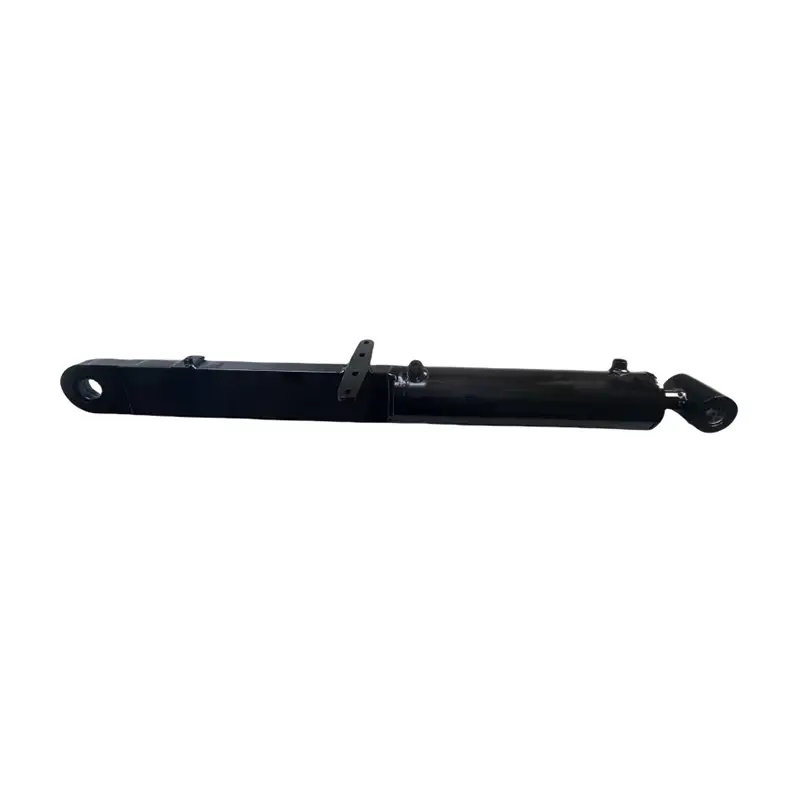

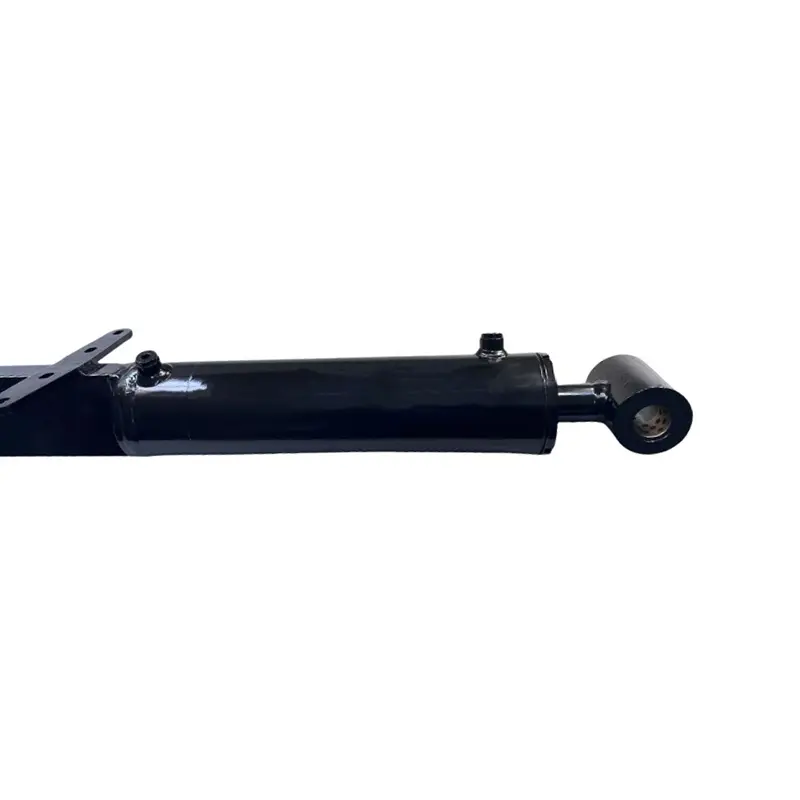

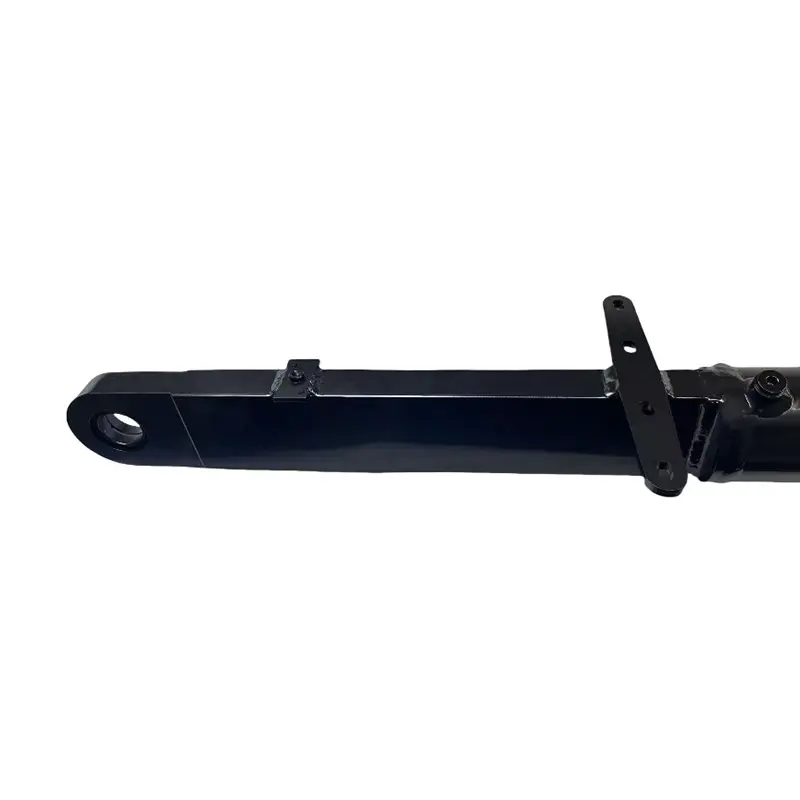

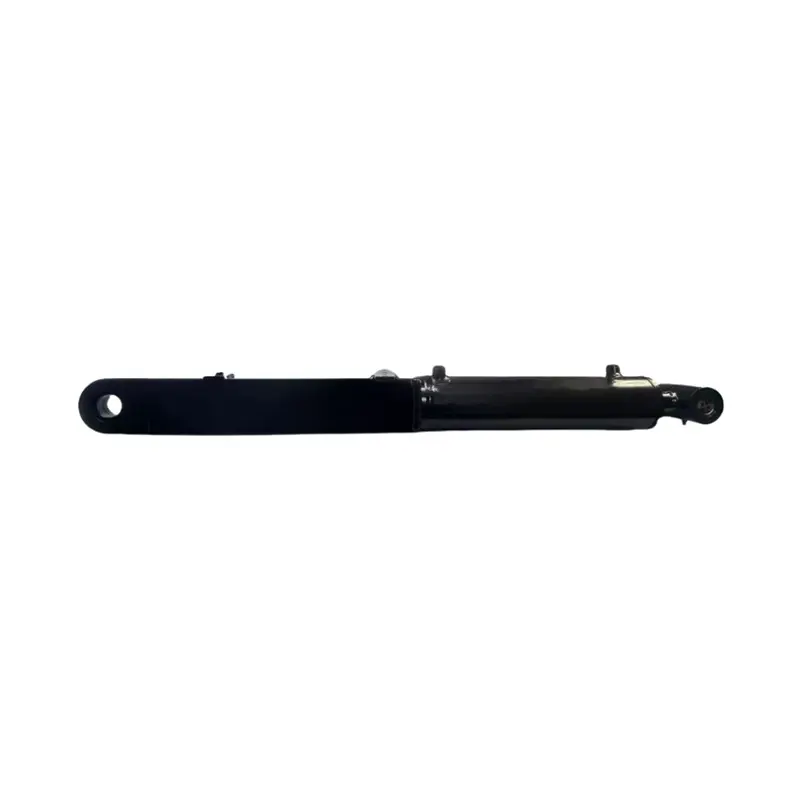

Cheap Loader Tilt Cylinder MPM-HCT402 Suppliers, Supplier

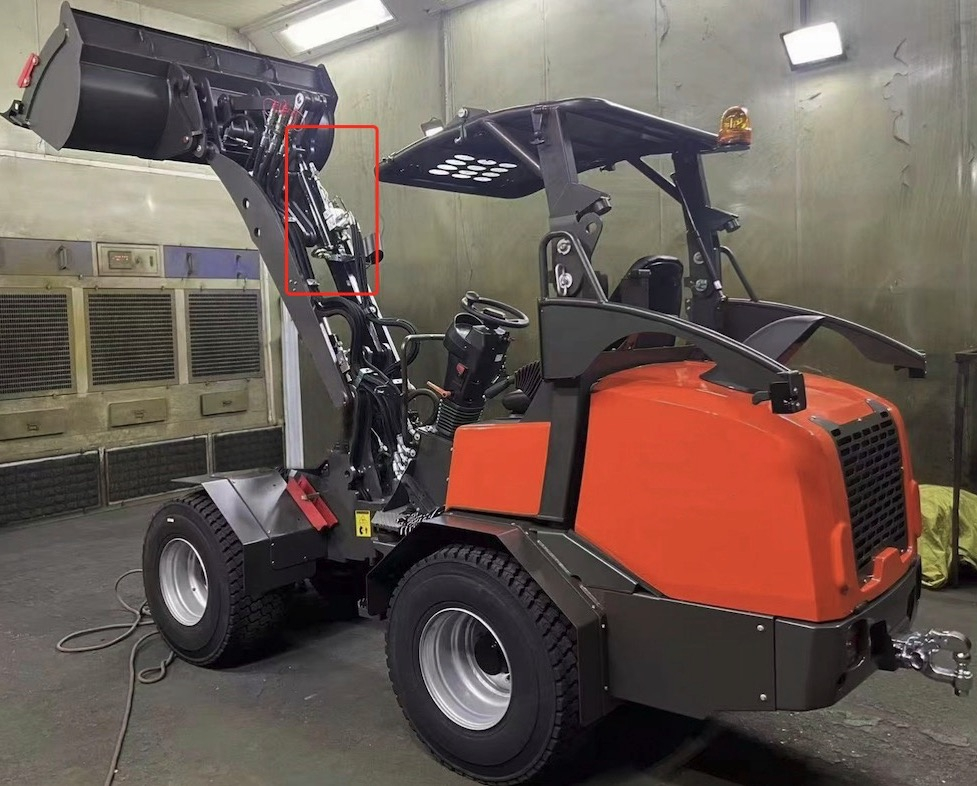

Loader tilt cylinder is also known as hydraulic bucket tilt cylinder, is one of the main parts of the loader and hydrostatic loader. It realizes the lifting and lowering of the bucket, controls the position of the bucket, and provides stable support.

Send Inquiry

Product Description

Description

Working pressure Generally around 15-30MPa.

Working temperature The designed temperature range is usually -25℃~+120℃, and some products can work normally in an environment of -20℃~120℃.

Energy saving and high efficiency Through the reasonable design of hydraulic circuit, energy loss can be reduced and energy utilization efficiency can be improved.

Easy maintenance The structure is relatively simple, easy to maintain and maintain, and the parts have good interchangeability.

Comprehensive after-sales service Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

The hydrostatic loader tilt cylinder drives the bucket to flip, achieving precise control.

Specification

Inner diameter	90 mm
Rod diameter	40 mm
Stroke	≤ 400 mm
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Product Video

Application

1. Transportation industry

2. Agricultural machinery

3. Construction industry

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize loader tilt cylinder according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions

Q1: What is the typical working pressure for these tilt cylinders?

The standard operating pressure generally ranges between 15 and 30 MPa, catering to various heavy-duty operations.

Q2: Can the cylinder operate under extreme weather conditions?

Yes, the cylinders are designed to work within a temperature range of -25°C to +120°C, with certain models functioning reliably in environments from -20°C to 120°C.

Q3: Are customized parameters supported?

Absolutely. Customization is our core principle. We can tailor dimensions including bore size, stroke length, rod diameter, and mounting style according to your requirements.

Q4: What warranty and support do you provide?

We offer a 2-year warranty on core components, accompanied by video technical support, online guidance, spare parts availability, and on-site servicing.

Q5: Which industries commonly use these hydraulic cylinders?

They are widely applied in the construction machinery industry (loaders, excavators, forklifts), agricultural equipment, marine applications, and various industrial setups.
