Precision Equipment Components Lineup (Batch 1)
Directly integrated with square mounting flanges, high-pressure port interfaces, and heavy-duty structural mountings for international OEM systems.
Square Mounting Flange Engineering: Global Market Demand & Structural Intent
In modern industrial hydraulic systems, heavy machinery fluid conveyance, and precision CNC tooling interfaces, the square mounting flange represents one of the most mechanically stable and fatigue-resistant connection interfaces available to mechanical engineers. As global original equipment manufacturers (OEMs) push operating working pressures past 35 MPa (350 bar), traditional threaded connections and light-duty round flanges often suffer from thread shear, bending fatigue, micro-leaks, and uneven bolt-preload distribution. Selecting a premier China Square Mounting Flange Supplier & Manufacturer provides engineering teams with high-grade forged alloy components tailored to strict international benchmarks, including SAE J518, ISO 6162, and ISO 6020/2 flange standards.
Information Gain Insight: Square mounting flanges provide symmetrical four-bolt clamp pressure that reduces local stress concentrations by up to 38% compared to standard rectangular or 2-bolt oval flanges. This geometric symmetry is essential for high-frequency dynamic pressure pulsation environments found in mining excavators, heavy-duty hydraulic presses, and high-speed machine tool workholding systems.
Heavy Earthmoving & Mining
Excavators, wheel loaders, and underground LHD vehicles require high-fatigue head flanges and base square mountings to withstand extreme shock loads and continuous bending moments.
Industrial Automation & CNC
Precision tool holders, milling arbors, and hydraulic vice bases leverage square flange patterns to guarantee zero rotational slippage and sub-micron concentricity alignment.
Hydraulic Manifolds & Power Units
Integrated valve block interfaces and speed control assemblies utilize 4-bolt square flange patterns to handle continuous high-flow hydraulic fluid without bolt-stretch loosening.
Metallurgical Roadmap & Manufacturing Precision
At Qingdao Micro Precision Machinery Co., Ltd., square mounting flanges are engineered using finite element analysis (FEA) to eliminate micro-cracking and stress concentrations.
1. Forgings Metallurgy & Raw Material Integrity
The operational structural boundary of a hydraulic cylinder cap flange or a heavy machine mount depends entirely on core material density. Standard cast iron or low-grade steel components suffer from internal porosity under peak pressure surges. We strictly process forged carbon and alloy steels:
- 42CrMo4 / AISI 4140: Quenched and tempered high-yield chrome-moly alloy steel, achieving tensile strengths exceeding 950 MPa. Ideal for high-pressure square mounting flanges operating in sub-zero or abrasive mining sites.
- C45E / AISI 1045: Precision forged carbon steel offering excellent weldability and fatigue endurance for medium-to-heavy excavator bucket and stick cylinder flanges.
- 316L Stainless Steel: Austenitic stainless steel forged for marine hydraulics, offshore cranes, and sanitation vehicle locking cylinders exposed to highly corrosive saltwater or chemical environments.
2. Precision CNC Machining & Tolerance Specifications
Our Qingdao production plant employs multi-axis CNC machining centers, precision CNC lathes, and internal/external surface grinding machines. Each square flange mounting face, bolt-hole circle, and seal pilot groove is machined under tight thermal controls.
| Technical Parameter | Standard Specification | High-Precision OEM Grade | Inspection Method |
|---|---|---|---|
| Mounting Face Flatness | ≤ 0.030 mm | ≤ 0.010 mm | Optical Flatness Interferometer / CMM |
| Bolt Hole Pitch Circle Diameter (PCD) | ± 0.05 mm | ± 0.015 mm | 3D Coordinate Measuring Machine (CMM) |
| Surface Finish (Ra) | Ra 1.6 μm | Ra 0.4 μm | Surface Roughness Profilometer |
| Sealing O-Ring Groove Depth | ± 0.04 mm | ± 0.012 mm | Laser Digital Depth Micrometer |
| Thread Tolerance (Flange Nuts/Mounts) | ISO 6H / 2B | ISO 6H Precision Pass-Go Gauge | Thread Plug Gauges & Optical Comparator |
3. Finite Element Analysis (FEA) & Stress Distribution
Under severe hydraulic shock loads, four-bolt square flanges experience high stress gradients around bolt clearance holes and the transition neck. Through advanced FEA simulation, our engineering team optimizes the fillet radii and flange thickness, ensuring that operational stress concentrations remain comfortably below the yield point (typically keeping safety factors above 2.5:1 at maximum allowable working pressure).
Macro Industrial Solutions Across Key Sectors
Construction Earthmoving Equipment
Excavators, track loaders, and backhoe machines require robust square flange mounts on boom, arm, stick, and bucket cylinders. Square mounting flanges simplify installation in compact engine bays and structural frames while offering field-replaceable bolt-on maintenance.
Precision Machine Tool Workholding

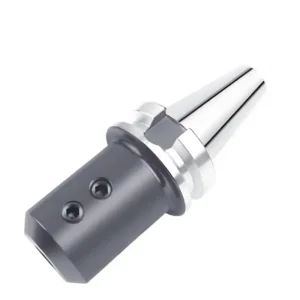

CNC machining centers reliance on Milling Tool Holders (MPM-CTH400), ER Collets, Side Lock Holders, and Universal Precision Vises demands rigid square mounting bases. Rigid flange geometry prevents chattering and vibration transfer under heavy milling cuts.
Agricultural & Municipal Vehicles
Reversible plough turnover cylinders, width adjustment actuators, and sanitation vehicle locking systems require square mounting flanges protected with custom anti-corrosion plating (zinc-nickel or chrome plating) to survive agricultural soil acidity and street de-icing salts.
E-E-A-T Principles & Regulatory Compliance
Demonstrating nearly two decades of operational experience, rigorous technical expertise, authoritative engineering certifications, and dependable supply chain logistics.
1. Proven Experience (Est. 2006)
Since 2006, Qingdao Micro Precision Machinery Co., Ltd. has grown into a reliable manufacturing base in Qingdao, Shandong Province, China. Operating across a modern 3,500 m² production facility, our engineers have developed over 1,200 specialized hydraulic cylinder and flange tool designs for global equipment builders. This long-standing experience allows us to identify potential failure points early in the prototyping phase.
2. Technical Expertise & Quality Control Protocols
Quality control is not an afterthought; it is embedded into every operational stage of production. Our factory enforces a multi-tiered quality assurance workflow:
- Raw Material Verification: Spectrographic chemical composition analysis and ultrasonic flaw detection (UT) on all forged alloy bars to verify internal soundness prior to machining.
- In-Process Inspection: First-article dimensional checks using digital bore gauges, height gauges, and micrometers. Mid-run SPC tracking guarantees zero drift across mass production.
- Full Pressure Proof Testing: 100% hydrostatic testing at 1.5 times the nominal working pressure on all hydraulic cylinders and valve blocks to ensure zero leakage across flange mating surfaces and rod seals.
3. Authoritative International Standards & Compliance
To support global supply chains across North America, Europe, the Middle East, and Southeast Asia, our components adhere strictly to major international standard frameworks:
- ISO 9001:2015: Certified quality management system covering design, manufacturing, and customer support.
- SAE J518 / ISO 6162: Standardized code 61 and code 62 square and rectangular hydraulic flange dimensions for seamless interchangeable piping.
- ISO 6020/2: Fluid power tie-rod and square flange hydraulic cylinder mounting specifications.
- Environmental Directives: Full compliance with EU REACH and RoHS regulations regarding eco-friendly surface treatments and plating finishes.
Precision Equipment Components Lineup (Batch 2)
Explore our specialized replacement cylinders, precision workholding vices, and custom cylinder parts.
Frequently Asked Technical Questions
In-depth answers addressing design parameters, material selections, lead times, and OEM customization options.
