Custom Milling Tool Holder MPM-CTH400 Manufacturers, Manufacturer

1 / 2

Custom Milling Tool Holder MPM-CTH400 Manufacturers, Manufacturer

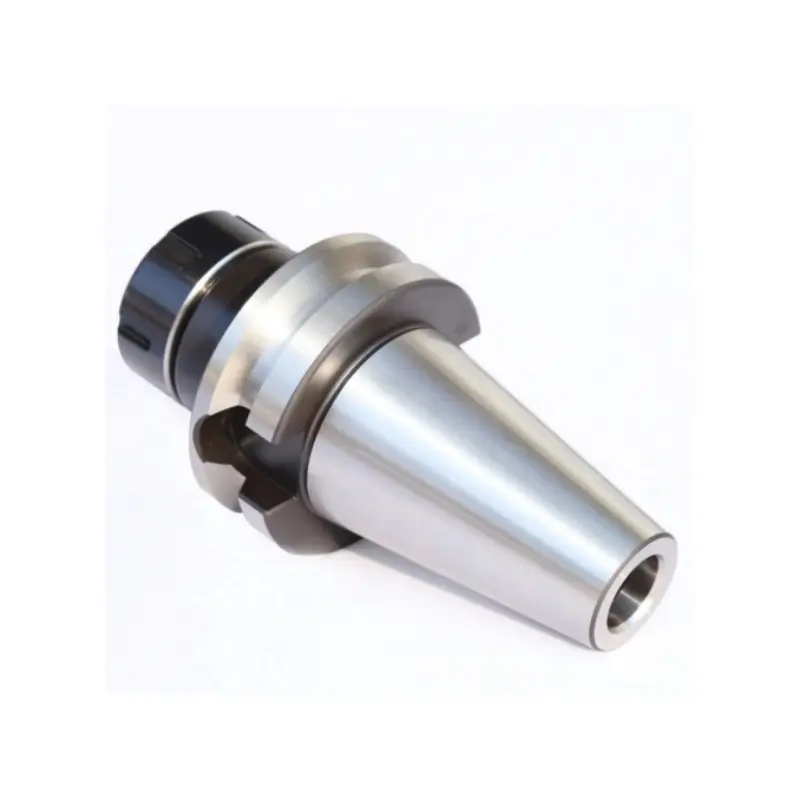

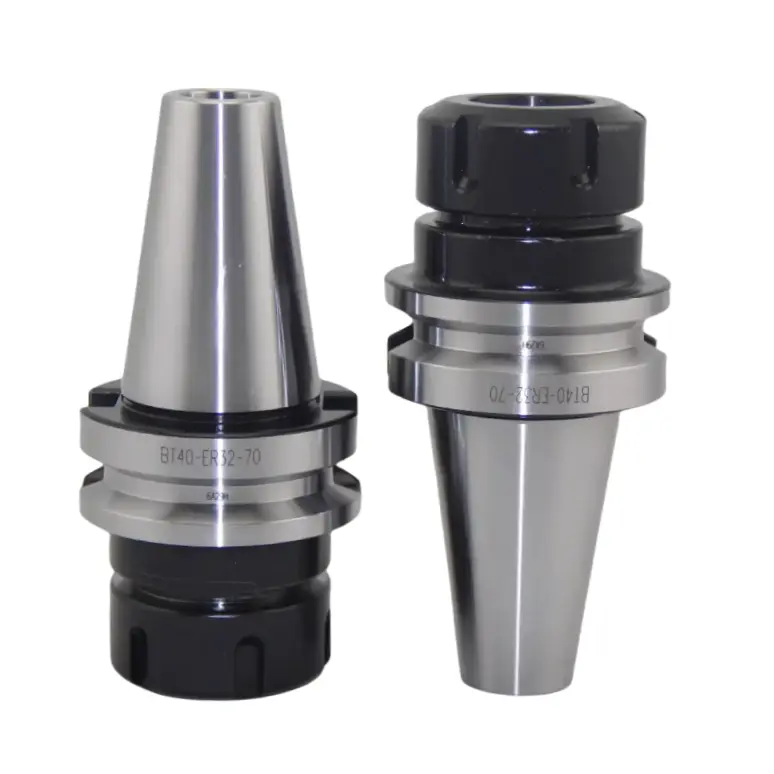

Milling tool holder, also called ER tool handle or milling chuck arbor, is a tool commonly used in modern machining. It is mainly composed of the tool handle body, the spring chuck and the nut. It is the connection between the mechanical spindle and the tool and other accessory tools.

Send Inquiry

Product Description

Description

Machining and Heat Treatment: The tool holder body undergoes various machining processes, encompassing turning, drilling, and boring operations, to achieve the necessary internal cavities and exterior dimensions. Subsequent to machining, the tool holder body undergoes heat treatment procedures, like surface hardening, to elevate its surface hardness and enhance wear resistance.

Features

1. High precision.

2. Large clamping range.

3. Wide application.

4. Simple operation.

5. Lower cost.

Parameter

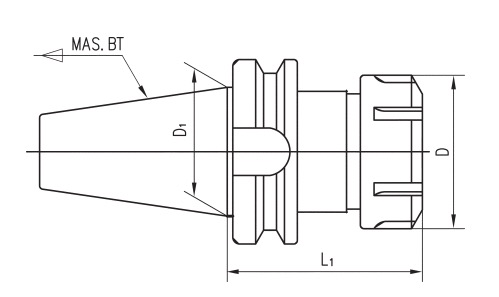

Model No. BT×ER-L1	D	D1	Model No. BT×ER-L1	D	D1
BT30×ER16-70	28	31.75	BT45×ER32-70	50	57.15
BT30×ER20-70	34	31.75	BT45×ER32-100	50	57.15
BT30×ER25-70	42	31.75	BT45×ER32-120	50	57.15
BT30×ER32-70	50	31.75	BT45×ER40-80	63	57.15
BT30×ER40-80	63	31.75	BT45×ER40-100	63	57.15
BT40×ER16-70	28	44.45	BT45×ER40-120	63	57.15
BT40×ER20-70	34	44.45	BT50×ER16-70	28	69.85
BT40×ER20-100	34	44.45	BT50×ER16-90	28	69.85
BT40×ER20-150	34	44.45	BT50×ER16-135	28	69.85
BT40×ER25-60	42	44.45	BT50×ER20-70	34	69.85
BT40×ER25-70	42	44.45	BT50×ER20-90	34	69.85
BT40×ER25-90	42	44.45	BT50×ER20-135	34	69.85
BT40×ER25-100	42	44.45	BT50×ER20-150	34	69.85
BT40×ER25-150	42	44.45	BT50×ER20-165	34	69.85
BT40×ER32-70	50	44.45	BT50×ER25-70	42	69.85
BT40×ER32-100	50	44.45	BT50×ER25-135	42	69.85
BT40×ER32-150	50	44.45	BT50×ER25-165	42	69.85
BT40×ER40-70	63	44.45	BT50×ER32-70	50	69.85
BT40×ER40-80	63	44.45	BT50×ER32-80	50	69.85
BT40×ER40-120	63	44.45	BT50×ER32-100	50	69.85
BT40×ER40-150	63	44.45	BT50×ER32-120	50	69.85
BT45×ER16-70	28	57.15	BT50×ER40-80	63	69.85
BT45×ER20-70	34	57.15	BT50×ER40-100	63	69.85
BT45×ER20-100	34	57.15	BT50×ER40-120	63	69.85
BT45×ER25-70	42	57.15	BT50×ER40-135	63	69.85
BT45×ER25-90	42	57.15	BT50×ER50-90	78	69.85
BT45×ER25-100	42	57.15	BT50×ER50-120	78	69.85

Packing

Service

Qingdao Micro Precision Machinery Co., Ltd. has been providing the following CNC tools services to global customers for decades.

1. Business Type: OEM & ODM Manufacturer

2. DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.

3. Customization: Accepting customization if a certain quantity is reached

4. QC System: ISO9001: 2008

5. Our Advantages:

1). Reliable Quality

2). Competitive Price

3). High precision, high quality, tight tolerance

4). Continuous Improvement

5). Defect-Free Products

6). On-Time Delivery

7). Customer Satisfaction

8). Excellent After-Sales Service

Frequently Asked Questions

What types of drawing formats do you accept for custom manufacturing?

We support a comprehensive range of design file formats, including DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, and more.

What standard does your quality management adhere to?

Our manufacturing processes and quality control systems are strictly certified under ISO9001: 2008 standards to ensure reliable, high-precision results.

Do you offer OEM and ODM services?

Yes, we are a professional OEM & ODM manufacturer capable of producing custom tooling solutions when minimum order quantities are met.

How is the durability of the tool holder body achieved?

The body undergoes precise machining processes followed by heat treatments, including surface hardening, to maximize wear resistance and ensure longevity.

Which tool shank tapers and ER series are supported?

We provide a wide array of specifications covering BT30, BT40, BT45, and BT50 models compatible with ER16, ER20, ER25, ER32, ER40, and ER50 collets.
