Cheap Side Lock Tool Holder MPM-CTH386 Manufacturers, Factory

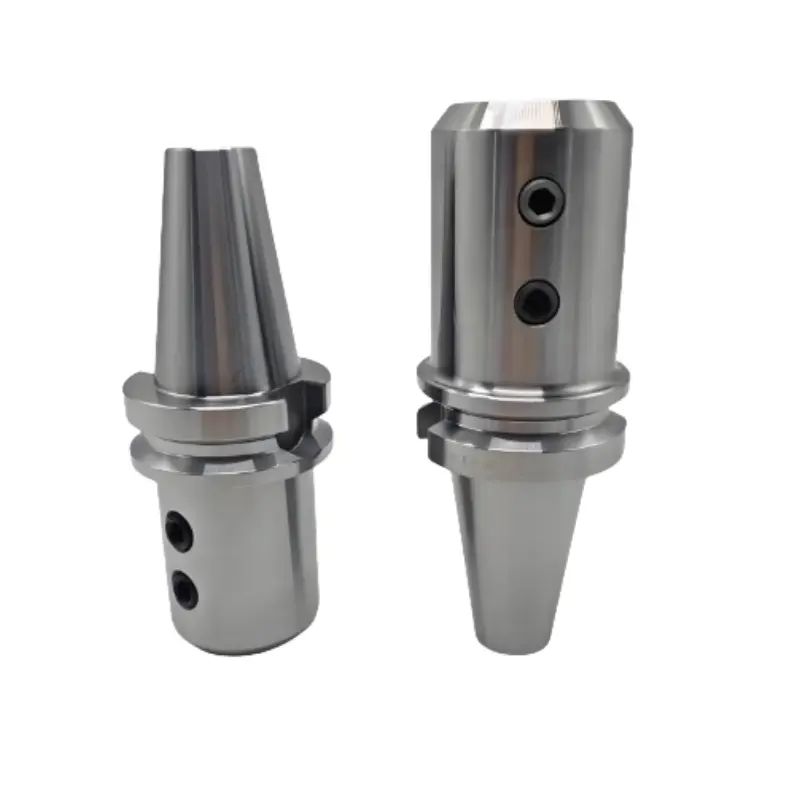

Product Description

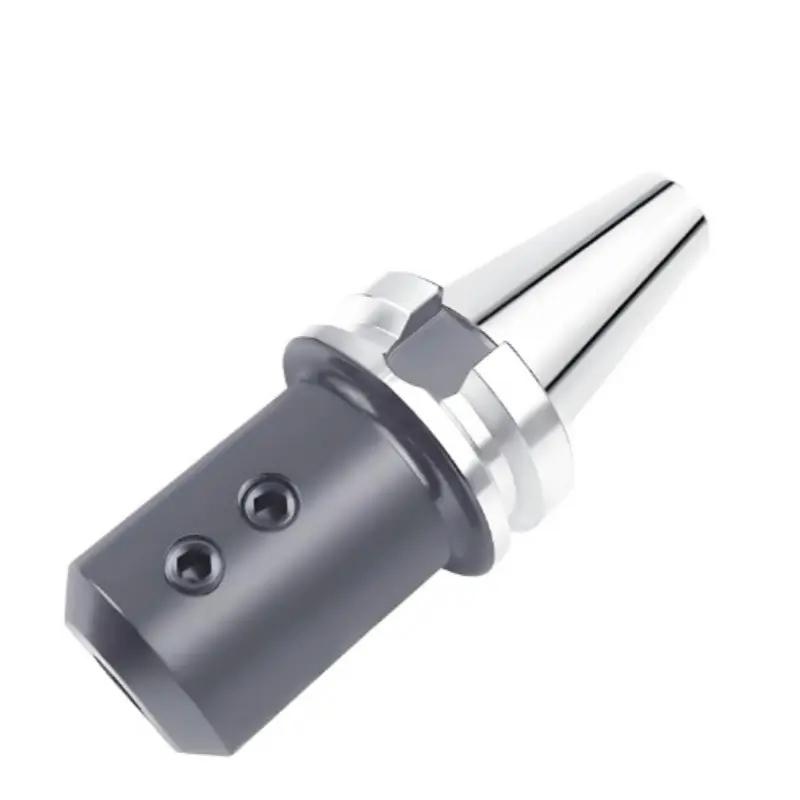

Description
The side-fixed tool holder features strong clamping force and torsional resistance, making it suitable for heavy cutting. It is the standard choice for holding square shank milling cutters and drills. It is easy to maintain, has low parts replacement costs, a sturdy structure, and good durability. However, be aware that radial runout may occur, and usually only one tool with a fixed shank diameter can be held.
When placing an order, kindly specify the standard form of the tool holder. For tool holders necessitating a central water inlet as well as a side-flange water inlet for cooling purposes, please indicate the AD/B type.
It is possible to provide balancing tool holders according to requirements. The standard precision is G6.3/12,000 rpm, while the precise precision is G2.5/20,000 rpm.
Features
1. Simple in structure
Devoid of any complicated internal configurations or a multitude of components. Instead, it features a minimal number of parts and a relatively simple manufacturing process.
2. The clamping method is convenient
The cutting tool's clamping and disassembly can be swiftly and conveniently accomplished by simply tightening or loosening one or two screws.

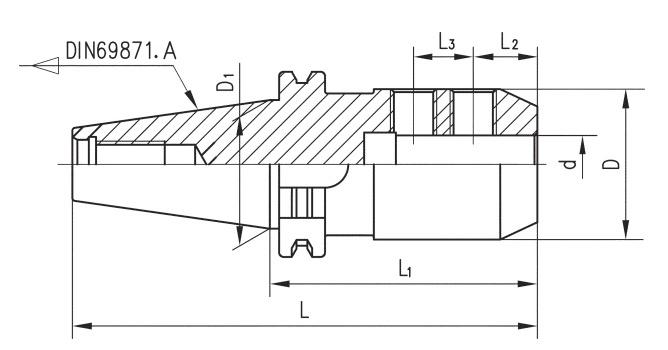

Parameter
| Order No. DIN69871.A×d-L1 | L | D | D1 | L2 | L3 | Wt (Kg) |
| DIN69871.A30×6-50 | 97.8 | 25 | 31.75 | 18 | - | 0.58 |
| DIN69871.A30×8-50 | 97.8 | 28 | 31.75 | 18 | 0.64 | |
| DIN69871.A30×10-50 | 97.8 | 35 | 31.75 | 20 | 0.72 | |
| DIN69871.30×12-50 | 97.8 | 42 | 31.75 | 22.5 | 0.80 | |
| DIN69871.30×16-63 | 110.8 | 48 | 31.75 | 24 | 0.96 | |
| DIN69871.A40×6-50 | 118.4 | 25 | 44.45 | 18 | - | 0.92 |
| DIN69871.A40×8-50 | 118.4 | 28 | 44.45 | 18 | 0.96 | |
| DIN69871.A40×10-50 | 118.4 | 35 | 44.45 | 20 | 2.00 | |
| DIN69871.A40×12-50 | 118.4 | 42 | 44.45 | 22.5 | 1.12 | |
| DIN69871.A40×14-50 | 118.4 | 44 | 44.45 | 22.5 | 1.12 | |
| DIN69871.A40×16-63 | 131.4 | 48 | 44.45 | 24 | 1.20 | |
| DIN69871.A40×18-63 | 131.4 | 50 | 44.45 | 24 | 1.20 | |
| DIN69871.A40×20-63 | 131.4 | 52 | 44.45 | 25 | 1.32 | |
| DIN69871.A40×25-100 | 168.4 | 65 | 44.45 | 24 | 25 | 2.04 |
| DIN69871.A40×32-100 | 168.4 | 72 | 44.45 | 24 | 28 | 2.24 |
| DIN69871.A40×40-120 | 188.4 | 90 | 44.45 | 30 | 32 | 2.40 |
| DIN69871.50×6-63 | 164.75 | 25 | 69.85 | 18 | - | 3.30 |
| DIN69871.50×8-63 | 164.75 | 28 | 69.85 | 18 | 3.40 | |
| DIN69871.A50×10-63 | 164.75 | 35 | 69.85 | 20 | 3.42 | |
| DIN69871.A50×12-63 | 164.75 | 42 | 69.85 | 22.5 | 3.42 | |
| DIN69871.A50×14-63 | 164.75 | 44 | 69.85 | 22.5 | 3.44 | |
| DIN69871.A50×16-63 | 164.75 | 48 | 69.85 | 24 | 3.46 | |
| DIN69871A50×18-63 | 164.75 | 50 | 69.85 | 24 | 3.48 | |
| DIN69871.50×20-63 | 164.75 | 52 | 69.85 | 25 | 4.24 | |
| DIN69871.A50×25-80 | 181.75 | 65 | 69.85 | 24 | 25 | 4.40 |
| DIN69871.A40×32-100 | 201.75 | 72 | 69.85 | 24 | 28 | 4.52 |
| DIN69871.A40×40-120 | 221.75 | 90 | 69.85 | 30 | 32 | 4.72 |
Service
Qingdao Micro Precision Machinery Co., Ltd. has been providing the following CNC tools services to global customers for decades.
Business Type: OEM & ODM Manufacturer
DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.
Customization: Accepting customization if a certain quantity is reached
QC System: ISO9001: 2008
Our Advantages:
Reliable Quality
Competitive Price
High Precision & Tight Tolerance
Continuous Improvement
Defect-Free Products
On-Time Delivery
Customer Satisfaction
Excellent After-Sales Service
Frequently Asked Questions (FAQ)
What cutting applications are side-fixed tool holders best suited for?
They are particularly designed for heavy-duty cutting operations, milling, and drilling due to their high clamping force and strong torsional resistance.
What dynamic balancing precisions are available?
Standard dynamic balance precision is G6.3 at 12,000 rpm, and higher-precision balancing of G2.5 at 20,000 rpm is available based on customer requirements.
How does the coolant feed work on these tool holders?
If your operations require coolant supply through the center or the flange, please specify the AD/B type when placing your order.
Can one side-fixed tool holder accommodate different tool shank sizes?
No. Side-fixed tool holders are designed with fixed bore diameters, meaning each tool holder can generally hold only one specific tool shank diameter.
Do you offer custom CNC tool holder manufacturing?
Yes, OEM and ODM manufacturing services are supported. Custom orders can be fulfilled once order quantities meet the minimum threshold, with multiple CAD/CAM drawing formats accepted.
