Wholesale Manual Speed Control Copper Valve Block MPM-MSCCVB12 Supplier, Factories

1 / 4

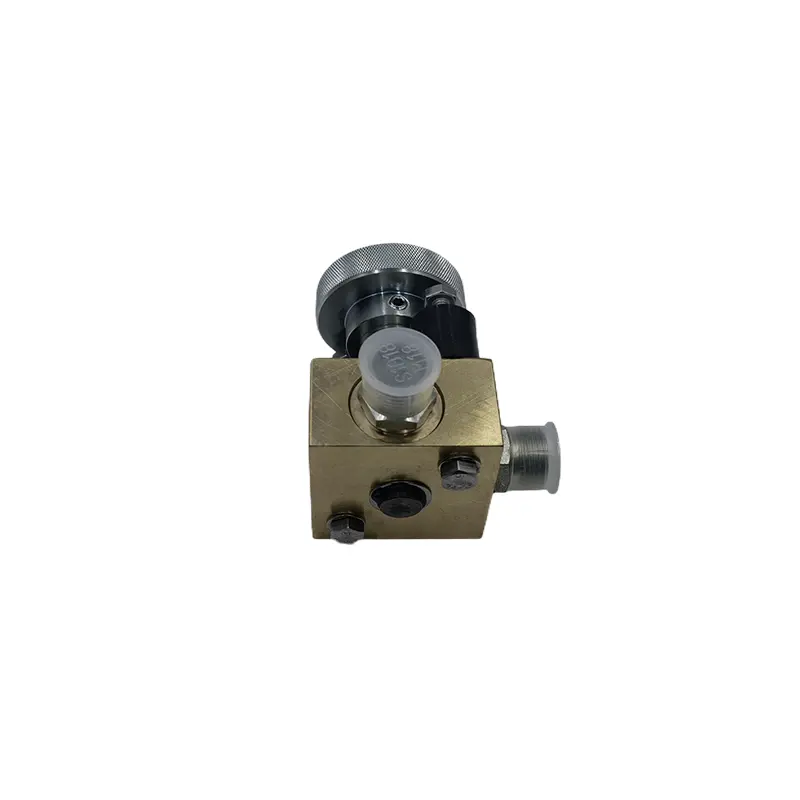

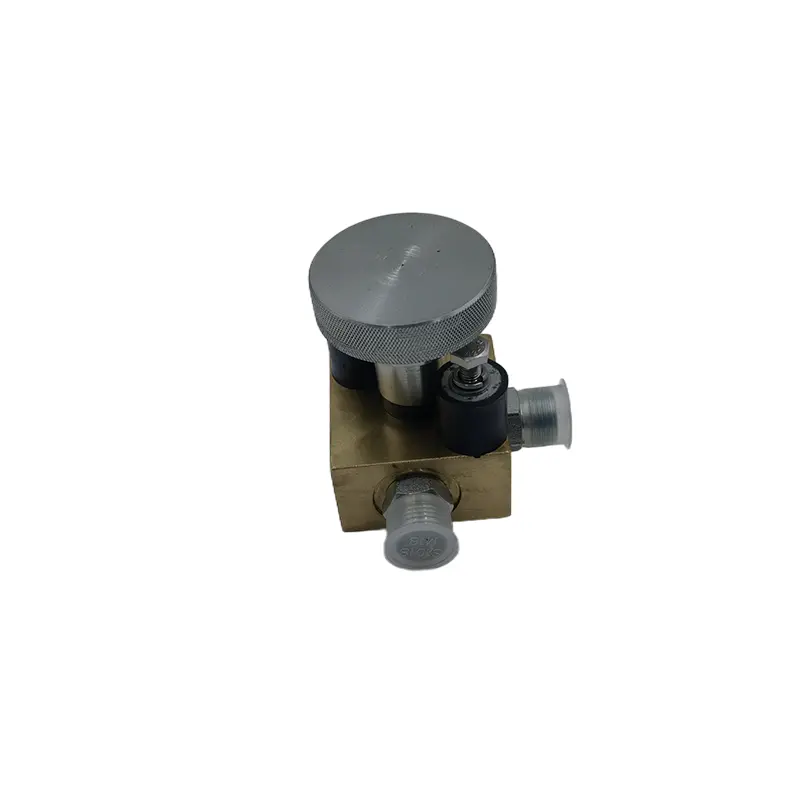

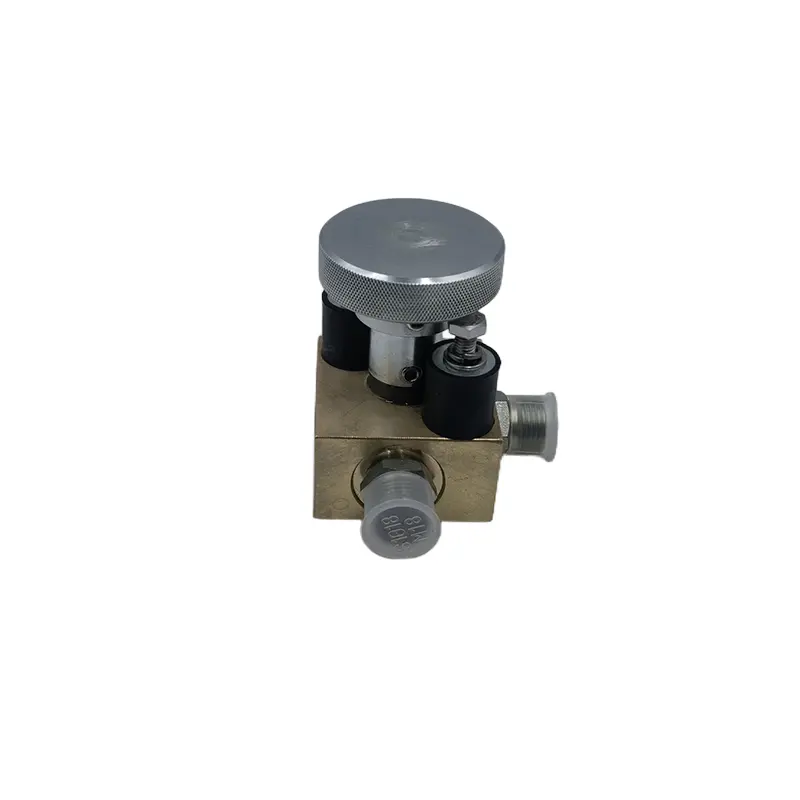

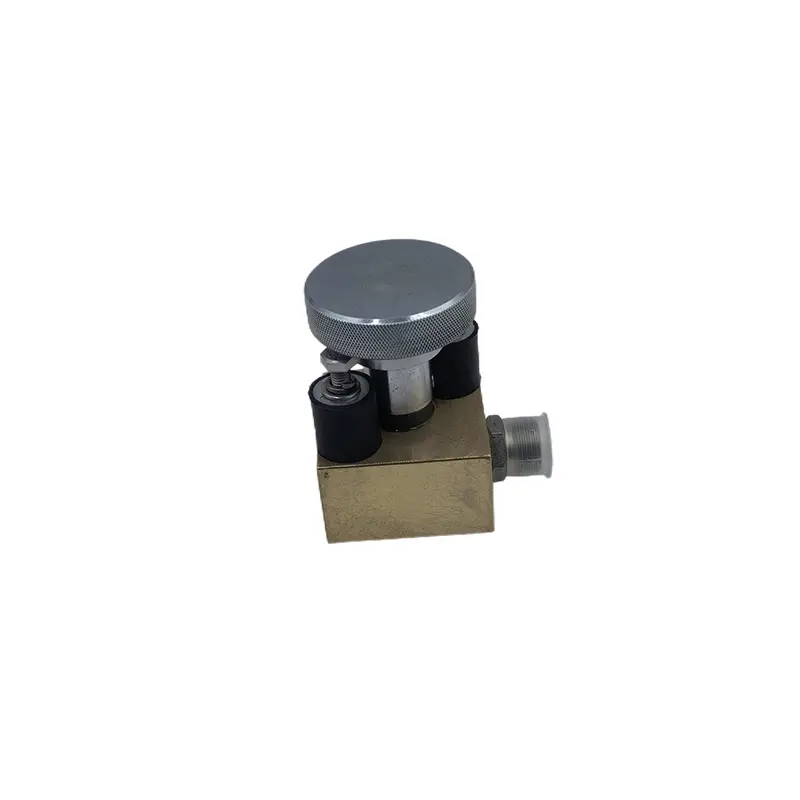

Wholesale Manual Speed Control Copper Valve Block MPM-MSCCVB12 Supplier, Factories

Manual Speed Control Copper Valve Block is composed of copper valve body, valve core assembly, manual adjustment mechanism and connection port. Based on the throttling principle, it controls the flow by changing the valve core opening through manual adjustment. It has the characteristics of corrosion resistance, high-precision adjustment, reliability and good thermal conductivity. It is used in industrial equipment, fluid transportation, experimental instruments and small engineering machinery.

Send Inquiry

Product Description

Flow Adjustment

By manually adjusting the opening of the speed regulating valve block, the flow of hydraulic oil can be precisely controlled. When the forklift is working, the flow of hydraulic oil entering the corresponding cylinder can be flexibly adjusted according to different operating requirements, such as the lifting speed of the tipping bucket, the loading and unloading speed of the bucket, etc., so as to control the movement speed of the working parts.

Stable Speed

When the system pressure fluctuates, the stability of the output flow can be guaranteed, thereby ensuring that the movement speed of the working parts is not affected by the pressure change. For example, when the forklift lifts heavy objects, even if the engine load changes and the hydraulic system pressure fluctuates, the speed regulating valve block can keep the movement speed of the tipping bucket cylinder relatively stable, avoid the phenomenon of the tipping bucket speeding up and slowing down, and improve the stability and accuracy of the operation.

Actuator Coordination

Forklifts usually have multiple hydraulic actuators, such as tipping bucket cylinders, bucket cylinders, etc. The manual speed regulating valve block can distribute and adjust the flow of different oil circuits, so that each actuator can coordinate actions according to work requirements and realize complex work processes. For example, when shoveling materials, the bucket and the dump bucket can work together at a certain speed and sequence.

Technical Specification

Flow Rate Configurations

40 L/min 50 L/min 63 L/min 100 L/min 160 L/min

Generally speaking, the nominal flow of manual speed regulating valve blocks commonly used in construction machinery such as forklifts has different specifications such as 40L/min, 50L/min, 63L/min, 100L/min, and 160L/min. However, this is only the nominal flow rate, and the actual flow rate will vary due to the above factors. For example, when the system pressure is stable and the load remains unchanged, the larger the throttle opening, the higher the flow rate; conversely, the lower the flow rate. When the load changes, the differential pressure reducing valve in the speed regulating valve block will automatically compensate to keep the pressure difference before and after the throttle valve at a constant value, and try to maintain a stable flow rate.

Service & Quality Advantages

Manufacturing high-quality hydraulic products for nearly 20 years

1-year after-sales warranty service

24-hour pre-sales and after-sales customer service support

Customized drawing products according to customer needs

Strict quality inspection to ensure product quality

Insist on on-time delivery

Frequently Asked Questions

What is the primary function of the manual speed regulating valve block in forklifts?

It manually regulates the hydraulic oil opening to precisely control the flow into cylinders. This enables flexible speed adjustments for working components such as tipping bucket lifting and bucket loading/unloading.

How does the valve maintain a stable speed when pressure fluctuates?

When load or engine changes cause pressure shifts, the internal differential pressure reducing valve automatically compensates. This keeps the differential pressure across the throttle valve constant, preventing erratic acceleration or deceleration.

What are the common nominal flow specifications available?

Common nominal flow specifications for forklift and construction machinery applications include 40L/min, 50L/min, 63L/min, 100L/min, and 160L/min. Actual flow varies according to throttle position and system dynamics.

Can this valve synchronize multiple hydraulic actuators?

Yes, it distributes and balances flow across multiple oil circuits, ensuring coordinated sequence movements between tipping cylinders, bucket cylinders, and other actuators during complex maneuvers like material shoveling.

Do you offer custom manufacturing based on technical drawings?

Yes, we provide customized production based on customer drawings and exact technical requirements, supported by nearly 20 years of hydraulic manufacturing experience.

What after-sales and warranty support is provided?

Every unit undergoes strict quality inspection, comes with a 1-year after-sales warranty service, and is backed by 24-hour pre-sales and after-sales customer service support.
