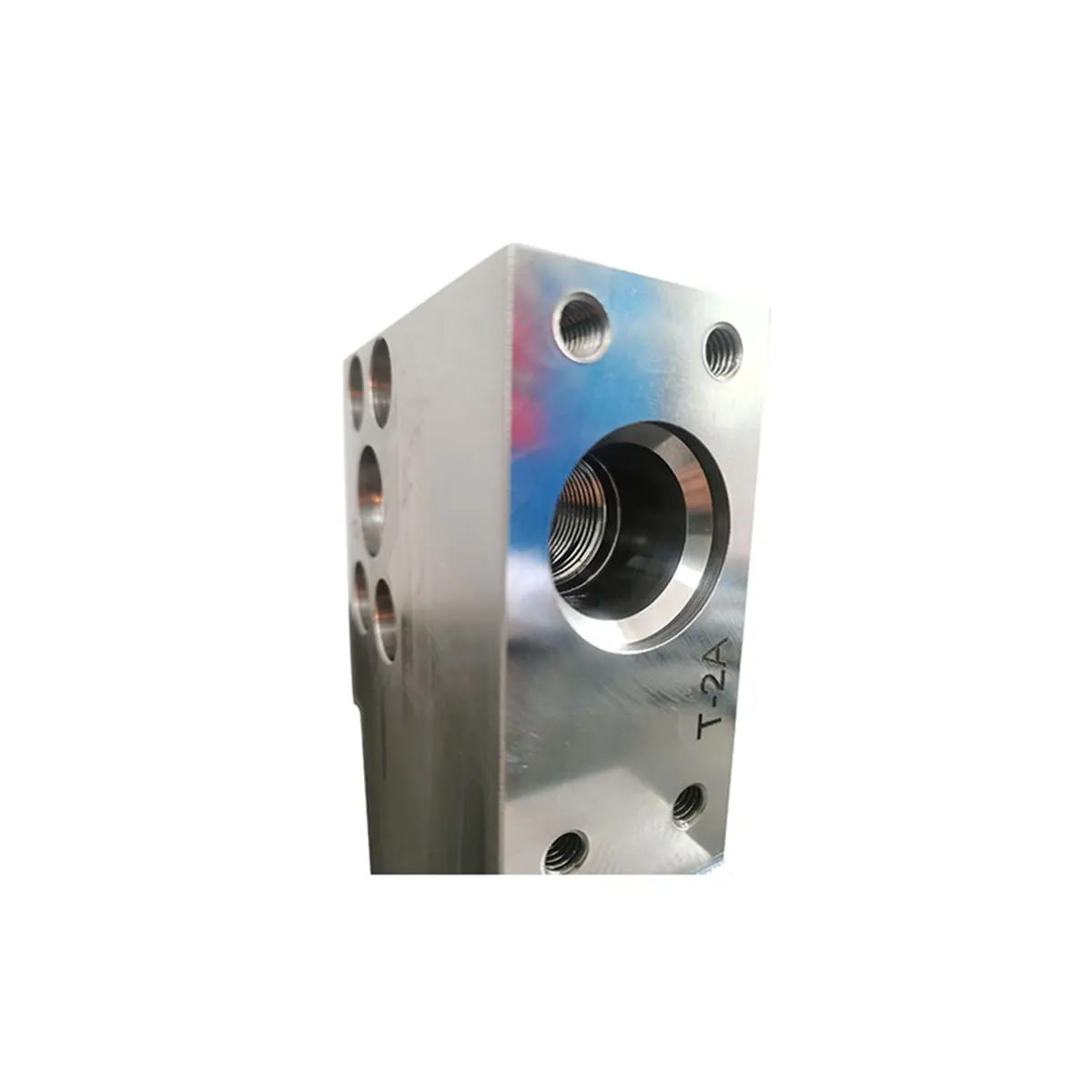

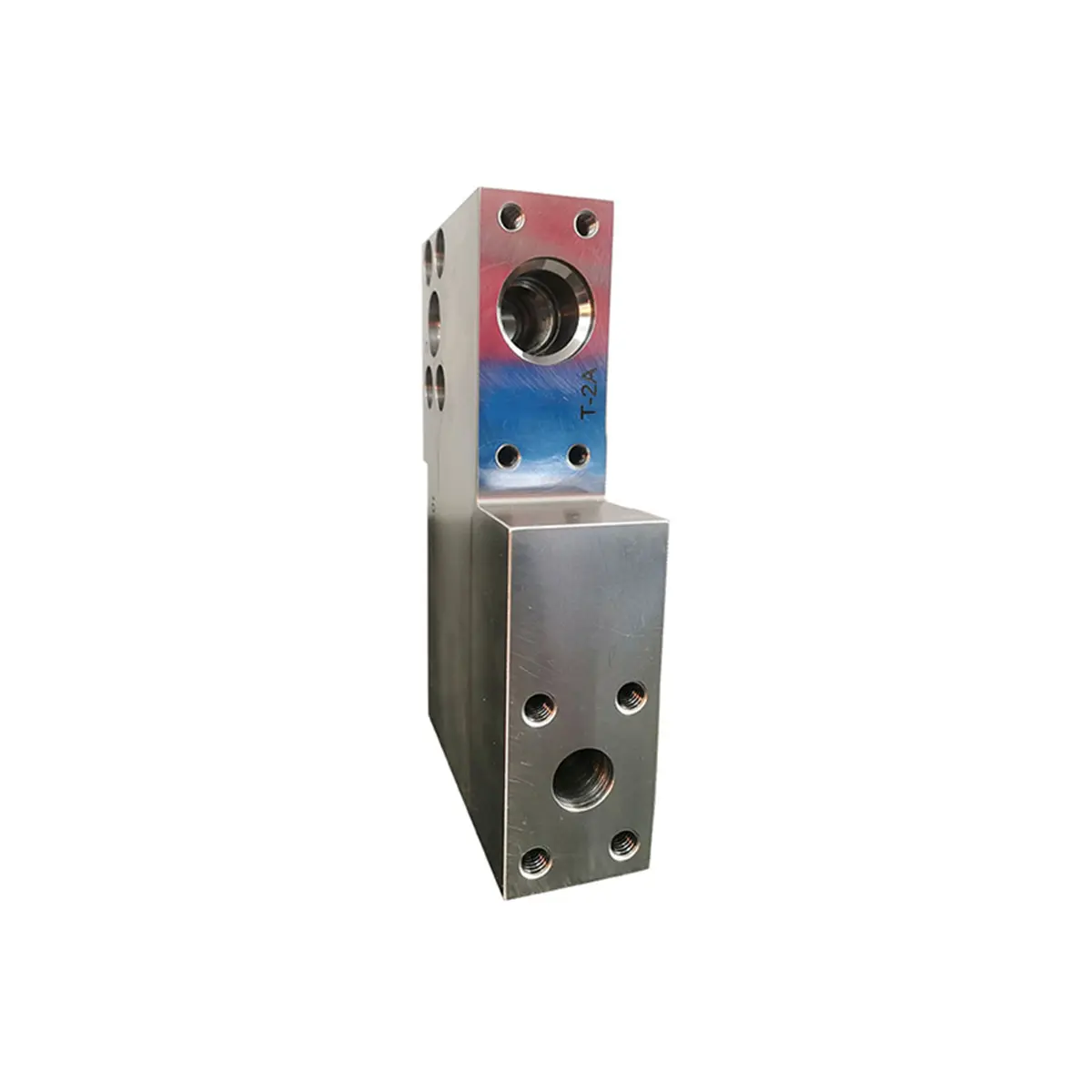

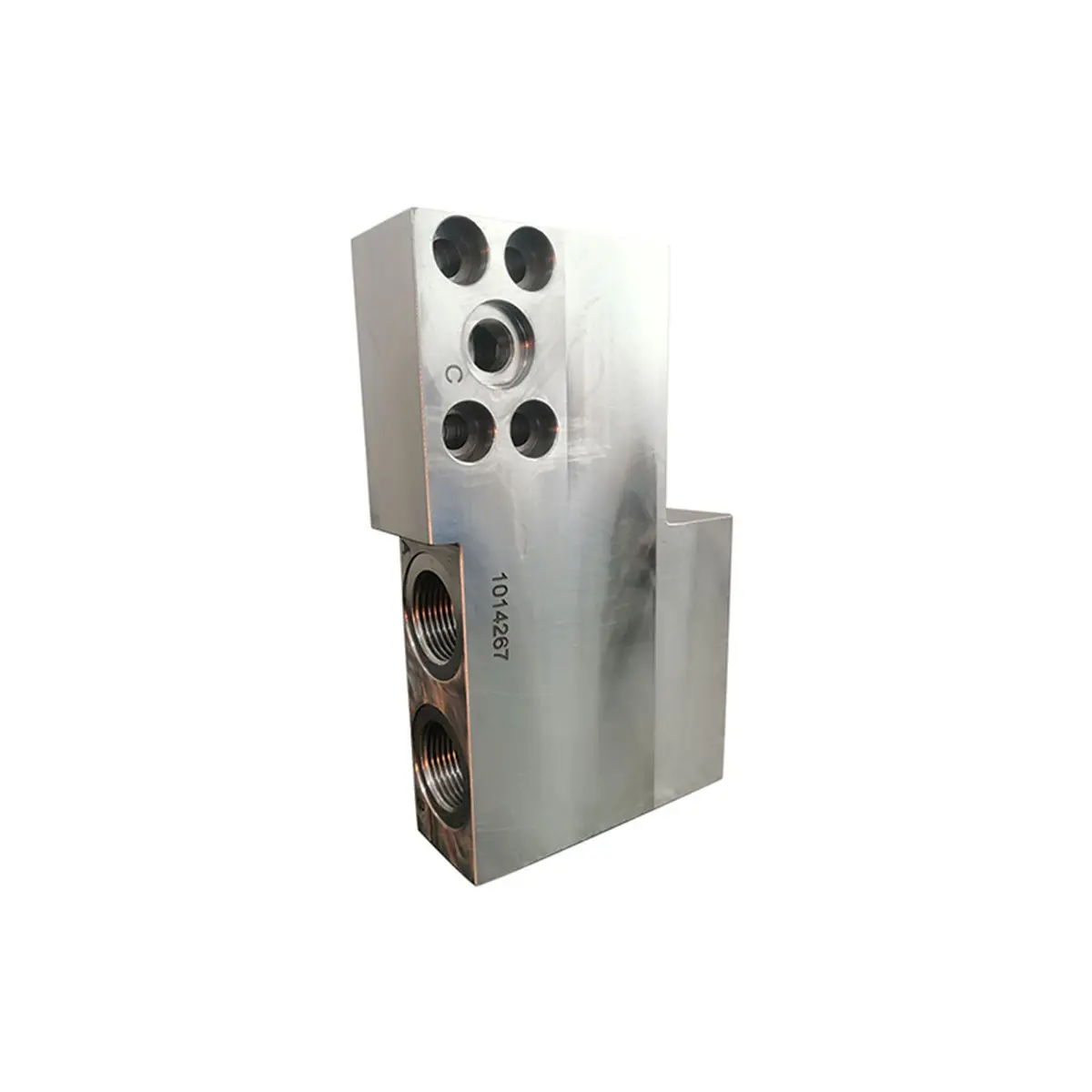

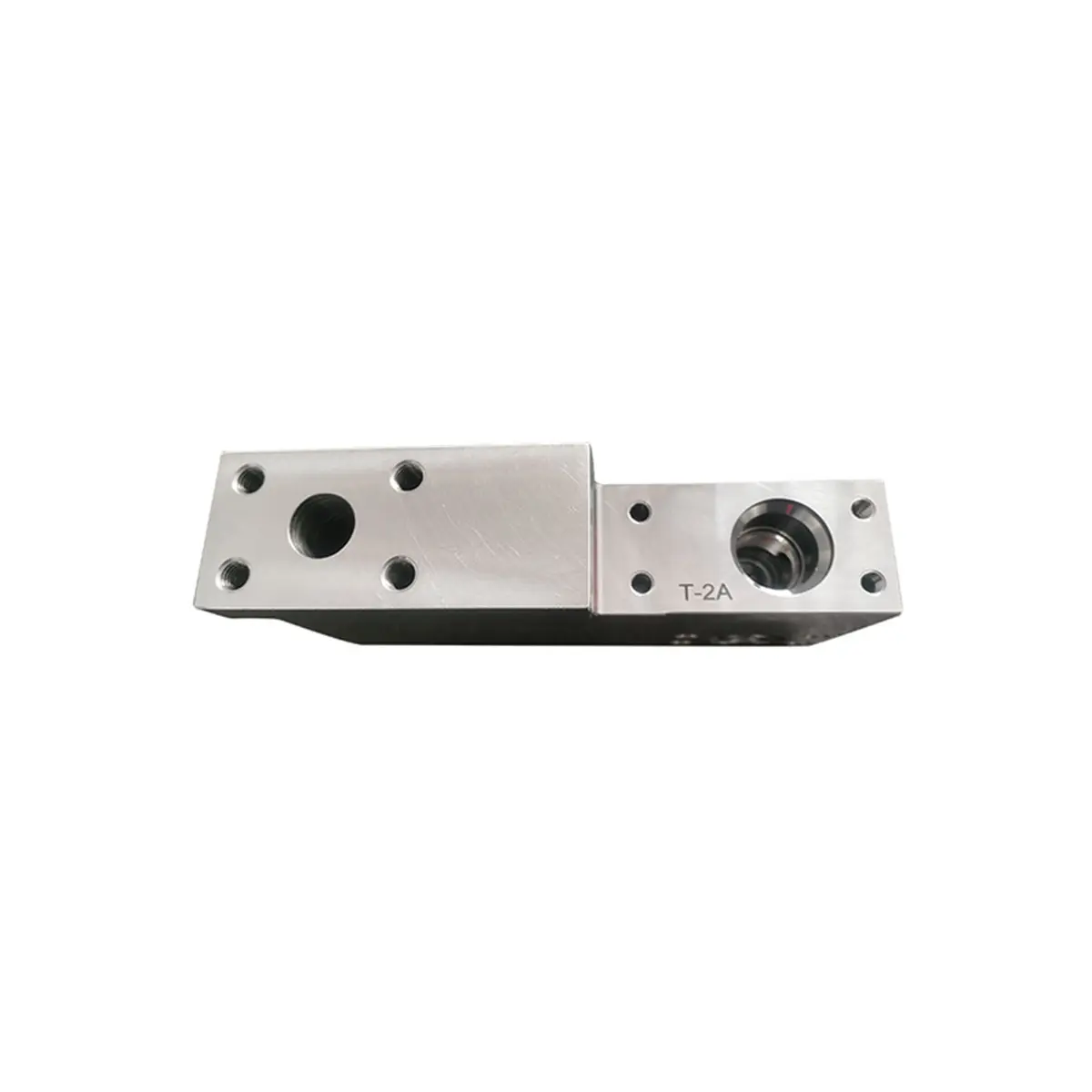

High-Quality T2A Hydraulic Relief Valve Block MPM-HRVB2A Manufacturers, Factory
Product Description
Description
Hydraulic relief valve block is usually made of high-strength metal, and the internal precision machining of the oil channel connecting the various components. The core component is the relief valve, which is commonly direct-acting and pilot-operated, responsible for opening or closing the relief channel according to pressure changes.
When the system pressure does not reach the set value, the relief valve is closed and the oil flows to the actuator; once the pressure is too high, the relief valve opens and part of the oil flows back to the tank, thereby maintaining the system pressure stable.
Working Principle
1. Hydraulic relief valve block uses the principle of pressure reduction when oil passes through the gap to keep the outlet oil pressure stable and low.
2. The pilot pressure reducing valve consists of a pilot valve and a main valve. The pressure flows out from the oil inlet of the main valve and then flows out from the oil outlet.
3. When the outlet pressure is higher than the set pressure of the pilot valve spring, the pilot valve opens, the main valve core rises, the X opening is the smallest, the outlet pressure drops, and the pressure is reduced.
4. The hydraulic balance valve block can set the pressure ratio to 1.5:1 3:1 4.5:1.
Features
Adaptable to various hydraulic systems, any product can be customized according to customer needs.
Specification
| Materials Available | Q355D forged, 20# steel, GGG50, etc. |
| Pressure | Up to 450 Bar |
| Flow | Up to 600 L/min |
| Screw Hole Processing Accuracy | 7H |
| Roughness of Mounting Hole | Ra0.8 |
| Surface Roughness of O-ring Groove | Ra1.6 |
| Surface Roughness of General Flow Channel | Ra12.5 |
| Processing Type | Milling / Turning / Stamping |
Service
1. Manufacturing high-quality hydraulic products for nearly 20 years
2. 1-year after-sales warranty service
3. 24-hour pre-sales and after-sales customer service support
4. Customized drawing products according to customer needs
5. Strict quality inspection to ensure product quality
6. Insist on on-time delivery
Frequently Asked Questions (FAQ)
What materials are available for the hydraulic relief valve block?
The blocks are mainly manufactured using high-strength metals such as Q355D forged steel, 20# steel, and GGG50 ductile iron.
What are the maximum pressure and flow ratings supported?
The valve block can withstand operational pressures up to 450 Bar and accommodate flow rates up to 600 L/min.
Can the hydraulic blocks be customized to technical drawings?
Yes, complete custom processing (milling, turning, stamping) is available based on customer-supplied drawings and specific system requirements.
What is the surface roughness accuracy of the processed ports?
Mounting holes achieve a roughness of Ra0.8, O-ring grooves achieve Ra1.6, and general flow channels achieve Ra12.5, with screw hole precision reaching 7H.
What warranty and customer support services are provided?
Products come with a 1-year after-sales warranty service and 24-hour pre-sales and after-sales customer service support.
