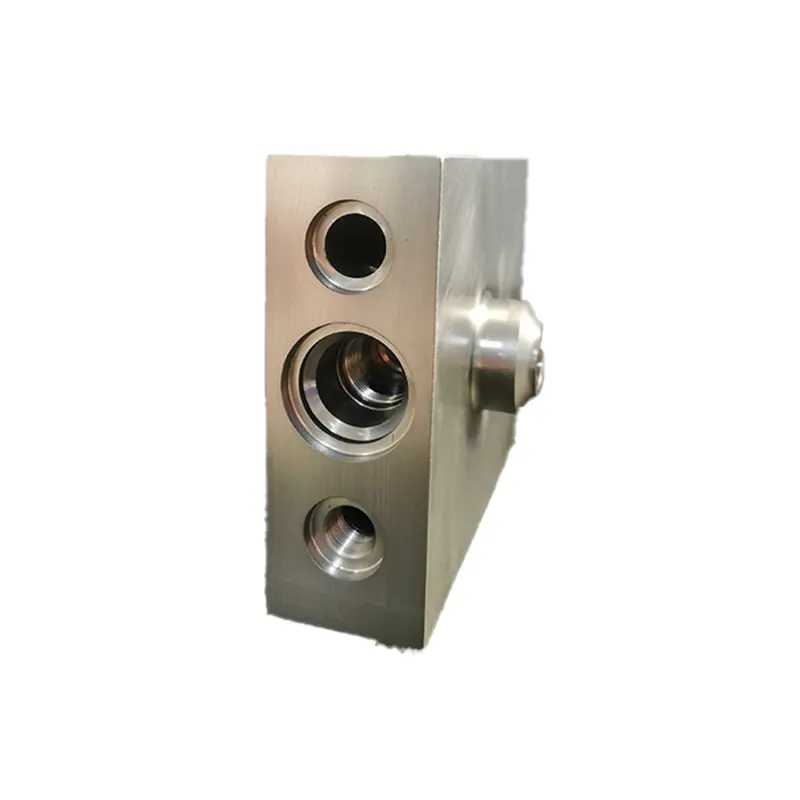

High-Quality T3A Hydraulic Counterbalance Valve Block MPM-HCVB3A Manufacturers, Factories
Product Description
Description
The T3A hydraulic counterbalance valve block ensures smooth operation of hydraulic actuators through precise flow and pressure control, while supporting automated system integration to significantly improve response speed and operational efficiency. Its high-reliability design effectively prevents load runaway, maintaining equipment safety even under extreme operating conditions and reducing unexpected downtime risks. This makes it ideal for industrial applications demanding exceptional stability and safety.
The valve block adopts a pilot-operated pressure reduction structure that enables self-adaptive pressure adjustment through coordinated action between the main valve and pilot valve: when outlet pressure falls below the set value, the main valve remains fully open to ensure flow capacity; when pressure exceeds the threshold, the pilot valve activates main valve throttling to automatically maintain stable outlet pressure. This dynamic balancing mechanism allows rapid adaptation to load variations. Combined with cone-sealing technology and rigorous factory inspections (including 3D imaging flaw detection), the design completely eliminates internal leakage and fluid contamination risks.
Features
Specification
| Category | Specification Details |
| Materials | Q355D forged steel, 20# steel, GGG50 (100% NDT tested) |
| Pressure Rating | Up to 350 bar (customizable) |
| Pilot Ratios | 1.5:1 / 3:1 / 4.5:1 (selectable) |
| Sealing Method | Taper-seated valve port |
| Leakage Rate | <0.1% of rated flow |
| Fluid Compatibility | Hydraulic oil, emulsions (low-viscosity compatible) |
| Testing Standards | 100% pressure tested, 3D imaging inspection |
| Cleanliness | ISO 4406 Class 15/13/10 |
| Customization | Accepts non-standard designs & materials |
| Lead Time | 4-6 weeks (standard), 6-8 weeks (custom) |
| Weight Reduction | Up to 30% vs conventional designs |
| Operation Condition | Valve State | Flow Path |
| Pout < Pset | Pilot valve closed | Full flow through main valve |
| Pout > Pset | Pilot valve open | Restricted flow (pressure reduction) |
Service
Frequently Asked Questions (FAQ)
The T3A hydraulic counterbalance valve block is designed to maintain precise control over flow and pressure in hydraulic actuators. It effectively prevents uncontrolled load runaway, guarantees smooth actuator movement, and enhances operational safety under varying dynamic load conditions.
Yes, while our standard pressure rating reaches up to 350 bar, we provide full customization services according to customer-supplied technical drawings and specific hydraulic application requirements.
We offer multiple standard pilot ratios including 1.5:1, 3:1, and 4.5:1 to suit distinct pressure dynamics and system operation requirements.
Every valve block undergoes 100% Non-Destructive Testing (NDT), 3D imaging flaw inspection, and thorough pressure testing. Combined with our taper-seated valve port sealing technology, the internal leakage rate is kept strictly below 0.1% of the rated flow.
Standard products have a lead time of 4-6 weeks, while custom-engineered designs typically require 6-8 weeks depending on material specifications and project scope.
