Product Description
Description

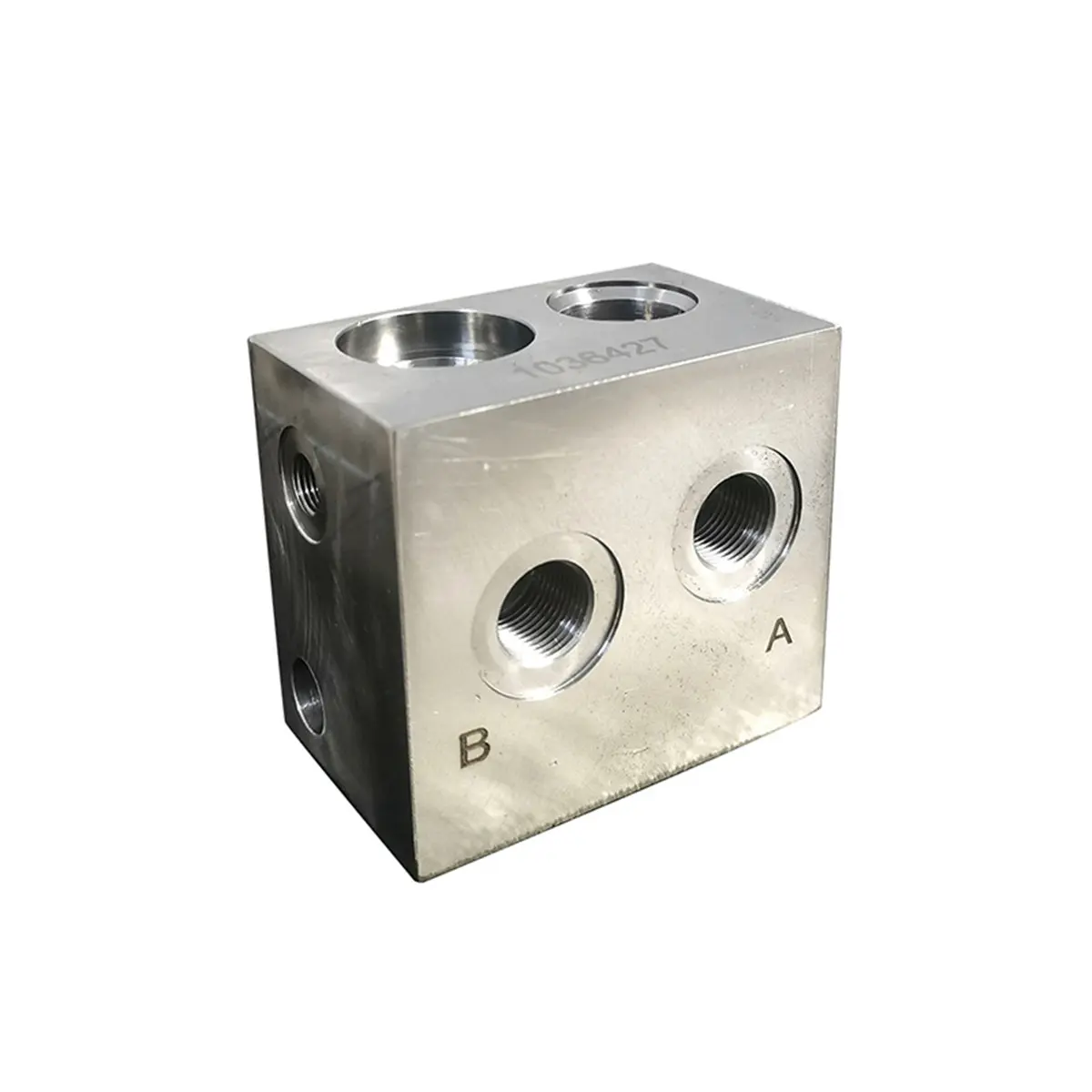

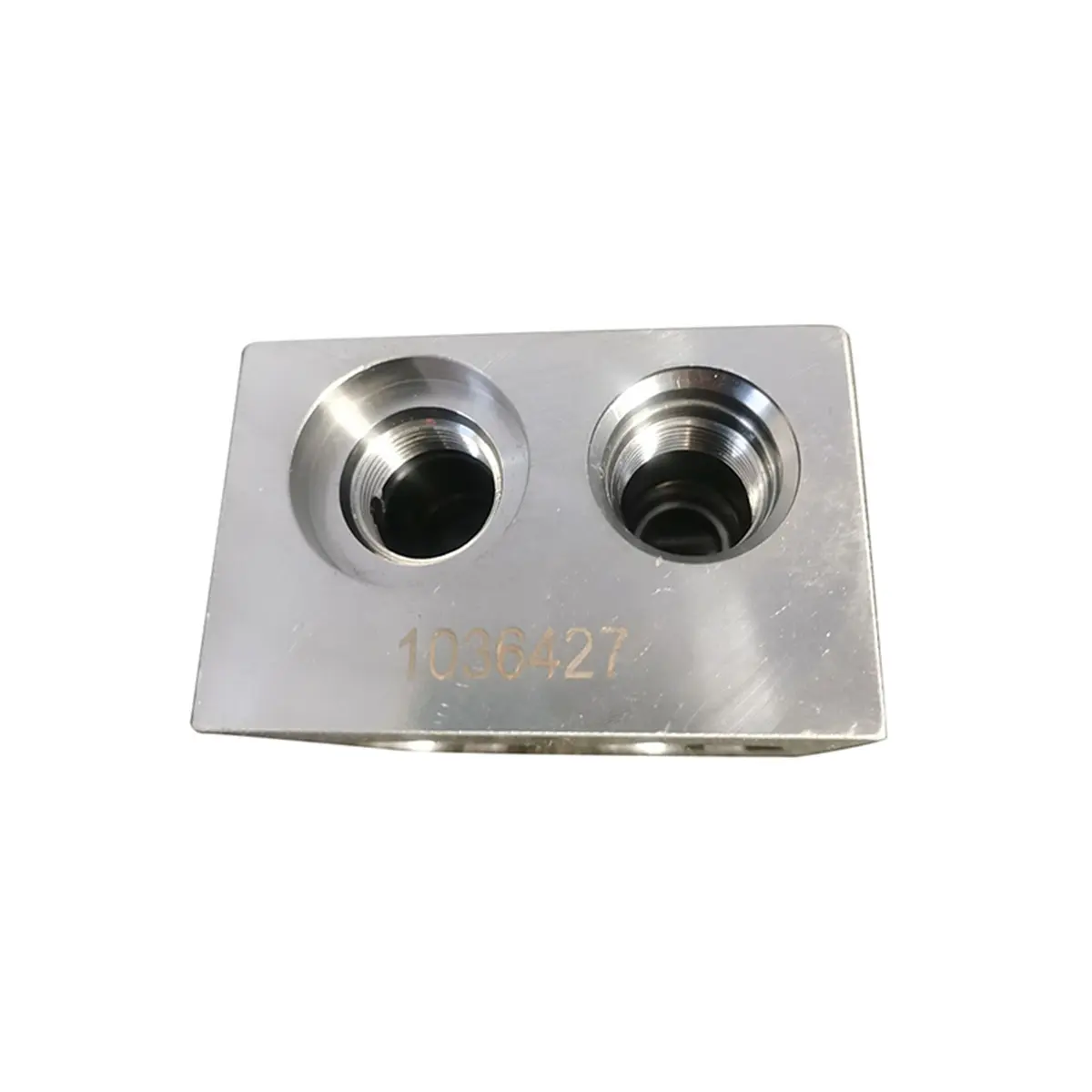

T13A hydraulic flow control valve block, can be equipped with two-position direct-acting solenoid poppet valve and reversing valve, with a design flow of 40L/min, and uses T13A valve hole. The two-position two-way can be equipped with a solenoid valve, which is direct-acting. The valve hole is a poppet valve structure, with two configurations of normally open and normally closed. It is made of nitrile, EPDM and fluororubber, and has no leakage.
The valve hole of this valve block can also be equipped with a two-position solenoid slide valve and a reversing valve with a flow of 45L/min. The two-position two-way can be equipped with a solenoid valve, which is a direct-acting balanced structure and also has normally open and normally closed functions.
In addition, the valve hole is a direct-acting, soft-switching solenoid poppet valve, and the reversing valve has a design flow of 15L/min. It can be equipped with a two-position two-way solenoid valve. The poppet valve structure has a soft start characteristic, which can greatly reduce the system impact when the valve is driven.
Features
Specification
| Maximum operational pressure | 350 bar |
| Rated response time | 50ms |
| Maximum leak at 110 SUS (24 cSt) | 80cc/min@210brt |
| Switch frequency | 15000 cycles/hr |
| pass | T13A |
| Seal kit-Cartridge | Buna; 990-413-007 |
| Seal kit-Cartridge | Viton; 990-17-006 |
| Force required for a manual emergency operation | 33N/100 bar @Port1 |
| Manual emergency operation action stroke | 2.5mm |
| Solenoid coil start voltage | 12VCD/24VCD |
