Cheap Hydraulic Station Valve Block MPM-HSVB12 Manufacturers, Factory

1 / 1

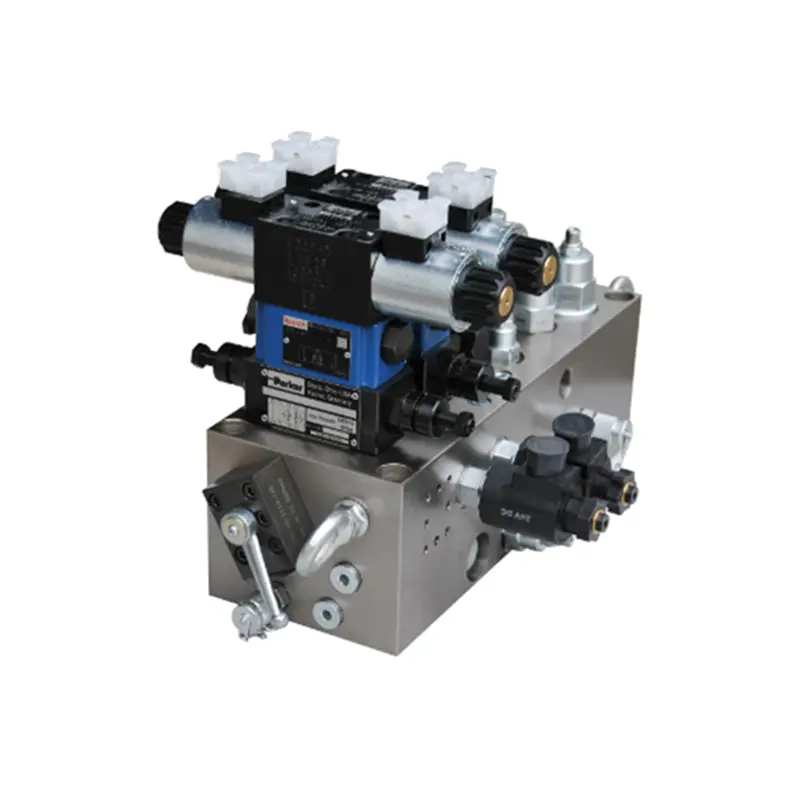

Cheap Hydraulic Station Valve Block MPM-HSVB12 Manufacturers, Factory

Hydraulic station valve block is like a "smart center" in the hydraulic system. It is composed of multiple hydraulic valves with different functions, which work together to accurately control the flow direction, pressure and flow of hydraulic oil to ensure efficient, stable and safe operation of the hydraulic system.

Send Inquiry

Product Description

Description

Hydraulic Station Valve Block is a compact and efficient hydraulic circuit that plays a critical role in modern hydraulic systems. During operation, it functions as a centralized control unit, integrating multiple hydraulic valves into a single block to streamline fluid flow and reduce potential leakage points. The various valves, such as balance valves, pressure reducing valves, one-way valves, reversing valves, and shuttle valves, are strategically combined through the oil passages (oil holes) on the valve block, ensuring precise control over hydraulic power transmission.

As an independent hydraulic unit, it operates autonomously to supply pressurized oil to its drive mechanism while regulating the direction, pressure, and flow rate of the hydraulic fluid. This ensures optimal performance, energy efficiency, and safety in hydraulic systems. Its modular design allows for customization, making it suitable for construction machinery, agricultural equipment, marine hydraulics, and industrial automation systems.

By consolidating multiple valve functions into a single block, the Hydraulic Station Valve Block reduces piping complexity, minimizes pressure drops, and enhances overall system responsiveness. Whether for high-pressure applications or precision flow control, it remains a cornerstone of efficient hydraulic system design.

Features

Adaptable to various hydraulic systems, any product can be customized according to customer needs.

Specification

Materials Available	20# steel, 35 forged steel, 45# steel, Q355D, cast iron, aluminum, etc.
Pressure	Up to 450 Bar
Flow	Up to 600 L/min
Screw Hole Processing Accuracy	7H
Roughness of Mounting Hole	Ra0.8
Surface Roughness of O-ring Groove	Ra1.6
Surface Roughness of General Flow Channel	Ra12.5
Processing Type	Milling / Turning / Stamping

Service

Manufacturing high-quality hydraulic products for nearly 20 years

1-year after-sales warranty service

24-hour pre-sales and after-sales customer service support

Customized drawing products according to customer needs

Strict quality inspection to ensure product quality

Insist on on-time delivery

Frequently Asked Questions

What materials are used for the Hydraulic Station Valve Block?

The valve blocks are manufactured using 20# steel, 35 forged steel, 45# steel, Q355D, cast iron, aluminum, and other high-grade materials based on the application requirements.

What is the maximum operating pressure and flow capacity?

The system supports an operating pressure of up to 450 Bar and a maximum flow rate of up to 600 L/min, suitable for heavy-duty industrial tasks.

Can the valve block be customized according to specific drawings?

Yes, fully customized solutions are offered based on customer drawings and technical specifications to ensure compatibility with varied hydraulic systems.

What machining accuracy is maintained during processing?

The blocks maintain a screw hole processing accuracy of 7H, mounting hole roughness of Ra0.8, and O-ring groove surface roughness of Ra1.6 through precision milling, turning, and stamping.

What warranty and technical support are provided?

A 1-year after-sales warranty is provided, backed by 24-hour pre-sales and after-sales support with nearly 20 years of manufacturing experience.
