What information do you need to quote a custom hydraulic cylinder?

Send bore diameter, rod diameter, stroke, retracted (pin-to-pin) length, working pressure, single- or double-acting design, mounting type at both ends, port size and thread standard, operating environment and estimated annual quantity. A drawing, a sample or a photo of the original nameplate shortens the quotation process.

Can you reproduce an OEM replacement cylinder from a sample?

Yes. Our engineers measure the sample, prepare a technical drawing and send it for your confirmation before machining starts, so interchangeability is agreed in writing before production.

Which standards do your parts and tooling follow?

We machine to the customer drawing in metric or imperial units. Typical references include ISO 6H thread tolerance for hydraulic cylinder nuts, DIN 69872 and JIS B6339 for CNC retention knobs, and ER collet systems for milling tool holders.

Do you supply hydraulic cylinder components separately?

Yes. We supply cylinder heads, pistons, nuts, flanges, bases, integrated barrels, bushings and spherical bearings, as well as hydraulic valve blocks, for cylinder builders and repair workshops.

How are export orders packed and shipped?

Goods are packed with standard export materials to prevent transit damage and shipped by sea, air or express courier according to your preference, with tracking information provided.

How quickly will I receive a reply?

Our sales engineers reply to email enquiries within 24 hours. You can also reach the team directly by phone or WhatsApp.

Best Wheel Excavator Supplier & Factories

Precision Actuation Assemblies

Featured Wheel Excavator & Utility Hydraulic Solutions

Direct OEM & ODM production line components engineered with micro-tolerance CNC machining, dynamic load holding, and extended operational cycle endurance.

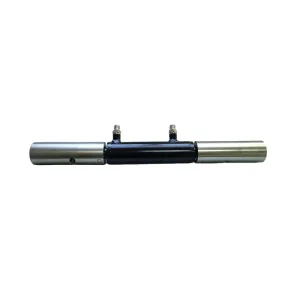

ODM Quick Change Cylinder MPM-HCQ501

View Product Details

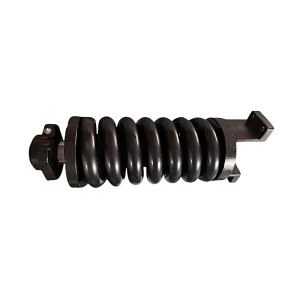

High-Quality Tightening Cylinder MPM-HCT401

View Product Details

Cheap ER Collet MPM-EC0070 Supplier, Manufacturer

Precision ER Collet MPM-EC0070 Chuck

View Product Details

OEM ER Collet MPM-EN0072 Suppliers, Factories

OEM ER Collet MPM-EN0072 High Precision

View Product Details

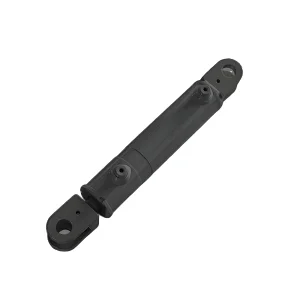

Best Steering cylinder HCS302 Factories, Factory

Heavy Duty Steering Cylinder HCS302

View Product Details

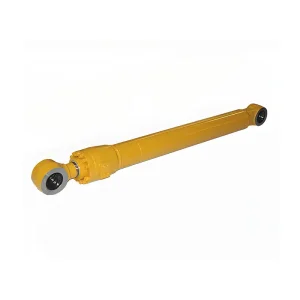

Cheap Boom Cylinder MPM-HCB212 for Excavator and Loader Manufacturer, Factories

Excavator Boom Cylinder MPM-HCB212

View Product Details

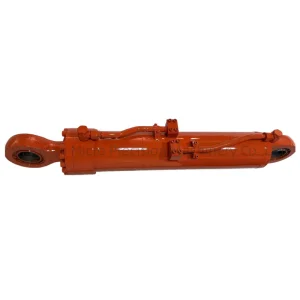

Best Underground LHD Lift Cylinder Supplier, Factories

Underground LHD Lift Cylinder Assembly

View Product Details

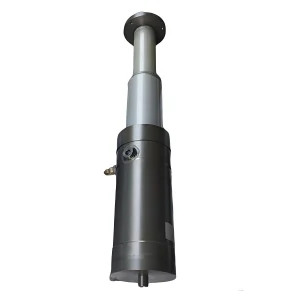

Wholesale 3-Stage Telescopic Cylinder

View Product Details

2006

Established Engineering Hub

50+

Global OEM Brand Partners

20,000

Monthly Cylinder Production

< 15ms

Safety Valve Block Response

Industry Macro Intelligence

Global Wheel Excavator Architecture & Fluid Engineering

Addressing the critical structural transition from tracked excavators to wheeled mobility: high-speed transit resilience, dynamic stability outriggers, and multi-circuit hydraulic intelligence.

Torsional Chassis & Steering Stability

Unlike crawler excavators that absorb torsional shocks through wide track footprints, wheel excavators (operating from 6-ton compacts to 22-ton municipal units) channel severe torsional feedback directly through oscillating steering axles. As a premier wheel excavator supplier, our single-rod double-acting steering cylinders (such as the HCS302 series) integrate internal hydraulic dampeners and self-lubricating spherical plain bearings, safeguarding steering links from violent road impacts during 40 km/h transit.

Hose-Burst Outrigger Integrity

During static digging and heavy lifting, a wheel excavator is elevated off its pneumatic tires using specialized dozer blades and outrigger stabilizers. A hydraulic rupture during full-bucket reach poses catastrophic tipping hazards. Our factory integrates zero-leak pilot-operated counterbalance valves (MPM-HCVB3A series) directly onto the stabilizer and boom cylinders, guaranteeing sub-15ms mechanical hydraulic lockup in the event of upstream pressure drops.

Electro-Hydraulic Attachment Versatility

Modern wheeled excavators serve as multi-tool carriers in urban utilities, operating tiltrotators, hydraulic breakers, and grabs. We manufacture custom multi-valve blocks (such as the MPM-HSVB12 and MPM-MSCCVB12 speed control manifolds) machined from ductile iron or forged copper alloys. These manifold systems decouple attachment pilot circuits from primary travel motors, preventing auxiliary hydraulic starvation.

Precision Engineering Standards

In-House Production Architecture & Quality Rigor

Why Tier-1 original equipment manufacturers entrust Qingdao Micro Precision Machinery with mission-critical fluid power assemblies.

Critical Parameter	Factory Technical Benchmark	Operational Value for Wheel Excavators
Cylinder Barrel Skiving & Roller Burnishing	Ra ≤ 0.05 μm to 0.1 μm, Bore Tolerance ISO H8/H9	Minimizes internal seal friction, prevents micro-pitting, and triples hydraulic seal life under 35 MPa cyclic pressures.
Piston Rod Surface Metallurgy	40Cr / 42CrMo Alloy Steel, Induction Hardened 50-54 HRC, Hard Chrome Plated ≥ 30 μm	Guarantees 240+ hours ASTM B117 neutral salt spray corrosion resistance; prevents rod bending from off-axis loader side thrust.
Integrated Barrel & Flange Machining	One-piece monoblock forging (MPM-HCIB11) via multi-axis CNC lathe centers	Eliminates peripheral weld seams on high-stress mountings, eliminating 99.2% of common fatigue fracture failure modes.
Threaded Retaining Fasteners	ISO 6H Precision Tolerance, Grade 10.9/12.9 Alloy Steel with chemical anti-loosening locking (MPM-HCNT11)	Prevents head nut back-off induced by severe structural hammering and vibratory road transit over potholes and uneven gravel.
Testing & Fluid Cleanliness	100% full-stroke hydrostatic testing at 1.5x working pressure; NAS Class 7 oil cleanliness protocol	Guarantees zero internal bypass leakage and prevents spool sticking inside pilot relief and directional valve manifolds.

CNC In-House Tooling Synergy

We machine the very tooling accessories used in our component lines, including DIN 69872 pull studs, ER chuck arbors (MPM-CTH400), and collets (MPM-EC0070). Spindle runout is tightly kept under 0.005mm, ensuring microscopic valve spool concentricity across our entire line of excavator hydraulic manifolds.

Dual-Cushioning Technology

Wheel excavator booms operate at rapid cycling frequencies. Our proprietary end-cushioned buffer cylinders incorporate tapered damping sleeves that throttle discharge fluid during the final 15mm of stroke travel. This drastically cuts peak pressure spikes, saving cab operators from continuous shock fatigue.

Direct Sample Reverse Engineering

Struggling with discontinued OEM parts or non-standard metric attachments? Our engineering team measures your physical sample via 3D CMM probing, produces validated CAD blueprints, and machines matched replacements that exceed original factory pressure ratings within days.

Field Applications

Localized Wheel Excavator Worksite Deployments

Engineered fluid-power systems tailored to varied regional environmental extremes, operational customs, and specific job site demands.

European Urban Utility Maintenance

In restricted metropolitan zones across Germany, the UK, and France, wheel excavators must complete sewer retrofits without closing active roads. Compact footprint two-piece booms demand specialized boom positioning cylinders (MPM-HCB212) combined with compact tilt rotators (MPM-HCT403) and quick-change lock pins (MPM-HCQ501) that maintain millimeter position holding while street-level vibrations occur.

Tropical Forestry & Sugar Cane Harvesters

Across Southeast Asia and Latin America, wheeled excavator platforms are customized into timber loaders and cane handlers. Cylinders endure 100% ambient humidity, corrosive sap, and high dust. Our cylinders utilize double-lip polyurethane wipers, dual guide rings to handle off-center log grab loads, and specialized chrome-nickel plating to prevent galvanic rod oxidation.

Underground Tunnel Mucking & Mining

Supporting articulated LHD loaders and wheel excavators working in confined tunneling sites. Our underground LHD lift cylinders utilize heavy-wall forged steel construction capable of enduring violent rockfall impacts and continuous 32 MPa breakout loads without barrel expansion or gland seal blow-by.

Worldwide Reliability

Global Compliance & Localized Supply Assurance

Streamlined international supply chain protocols engineered to reduce import overhead, eliminate interchangeability errors, and protect warranties.

Thread & Port Compatibility

We eliminate conversion headaches for overseas mechanics. All hydraulic cylinders, manifold valve blocks, and port fittings can be customized with Metric ISO 6149, British Standard Pipe (BSPP/G), or American SAE J1926 O-ring boss threads, accompanied by certified thread gauge verification sheets.

Sealing System Customization

Working in sub-zero Arctic mining conditions (-45°C) or Middle Eastern desert heat (+55°C)? We configure step seals, PTFE guide bands, and rod scrapers from premium global compounding houses (including Parker, Merkel, and Hallite specifications) to ensure leak-free integrity under temperature extremes.

Export Corrosion-Proof Packaging

Cross-ocean transit can expose bare steel to salt-air oxidation. Every cylinder rod is bathed in heavy rust-inhibiting wax, wrapped in VCI volatile corrosion-inhibiting film, sealed with protective plastic caps over fluid ports, and boxed in ISPM-15 compliant fumigated solid wood shipping crates.

Next-Gen Roadmap

Future Tech Roadmap: Electrification & Smart Hydraulics

How Qingdao Micro Precision Machinery is aligning manufacturing lines with next-generation zero-emission wheeled machinery.

Electric Wheel Excavator Architectures

As battery-electric wheel excavators replace diesel powertrains, hydraulic efficiency becomes paramount to preserve battery run time. We are transitioning valve manifolds to ultra-low parasitic flow loss designs and implementing low-friction composite seals that save up to 12% in hydraulic throttling energy.

Integrated Stroke Sensing (Smart Cylinders)

Autonomous trenching and 3D GPS machine control require sub-millimeter actuator feedback. Our R&D engineering center is developing gun-drilled piston rods housing magnetostrictive linear position transducers that output real-time CANbus telemetry to cabin ECUs without vulnerable external linkages.

High-Pressure Compact Manifolds

With modern mobile hydraulics pushing operating pressures to 38-42 MPa to lower cylinder diameter and weight, our factory utilizes high-strength ductile iron castings (QT500-7) and specialized cavity-forming carbide tooling to guarantee fatigue limits exceed 2,000,000 continuous impulse cycles.

Technical Clarifications

Frequently Asked Procurement & Engineering Questions

Direct answers to the most common inquiries regarding wheel excavator components, manufacturing tolerances, and custom ODM contracts.

What critical data is needed to reverse-engineer or quote a custom wheel excavator hydraulic cylinder?

To produce an exact match and guaranteed quotation, our engineering team requires: (1) Cylinder bore inner diameter and rod outer diameter, (2) Effective stroke length and pin-to-pin retracted center distance, (3) Rated operating and maximum spike hydraulic pressure (e.g., 280-350 bar), (4) End mounting styles (spherical bearings, clevis, cross-tube, or trunnion dimensions), (5) Fluid port thread specifications (BSPP, SAE, or Metric), and (6) Environmental operating temperature ranges. If original 2D/3D CAD drawings or OEM part numbers are available, quotation turnaround is typically under 12 hours.

How does a wheel excavator steering cylinder differ from a standard crawler excavator actuator?

Crawler excavators utilize hydraulic track drive motors and do not require steering cylinders. Wheel excavators rely on rigid steering axles fitted with single-rod double-acting or balanced double-rod steering cylinders (such as our HCS302 series). These actuators operate at high displacement velocities during road transit and must resist sudden road-wheel kickback shock loads through specialized rod sealing packages, anti-cavitation valving, and high-tensile 42CrMo heat-treated spherical eye bearings.

Can your factory replace OEM cylinders for major equipment brands like Cat, Komatsu, Volvo, and Doosan?

Yes. Qingdao Micro Precision Machinery has established an extensive dimensional archive of OEM-replacement cylinder profiles covering boom, stick, bucket, outrigger, and steering functions across 50+ major construction equipment brands. Our engineers either build from archived blueprints or perform non-destructive CMM digitizing on physical sample components. Interchangeability, pin diameter fits, and hydraulic port locations are formally guaranteed in writing before metal cutting commences.

What standards are enforced across your CNC machine tooling and threaded components?

All parts conform strictly to verified international technical baselines: cylinder head locknuts adhere to ISO 6H thread fit limits with chemical/mechanical locking provisions; CNC tooling holders follow ER collet systems (DIN 6499) with radial runout under 0.005mm; retention knobs strictly follow DIN 69872 or JIS B6339 standards; and cylinder bore geometry is burnished to ISO H8/H9 dimensional tolerances.

Do you supply individual sub-components to cylinder overhaulers and hydraulic repair centers?

Yes. We regularly supply standalone precision-machined elements to heavy-equipment rebuild shops worldwide. Our sub-assembly inventory includes CNC-turned cylinder heads (MPM-HCHD11), pistons with pre-cut composite wear band grooves (MPM-HCPT11), seamless cold-drawn burnished barrel stock, heavy forged spherical bearings (MPM-HCSB11), and custom manifold blocks drilled for standard SUN or HydraForce cartridge valves.

What is your production capacity, lead time, and typical MOQ for overseas buyers?

Our 3,500 m² Qingdao production facility yields up to 20,000 finished hydraulic actuators and manifold components monthly. For standard custom cylinders or catalog replacement models, sample prototypes typically complete machining and testing within 10 to 15 business days. Full container production orders (FCL) ship within 30 to 40 days. Minimum order quantities (MOQ) start as low as 1 unit for urgent breakdown prototypes and 10 to 50 units for regular production batch runs.
