Wholesale 3 stage Telescopic cylinder Suppliers, Supplier

1 / 1

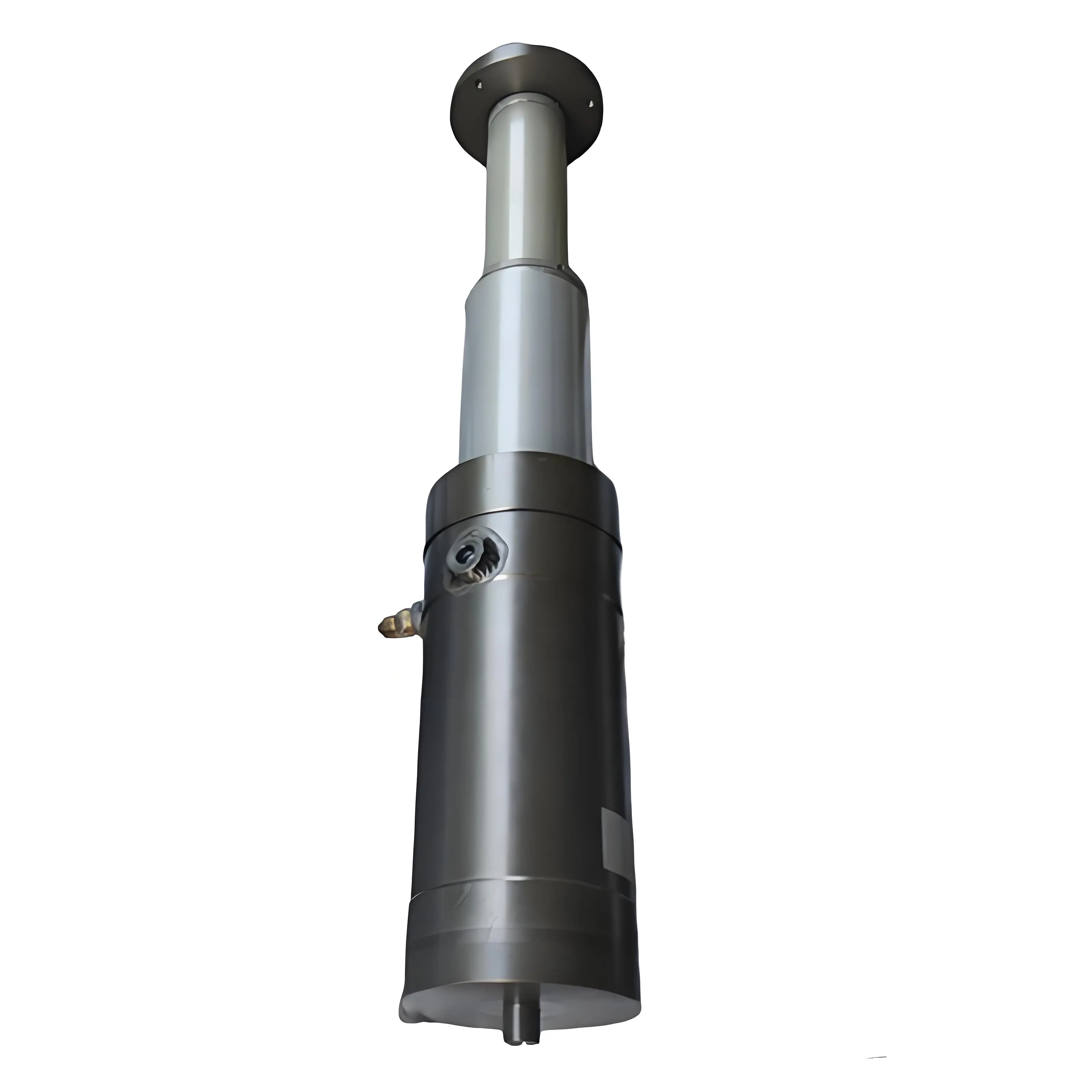

Wholesale 3 stage Telescopic cylinder Suppliers, Supplier

The three stage telescopic cylinder is a high-performance hydraulic actuator, which is widely used in engineering machinery, aerial work platforms, cranes, etc. Its unique three-stage telescopic structure design enables the cylinder to achieve a large telescopic stroke in a limited space, meeting the operating requirements of the equipment under different working conditions.

Send Inquiry

Product Description

Description

Multi-stage telescopic design: The three-stage cylinders are nested step by step, and the maximum stroke can reach more than 3 times that of a single-stage cylinder. After contraction, the total length is shortened by 50%~70%, saving installation space.

Temperature range: The standard operating temperature range is -30℃～+80℃, and some products can be extended to -40℃～+100℃, suitable for various climatic conditions.

Retraction sequence: Synchronous extension, step-by-step retraction.

Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Specification

Cylinder diameter	80mm～200mm
Rod diameter	50mm～120mm
Stroke	500mm～3000mm
Working pressure	14MPa～35MPa
Maximum thrust	Depending on the cylinder diameter and pressure, the maximum thrust can reach more than 500kN
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

20 years of experience in hydraulic cylinder manufacturers.
MPM cylinders are mainly used in:

Construction Machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial Equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and Offshore Machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Agricultural Machinery

(Hydraulic cylinders/tilting cylinders/compact cylinders/steering cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize Outrigger Hydraulic Cylinder MPM-OHC12 according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions (FAQ)

What are the advantages of the multi-stage telescopic design?

The multi-stage design allows the stroke to reach more than 3 times that of a standard single-stage cylinder while shortening overall retracted length by 50% to 70%, significantly saving critical mounting space.

What temperature ranges can these hydraulic cylinders operate in?

The standard operational temperature range is -30℃ to +80℃. For extreme conditions, customized configurations can extend operational tolerance from -40℃ up to +100℃.

What level of after-sales support is offered?

We provide a comprehensive 2-year warranty on all core components, online and video technical support, full spare parts availability, and on-site maintenance services.

Can MPM provide fully customized hydraulic solutions?

Yes, customization is our top priority. We adapt bore, rod diameter, stroke, working pressure, coating layers, and mounting types to your specific equipment specifications.

How is product quality ensured before delivery?

Every non-standard product undergoes rigorous mechanical testing and quality checks, backed by official mechanical test reports and video factory inspections prior to dispatch.
