High-Quality 4 stage Telescopic cylinder Suppliers, Manufacturers

1 / 1

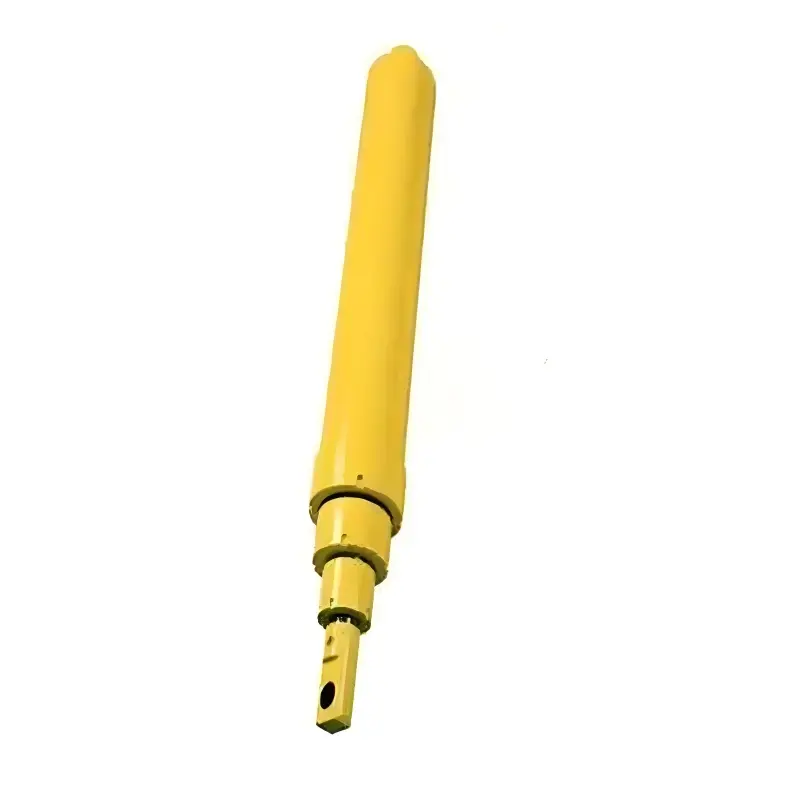

High-Quality 4 stage Telescopic cylinder Suppliers, Manufacturers

The four-stage telescopic hydraulic cylinder is a multi-stage sleeve hydraulic actuator, which consists of a main cylinder and four-stage movable sleeves (or piston rods) nested in sequence. Under the action of hydraulic oil, the sleeves can be extended synchronously or sequentially in accordance with the design sequence, providing an effective stroke far exceeding its retracted length; when the oil pressure is released or reverse oil is supplied, the sleeves at each stage can be retracted smoothly in sequence to achieve a compact storage state.

Send Inquiry

Product Description

Description

Working Pressure

14MPa ～ 35MPa

Working Temperature

-30℃ ～ +80℃

Main Application Areas

Dump trucks, cranes, forklifts, agricultural machinery, stage machinery and equipment.

Precision Machining

The inner surface of the cylinder adopts high-precision honing technology to improve surface finish and wear resistance and reduce hydraulic oil leakage.

Comprehensive After-Sales Service

Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and Reliable

As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Specification

Cylinder diameter	100mm ～ 200mm
Rod diameter	60mm ～ 150mm
Stroke	1000mm ～ 4000mm
Working pressure	14MPa ～ 35MPa
Maximum thrust	Depending on the cylinder diameter and pressure, the maximum thrust can reach more than 500kN
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

20 years of experience in hydraulic cylinder manufacturers. MPM cylinders are mainly used in:

Construction Machinery

Hydraulic lifting cylinders and steering cylinders for cranes, forklifts, tractors, loaders, excavators.

Industrial Equipment

Hydraulic cylinders, tie rod cylinders, compact cylinders.

Ships and Offshore Machinery

Heavy cylinders, stainless steel hydraulic cylinders.

Agricultural Machinery

Hydraulic cylinders, tilting cylinders, compact cylinders, steering cylinders.

Customization

If you can provide us with the following technical parameters, we can design and customize Outrigger Hydraulic Cylinder MPM-OHC12 according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions

Q: What is the operating pressure range of this hydraulic cylinder?

A: The working pressure ranges from 14MPa to 35MPa, adaptable to heavy-duty industrial and construction requirements.

Q: What temperature environment can the cylinder withstand?

A: It is designed to operate reliably within an ambient working temperature range of -30℃ to +80℃.

Q: What materials are available for custom manufacturing?

A: We offer carbon steel, alloy steel, and stainless steel options based on application needs, including marine-grade options for ship environments.

Q: What is the warranty coverage for core components?

A: We provide a 2-year warranty on core components, accompanied by video technical support, online assistance, spare parts, and repair support.

Q: How do you verify product quality before shipping?

A: Mechanical test reports and live/video factory inspections are standard procedures provided to guarantee performance and reliability.

Q: Can you customize dimensions and mounting styles?

A: Yes, customization is MPM's primary principle. Simply provide bore, rod diameter, stroke, pressure, and mounting type to receive a tailored design.
