Product Overview

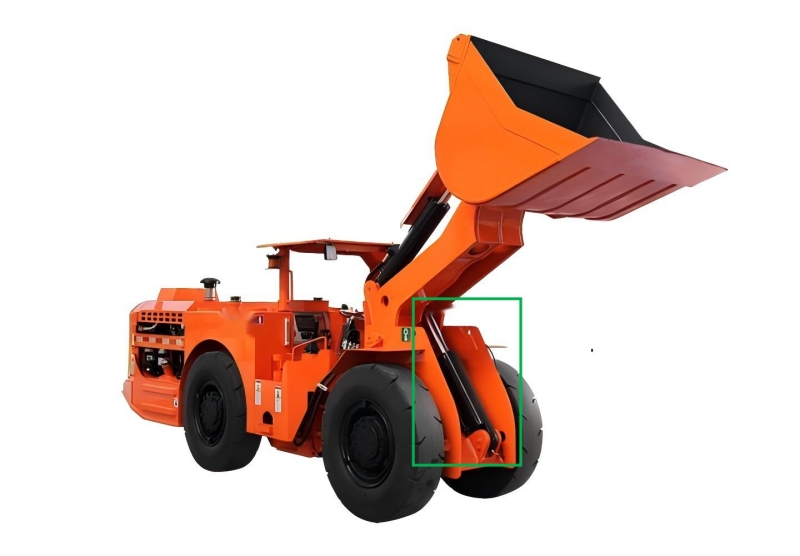

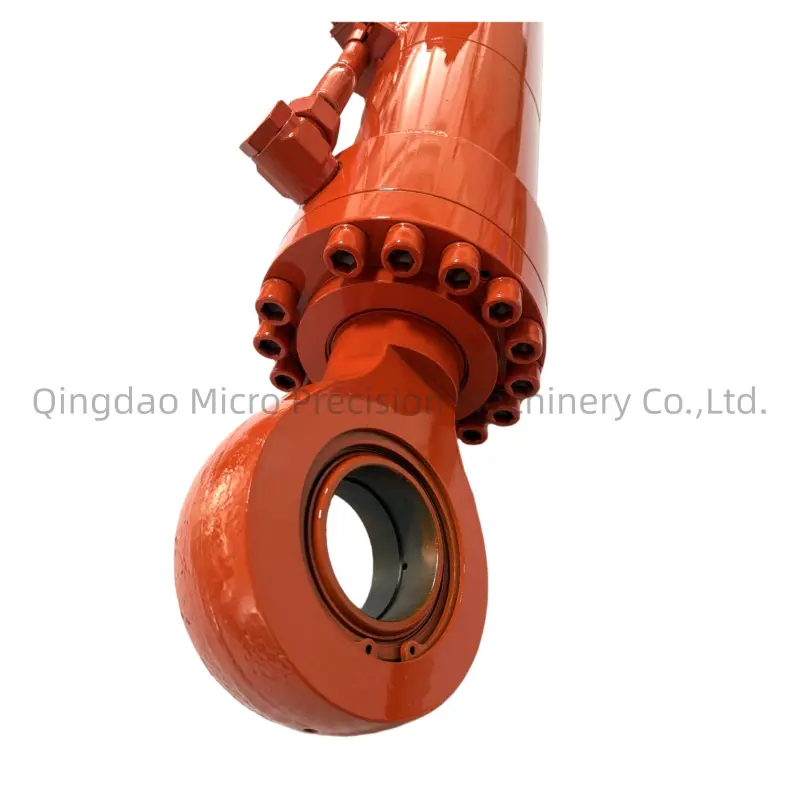

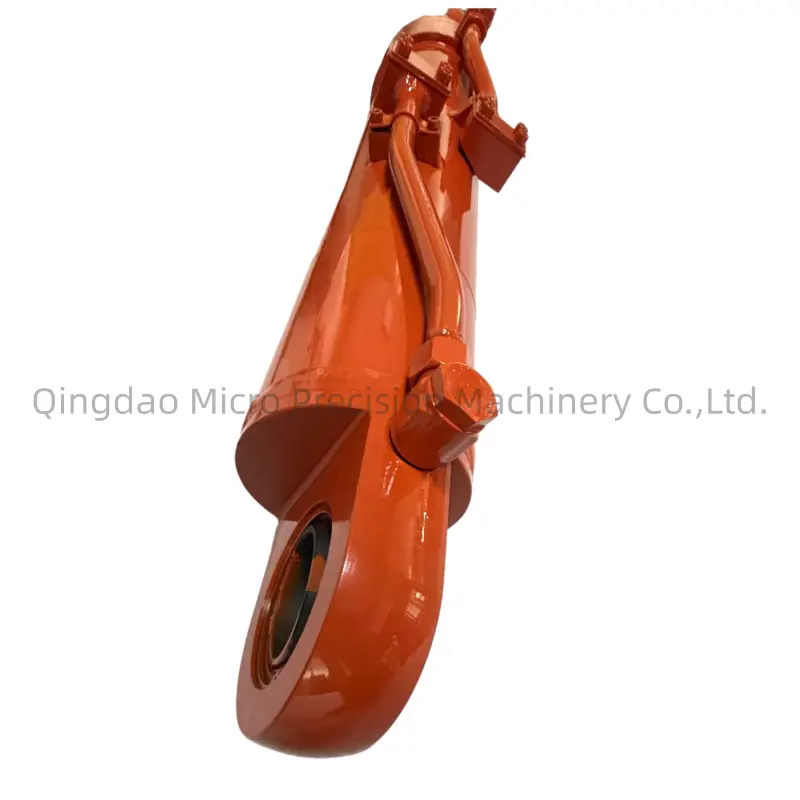

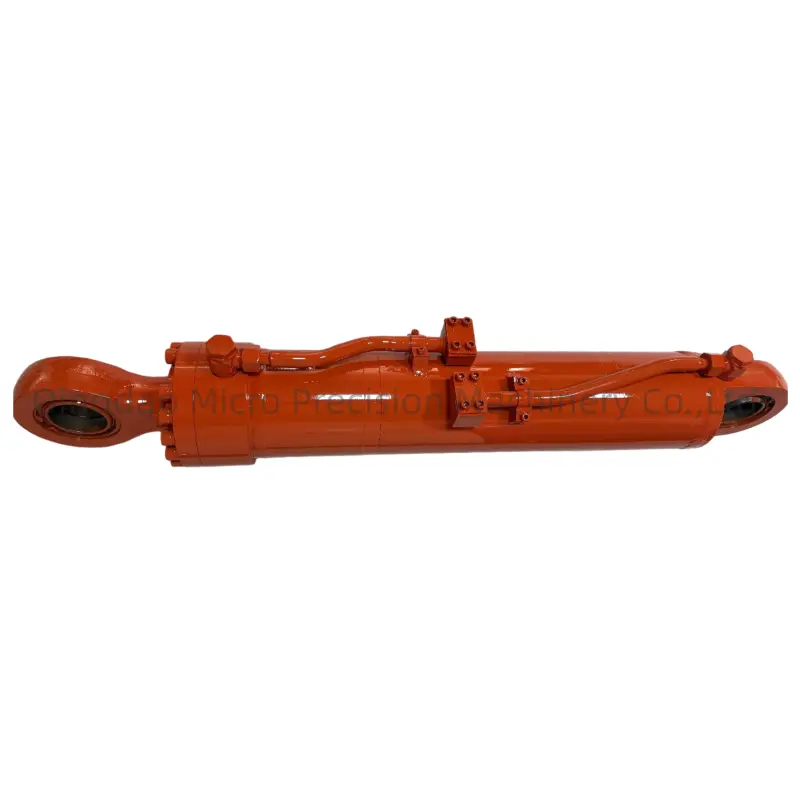

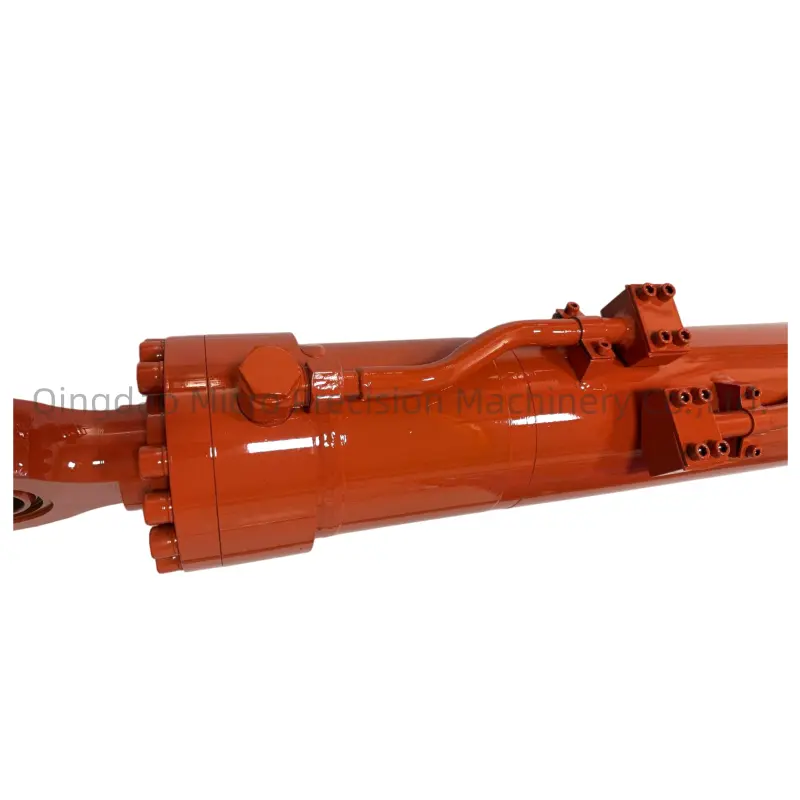

Underground LHD Lift Cylinder is a heavy-duty, double-acting hydraulic actuator installed securely between the vehicle frame and bucket arm of underground load-haul-dump (LHD) equipment. Working seamlessly in coordination with the tilt cylinder, it completes entire cycles of loading, hauling, and dumping in underground mining tasks.
Designed specifically for high-moisture and heavily dusty subterranean conditions, this cylinder incorporates dual-layer dustproof & waterproof seal arrangements to prevent scratch damage caused by abrasive mineral silt. Constructed with Q355D HSLA steel, it ensures optimal impact resistance and low-temperature strength, paired with self-lubricating articulated bushings to counter pin wear under violent vibration.
Working Principle
Lifting Stroke
High-pressure hydraulic oil enters the cap-end chamber, extending the piston and rod with massive force to easily lift buckets heavily loaded with ore and rock muck.
Lowering Stroke
Pressurized fluid shifts into the rod-end chamber while cap-end oil releases cleanly back to the hydraulic reservoir, retracting the rod to ground level smoothly.
Safety Lockout
An integrated hydraulic check lock securely maintains chamber pressure, holding the bucket firmly at any elevation to eliminate accidental drop hazards during operations.
Technical Specifications
| Specification Type | Bore (mm) | Rod Diameter (mm) | Stroke (mm) | Working Pressure (MPa) |
|---|---|---|---|---|
| Minimum Range | 100 | 50 | 1140 | 20 |
| Maximum Range | 220 | 140 | 1410 | 30 |
Industry Service & Applications
With over 20 years of manufacturing experience, MPM supplies durable hydraulic cylinders across three critical sectors:
Construction Machinery
Hydraulic lifting and steering assemblies tailored for cranes, forklifts, tractors, wheel loaders, and excavators.
Industrial Equipment
Standard and custom solutions encompassing tie-rod cylinders, heavy-duty mill cylinders, and compact actuator variations.
Mining Machinery
High-pressure tilt, lift, and steering cylinders built for bulldozers and 7–14 ton underground LHD loaders.
Custom Engineering Capabilities
We manufacture fully customized piston hydraulic cylinders matching your exact machinery configurations. Please supply the following technical details to initialize engineering:
- Cylinder Bore Diameter
- Piston Rod Diameter
- Total Stroke Length
- Working / Operating Pressure
- Mounting Style & Pin Dimensions
- Thrust/Pull Force Capacity Requirements
Frequently Asked Questions (FAQ)
What is the primary function of an Underground LHD Lift Cylinder?
It functions as a double-acting hydraulic actuator mounted between the equipment frame and bucket arm, coordinating directly with the tilt cylinder to execute load, haul, and dump movements.
How does the cylinder prevent abrasive damage in muddy mining conditions?
It employs specialized dual-layer dustproof and waterproof sealing systems engineered to isolate muddy slurry and mineral particles, preventing surface scratching along the cylinder rod.
What material is used to handle high underground operational stress?
Primary components are fabricated from Q355D high-strength low-alloy (HSLA) steel, providing exceptional fatigue strength, impact resistance, and low-temperature durability.
How does the hydraulic locking system protect miners and machines?
The integrated hydraulic lock holds pressure inside the cylinder chambers unconditionally, locking the bucket at any specified height to avert sudden drops caused by unexpected system depressurization.
What capacity of LHD loaders is this hydraulic cylinder built for?
The cylinder standard line is optimized for 7 to 14 ton underground LHD machines, with tailored stroke lengths, bores, and pin mountings available according to individual machinery specifications.
