Engineered Garage & Machinery Hydraulic Systems
Deploying micron-tolerance internal fluid sealing and high-tensile alloy barrel assemblies engineered to execute high-tonnage lifting and high-pressure motion control safely.
ODM Bucket Cylinder MPM-HCB101
Engineered to absorb sudden pressure surges and severe radial side loads encountered in commercial maintenance hubs and field operations.
View Technical Data

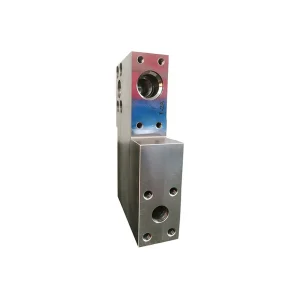

T2A Relief Valve Block MPM-HRVB2A
Monolithic manifold blocks designed to neutralize pressure spikes up to 350 bar across dual-post vehicle hoist networks.
View Technical Data
Integrated Cylinder Barrel MPM-HCIB11
Single-piece unibody construction eliminating welded end-cap fracture points for leak-free garage ramp operation under sustained hold.
View Technical Data
4-Stage Telescopic Cylinder
Multi-sleeve sequential deployment designed for low-clearance pits requiring ultra-long strokes in tipper bays and lift elevators.
View Technical Data
Plough Width Adjustment Cylinder
Precision bi-directional hydraulic displacement unit providing micro-positioning accuracy under high variable resistance.
View Technical Data
T3A Counterbalance Valve MPM-HCVB3A
Featuring a <15 ms dynamic pilot response to lock automotive platform lifts securely in place during catastrophic hose bursts.
View Technical Data

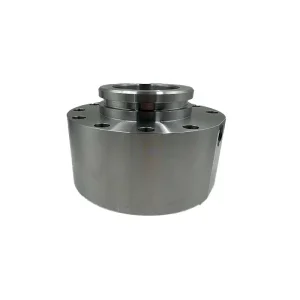

Hydraulic Cylinder Flange MPM-HCFG11
Drop-forged carbon alloy mounting flanges delivering exact concentric alignment and high shear stress resilience.
View Technical Data
Retention Knob DIN69872
High-integrity CNC pull studs machined from case-hardened alloy to maintain spindle tooling rigidity in component fabrication.
View Technical DataGlobal Landscape for High-Load Garage Equipment Supplies
Analyzing structural shifts in commercial vehicle servicing, battery-electric vehicle chassis loads, and precision industrial requirements impacting tier-1 hardware engineering.
Electric Vehicle (EV) Platform Weight Imbalances
Modern battery electric commercial vans and passenger vehicles feature heavy, low-center-of-gravity battery trays, producing localized point loads that challenge traditional vehicle lifts. High-grade suppliers must supply cylinders forged from St52-3 or 27SiMn steel, maintaining structural deflection safety margins under asymmetric 4.5 to 8-tonne duty cycles.
Hydraulic Zero-Drift & Structural Safety Standards
Safety criteria such as ANSI/ALI ALCTV and EN 1493 prohibit mechanical failure or drifting under load. Our integrated counterbalance valve systems and hard chrome-plated piston rods (minimum 25–30 μm plating thickness) ensure zero internal bypass leakage, keeping vehicle platforms stationary indefinitely during power disruptions.
High Duty Cycle Automation in Fleet Garages
Commercial fleet maintenance centers run 24/7 turnaround shifts. Traditional garage machinery components fail through thermal fatigue and gland seal extrusion. Our cylinder architectures integrate low-friction step-seals and self-lubricating phenolic wear rings designed to survive hundreds of continuous daily cycles without micro-scuffing.
Material Specifications & Quality Tolerance Parameters
Transparent adherence to global standards: our in-house CNC machining and inspection pipelines conform to strict ISO, DIN, and ASTM metrology benchmarks.
| Component Category | Material Specification | Dimensional Tolerance | Surface Finish / Plating | Target Operational Load |
|---|---|---|---|---|
| Hydraulic Cylinder Barrels | ST52, E355, 27SiMn Seamless Tube | ISO H8 / H9 Internal Honed | Ra ≤ 0.2 - 0.4 μm Honed Finish | 210 – 350 Bar Dynamic Pressure |
| Piston Rods & Shafts | 40Cr / 42CrMo4 Induction Hardened | ISO f7 / h8 Precision Grinding | 25–35 μm Hard Chrome, Ra ≤ 0.15 μm | Tensile Yield > 850 MPa |
| Integrated Manifold Blocks | Forged Carbon Steel / 6061-T6 Alu | Cavities per Sun / HydraForce Specs | Black Oxide or Anodized Protection | Internal Leakage < 3 drops/min |
| Cylinder Heads & Pistons | Ductile Iron QT500-7 / Forged C45 | Machined to DIN ISO 2768-mK | Precision Micro-Groove CNC Chamfer | High Shock Load Cycles (300+ bar) |
| Lock Knobs & Arbors | 20CrMnTi Alloy Case Hardened | Concentricity within 0.005 mm | Case Depth 0.8–1.2 mm, HRC 58–62 | High Dynamic Spindle Clamping |
Specialized Workshop & Garage Integration Environments
Reviewing cross-industry deployment models where micro-precision engineering and structural reliability prevent downtime.
Commercial Vehicle & Bus Workshop Lifts
Heavy scissor and in-ground multi-post lift platforms rely on synchronization between master-slave cylinder pairs. Incorporating our integrated internal fluid bypass ports and linear position sensor integration prevents platform tilting, ensuring absolute mechanical safety when servicing mass transit fleets.
Machine Shop Maintenance & Rebuild Stations
Heavy vehicle component remanufacturing demands hydraulic shop presses, milling arbors, and clamping vices that withstand continuous pressure without oil misting. Our custom tooling and precision clamping components ensure precise workpiece setup during engine block re-boring and structural machining.
Mining Equipment & Plant Under-Chassis Bays
Underground machinery bays endure ambient coal or stone particulate matter. Our cylinder head scraper-wiper combinations utilize aggressive polyurethane profiles that prevent particulate ingress into the fluid circuit, directly eliminating cylinder scuffing and oil breakdown in dirty workshop environments.
Smart Garage Systems: The Next Generation Roadmap
Exploring telemetry integration, sustainable biodegradable hydraulic fluid formulations, and sensor-driven predictive maintenance technologies.
IoT-Enabled Hydraulic Telemetry & Stroke Sensing
The industry is transitioning toward connected garage lifts. We are engineering smart cylinders equipped with integrated magnetostrictive stroke sensors and digital manifold blocks. These systems yield real-time tracking of piston velocity, thermal expansion, and pressure spikes directly to garage facility dashboards.
Eco-Compatible Synthetic Ester Sealing
Environmental standards increasingly demand the use of bio-synthetic, water-hazardous-free hydraulic oils (HEES/HETG). Our engineering research optimizes PTFE-bronze composites and fluoroelastomer (FKM) seal gland designs to prevent polymer degradation and maintain zero-leak sealing across wide operational temperatures.
Laser Cladding & Micro-Alloy Surface Coatings
To exceed typical salt-spray corrosion resistance standards (reaching 1000 hours ASTM B117), our roadmap incorporates laser-clad nickel-chromium matrix coatings. This process preserves rod straightness and surface hardness under severe mechanical strikes without micro-cracking.
Frequently Asked Inquiries from Garage Equipment OEMs
Core answers addressing engineering customization, interchangeability, and global export qualification protocols.
To deliver an accurate quote and feasibility study, please provide inner bore diameter, chrome rod diameter, retracted pin-to-pin center distance, total working stroke, normal and peak working pressures, mounting configurations (e.g., cross-tubes, clevis, spherical bearings), port thread standards (SAE, BSPP, or Metric), operating temperature ranges, and expected order volumes. 2D technical drawings or step/iges 3D CAD files accelerate our quote window within 24 hours.
Yes. Our Qingdao metrology lab utilizes CMM measurement systems and optical profilometers to capture accurate dimensions from supplied samples. We then create full production drawings for your engineering sign-off, confirming sealing groove geometries, rod tolerances, and material yield properties prior to volume fabrication.
All products are machined strictly per engineering drawings in either metric or imperial units. Routine factory references include ISO 6H class thread fits on locknuts and rod ends, DIN 69872 and JIS B6339 standards for CNC retention knobs, ISO 6020/2 for compact hydraulic dimensions, and standard ER collet concentricity guidelines.
Yes. We supply individual structural components for regional cylinder builders and aftermarket overhaul workshops, including precision-honed integrated barrels, cast ductile iron cylinder heads, machined pistons, heavy-duty spherical plain bearings, mounting flanges, locknuts, and custom manifold valve blocks.
Our products are washed, treated with rust-inhibiting VCI coatings, capped with heavy-duty thread and port plugs, sealed in moisture-barrier plastic wraps, and packed into reinforced export wooden crates. Full dispatch documentation, material heat-treatment certificates, and tracking data are provided for global multimodal logistics.
Workshop Clamping, Valve Blocks & Replacement Cylinders
A full range of precision tooling, hydraulic components, and replacement cylinders built to OEM specifications.
QGG Precision Tool Vice MPM00330
Case-hardened tool-steel vise engineered for high parallel accuracy during component repair and CNC operations.
View Technical Data
Wholesale Suspension Cylinder
Integrated hydro-pneumatic suspension units designed to maintain chassis stability under severe load shifts.
View Technical Data
Manual Speed Control Valve Block
Corrosion-resistant copper-alloy manifold delivering fine micro-needle flow adjustments for stable descent control on lifting ramps.
View Technical Data
Cylinder Piston MPM-HCPT11
Precision CNC-turned ductile iron pistons with dual wear-band tracks to prevent metal-to-metal contact during side-loading.
View Technical Data
Pneumatic Hydraulic Vise
Combines pneumatic speed with hydraulic clamping force for fast, repeatable retention during high-volume machining.
View Technical Data
Small Bulldozing Cylinder
Equipped with induction-hardened rod shafts and end-cushioning designed for continuous ground leveling cycles.
View Technical Data

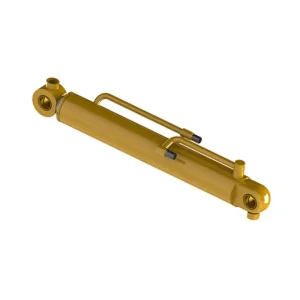

Small Excavator Bucket Cylinder
High-integrity compact hydraulic actuators featuring polyurethane wiper seals and cold-drawn honed steel barrels.
View Technical Data

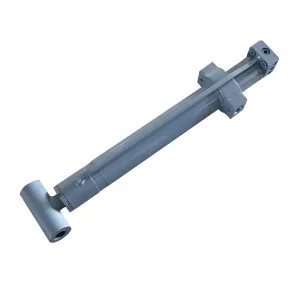

Luffing Cylinder HCL604
Critical angle-articulation cylinders featuring integrated counter-balance protection to prevent boom drift.
View Technical Data
