Precision Engineering Products & Workholding Units
Featured hydraulic assemblies, modular workholding fixtures, and CNC machine components manufactured in-house for extreme durability and heavy-duty industrial service.
Industrial Workholding & Hydraulic Rigidity White Paper
An engineering analysis of modern CNC clamping dynamics, dimensional repeatability, and production economies for tier-1 manufacturing facilities worldwide.
The Physics of Modular Clamping
Precision modular vices serve as the critical mechanical interface between high-speed CNC machine tool spindles and rough workpieces. In modern 4-axis and 5-axis machining environments, cutting forces induce multi-directional vibration, torsional strain, and thermal expansion. Our modular vices utilize ground prismatic guide ways and downward-acting jaw mechanisms to neutralize jaw lift (deflection < 0.01 mm under full load), preventing part slippage and catastrophic tool breakage during high-feed milling operations.
Metallurgical Metallurgy & Heat Treatment
Structural reliability begins with raw material integrity. MPM vice bodies are forged and cast from normalized 20CrMnTi or high-tensile alloy steels, undergoing deep carburizing, cryogenic stabilization, and case hardening to HRC 58–62. This eliminates residual mechanical stresses, optimizes core toughness to absorb continuous dynamic shock loads, and ensures that ground reference surfaces retain parallel tolerances over hundreds of thousands of rapid production cycles.
System Modular Interconnectivity
Unlike monolithic bench vices, modular vices allow multi-unit pairing directly on CNC machine tables or tombstone columns. Keyed alignment slots, precision-ground base heights, and zero-point positioning adaptability allow multiple vices to be aligned in parallel or in series within 0.005 mm deviation. This facilitates high-density multi-part batch machining and unattended lights-out operations with standardized clamping repeatability.
Strategic Supply Chain Dominance: The Qingdao Manufacturing Cluster
Why Fortune 500 industrial procurement managers and specialized distributor networks consolidate their high-precision mechanical tooling partnerships in China.
Vertically Integrated Ecosystem
Situated in the Shandong heavy manufacturing corridor, MPM operates within a 50 km logistics radius encompassing high-purity alloy foundries, automated continuous carburizing furnaces, and ultra-precision sub-contract grinding facilities. This vertical consolidation eliminates external supply friction, mitigates raw material lead-time volatility, and compresses new product tooling development timelines by up to 45% compared to Western manufacturing hubs.
Advanced Multi-Axis Machine Park
Our Qingdao production floor is equipped with 5-axis DMG MORI and Mazak machining centres, Okamoto high-precision surface grinders, and specialized slideway grinding machines. By keeping finish-grinding of datum bases, jaw guides, and locating keyways strictly in-house under thermally controlled environmental conditions, we guarantee interchangeability of modular components across production batches separated by months or years.
Capital Efficiency & Total Cost of Ownership
Global equipment buyers face sustained cost-down pressures. MPM provides tier-1 European quality workholding and hydraulic performance at an aggregate 30% to 50% cost advantage. Our optimized batch production runs, highly amortized advanced CNC setups, and deep engineering design expertise allow OEMs and global distributors to capture higher commercial margins while delivering reliable field performance to end users.
Maritime Port Logistics Proximity
Headquartered in Qingdao, MPM is minutes from the Port of Qingdao—one of the world's busiest container transshipment gateways offering direct weekly sailings to Rotterdam, Hamburg, Los Angeles, and Busan. Our dedicated export packaging protocols incorporate VCI anti-corrosion barrier wrapping, desiccants, and fumigated reinforced seaworthy crates, ensuring mirror-ground tool surfaces arrive rust-free under extreme ocean conditions.
Engineering Metrology: Modular Vice Specifications
Comprehensive technical data comparing precision modular vices, mechanical boost systems, and hydraulic workholding components across critical engineering metrics.
| Series & Mechanism | Jaw Width (mm) | Opening Range (mm) | Max Clamping Force | Body Material / Hardness | Parallelism / Perpendicularity | Target Machine Centers |
|---|---|---|---|---|---|---|
| MPM-MV100 Standard Modular | 100 mm | 0 – 150 mm | 30 kN (Mechanical Lead Screw) | 20CrMnTi Alloy / HRC 58-62 | 0.005 mm / 100 mm | 3-Axis VMC, High-Speed Drilling Centers |
| MPM-MV150 Heavy-Duty Modular | 150 mm | 0 – 300 mm (Modular Base) | 50 kN (Angle-Lock Design) | Forged Alloy Steel / HRC 60 | 0.005 mm / 100 mm | Horizontal Machining Centers (Tombstone) |
| MPM-MV200 Long-Bed Modular | 200 mm | 0 – 450 mm (Extensible) | 65 kN (Mechanical-Hydraulic) | Stabilized Ni-Cr Alloy / HRC 60 | 0.008 mm / 100 mm | Heavy Gantry Mills, Die & Mould Centers |
| MPM-5AX Compact Self-Centering | 75 – 125 mm | 10 – 210 mm (Reversible Jaws) | 25 kN (Symmetric Lead Screw) | Case-Hardened Steel / HRC 62 | 0.005 mm Center Repeatability | 5-Axis Simultaneous Machining Centers |
| MPM-HYD Hydraulic Precision Vise | 150 mm | 0 – 250 mm | 40 kN (Integrated Booster) | Ductile Iron Body / Hardened Way | 0.010 mm / 100 mm | High-Volume Automotive Production Lines |
Target Application Scenarios & Global Procurement Requirements
Analyzing the exact operational parameters and mechanical criteria demanded by manufacturing engineers in aerospace, automotive, die/mould, and energy sectors.
Aerospace Structural Rib Milling
Thin-walled aluminum structural members require high clamping rigidity without introducing mechanical distortion or warping into the finished profile. MPM precision modular vices with custom serrated master jaws and calibrated torque inputs provide uniform force distribution. Clamping forces remain repeatable across multi-station setups on high-speed gantries, safeguarding tight geometric tolerances.
Automotive Powertrain & Hydraulic Valve Machining
In high-throughput automotive manufacturing lines, workholding setups must accommodate hydraulic valve bodies, steering knuckles, and transmission housings. MPM modular vices interface seamlessly with our in-house engineered hydraulic station valve blocks (e.g., MPM-HSVB12) to enable automated hydraulic clamping cycles, achieving cycle index times under 3 seconds with continuous pressure retention.
Precision Die & Mold Cavity Profiling
Milling pre-hardened tool steels (HRC 45–55) demands extreme vibration dampening from the workholding fixture to maximize carbide end mill life and achieve Ra 0.4 surface finishes. The ultra-flat ground baseplates and guided slide gibs of MPM modular vices eliminate microscopic chatter during trochoidal and dynamic milling paths, reducing subsequent bench polishing requirements.
Compliance Safeguards & Industry Technological Roadmap
Ensuring complete trade compliance, international metallurgical certification, and forward-looking smart workholding compatibility for smart factories.
Full CE, REACH & RoHS Conformity
All MPM modular vices, hydraulic cylinders, and CNC tool holders comply with European Union Machine Directive 2006/42/EC safety standards. Every raw material heat lot is traceable to original mill test certificates (EN 10204 3.1), certifying chemical composition, tensile strength, and non-toxicity in compliance with global REACH and RoHS environmental directives.
Localized Global Support & OEM Consignment
To eliminate international warranty friction, MPM supports global distributor partners with standardized replacement wear kits (interchangeable jaws, clamping screws, thrust bearings, and seal kits). Technical CAD/CAM solid models (STEP, IGES) are furnished to engineering departments to integrate collision detection routines within Siemens NX, Mastercam, and hyperMILL environments.
Industry Trend: Industry 4.0 Smart Clamping
The workholding industry is moving toward automated, sensor-integrated systems. MPM’s R&D engineering division is actively prototyping smart modular vices equipped with embedded piezoelectric wireless clamping-force sensors and RFID zero-point identification chips. These smart fixtures monitor live clamping pressure during roughing cuts and log telemetry directly into shop-floor MES platforms.
Technical & Sourcing FAQ: Modular Vices & Actuators
In-depth responses to high-intent engineering, dimensional tolerance, and OEM manufacturing queries for technical procurement directors.
What mechanical design prevents workpiece lift during heavy CNC roughing operations?
MPM modular vices employ an engineered downward-angled pull mechanism (often referred to as an "angle-lock" design). As the clamping screw transmits linear thrust into the movable jaw segment, a 45-degree internal sliding wedge converts horizontal force into a simultaneous downward vector. This mechanically seats the workpiece firmly against the precision-ground bed, restricting upward jaw deflection to under 0.005 mm even under heavy dynamic chip loads.
Can MPM precision modular vices be matched in pairs or multi-unit arrays across a single machine table?
Yes. We supply matched-pair and modular ganged vice configurations ground to identical bed heights and jaw centerlines within ±0.005 mm tolerance. When ordered as a matched set, the bottom reference datum, longitudinal keyways, and clamping faces are finished in a single setup on our Okamoto precision surface grinders, allowing multiple vices to clamp long shafts or structural plates in parallel without step misalignments.
What quality control metrology is performed before export delivery?
Every production unit undergoes metrological verification in our temperature-controlled inspection room. We deploy Hexagon Bridge Coordinate Measuring Machines (CMM) to inspect three-dimensional geometric tolerances (flatness, perpendicularity, parallelism, and keyway true position). Comprehensive inspection reports, including hardness test certifications (Rockwell C) and sub-micron surface roughness profiles (Mitutoyo Surftest), are archived and provided with every export shipment.
Do you manufacture custom jaw plates, hydraulic automation interfaces, and OEM private-label branding?
Yes. MPM offers turnkey OEM/ODM manufacturing. We produce customized machinable soft jaws, prism jaws for cylindrical stock, serrated carbide-insert jaws, and pneumatic-hydraulic intensification interfaces. Furthermore, we provide laser engraving for private brand labeling, custom packaging, and barcode integration according to global distributor specifications.

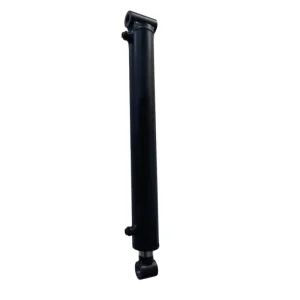

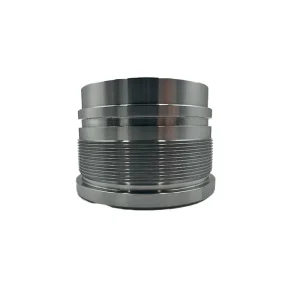

Industrial Valve Blocks & Heavy Hydraulic Cylinders
Original high-pressure hydraulic cylinders, solenoid valves, and precision heavy-equipment components engineered for construction, crane, mining, and agricultural systems.
