ODM Outrigger Hydraulic Cylinder MPM-OHC12 for Crane Supplier, Factory

1 / 1

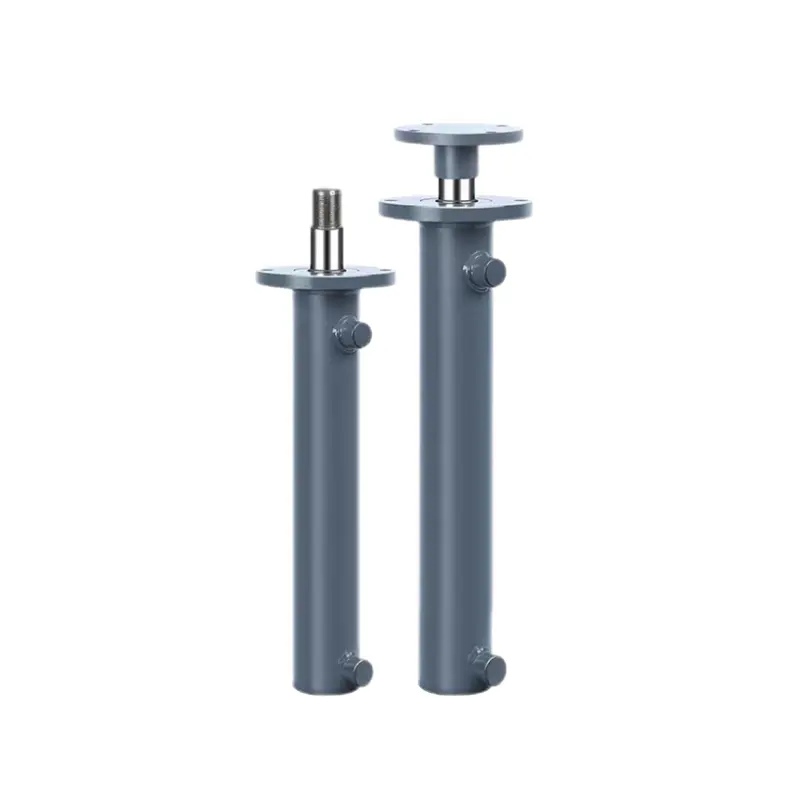

ODM Outrigger Hydraulic Cylinder MPM-OHC12 for Crane Supplier, Factory

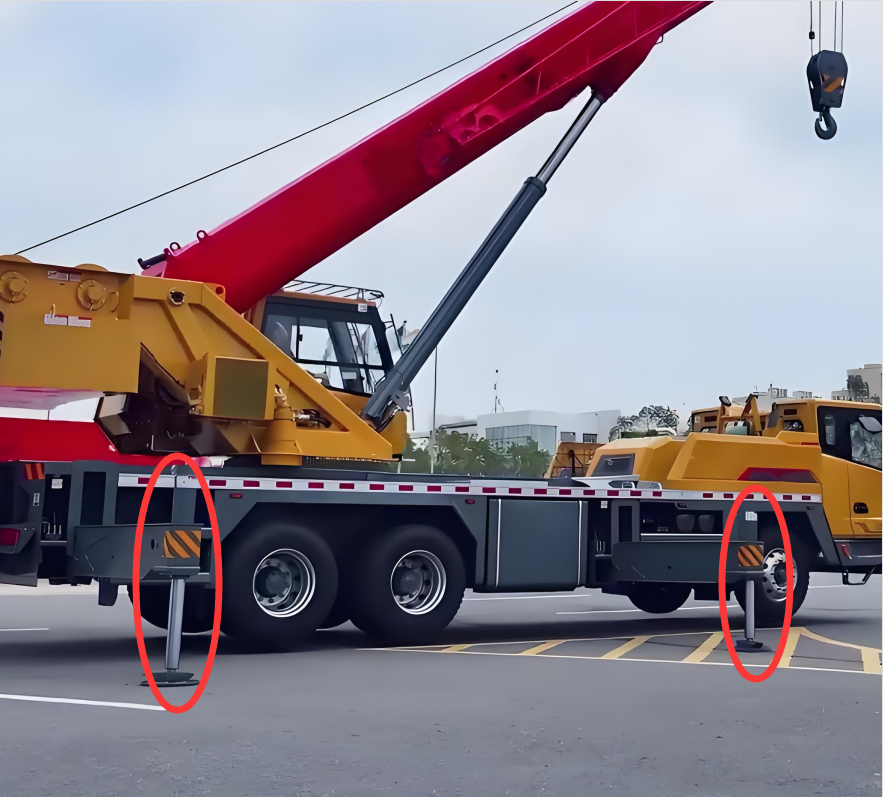

Outrigger cylinder is one of the main components of a truck crane. Its function is to increase the supporting base of the crane, reduce the burden on the tires, and improve the anti-overturning stability of the entire vehicle, thereby increasing the lifting capacity.

Send Inquiry

Product Description

Description

MPM brand crane hydraulic outrigger cylinders can withstand temperatures from -40°C to +300°C, ensuring reliable performance in a variety of environments.

High-quality materials and coatings: The cylinders are made of high-strength carbon steel, alloy steel or stainless steel, and feature durable sandblasting, primer, midcoat and topcoat coatings for optimal protection.
Advanced hydraulic system: With a hydraulic power range of 10-70MPa, this outrigger cylinder is equipped with a solid piston rod made of tempered, nickel-plated, chrome-plated or ceramic materials, ensuring smooth and efficient operation.
Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.
Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

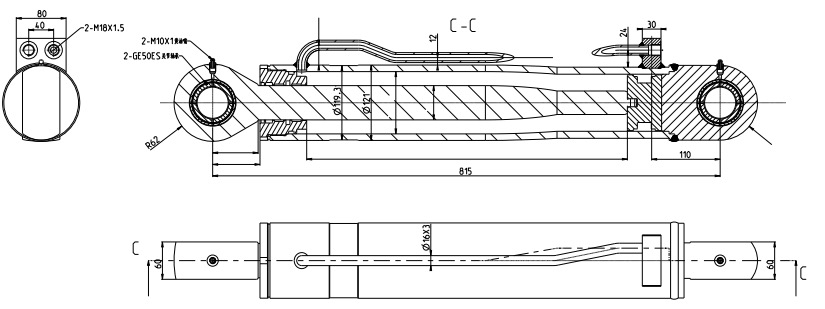

MPM Crane Hydraulic Outrigger Cylinder Overview

Features

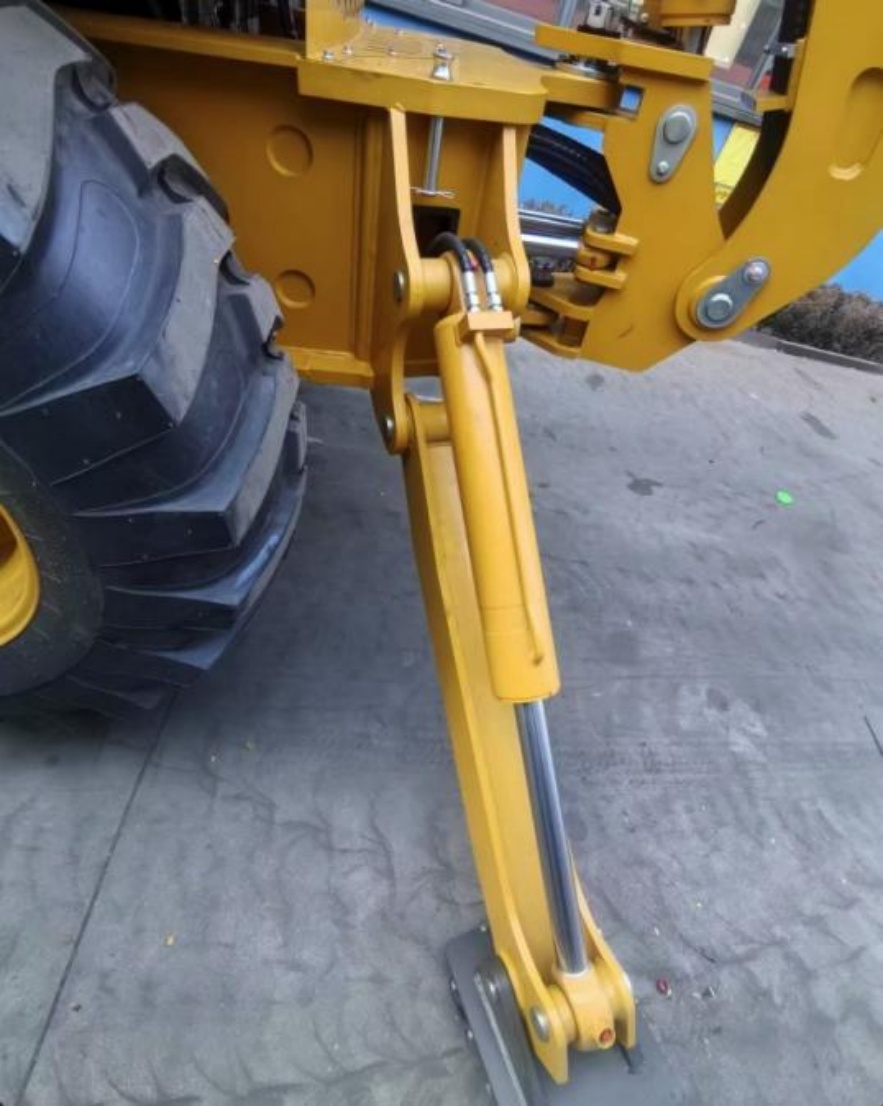

Support the weight of the entire equipment when the crane is lifting.

Specification

Bore diameter	70mm～360mm
Rod diameter	45mm～320mm
Stroke	≤800mm
Pressure	Maximum 42MPa
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize Outrigger Hydraulic Cylinder MPM-OHC12 according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions

What temperature range can MPM outrigger cylinders withstand?

MPM brand crane hydraulic outrigger cylinders operate reliably in extreme environments, withstanding temperatures from -40°C to +300°C.

What materials are available for the cylinder body and piston rod?

The cylinder bodies can be manufactured from carbon steel, alloy steel, or stainless steel. Piston rods are solid and available with tempered, nickel-plated, chrome-plated, or ceramic finishes.

What is the maximum operating pressure of these cylinders?

The outrigger cylinders feature a hydraulic power operating range between 10-70MPa, with a maximum designed pressure reaching up to 42MPa depending on model specifications.

What after-sales service and warranty are provided?

We offer a 2-year warranty on core components, accompanied by video technical support, online guidance, spare parts availability, and on-site maintenance services.

Can these hydraulic outrigger cylinders be customized?

Yes, customization is MPM's primary focus. We provide tailor-made designs based on your specifications, including bore size, stroke length, rod diameter, pressure requirements, and installation type.
