Cheap Counterweight Cylinder Supplier, Manufacturer

1 / 1

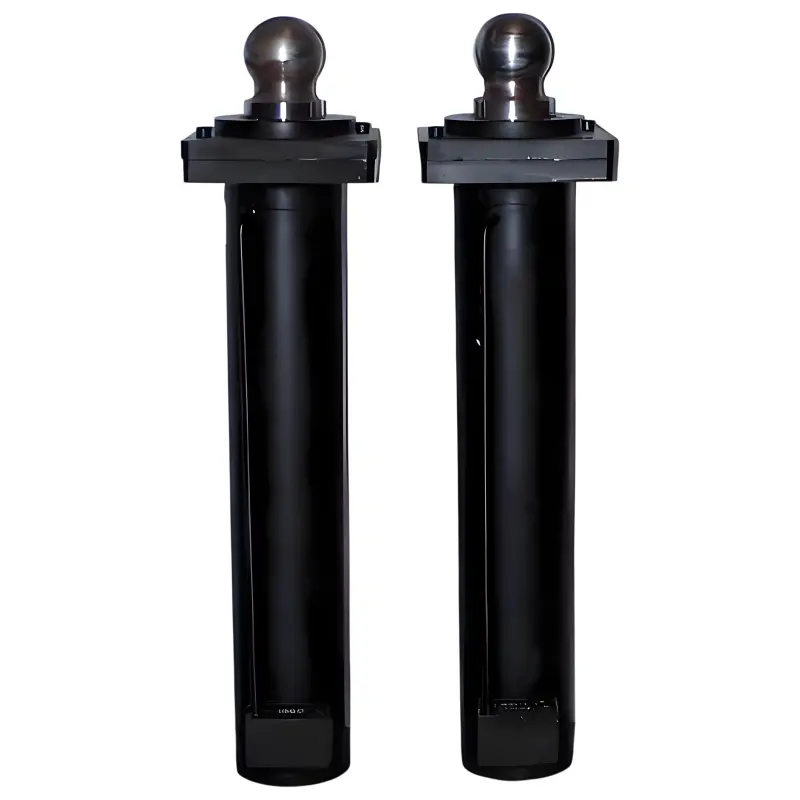

Cheap Counterweight Cylinder Supplier, Manufacturer

Counterweight cylinder is an important part of the truck crane. It is mainly used to balance the center of gravity of the crane to ensure that the crane remains stable during operation and prevent overturning accidents due to unstable center of gravity.

Send Inquiry

Product Description

Description

Working pressure: standard temperature range is -30℃～+80℃.

Lightweight: The optimized cylinder size and weight ensure the overall balance and operational flexibility of the crane.

Multiple anti-corrosion solutions: Provide a variety of surface anti-corrosion treatment solutions to effectively prevent the cylinder from rusting and corroding in harsh environments.

Quality Assurance: Products undergo rigorous quality testing and comply with relevant international standards.

Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

For the installation of counterweights.

Specification

Bore diameter	85mm~320mm
Rod diameter	55mm~180mm
Stroke	≤1500mm
Pressure	Maximum 35MPa
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Application

1. Construction industry

2. The field of Machine Tools

3. Special vehicles or equipment

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize counterweight cylinder according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions

What is the warranty period for MPM hydraulic cylinders?

We offer a 2-year warranty on all core components, supported by video technical assistance, spare parts supply, and online customer support.

Can these counterweight cylinders work in extreme temperature conditions?

Yes, our cylinders feature a standard operating temperature range between -30℃ and +80℃, engineered to handle harsh industrial and outdoor environments.

What materials and finishes are used to prevent corrosion?

We utilize carbon steel, alloy steel, and stainless steel, combined with multi-stage treatments such as sandblasting, primer, intermediate, and finish paint coatings.

What parameters are required to customize a counterweight cylinder?

To customize a hydraulic cylinder, we require specifications regarding the bore, rod diameter, stroke length, working pressure, installation mounting type, and required push/pull capacity.

What is the maximum working pressure available for these units?

Our counterweight hydraulic cylinders are designed and engineered to support an operating pressure of up to a maximum of 35MPa.
