High-Quality Lifting cylinder HCL602 Factories, Factory

1 / 2

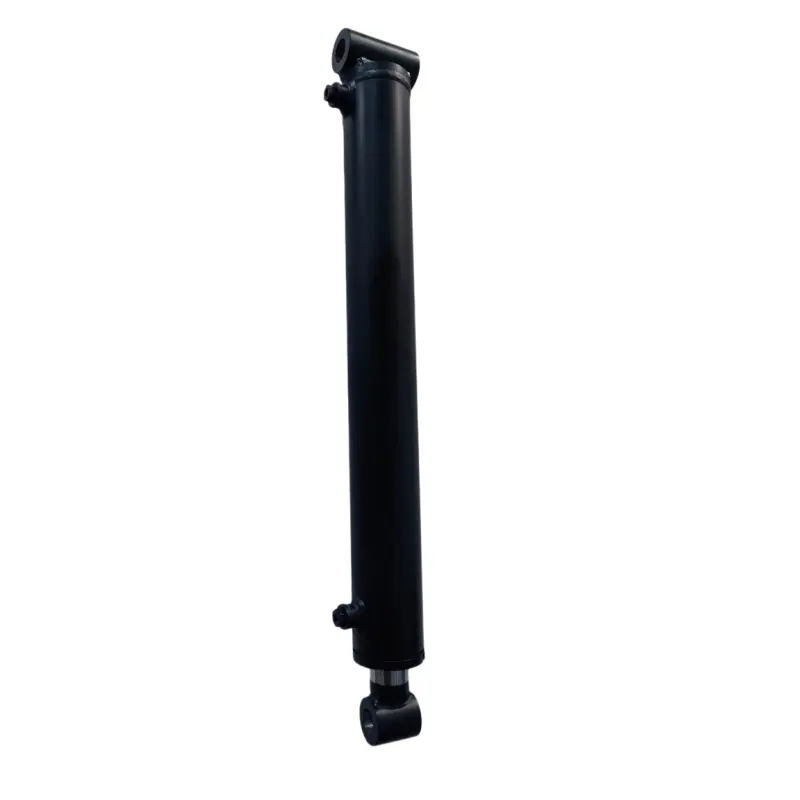

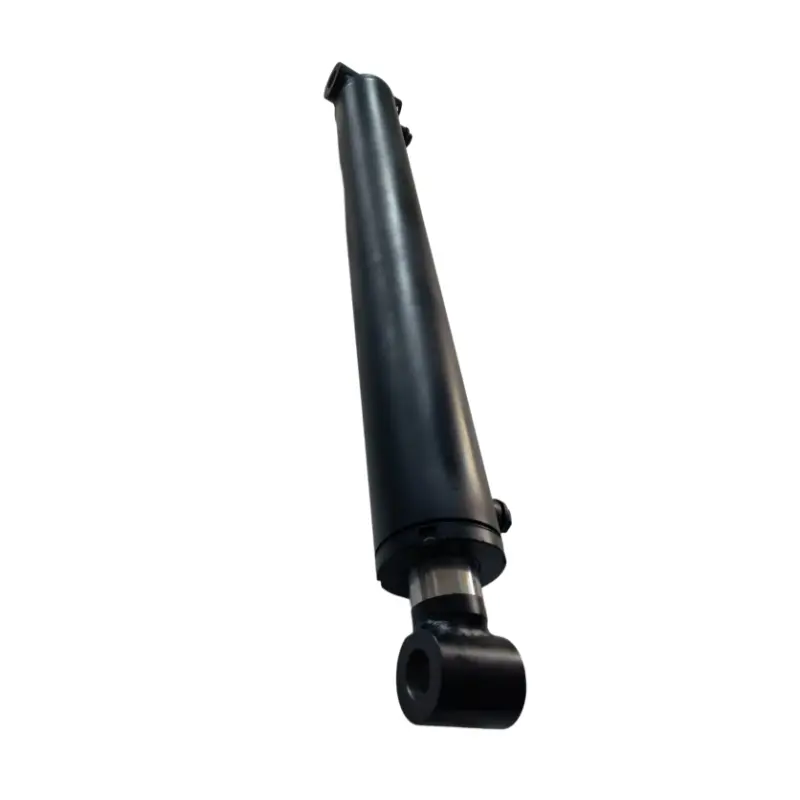

High-Quality Lifting cylinder HCL602 Factories, Factory

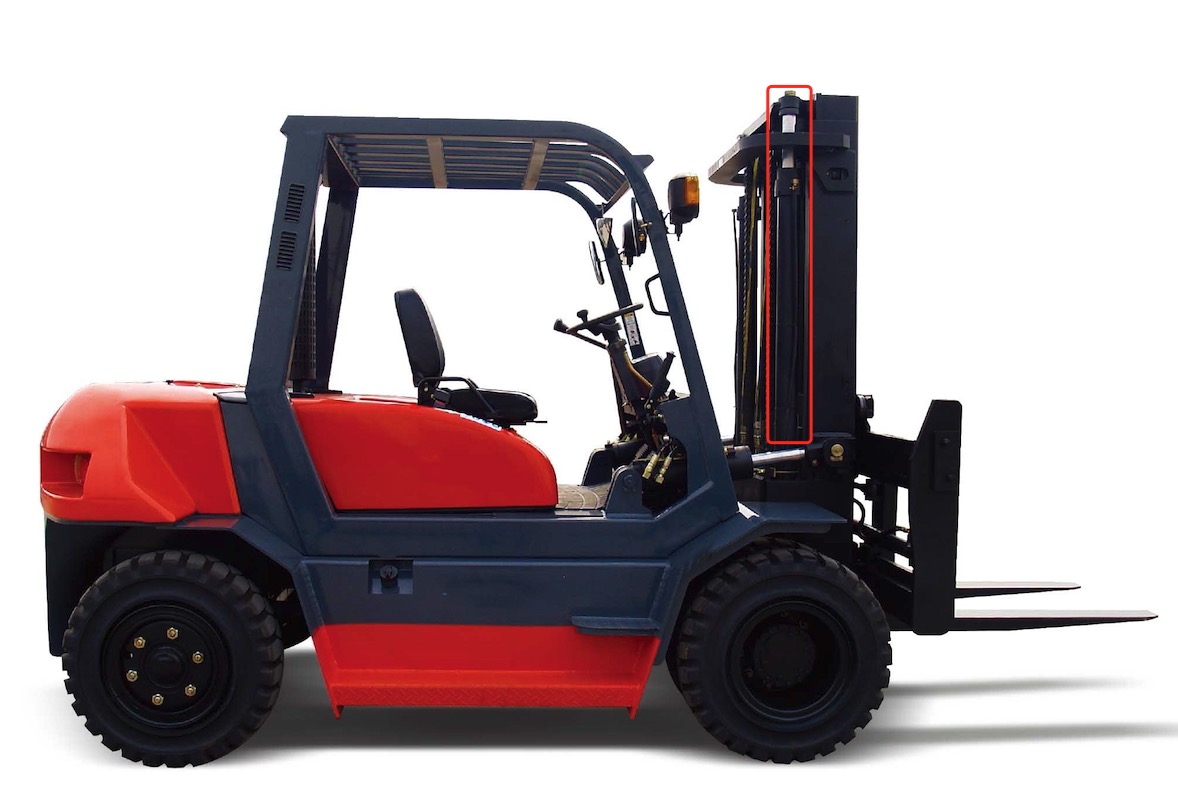

The lifting cylinder is one of the core actuators of the forklift hydraulic system, responsible for converting hydraulic energy into mechanical energy to drive the lifting and lowering of the fork. It is suitable for cargo loading and unloading scenarios of various forklifts (such as electric forklifts and internal combustion forklifts).

Send Inquiry

Product Description

Description

Working Temperature Applicable temperature range -20℃ ~ +80℃. Cold-resistant hydraulic oil and sealing materials are used at low temperatures to avoid low-temperature hardening failure. Chrome-plated piston rods and wear-resistant cylinders are used at high temperatures to resist high-temperature deformation.

Two-Stage Buffer Structure Hydraulic buffer at the end reduces impact noise and prolongs service life.

Mounting Types Flange type/earring type: suitable for mainstream forklift brands (Toyota, Heli, Hangcha, etc.).

Comprehensive After-Sales Service Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and Reliable As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

Control the lifting and lowering action of the fork

Specification

Counterweight tonnage	1-16T
Bore diameter	40~115mm
Rod diameter	28~60mm
Work Pressure	9~16MPa
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Service

20 years of experience in hydraulic cylinder manufacturers.
MPM cylinders are mainly used in:

Construction Machinery

(Hydraulic lifting cylinders and steering cylinders for cranes / forklifts / tractors / loaders / excavators)

Industrial Equipment

(Hydraulic cylinders / tie rod cylinders / compact cylinders)

Ships and Offshore Machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize loader tilt cylinder according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions

1. What is the working temperature range of MPM hydraulic cylinders?

The applicable operating temperature ranges from -20℃ to +80℃. Low temperatures use cold-resistant hydraulic oil and sealing materials to prevent hardening, while high temperatures utilize chrome-plated piston rods and wear-resistant cylinders to prevent deformation.

2. Which forklift brands are compatible with these cylinders?

Our cylinders come in flange and earring mounting configurations, making them compatible with mainstream forklift brands including Toyota, Heli, Hangcha, and others.

3. What warranty and after-sales support do you offer?

We offer a 2-year warranty on core components, accompanied by video technical support, online customer assistance, replacement spare parts, and on-site maintenance and repair services.

4. What parameters are required to order a customized hydraulic cylinder?

To customize a tilt cylinder or hydraulic cylinder according to your exact requirements, please provide the bore, rod diameter, stroke, working pressure, installation type, and push/pull back capacity.

5. What manufacturing materials and surface treatments are applied?

Cylinders can be manufactured using carbon steel, alloy steel, or stainless steel. Surface coating processes include sandblasting, primer paint, intermediate paint, and finish paint for high durability.

6. How does the cylinder minimize noise and wear during operation?

The cylinder features a two-stage hydraulic buffer structure at the end, which effectively dampens impact, reduces operating noise, and significantly extends the product's service life.
