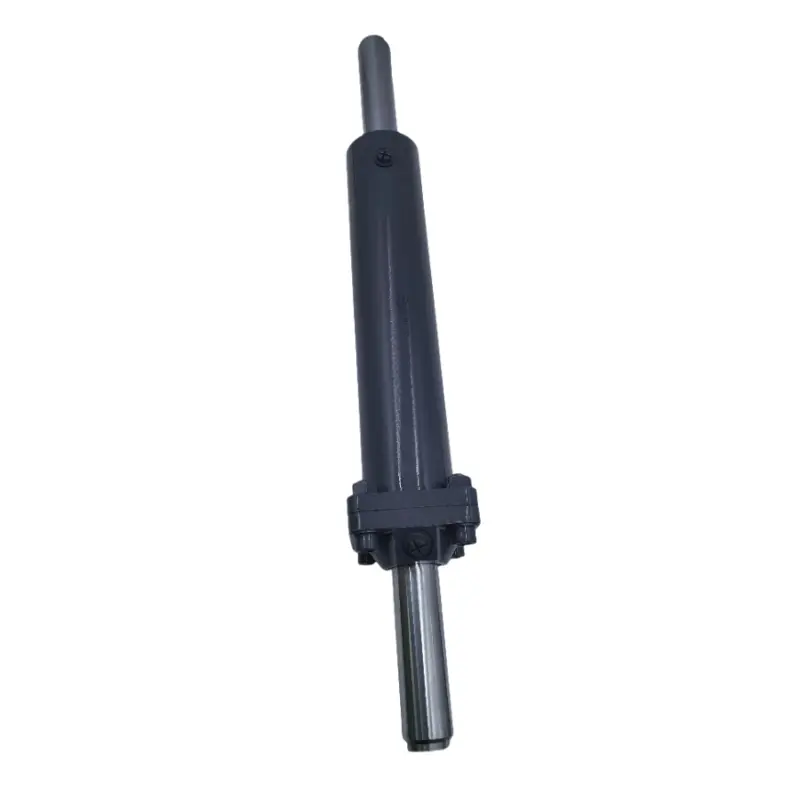

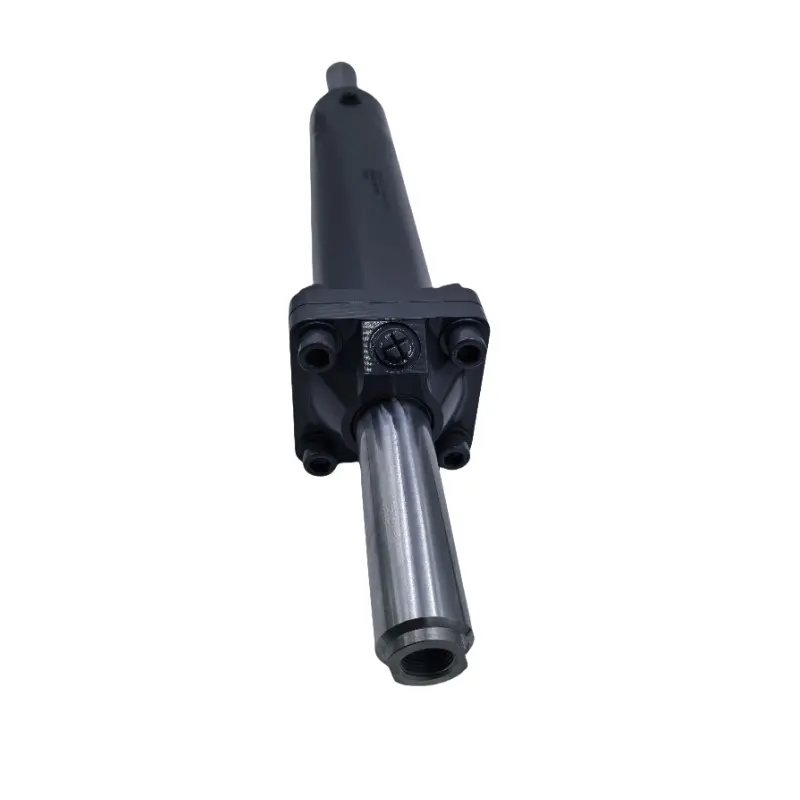

High-Quality Steering cylinder HCS139495 Suppliers, Manufacturer

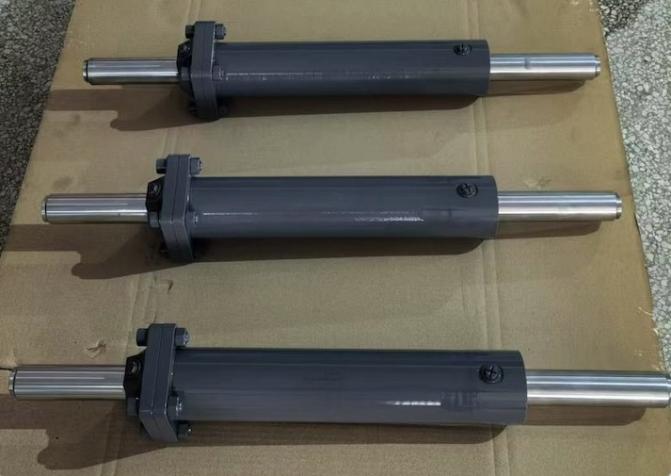

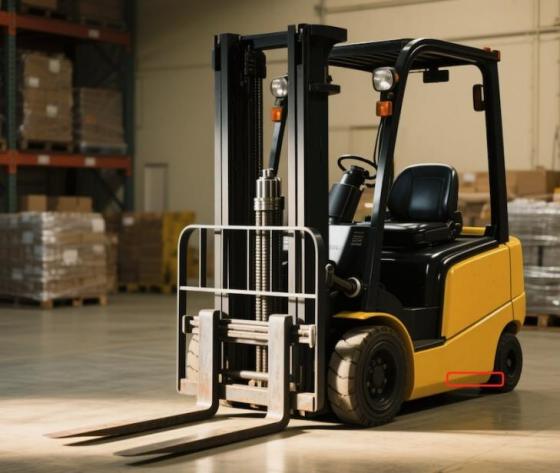

The forklift steering cylinder is the core hydraulic actuator of the forklift steering system. It is suitable for 1-15 ton internal combustion forklifts, drives the steering wheel to achieve precise angle control, and ensures the flexibility and stability of the forklift.

Send Inquiry

Product Description

Description

Working temperature: Standard temperature range is -30℃～+80℃

Maximum steering force: 50KN-500KN. 50KN for small tonnage models, 500KN for large tonnage models

Application scenarios: Suitable for various types of forklifts, including counterbalanced forklifts, reach forklifts, electric forklifts, etc.

Comprehensive after-sales service: Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

Control the steering action of the forklift

Specification

Counterweight tonnage	1-16T
Bore diameter	35~90mm
Rod diameter	20~80mm
Work Pressure	12~25MPa
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.

Service

20 years of experience in hydraulic cylinder manufacturers.

MPM cylinders are mainly used in:

Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/ forklifts/ tractors/ loaders/ excavators)

Industrial equipment

(Hydraulic cylinders/ tie rod cylinders/ compact cylinders)

Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

Customization

If you can provide us with the following technical parameters, we can design and customize loader tilt cylinder according to your needs:

Bore
Rod diameter
Stroke
Working pressure
Installation type
Push or pull back capacity

Frequently Asked Questions (FAQ)

What is the standard working temperature range for your cylinders?

The standard operating temperature range for our hydraulic cylinders is -30℃ to +80℃.

What steering force capacities can you provide?

We offer maximum steering force ranging from 50KN for small tonnage models up to 500KN for large tonnage models.

What is included in the after-sales service?

We provide a 2-year warranty on core components, accompanied by video technical support, online customer assistance, spare parts supply, and on-site maintenance and repair.

Can you manufacture non-standard or customized hydraulic cylinders?

Yes, customization is our first principle. We design non-standard cylinders tailored to your specific application requirements, backed by mechanical test reports and video factory inspections.

What material and surface finishing options are available?

Our cylinders are available in Carbon steel, Alloy steel, and Stainless steel. Surface treatment includes comprehensive stages: sandblasting, primer paint, middle paint, and finish paint.

What parameters are needed to request a custom design?

To customize your cylinder, please provide the bore size, rod diameter, stroke length, working pressure, installation mounting type, and required push or pull back capacity.
