Precision Hydraulic Manifolds & Core Actuation Components
Engineered to withstand rigorous operational duties across high-pressure excavation, material extraction, and precision automated manufacturing platforms.
Global State of Hydraulic Manifold Block Architecture
Transitioning from complex legacy plumbing to high-density Hydraulic Integrated Circuits (HIC) for superior thermal management, near-zero leakage, and reduced spatial footprint.
Monoblock vs. Modular Paradigms
Modern fluid power engineering demands a shift away from flexible hoses and fittings toward solid-forged steel and continuous-cast ductile iron manifold blocks. Monoblock systems eliminate up to 80% of external leak paths, consolidating counterbalance, relief, and proportional direction controls within an optimized solid envelope.
CFD Flow Path Optimization
Internal fluid turbulence generates parasitic energy loss, elevated heat signatures, and cavitation. Cutting-edge manufacturing leverages Computational Fluid Dynamics (CFD) to design 3D-curved interconnecting galleries, decreasing localized hydraulic pressure drops across channels by up to 22% compared to conventional orthogonal drilling.
Zero-Leakage & Pressure Integrity
With operational demands pushing system working thresholds to 350-420 bar (5000+ PSI), base materials such as QT450 ductile iron, 6061-T6 aluminum, and 45# forged carbon steel undergo ultrasonic flaw detection to ensure homogenous density free from blowholes, inclusions, and structural micro-fissures.
Why Tier-1 OEMs Source Manifold Blocks from China
Combining complete regional raw material clusters, synchronized multi-axis machining cells, and stringent metrological verification to deliver high-volume precision with unprecedented lead times.
Vertical Supply Chain Synthesis
Our facility in Qingdao, Shandong, resides within China's primary precision forging and casting industrial cluster. This provides immediate access to certified high-density metallurgical billets, surface treatment subcontractors (zinc-nickel, hard anodizing, phosphating), and international deep-water logistics.
Sub-Micron Multi-Axis Machining
Configured with dedicated multi-axis horizontal machining centers (HMC) utilizing standardized Sun, HydraForce, and Rexroth cavity tooling. High-rigidity spindles maintain cavity concentricity, thread runout, and cross-port intersection tolerances under 0.005mm (5µm).
Stringent Cleanliness & Deburring (NAS 1638)
Subsurface micro-burrs within intersecting cross-drilled channels remain the leading cause of hydraulic valve spool jamming. MPM deploys high-pressure thermal deburring (TEM) and ultrasonic immersion cleaning to achieve particulate cleanliness levels compliant with ISO 4406 16/14/11 standards.
Engineering Material & Cavity Standard Comparison
A systematic technical overview of custom block design options engineered for diverse operating parameters, media types, and ambient working extremes.
| Material Grade | Yield Strength / Pressure Rating | Corrosion Resistance | Primary Industrial Use Cases | Cavity Standards Supported |
|---|---|---|---|---|
| Ductile Iron (QT450 / 65-45-12) | Up to 350-420 Bar (High fatigue resistance) | Moderate; standard black oxide or phosphating | Heavy mobile machinery, excavators, high-shock loaders | Sun Hydraulics, Rexroth, Parker, Vickers |
| 6061-T6 / 7075-T651 Aluminum | Up to 210 Bar (Lightweight, low thermal inertia) | Excellent; hard sulfuric or nickel-acetate anodizing | Aerial work platforms, mobile truck cranes, robotics | HydraForce, Comatrol, ISO metric cavities |
| Forged Carbon Steel (AISI 1045 / C45) | Up to 500 Bar (Extreme structural durability) | Standard; electro-galvanized or zinc-nickel alloy | Deep-hole mining drills, ultra-high tonnage hydraulic presses | Custom cartridge standards, DIN/ISO flanged |
| Stainless Steel (316L / 1.4404) | Up to 400 Bar (Acid, alkali & salt-fog immune) | Maximum; natural passivated or electropolished | Offshore energy drilling, marine winch blocks, chemical processing | Metric ISO, SAE J1926 O-ring boss, NPTF |
Mission-Critical Operational Applications & Global Trends
Analyzing how integrated manifold block solutions eliminate fluid distribution failure points across rigorous mechanical sectors worldwide.
Underground Mining & Mucking
Underground Load-Haul-Dump (LHD) loaders face severe rock impacts, abrasive quartz dust, and tight clearances. Integrated manifold blocks protect counterbalance and load-holding circuits from direct mechanical strikes, preventing catastrophic arm drop upon external hose severing.
Heavy Construction & Excavators
Consolidated multi-valve manifolds govern primary boom, arm, and swing movements. High-precision pilot relief control ensures fine inching movements for bucket grading while absorbing peak pressure spikes caused by sudden hydraulic hammer encounters.
Precision Agriculture & Harvesting
Combine harvesters and multi-furrow reversible ploughs operate within narrow seasonal windows. Manifold blocks deliver seamless electro-proportional flow adjustment to maintain steady header cutting heights regardless of tractor engine RPM variations.
Trend: Smart Electrification & IoT
As the construction machinery sector transitions to hybrid-electric and fully electric platforms, manifold designs are integrating CAN-bus-enabled proportional cartridge valves and pressure transducers directly into the core metal matrix to deliver real-time predictive maintenance metrics.
OEM/ODM Procurement: Engineering Verification Protocol
A rigorous 5-stage quality management gateway guaranteeing dimensional, fluid-dynamic, and metallurgical compliance prior to container loading.
1. Schematic Audit & Cross-Hole Analysis
Before metal cutting, our engineering department reviews your hydraulic circuit schematic (DWG/DXF/PDF). We calculate optimal drill diameters, wall thickness thresholds, and flow speeds to avert localized overheating and eliminate acute drill breakthrough points.
2. Multi-Axis Machining & Cavity Reaming
Blocks are machined in temperature-regulated CNC centers. Specialty reamers cut step profiles and thread cavities matching SAE, BSPP, or metric criteria with mirror finishes (Ra 0.4-0.8µm) at all internal valve seating faces to guarantee bubble-tight sealing.
3. 100% CMM & Proof Pressure Validation
Every critical port coordinate is probed via high-precision Zeiss Coordinate Measuring Machines (CMM). Finished blocks undergo 1.5x working proof-pressure testing on automated test benches to verify structural integrity and prevent zero internal inter-gallery bypass.

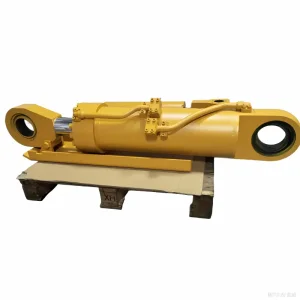

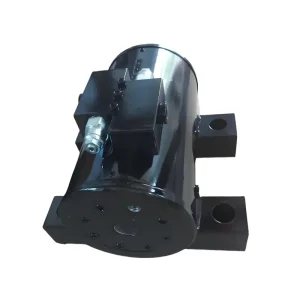

High-Performance Actuators & Valve Block Subassemblies
Fully certified precision-machined components manufactured to customer specifications, ready for immediate integration into heavy mechanical assemblies.
Frequently Asked Technical & Sourcing Questions
Key information regarding tolerances, material testing, surface treatments, and international shipping protocols.
