China Chassis Telescopic Cylinder Manufacturer, Factory

1 / 1

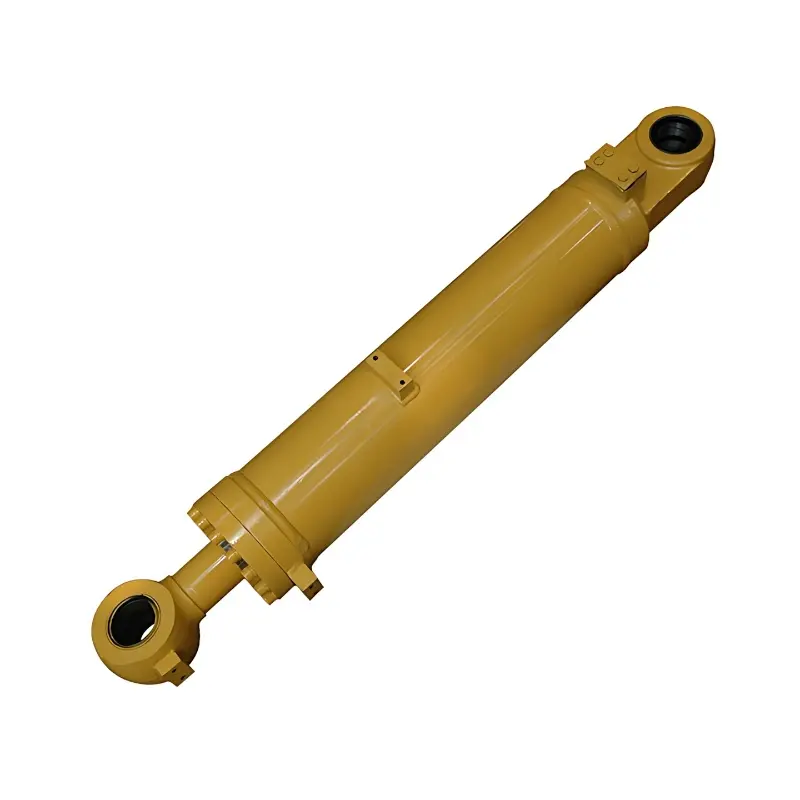

China Chassis Telescopic Cylinder Manufacturer, Factory

The small excavator chassis telescopic cylinder is used to control the dynamic adjustment of the chassis width to meet the needs of narrow space operations and stable support in complex terrain. Through precise telescopic control, the equipment's passability and operation safety are significantly improved.

Send Inquiry

Product Description

Description

Working temperature

The standard temperature range is -25℃～+100℃, and some products can be extended to -40℃～+120℃.

Working pressure

Generally 21～29.4MPa.

Telescopic speed

50-150mm/s (adjustable in both directions), can be precisely adjusted with the flow control valve.

Comprehensive after-sales service

Our customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable

As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Features

Used to realize the telescopic function of the excavator chassis, thereby adjusting the width of the entire machine.

Specification

Cylinder diameter	50mm~120mm
Rod diameter	30mm~70mm
Stroke	300mm-800mm
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is the first principle of MPM.
