State of the Art: Heavy-Duty Lifting Cylinder Technologies
Understanding the transition from conventional hydraulic actuators to highly engineered, sensor-integrated, and fatigue-resistant linear lifting systems.
Tribological Advancement & Longevity
Modern lifting cylinders operate under extreme pressure regimes (>35 MPa) and intermittent shock loading. Factory innovations in micro-crack hard chrome plating, nickel-chromium duplex layering, and high-frequency induction hardening of piston rods (depth 1.5–3.0 mm, hardness HRC 54–60) have reduced seal friction coefficients by up to 28% while eliminating micro-spalling during prolonged holding periods.
Integrated Fluid Logic & Safety
Modern OEM machinery mandates failsafe operational continuity. Dedicated lifting cylinder factory designs no longer treat valves as external add-ons. Instead, manifolds and counterbalance valves (such as the MPM-HCVB3A series) are mounted or directly bored into cylinder end caps, mitigating line-rupture hazards, ensuring zero-drift load suspension, and yielding response latencies under 15 ms.
Lightweighting & High-Yield Alloys
To reduce parasitic deadweight on mobile crane booms and aerial platforms, our engineering workshops employ thin-walled, cold-drawn seamless tubing in 27SiMn and St52-3 alloys. Combined with finite-element stress analysis (FEA), the cylinder wall thickness is dynamically profiled along stress gradients, dropping overall cylinder assembly weight by up to 22% without sacrificing burst margins.
Global Sourcing Dynamics: Mitigating OEM Purchasing Risks
International procurement managers require verified supply stability, rigorous metallurgical integrity, and rapid engineering iteration rather than mere catalogue pricing.
Dimensional Interchangeability
Global equipment builders face costly retrofit penalties when replacement parts deviate by fractions of a millimeter. Our factory enforces pin-to-pin retracted length tolerance within ±0.5 mm and mounting eye concentricity within ±0.03 mm across entire production batches.
Impulse Surge Resistance
Lifting cylinders in excavators and underground loaders experience peak transient hydraulic shocks up to 2.5x rated system pressure during sudden stops or boulder strikes. Our barrel end closures utilize deep-penetration submerged arc welding (SAW) verified via ultrasonic NDT.
Contaminant Ingress Mitigation

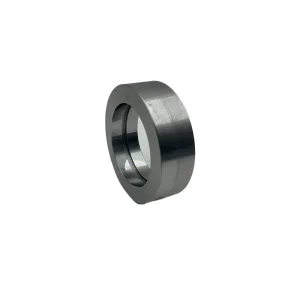

Operations in abrasive silica, foundry dust, and saltwater mist degrade rod packings quickly. We integrate double-lip metal-cased polyurethane wipers, PTFE-bronze buffer seals, and self-lubricating spherical plain bearings (MPM-HCSB11) designed to reject particulate down to 3 µm.
Rapid Prototype-to-Series Lead Time
Delays in initial engineering prototypes stall field validation tests. Operating our own in-house toolroom, CNC chuck arbors (MPM-CTH400), and rapid fixture machining allows Qingdao Micro Precision to finalize custom DFM drawings within 48 hours and export trial units in 14 days.
Macro-Industry Turnkey Hydraulic Lifting Solutions
Engineered around specific kinematic linkages, duty cycles, and operating envelopes for high-reliability mobile equipment.
| Equipment Vertical | Kinematic Challenge | Actuator Architecture | Pressure & Bore Metrics | Integrated Factory Solutions |
|---|---|---|---|---|
| Earthmoving & Excavators | Rapid digging impact cycles, side-loading during slewing, rock shockwaves. | Double-acting welded cylinder with dual-end internal hydraulic cushioning spears. | Bore: 80–280 mm Operating: 35 MPa Proof: 52 MPa |
Forged cylinder base, MPM-HCB101 bucket actuators, MPM-HCB212 boom lift assemblies with induction-hardened chrome rods. |
| Underground Mining (LHD) | Sulfuric moisture, acidic slurry, confined envelope, extreme breakout forces. | Heavy-wall seamless barrel with high-impact spherical bearings and nickel-chrome rods. | Bore: 120–320 mm Operating: 42 MPa Proof: 65 MPa |
Underground LHD lift actuators with sealed maintenance-free spherical bearings and chemical-resistant viton/PTFE packs. |
| Aerial Work Platforms (AWP) | Human life critical safety, zero tolerated hydraulic drift, tight envelope constraints. | Internal counterbalance load-holding valves, high-yield multi-stage extensions. | Bore: 63–180 mm Operating: 25 MPa Proof: 38 MPa |

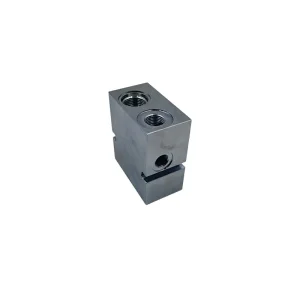

MPM-LCSV12 cartridge manifolds, integrated check valves, rotary actuator HCR801 for stable boom articulation and leveling. |
| Municipal Sanitation & Refuse | Corrosive municipal leachates, unremitting continuous compaction cycles. | Telescopic multi-stage cylinders or double-acting compact dump-body actuators. | Bore: 90–210 mm Operating: 21 MPa Proof: 32 MPa |

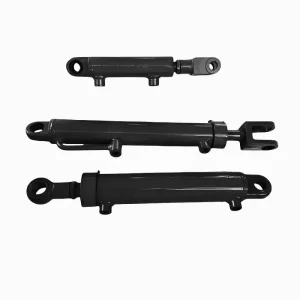

Corrosion-resistant epoxy coatings, garbage truck lifting cylinders with scrapers, precision threaded gland nuts (MPM-HCNT11). |
| Precision Agricultural Implements | Seasonal 24/7 duty windows, high vibration, ambient dust, tractor circuit integration. | Reversible turnover double-acting actuators with automatic sequence valving. | Bore: 70–140 mm Operating: 20 MPa Proof: 30 MPa |
Stepless width-adjustment mechanisms, integrated check valves, standard ISO coupling compatibility. |
Factory Process Architecture: The Micro Precision Standard
Operating from our Qingdao industrial hub since 2006, our vertically integrated plant controls every critical tolerance in-house.
Deep Skiving & Roller Burnishing (SRB)
Barrel bores are processed on dedicated CNC skiving machines rather than traditional slow honing. This produces internal bore roundness within 0.02 mm, mirror-like surface roughness (Ra ≤ 0.15 µm), and induces compressive residual stress in the tube wall, enhancing fatigue life under cyclical loading.
CNC Head & Piston Concentricity
Cylinder heads (MPM-HCHD11) and pistons (MPM-HCPT11) are turned and threaded in a single clamping setup using precision collet fixtures and side-lock tooling (MPM-CTH386). Thread tolerances strictly conform to ISO 6H, guaranteeing zero axial binding between the rod and piston gland under full extension.
100% End-of-Line Hydrostatic Testing
No lifting cylinder departs our Qingdao facility without automated multi-stage pressure verification. Assemblies undergo low-pressure friction verification (0.5 MPa), full-stroke static proof holding at 1.5x working pressure for 180 seconds, and laser particle oil cleanliness screening to ISO 4406 (18/16/13).
The Next Era of Lifting Actuation: 2025–2035
As mobile equipment migrates toward battery electric drivetrains and autonomous job-site coordination, the OEM lifting cylinder becomes a smart, responsive sensor node.
Embedded Linear Absolute Positioning
Integrating contactless magnetostrictive and optical wave sensors directly inside the hollowed cylinder piston rod. This enables real-time stroke position feedback (±0.1 mm resolution) to autonomous excavator grading computers (BIM) and AWP anti-tip stability systems without exposed external cabling.
Eco-Hydraulics & Bio-Fluid Tribology
With tightening environmental mandates across forestry, marine civil works, and urban infrastructure, our engineering teams are developing custom seal matrices compatible with synthetic ester (HEES) and polyglycol (HEPG) biodegradable fluids without seal hardening or chemical swelling.
Electro-Hydrostatic Actuation (EHA) Ready
As hybrid-electric and fully electric excavators discard centralized hydraulic diesel pumps, we are partnering with OEMs to manufacture decentralized closed-loop EHA cylinders: self-contained units featuring integrated micro-pumps, BLDC motors, and localized reservoir chambers.
Essential Hydraulic Cylinder Components & Accessories
Precision-machined structural parts, mounting assemblies, and machine-tool accessories engineered to DIN, JIS, and ISO standards.
Technical & Sourcing Inquiries: OEM White Paper FAQ
In-depth answers covering metallurgy, manufacturing tolerances, seal configurations, and international delivery frameworks.
We machine cylinder barrels predominantly from cold-drawn or hot-rolled seamless tubes in 27SiMn, St52-3, or SAE 1026, delivering yield strengths exceeding 520 MPa. Piston rods are specified in high-tensile 42CrMo4 or C45E steel, induction-hardened to HRC 56–60 and hard-chrome plated to a minimum thickness of 25–35 µm. Complete material inspection sheets per EN 10204 Type 3.1 accompany every shipping batch, covering chemical spectrometry, tensile yield (Rm/Rp0.2), Charpy V-notch impact toughness down to -40°C, and ultrasonic non-destructive testing (NDT) results.
Cylinder drift is prevented through three combined technical barriers: first, CNC roller burnishing achieves internal bore roundness within 0.02 mm and micro-surface roughness Ra ≤ 0.15 µm, eliminating micro-groove leakage channels; second, we incorporate tandem polyurethane (PU) step-seals paired with energized PTFE slide rings with zero static extrusion; third, where critical safety is mandated (such as crane booms or aerial lifts), we integrate direct-acting flange-mounted or cavity-integrated counterbalance valve manifolds (such as MPM-HCVB3A) that mechanically lock the fluid column against line-rupture or directional control spool leakage.
Yes. Qingdao Micro Precision Machinery operates dedicated coordinate measuring machines (CMM), optical profilometers, and portable articulating arms to accurately scan physical worn assemblies. Our engineering team calculates the original rod-to-bore ratio, evaluates the worn seal gland geometries, identifies base metal alloy chemistry via portable XRF spectrometry, and issues a comprehensive 3D CAD and 2D fabrication drawing package for your formal engineering approval before machine chips begin flying.
For threaded connections, such as cylinder gland nuts (MPM-HCNT11) and base retention rings, we adhere strictly to ISO 6H internal and 6g external thread precision classes in metric threads, as well as Class 2B/2A for UN/UNF imperial specs. Our CNC machining centres utilize retention knobs conforming to DIN 69872 and JIS B6339, ensuring rigid spindle pull force and exceptional surface finish during high-speed boring and thread milling.
Standard prototype fabrication based on an approved custom engineering drawing requires 14 to 20 calendar days. Full-scale production cycles (container shipments ranging from 200 to 2,000 units) are typically fulfilled within 35 to 45 days. Our 3,500m² factory floor maintains rolling strategic inventories of pre-honed seamless tubes and chrome-plated bar stock in common metric/imperial diameters, substantially insulating client schedules from raw material supply bottlenecks.
To prevent internal and external corrosion caused by marine humidity and temperature fluctuations during 30–60 day ocean voyages, every cylinder is flushed internally with high-grade rust-preventative hydraulic testing oil, ports are hermetically sealed with threaded steel or heavy nylon plugs, rods are coated with wax-based anti-corrosion barrier film, and bodies receive multi-coat polyurethane industrial paint. Units are packed into solid fumigated wooden crates secured with custom high-density polyethylene (HDPE) cradles and strapping to eliminate movement in transit.
